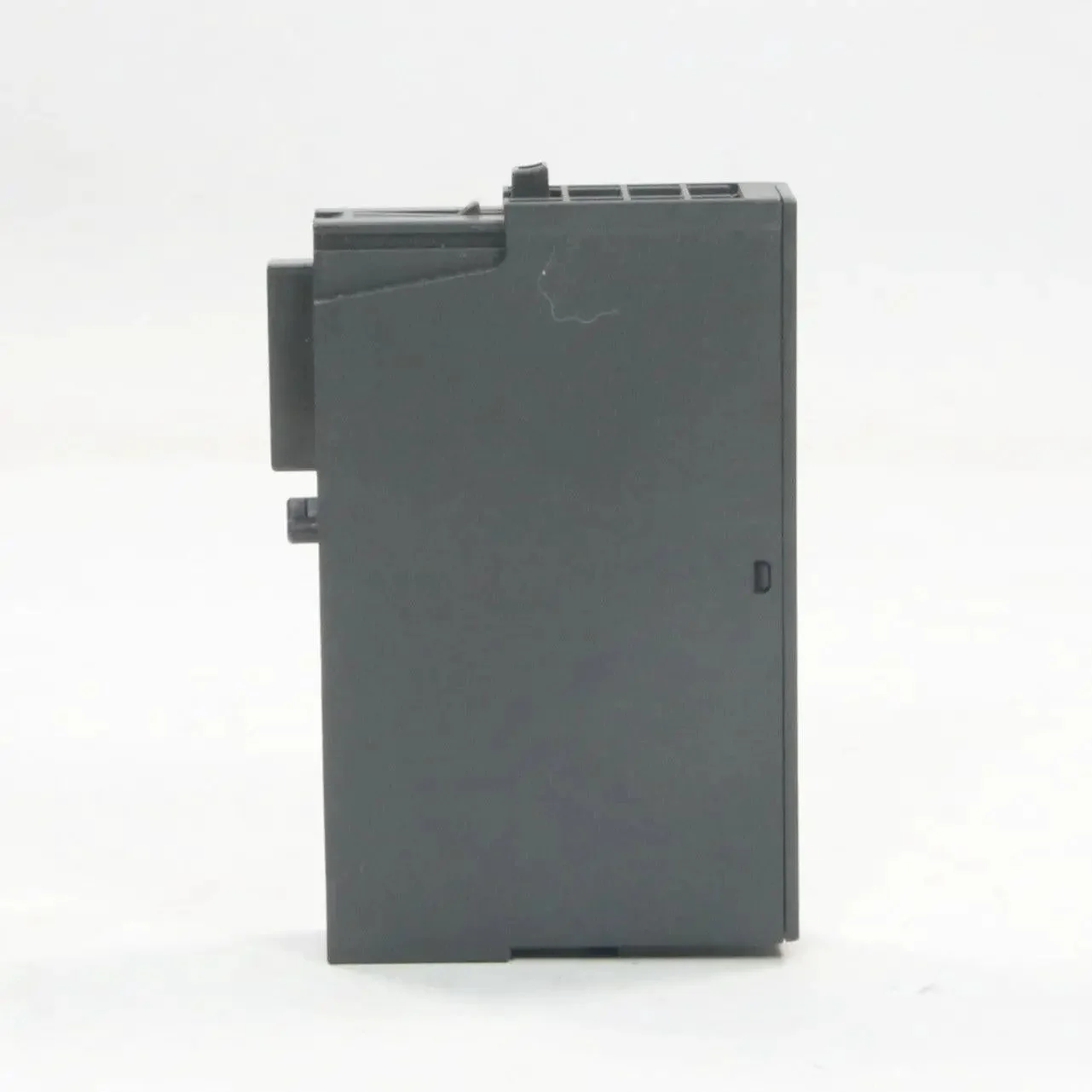

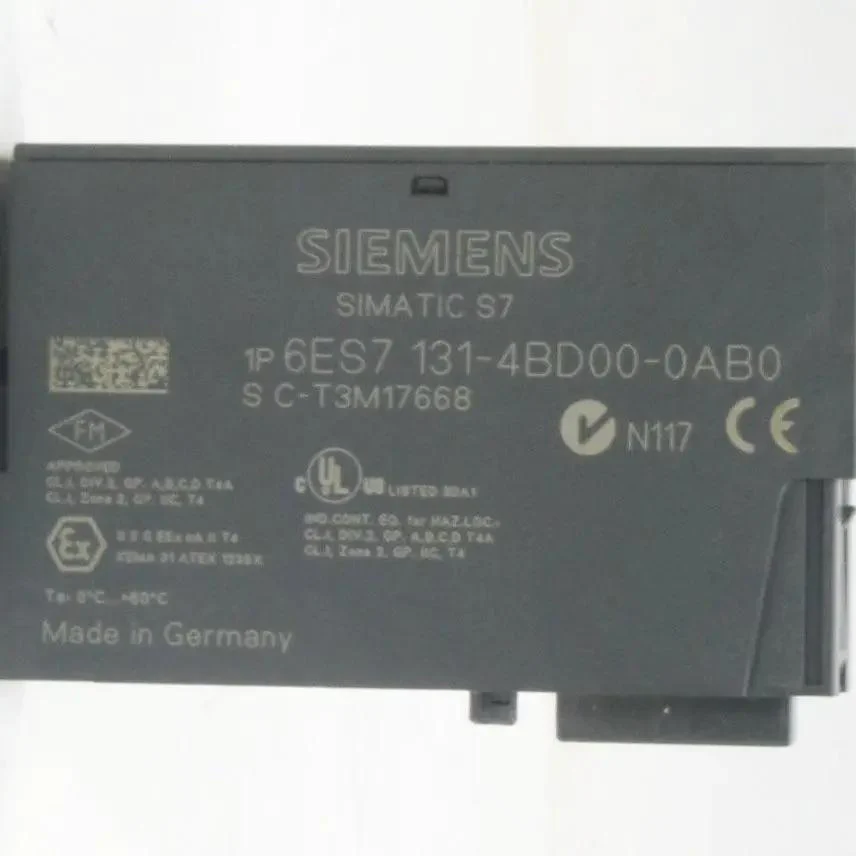

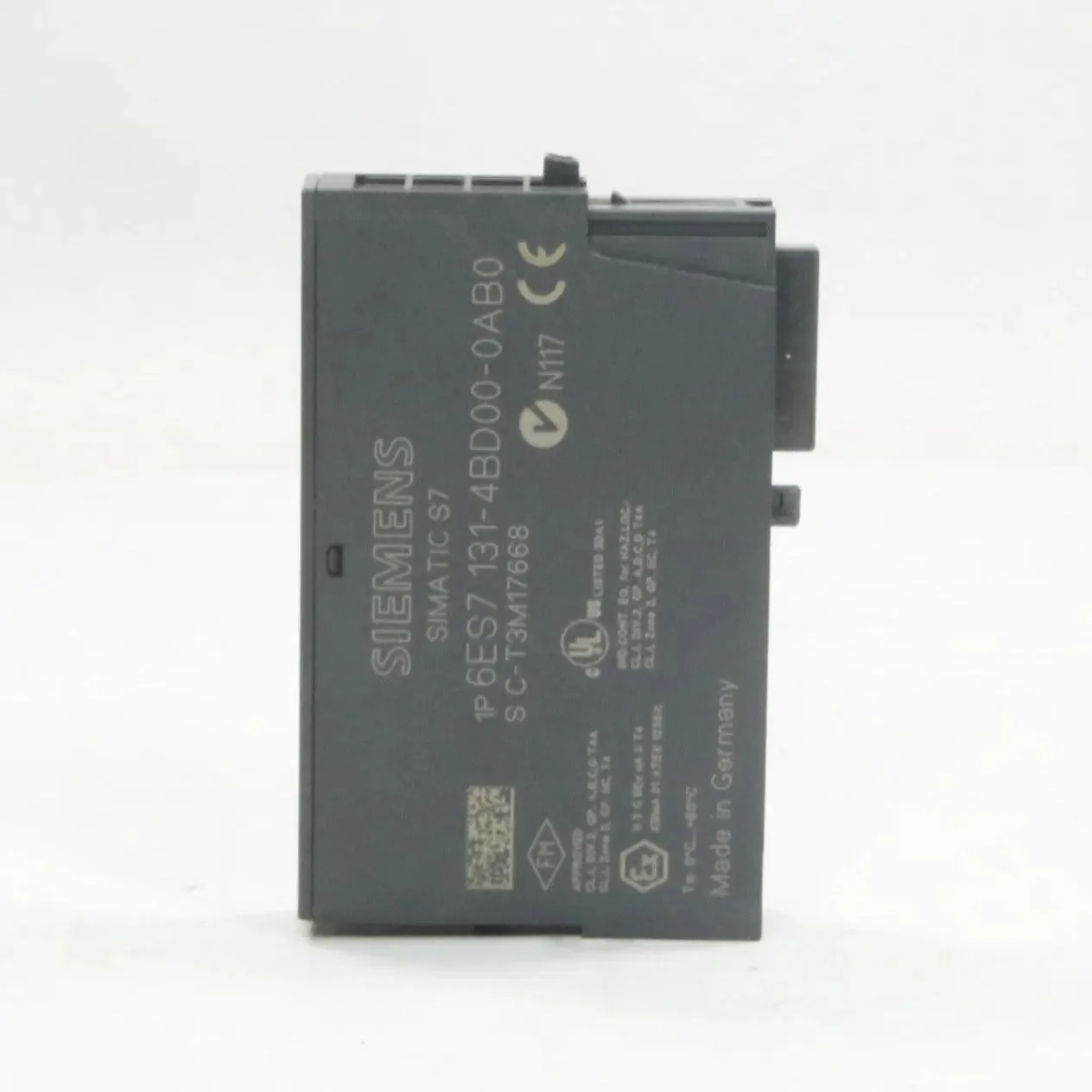

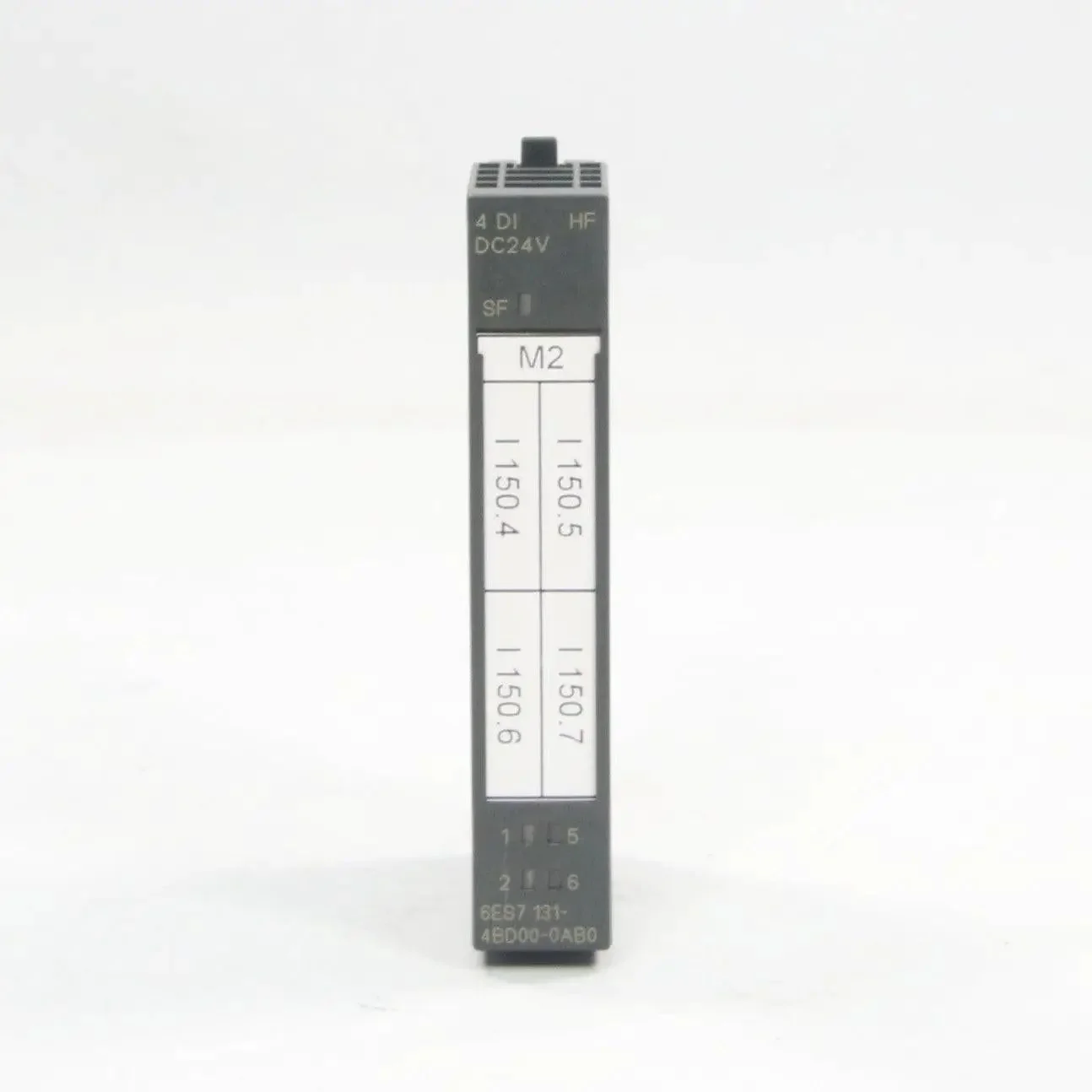

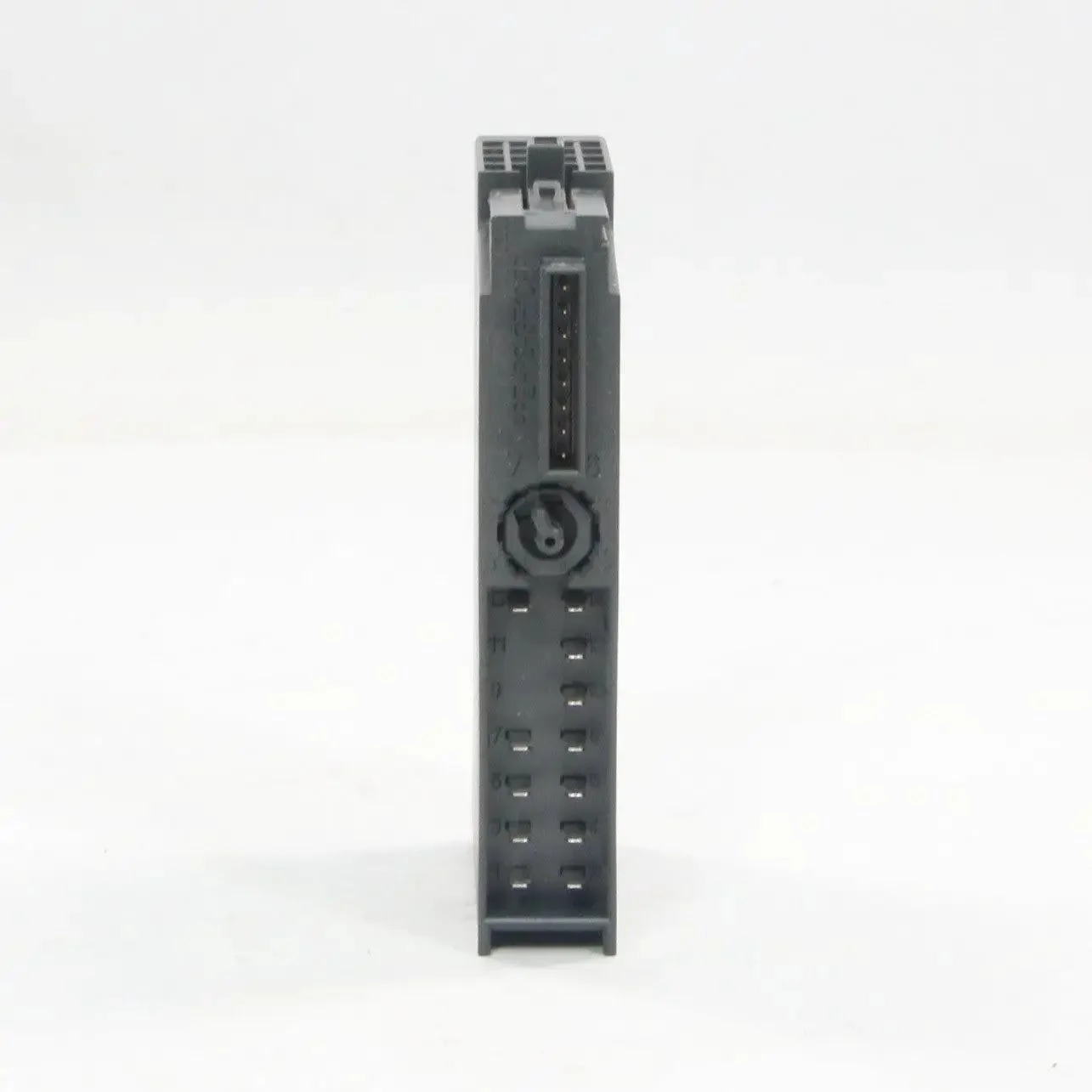

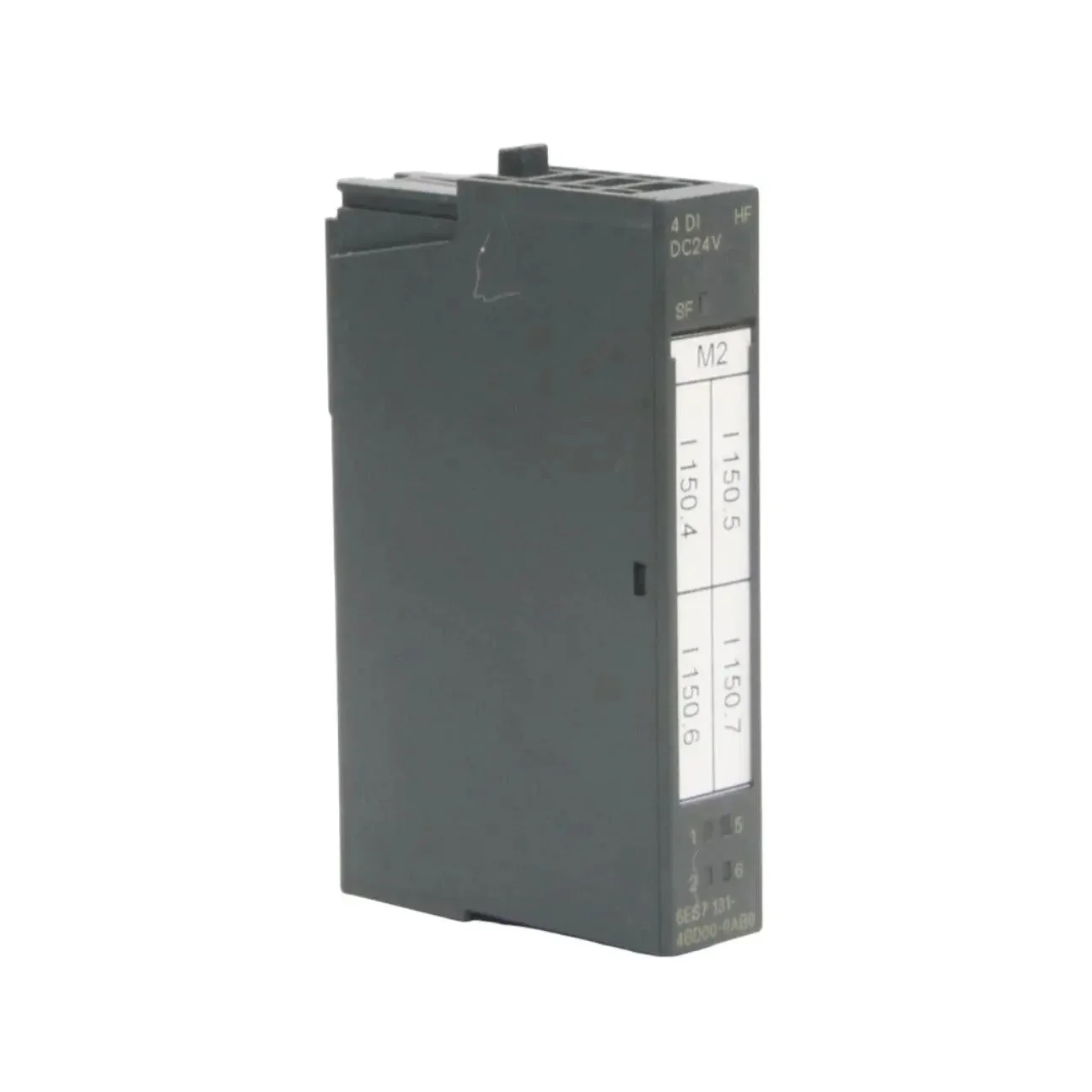

Siemens 6ES7 131-4BD00-0AB0 Digital Input Module
- Brand: Siemens
- Model: 6ES7 131-4BD00-0AB0
- Type: Digital Input Module
- Technical Specifications:
- Series: SIMATIC S7-300 / ET 200S
- Function: Digital electronic module with four inputs
- Number of Inputs: 4
- Input Type: Digital
- Rated Input Voltage: 24 V DC
- Input Current: Approximately 6 mA per input
- Input Delay: Configurable (0.1 / 0.5 / 3 / 15 ms)
- Diagnostics: Short-circuit detection, group fault indication via LED (SF)
- Power Dissipation: Typically 0.8 W
- Ambient Temperature: 0°C to 60°C
- Protection Rating: IP20
- Connection: Via ET 200S terminal modules
- Standards: CE compliant, suitable for industrial automation
- Dimensions: 15 mm x 81 mm x 52 mm
- Weight: 50 g
- Country of Origin: Germany
- HS Code: 85364900
Original: $82.94
-70%$82.94
$24.88
