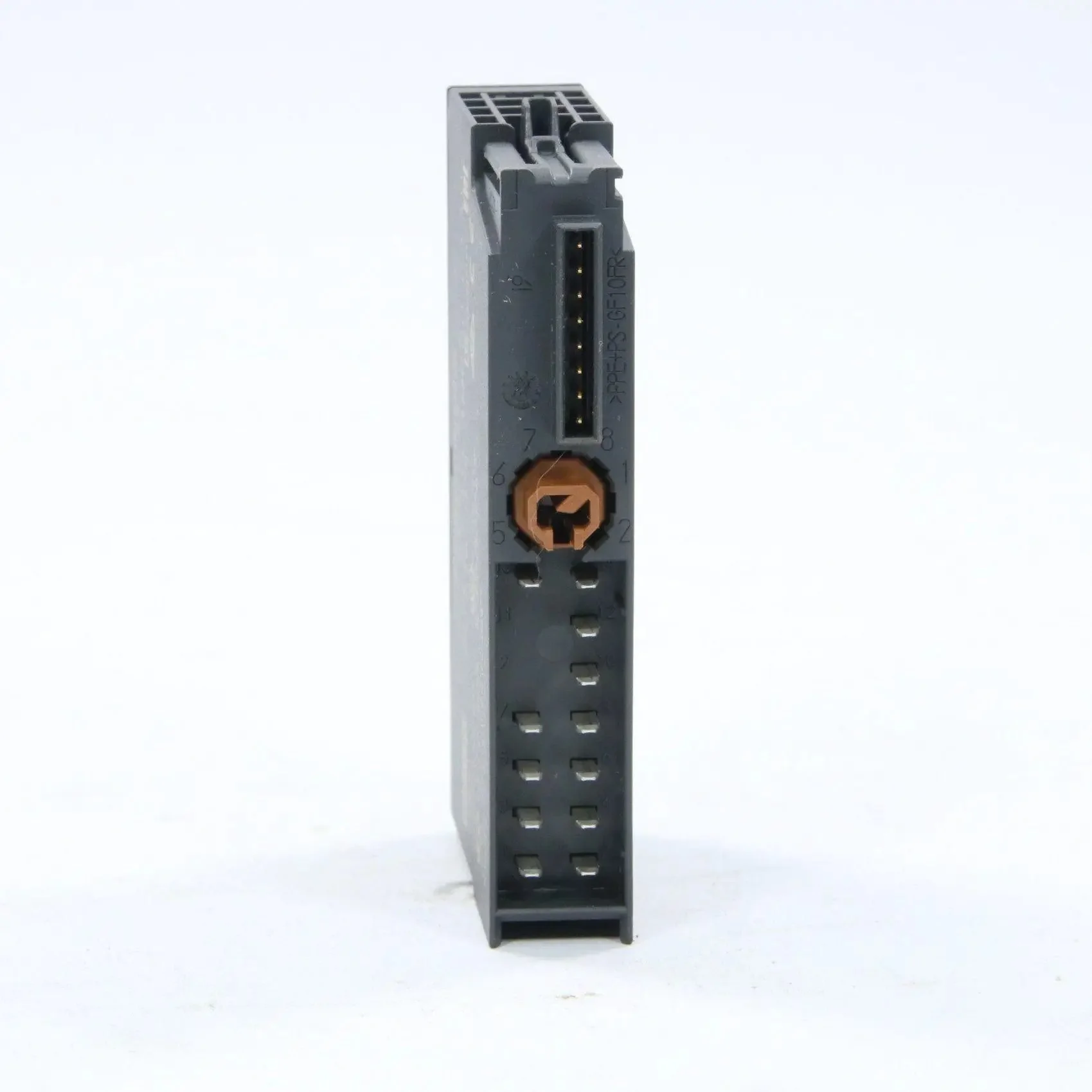

Siemens 6ES7 131-4BD01-0AB0 Digital Input Module x5

- Brand: Siemens
- Model: 6ES7 131-4BD01-0AB0
- Type: Digital Input Module
- Technical Specifications:
  - Series: SIMATIC S7-300 / ET 200S
  - Function: Digital electronic module with four inputs
  - Number of Inputs: 4
  - Input Type: Digital
  - Rated Input Voltage: 24 V DC
  - Input Current: Approximately 6 mA per input
  - Input Delay: Configurable (0.1 / 0.5 / 3 / 15 ms)
  - Diagnostics: Short-circuit detection, group fault indication via LED (SF)
  - Power Dissipation: Typically 0.8 W
  - Ambient Temperature: 0°C to 60°C
  - Protection Rating: IP20
  - Connection: Via ET 200S terminal modules
  - Standards: CE compliant, suitable for industrial automation
  - Features: High-feature design, compact 15 mm width, suitable for distributed I/O systems, advanced diagnostics
  - Applications: Industrial automation, signal acquisition from sensors and switches
- Dimensions: 15 mm x 81 mm x 52 mm
- Weight: Approximately 0.035 kg
- Country of Origin: Germany
- HS Code: 85364900
