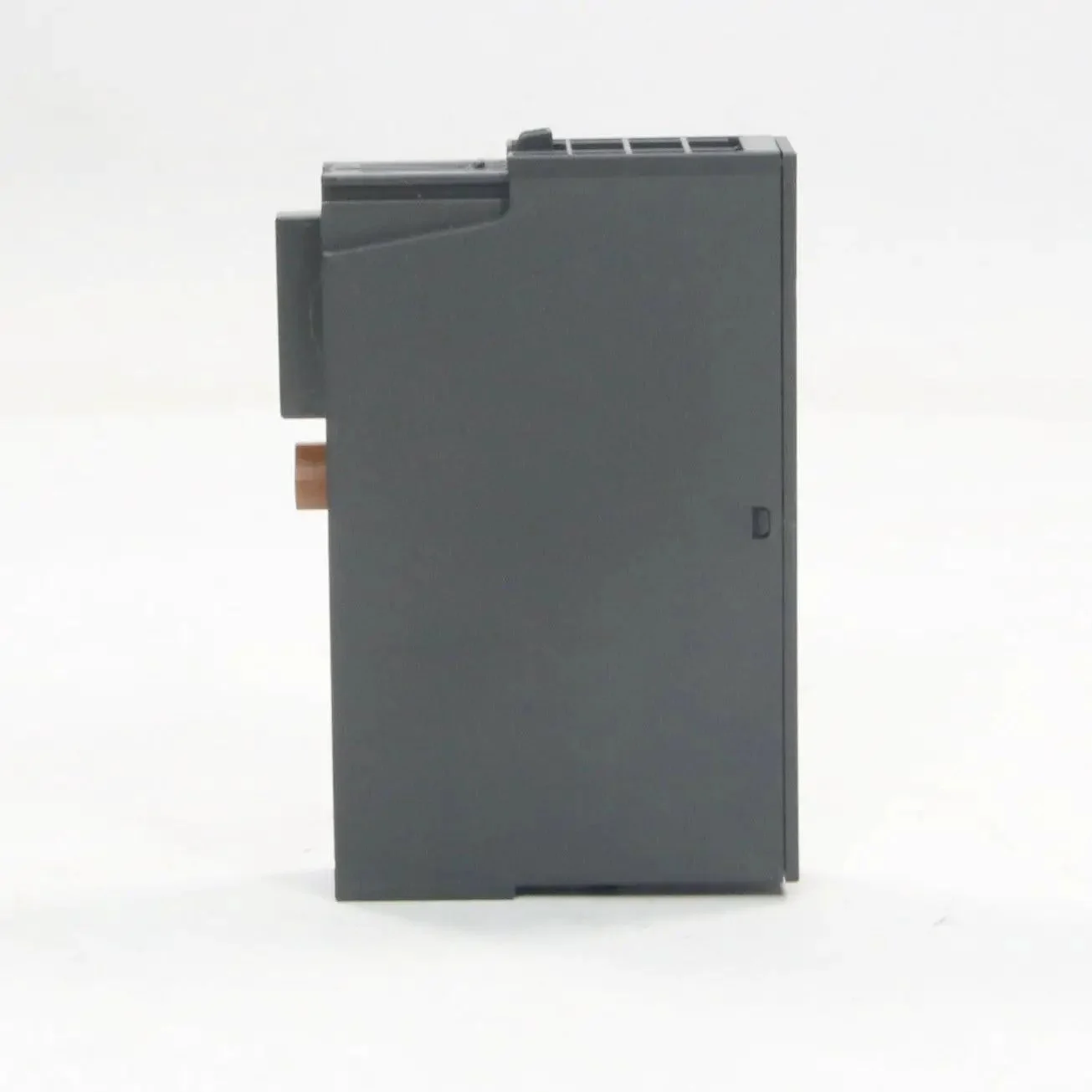

Siemens 6ES7 132-4BF00-0AA0 Digital Output Module

- Brand: Siemens
- Model: 6ES7132-4BF00-0AA0
- Type: Digital Output Module
- Technical Specifications:
  - Series: SIMATIC S7-300 / ET 200S
  - Function: Electronics module for ET 200S, 8 digital outputs
  - Number of Outputs: 8
  - Output Type: Digital transistor (PNP, current-sourcing)
  - Rated Supply Voltage: 24 V DC
  - Output Current: 0.5 A per channel
  - Reverse Voltage, Reverse Polarity & Short-Circuit Protection: Yes
  - Input Current from Load Voltage L+ (Without Load), Max.: 5 mA per channel
  - Input Current from Backplane Bus 3.3 V DC, Max.: 10 mA
  - Lamp Load: Max. 5 W
  - Power Dissipation: Typically 1.2 W
  - Ambient Temperature: 0°C to 60°C
  - Protection Rating: IP20
  - Connection: Via ET 200S terminal modules
  - Standards: CE compliant, suitable for industrial automation
  - Features: Compact 15 mm width, green LEDs for status indication, high reliability for distributed I/O systems
- Dimensions: 15 mm x 81 mm x 52 mm
- Weight: 50 g
- Country of Origin: Germany
- HS Code: 85364900
