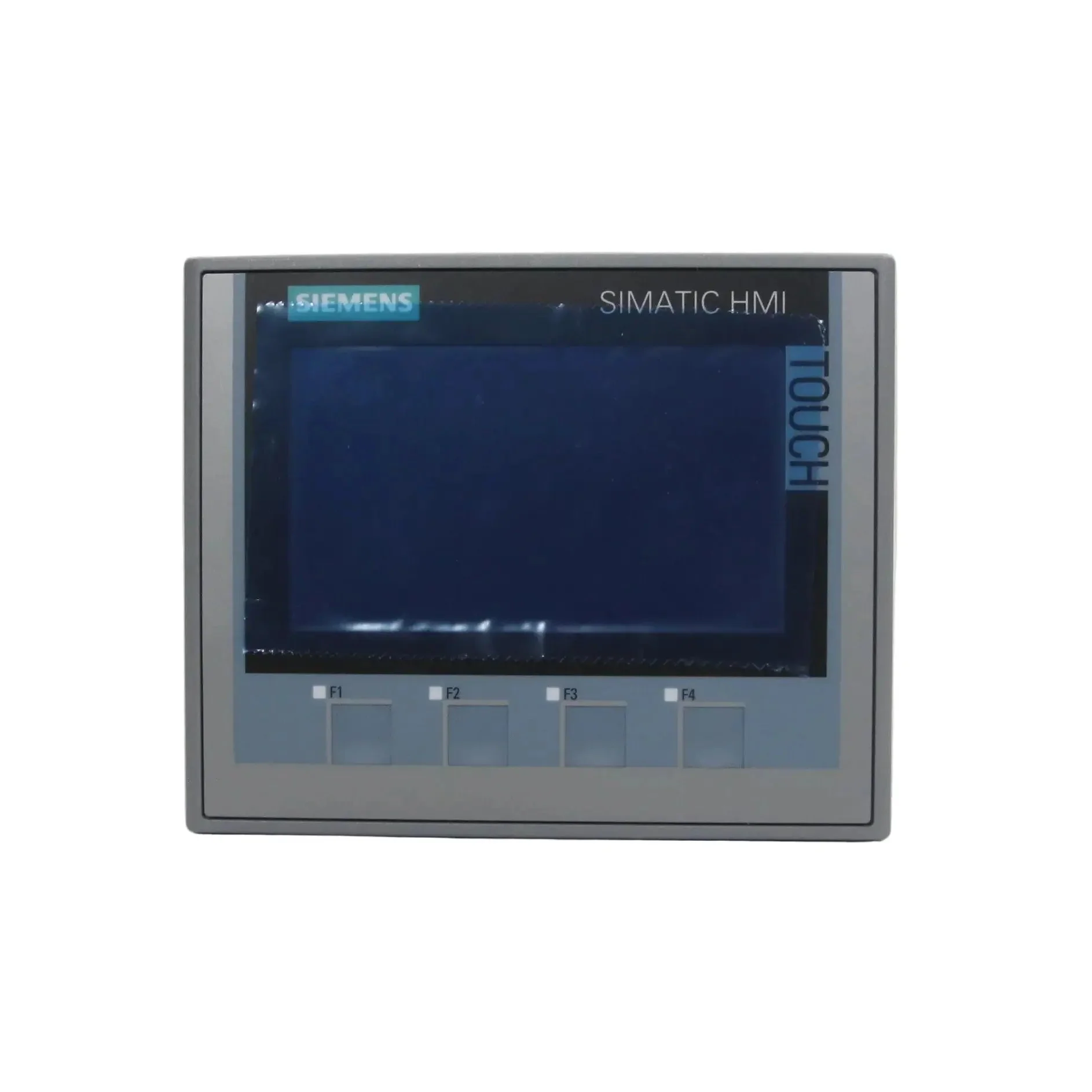

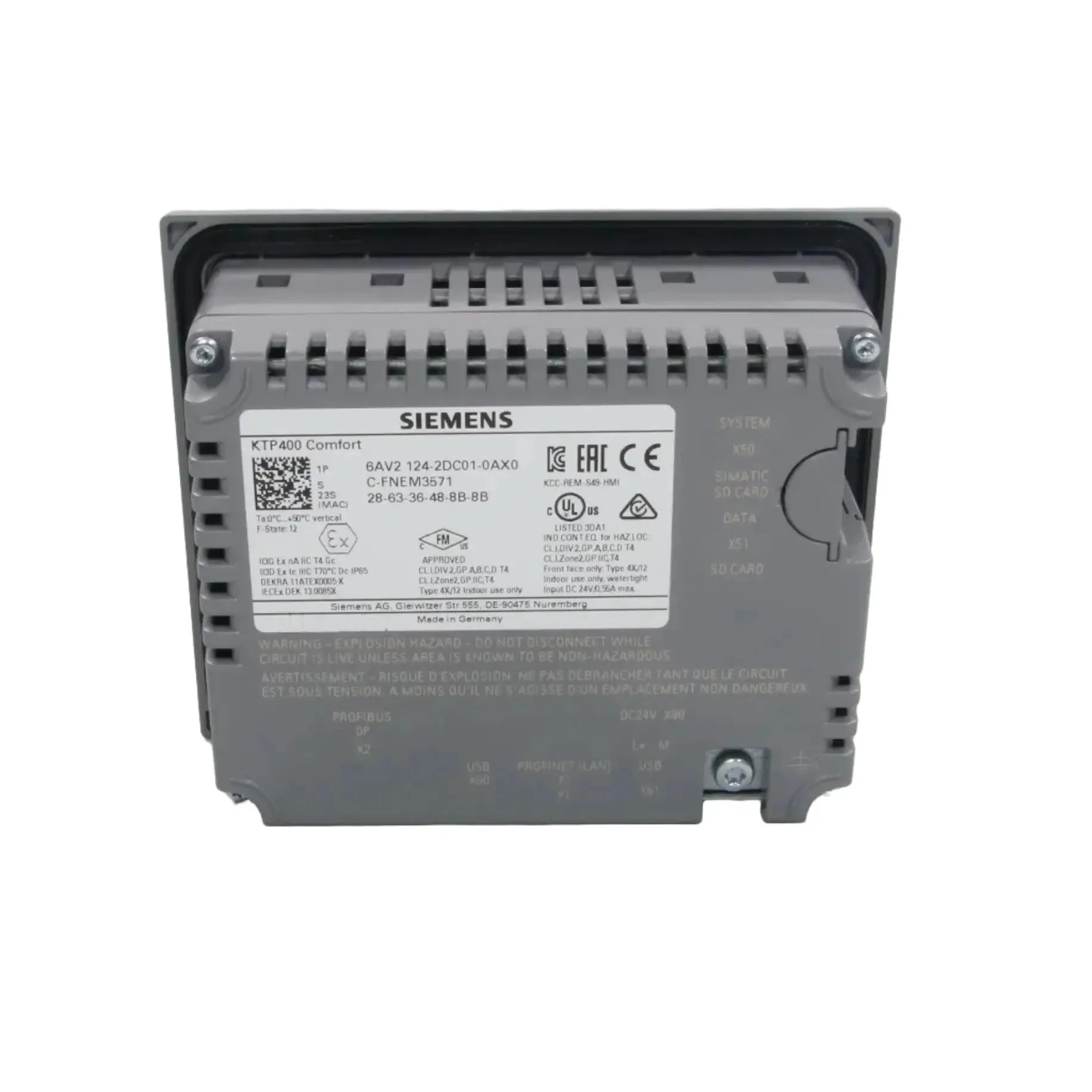

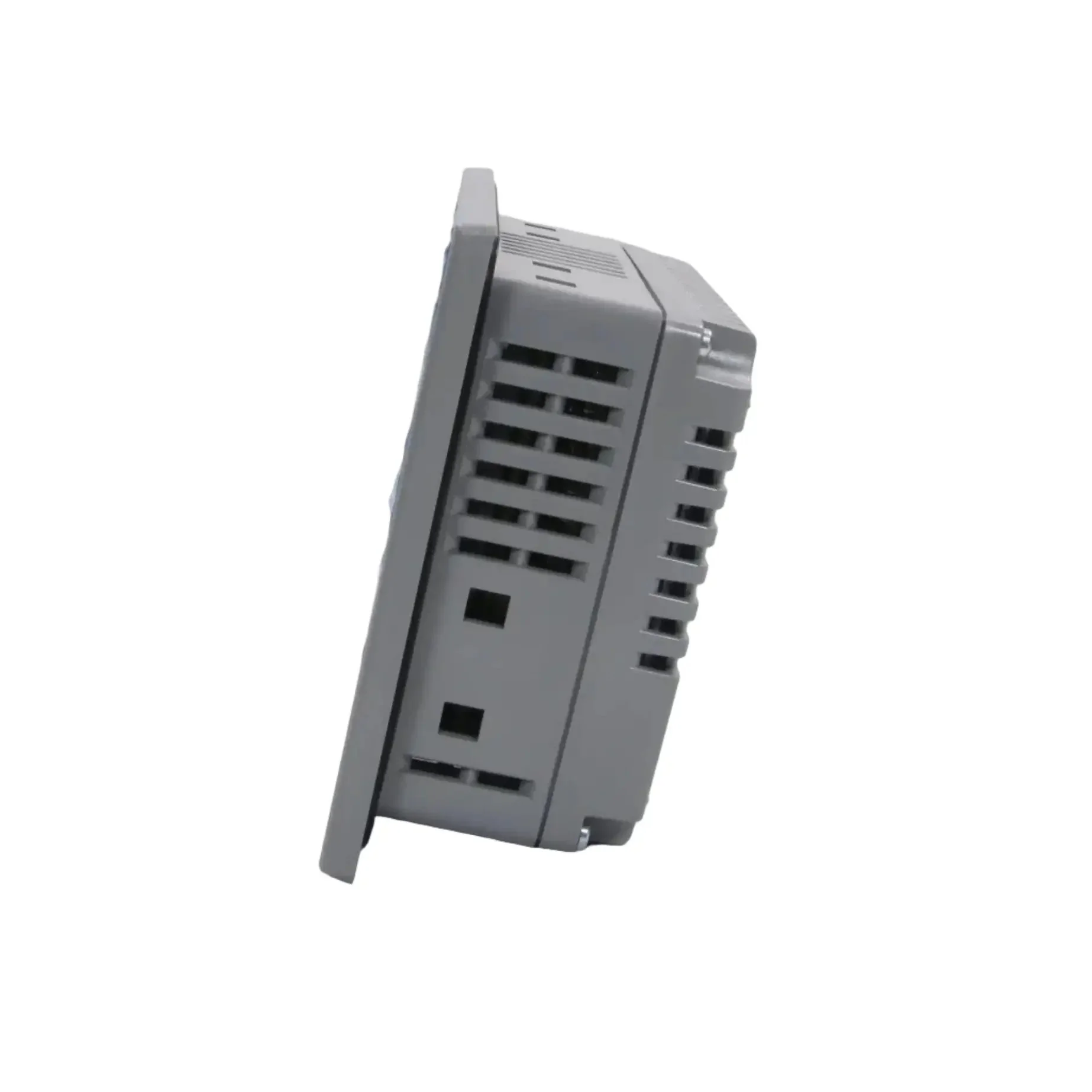

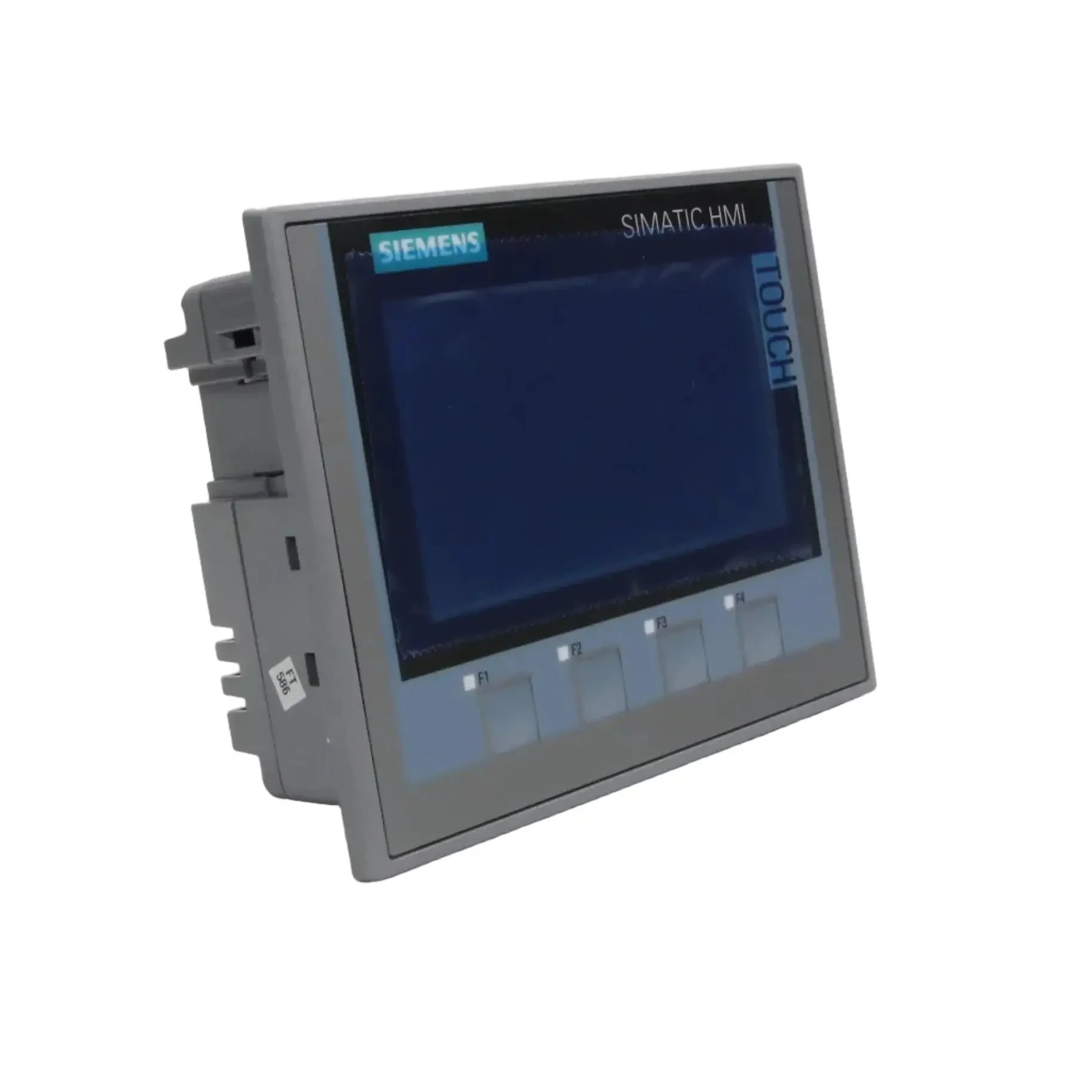

Siemens KTP400 Comfort 6AV2 124-2DC01-0AX0 Touch Panel

Brand: Siemens

Model: Simatic KTP400 Comfort

Part Number: 6AV2124-2DC01-0AX0

Type: Human Machine Interface (HMI)

All tech specs
- Display: 4.3" widescreen TFT, 480 x 272 pixels resolution
- Colors: 16 million (16,777,216)
- Operation: Resistive analog touch screen + 4 function keys with LEDs

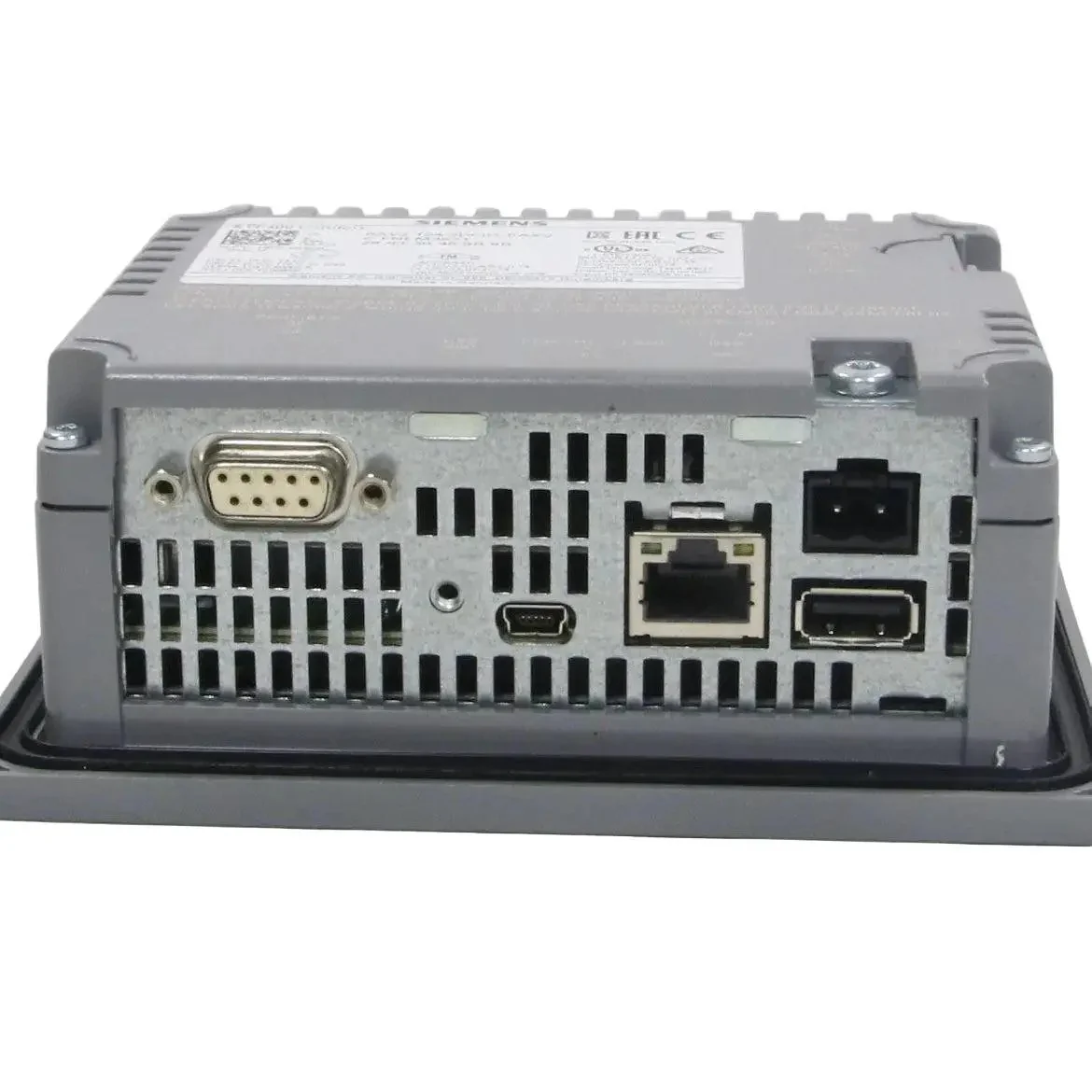

- Interfaces: 1 x PROFINET (Ethernet 10/100 Mbit/s RJ45), 1 x MPI/PROFIBUS DP/RS-422/RS-485 (up to 12 Mbit/s), 1 x USB 2.0, 1 x USB Mini-B, 2 x SD card slots
- Processor: ARM CPU
- Memory: 4 MB configuration/project memory
- Operating system: Windows CE 6.0
- Power supply: 24 V DC (19.2–28.8 V)
- Power consumption: Typical 0.13 A / 3.1 W
- Configuration: From WinCC Comfort V11 (TIA Portal)
- Protection: Front IP65, rear IP20
- Operating temperature: 0 to 50 °C
- Mounting: Panel mount (cut-out 124 x 100 mm)
- Certifications: CE, cULus, ATEX, marine approvals (e.g., DNV, ABS)
- Functions: Alarms, trending, user administration, multilingual support

Dimensions: 200 x 125 x 60 mm

Weight: 750 g

Country of origin: Germany

HS code: 853710
