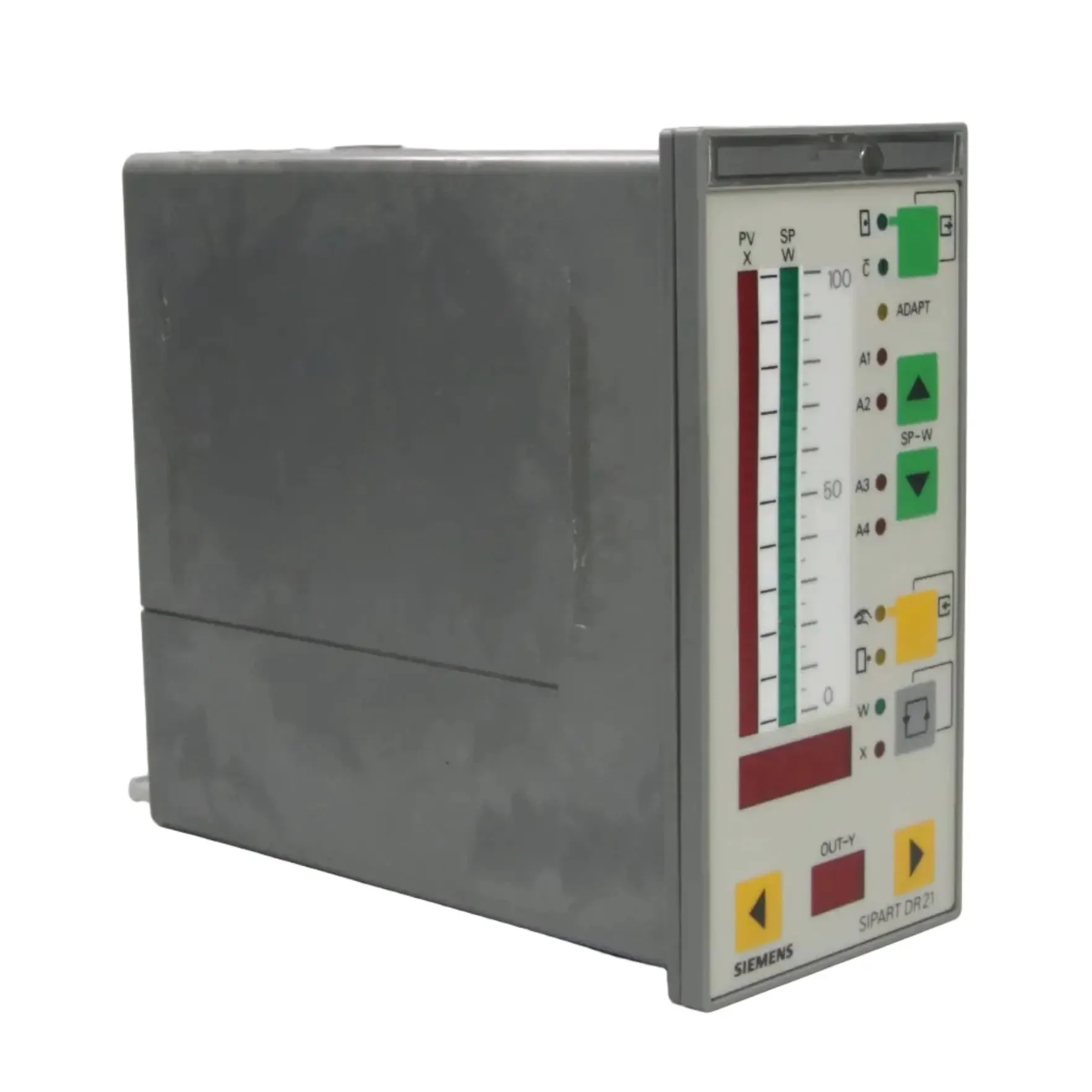

Siemens sipart DR21 6DR2100-5

Brand: Siemens

Model: SIPART DR21

Parts no: 6DR2199-5

Type: Compact Process Controller (Digital PID Controller for Open-Loop and Closed-Loop Control in Process Engineering)

All tech specs
- Power supply: AC 115/230 V (switchable), 50/60 Hz
- Power consumption: Max. 15 W / 18 VA
- Analog inputs: 2 x 0/4-20 mA
- Outputs: K-output (continuous) and S-output (switching)
- Digital inputs: 2 x DC 24 V compatible
- Digital outputs: 2

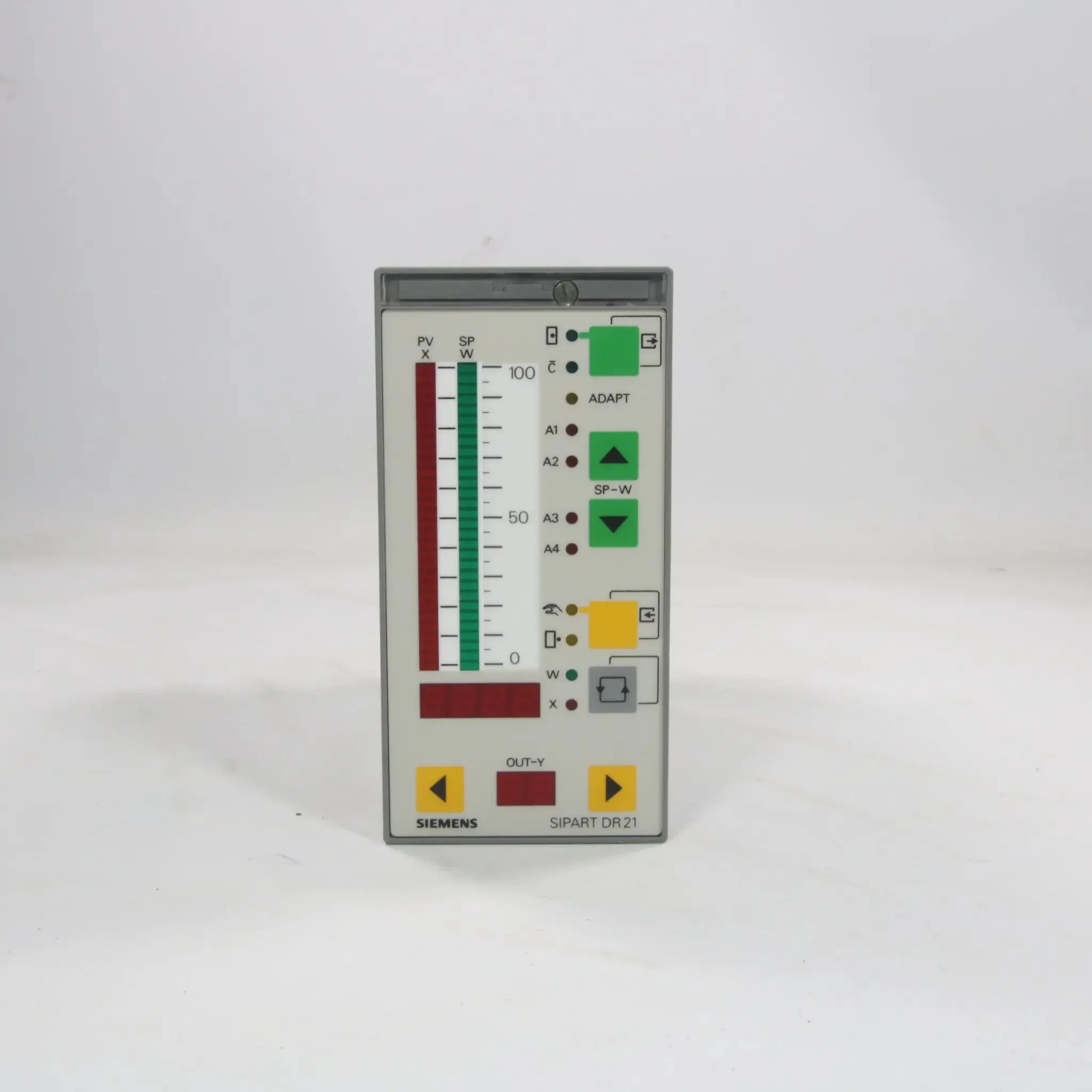

- Display: Front panel with digital display and LEDs
- Control functions: PID control, fixed/setpoint control, cascade, ratio, etc.
- Cycle time: Fixed 100 ms
- Protection class: Housing IP50, terminals IP20 (front IP64 possible with cover)
- Expandable with optional modules (e.g., additional inputs/outputs, serial interface)
- Part of Siemens SIPART DR series for standard control tasks

Dimension
- Width: 72 mm
- Height: 144 mm
- Depth: Approximately 157-200 mm (panel-mount depth)

Weight
1.2-1.5 kg

Country of origin
France

HS code
90328900
