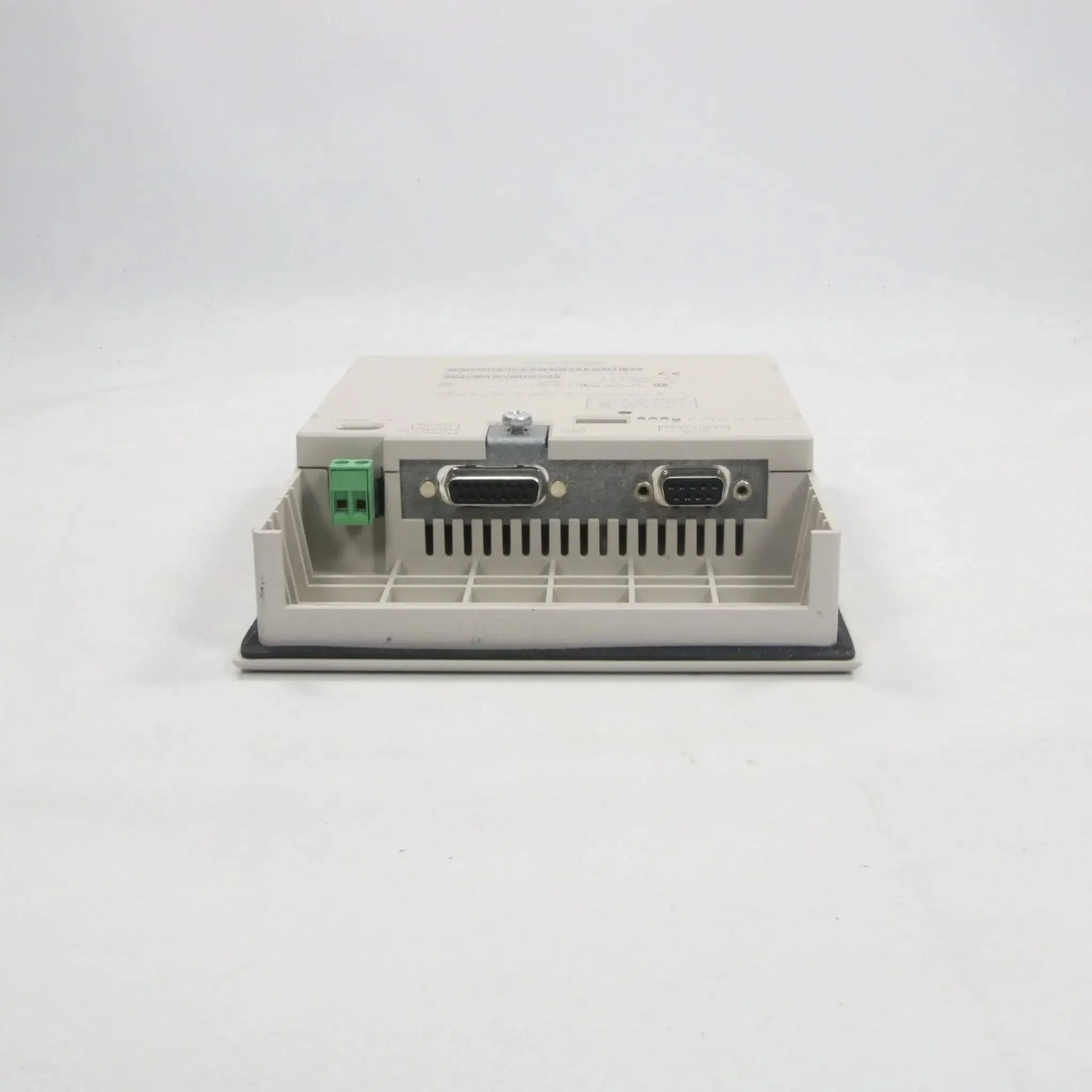

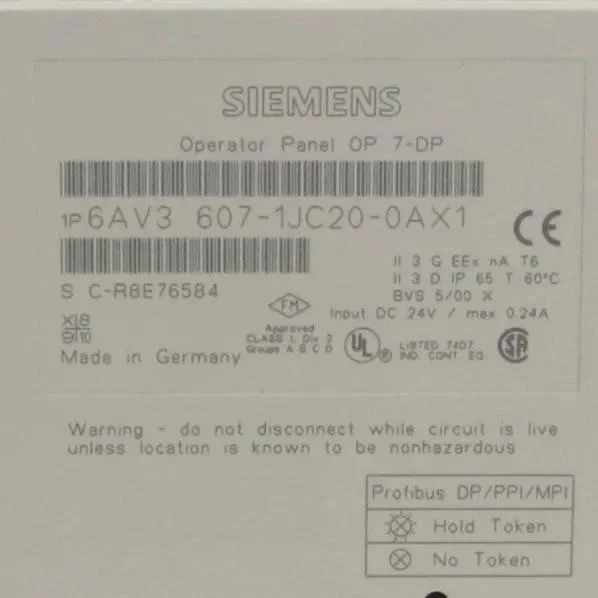

Siemens Simatic OP 7-DP 6AV3 607-1JC20-0AX1 Operator Panel

Brand: Siemens
Model: 6AV3 607-1JC20-0AX1
Type: SIMATIC OP7-DP monochrome text-based HMI for industrial automation and process visualization
All Tech Specs:
- Material: Plastic/Polycarbonate
- Display: High-contrast LCD
- Input Type: Keypad (function keys and alphanumeric entry)
- Memory: 128 Kbyte Flash ROM
- Power Supply: 24 VDC (0.19 A nominal current)
- Power Consumption: ≤5 W
- Interfaces: 1 x RS-232C (for programming and communication); 1 x RS422/485 - PROFIBUS DP (1.5 Mbaud for S7/M7 systems)
- Operating System: Embedded
- Resolution: 240 x 64 pixels (text mode)
- Backlight: LED
- Operating Temperature Range: 0°C to +50°C
- Humidity: 10-90% RH
- Protection Rating: IP65 front
- Vibration Resistance: 9.8 m/s² (10-55 Hz)
- Shock Resistance: 147 m/s² (11 ms)
- Standards: IEC/EN 61131-2; CE marked; EMC compliant (Class A)
- Certification: CE; RoHS compliant; UL/CSA listed
- Features: Supports SIMATIC S7/M7 PLCs; multilingual text display; suitable for basic operator interfaces in machinery and process control; Discontinued
Dimension: 180 x 140 x 40 mm
Weight: 500 g
Country of Origin: Germany
HS Code: 8537.10
