Siemens SIMATIC Mobile Panel 277

Siemens SIMATIC Mobile Panel 277

Siemens SIMATIC Mobile Panel 277 (6AV6645-0CC01-0AX0) Specifications:

  • Product Type: Mobile Human Machine Interface (HMI) Panel
  • Manufacturer: Siemens
  • Model: SIMATIC Mobile Panel 277 (6AV6645-0CC01-0AX0)
  • Device Application: Operator control and monitoring in industrial automation (e.g., PLC systems, machinery)
  • Display Type: TFT, color
  • Display Size: 7.5 inches
  • Display Resolution: 640 x 480 pixels
  • Display Colors: 65,536 colors
  • Backlight MTBF: 50,000 hours
  • Controls:
    • Touchscreen: Analog, resistive
    • Membrane keyboard: 18 function keys (all with LEDs), numeric, alphanumeric, hexadecimal
    • Special controls: Emergency stop button, enabling (acknowledgment) button, key-operated switch, handwheel, two illuminated pushbuttons
  • Processor: ARM, 520 MHz
  • Memory: 6 MB usable project memory, 128 MB maximum flash/RAM
  • Operating System: Windows CE
  • Engineering Software: Configurable with WinCC flexible Standard Version 2005 SP1 or higher, or TIA Portal V11 to V14
  • Interfaces:
    • 1 x RS-422
    • 1 x RS-485
    • 1 x Ethernet (PROFINET)
    • 1 x USB
    • 1 x MMC/SD card slot
  • Communication Protocols:
    • PROFINET IO
    • PROFIBUS
    • EtherNet/IP
    • TCP/IP
    • Modbus
  • Number of Online Languages: 16
  • Number of Password Levels: 50
  • Power Supply: DC 20.4–28.8 V (via connection box)
  • Battery: Bridging battery (max. 10 minutes)
  • Connection Type: Pluggable, via connection box
  • IP Degree of Protection: IP65
  • Maximum Drop Height: 1.2 m (IEC 60068-2-32)
  • Operating Temperature: 0 to 40 °C
  • Storage Temperature: -20 to 60 °C
  • Relative Humidity: Max. 80%
  • Dimensions:
    • Width: 290 mm
    • Height: 290 mm
    • Depth: 103 mm
  • Packaging Dimensions: 39.0 x 39.3 x 20.2 cm
  • Weight: 1.7 kg (product), 2.88 kg (including packaging)
  • Standards Compliance: IEC standards
  • Product Certifications: CE, UL, EAC
  • Special Features:
    • Integrated emergency stop and enabling buttons for safety functions
    • Handwheel for precise manual control
    • Configurable function keys with LEDs for status indication
    • Message indication and system with buffer and confirmation
    • Recipe management support
  • HS Code: 8537.10.98
  • Country of Origin: Austria
  • Product Lifecycle: PM410 (Product cancellation, effective October 1, 2021; available as spare part only)
  • Warranty: 12 months
$4,249.28
Siemens SIMATIC Mobile Panel 277—
$4,249.28

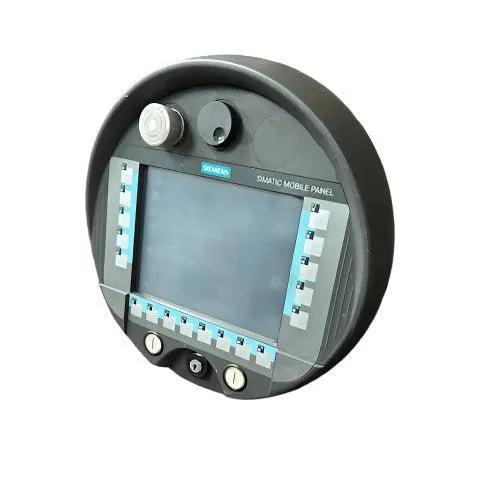

Product image 1

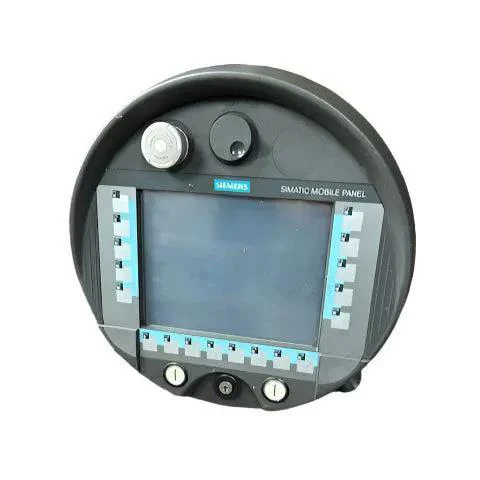

Product image 2
