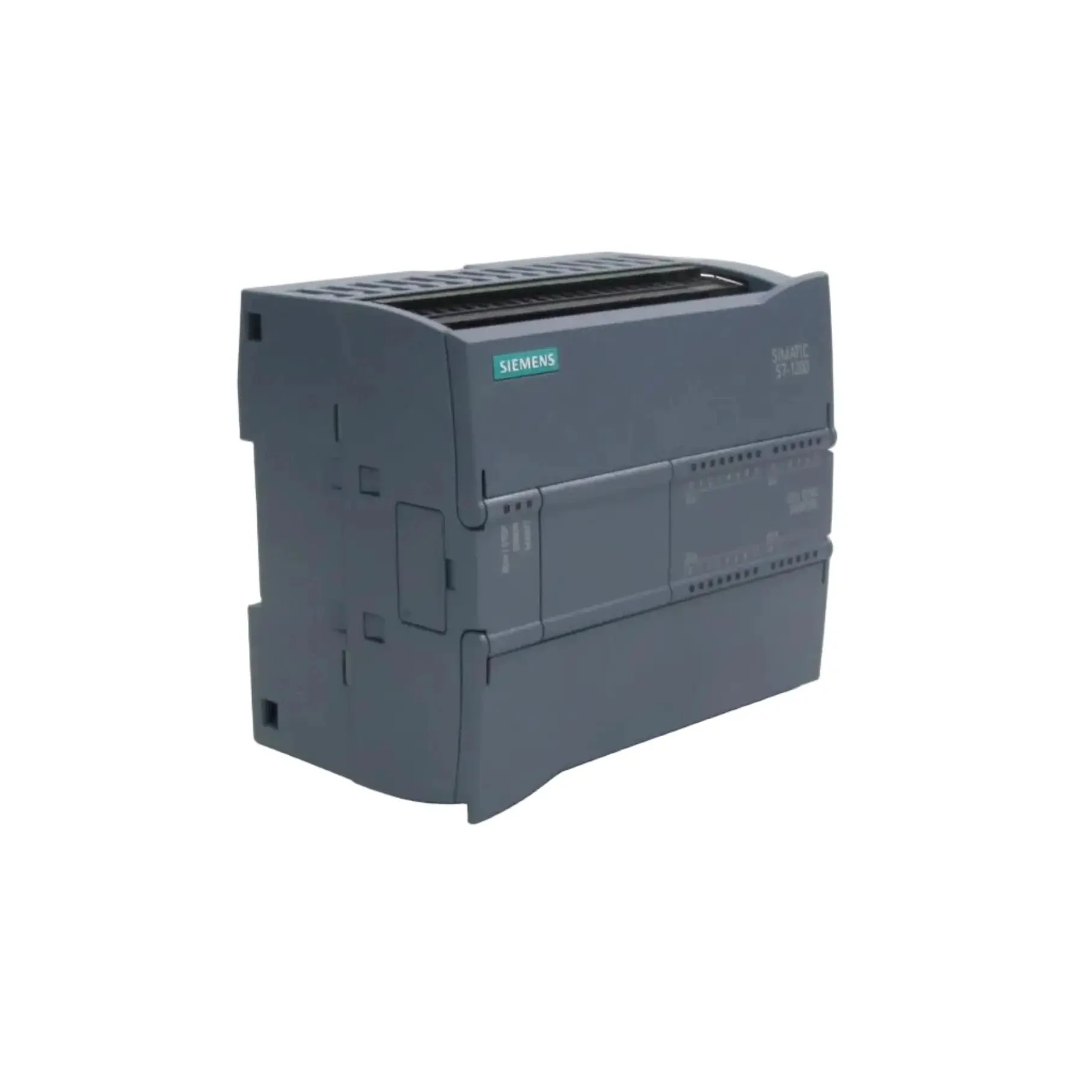

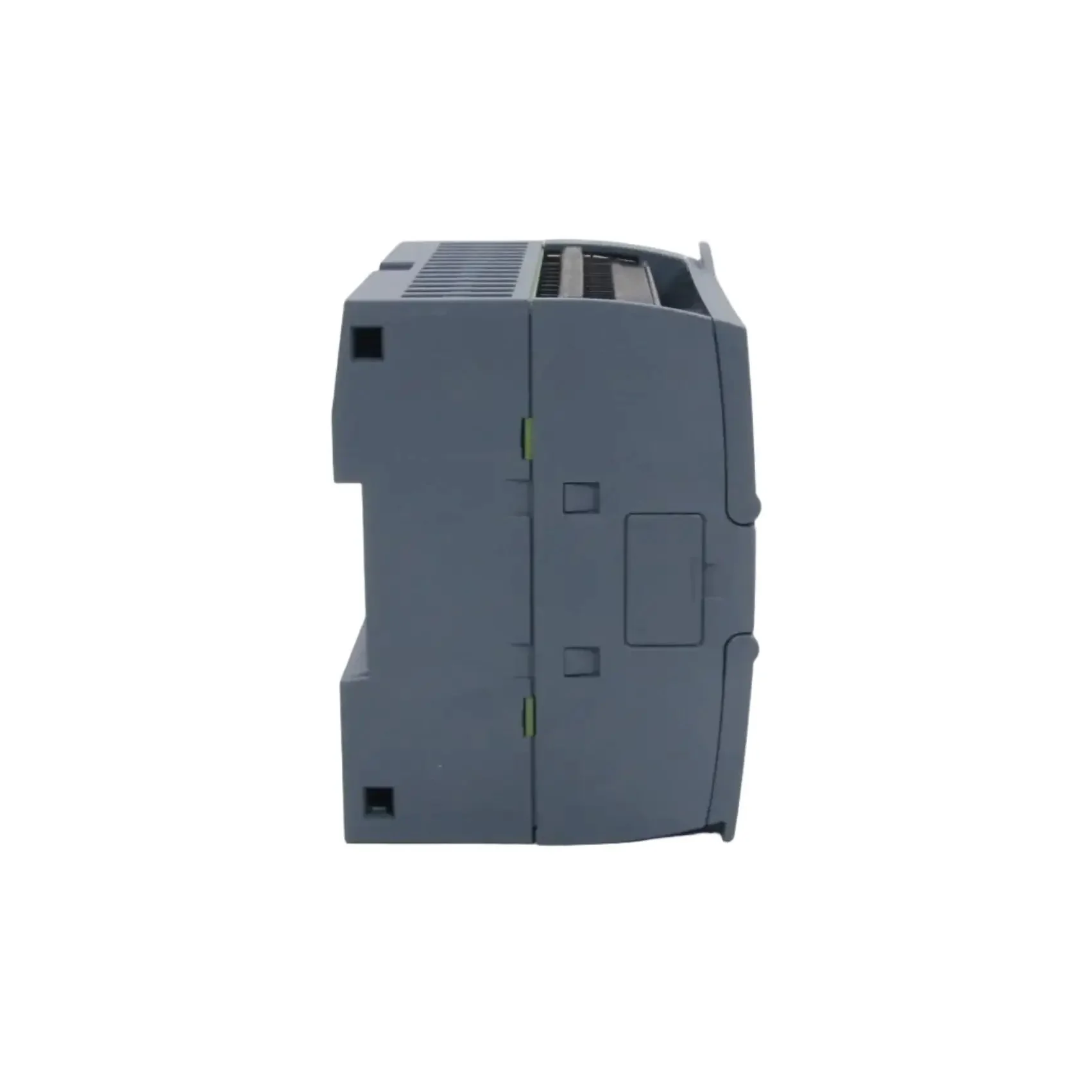

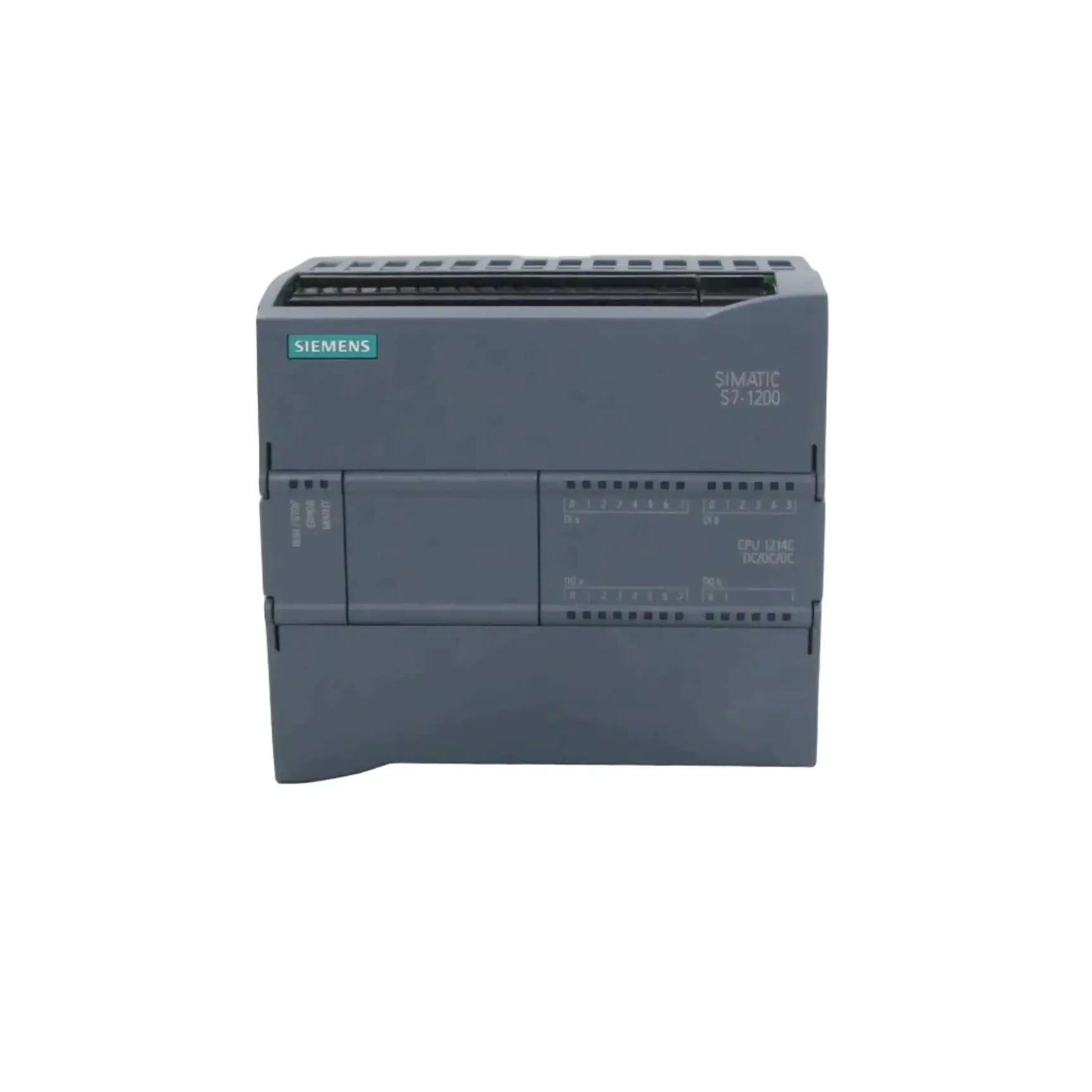

Siemens Simatic S7-1200 Compact CPU Module 6ES7 214-1AG40-0XB0

Brand: Siemens

Model: CPU 1214C

Part Number: 6ES7214-1AG40-0XB0

Type: Compact CPU Module

All tech specs:
- Power supply: DC 20.4-28.8 V
- Onboard digital inputs: 14 DI 24 V DC
- Onboard digital outputs: 10 DO 24 V DC
- Onboard analog inputs: 2 AI 0-10 V DC
- Program memory: 100 KB
- Data memory: Integrated work memory, retentive memory supported
- Pulse outputs: 4 PTO/PWM (100 kHz)
- Communication: PROFINET (Ethernet) interface
- Expandable: Up to 8 signal modules
- Current consumption: 500 mA (CPU only)
- Inrush current: Max. 12 A
- Integrated technology: PID control, motion control support
- Operating temperature: -20 °C to +60 °C
- Protection class: IP20
- Firmware: Typically V04.01.03
- Part of SIMATIC S7-1200 family for compact automation tasks

Dimensions: 120 x 80 x 120 mm

Weight: 430 g

Country of origin: Germany

HS code: 853710
