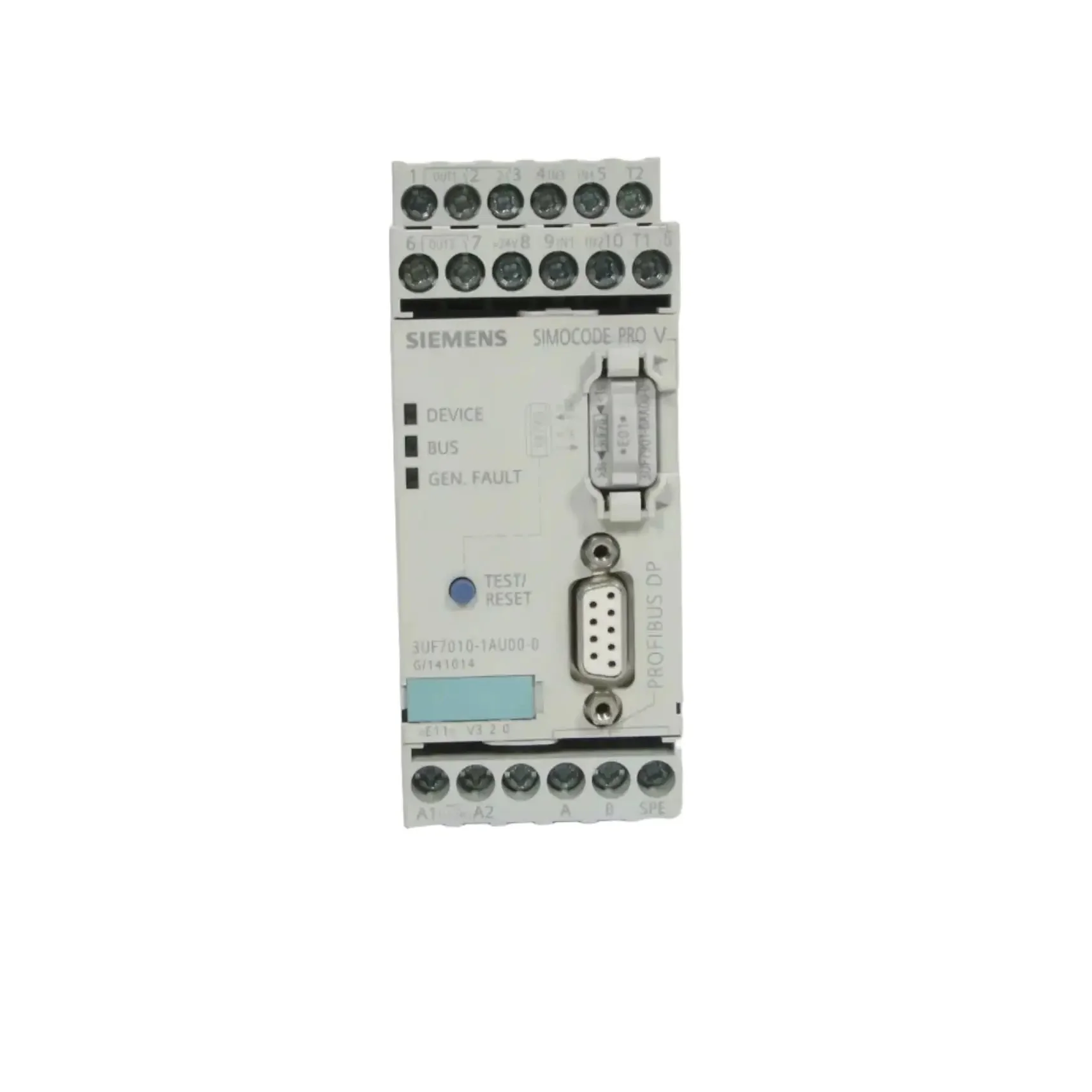

Siemens Simocode Pro V 3UF7010-1AU00-0 Basic unit

- Brand: Siemens
- Model: Simocode Pro V Basic Unit
- Type: Motor Management and Control Device (SIMOCODE pro V Basic Unit)
- Part number: 3UF7010-1AU00-0
  - Function: Multifunctional motor protection and control system for constant-speed low-voltage motors
  - Control Voltage: 110-240 V AC/DC
  - Inputs: 4 digital inputs (24 V DC)
  - Outputs: 3 relay outputs (monostable) + 1 binary output
  - Communication: Profibus DP, 12Mbps, RS485
  - Protection Functions: Overload, phase failure, asymmetry, ground fault (internal), thermistor, temperature monitoring
  - Control Functions: Direct/reversing starter, star-delta, soft starter control, valve control, local control
  - Diagnostics: Detailed fault memory, operating hours, current values, statistics
  - Parameterisation: Via PC software (SIMOCODE ES)
  - Operating Temperature: -25°C to +60°C
  - Protection Rating: IP20
  - Mounting: DIN rail
  - Standards: IEC 60947-4-1, UL, CSA compliant
  - Features: Compact design, expandable with operator panel or expansion modules, energy management functions
- Dimensions: 120 x 50 x 10 mm
- Weight: 340 g
- Country of origin: Germany
- HS code: 853710
