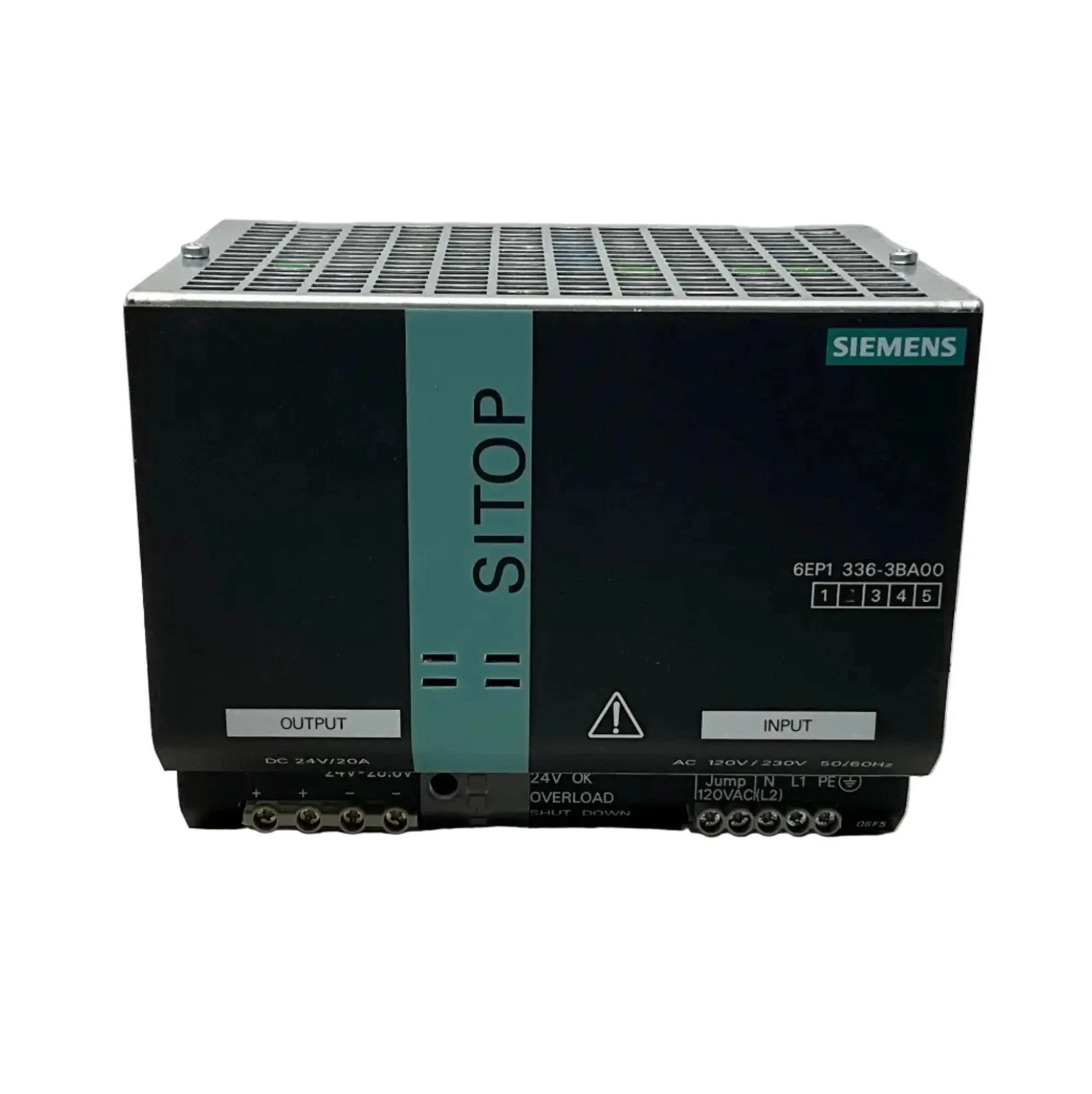

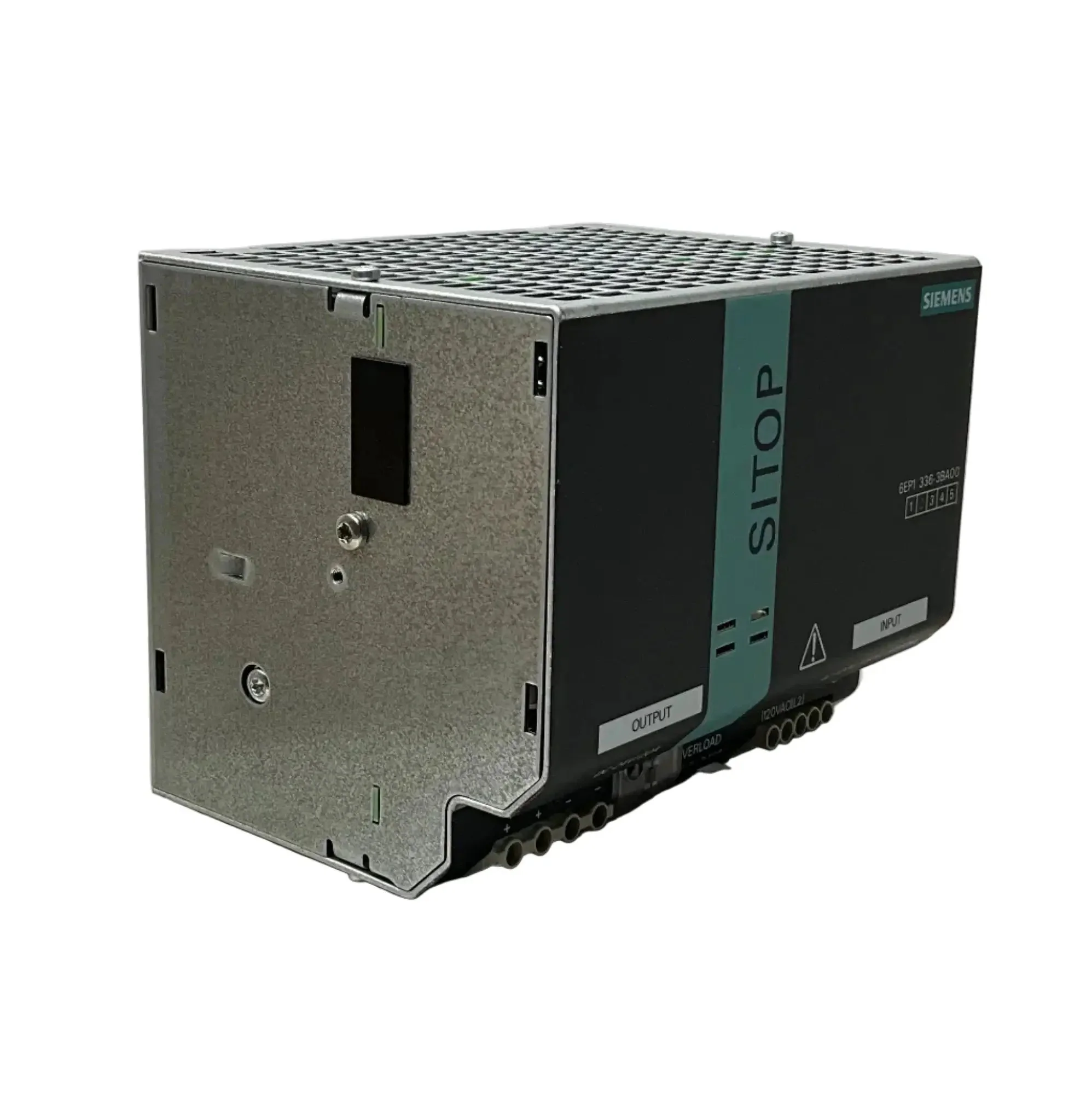

Siemens Sitop 20 6EP1336-3BA00 Power Supply

- Brand: Siemens
- Model: SITOP Power 20
- Type: Switched-Mode Power Supply

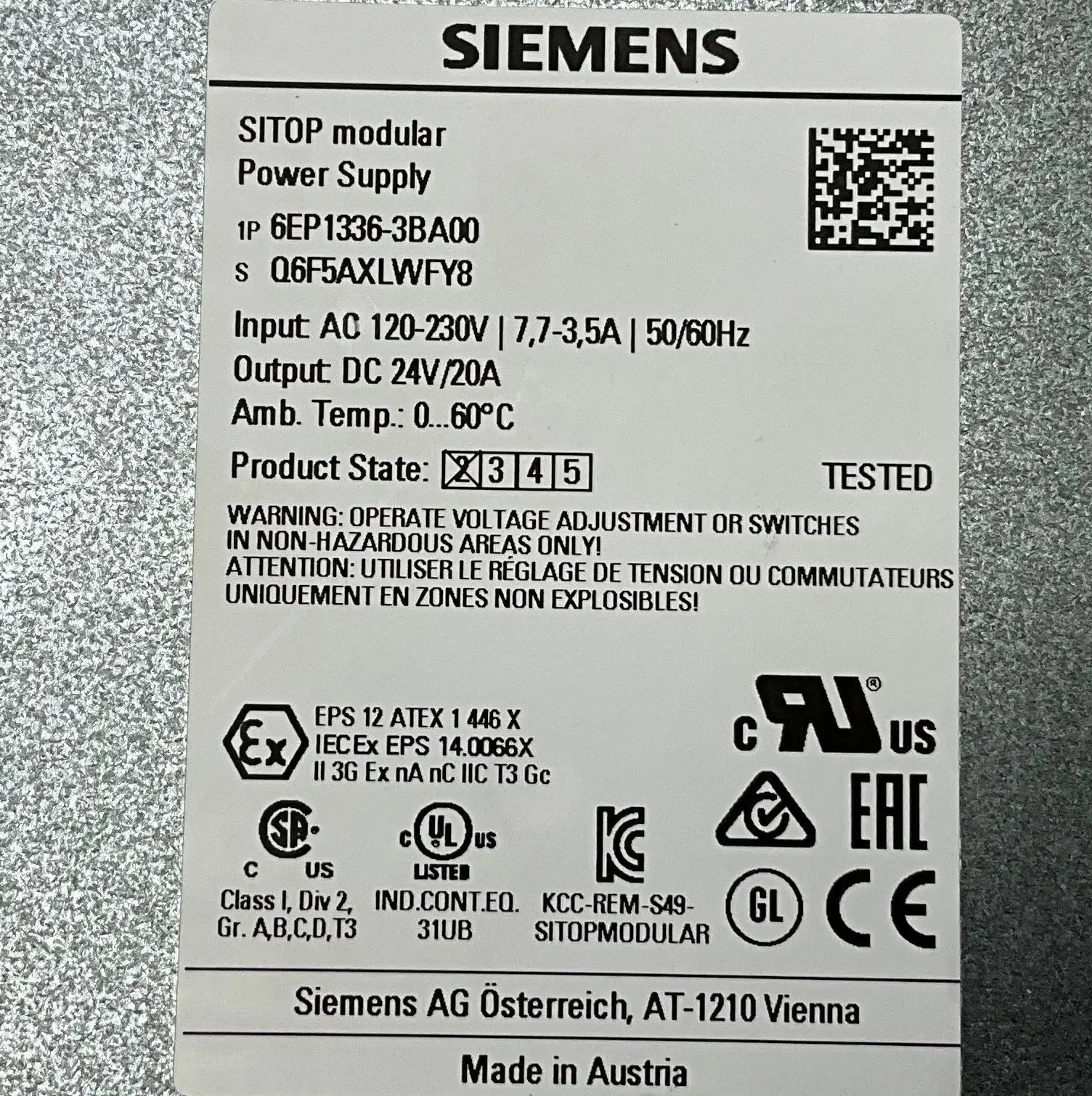

- Part Number: 6EP1336-3BA00

- Technical Specs:
- Input Voltage Range: 85–132 V AC / 176–264 V AC (single-phase)
- Input Frequency: 47–63 Hz
- Input Current: 7.7 A at 120 V AC / 3.5 A at 230 V AC
- Output Voltage: 24 V DC
- Output Current: 20 A
- Output Power: 480 W
- Efficiency: Approx. 89 % at rated load
- Ripple/Noise: Max 100 mVpp
- Overload Protection: Constant current limiting with automatic restart
- Short-Circuit Protection: Yes
- Overvoltage Protection: Yes
- Parallel Operation: Yes
- MTBF: High (> 500 000 h typical)
- Operating Temperature: -25 °C to +70 °C
- Storage Temperature: -40 °C to +85 °C
- Humidity: 95 % RH
- Enclosure Rating: IP20
- Housing Material: Metal
- Connection: Screw terminals

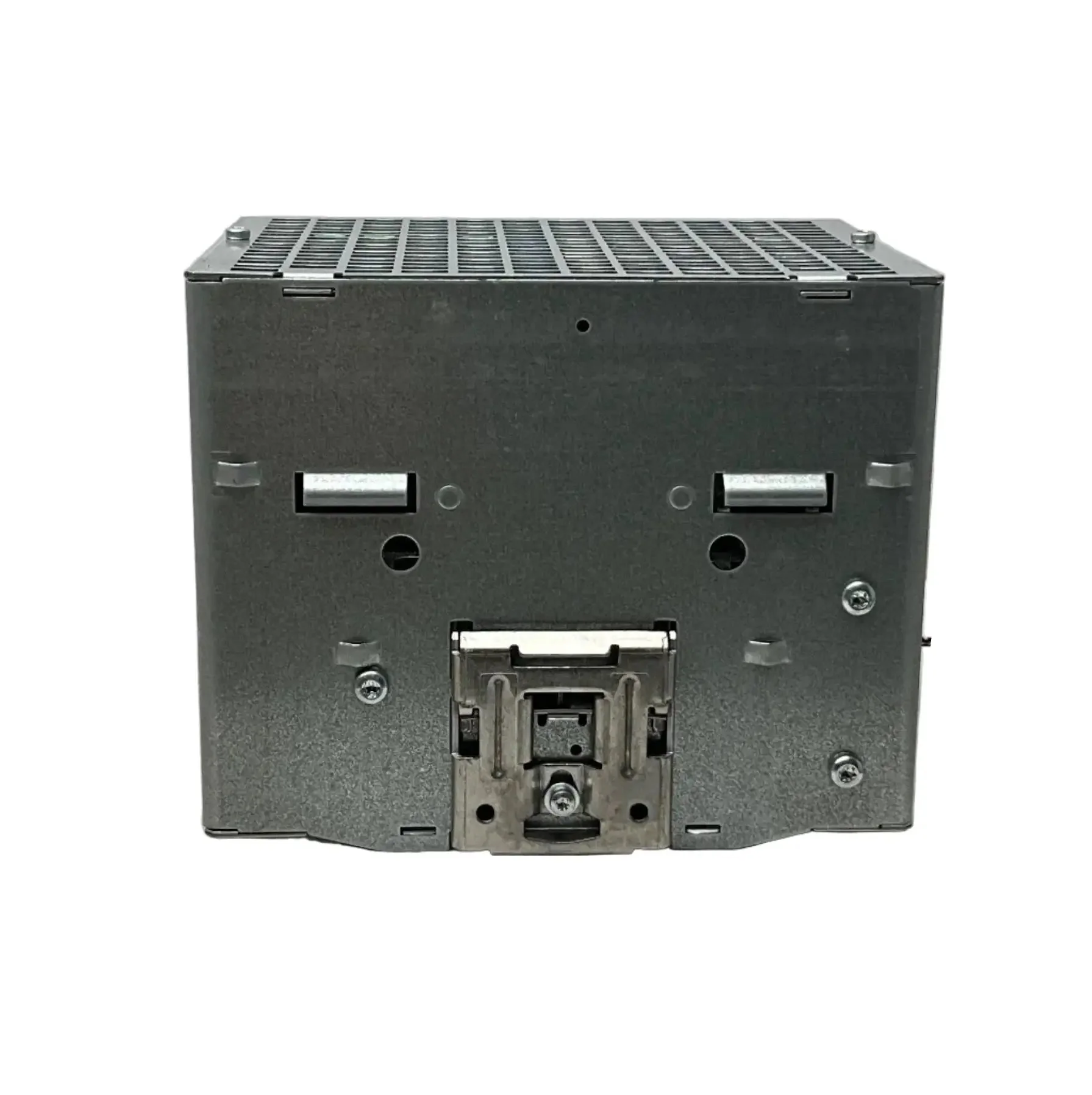

- Mounting: DIN rail (TS 35)
- Additional Features:
- Dynamic power boost for inrush loads
- U/I characteristic for selective fuse tripping
- LED status indicators
- Active PFC
- Low inrush current
- Worldwide certifications

Dimensions: 160 x 125 x 120 mm

Weight: 2.8 kg

Country of Origin: Austria

HS Code: 8504.40
