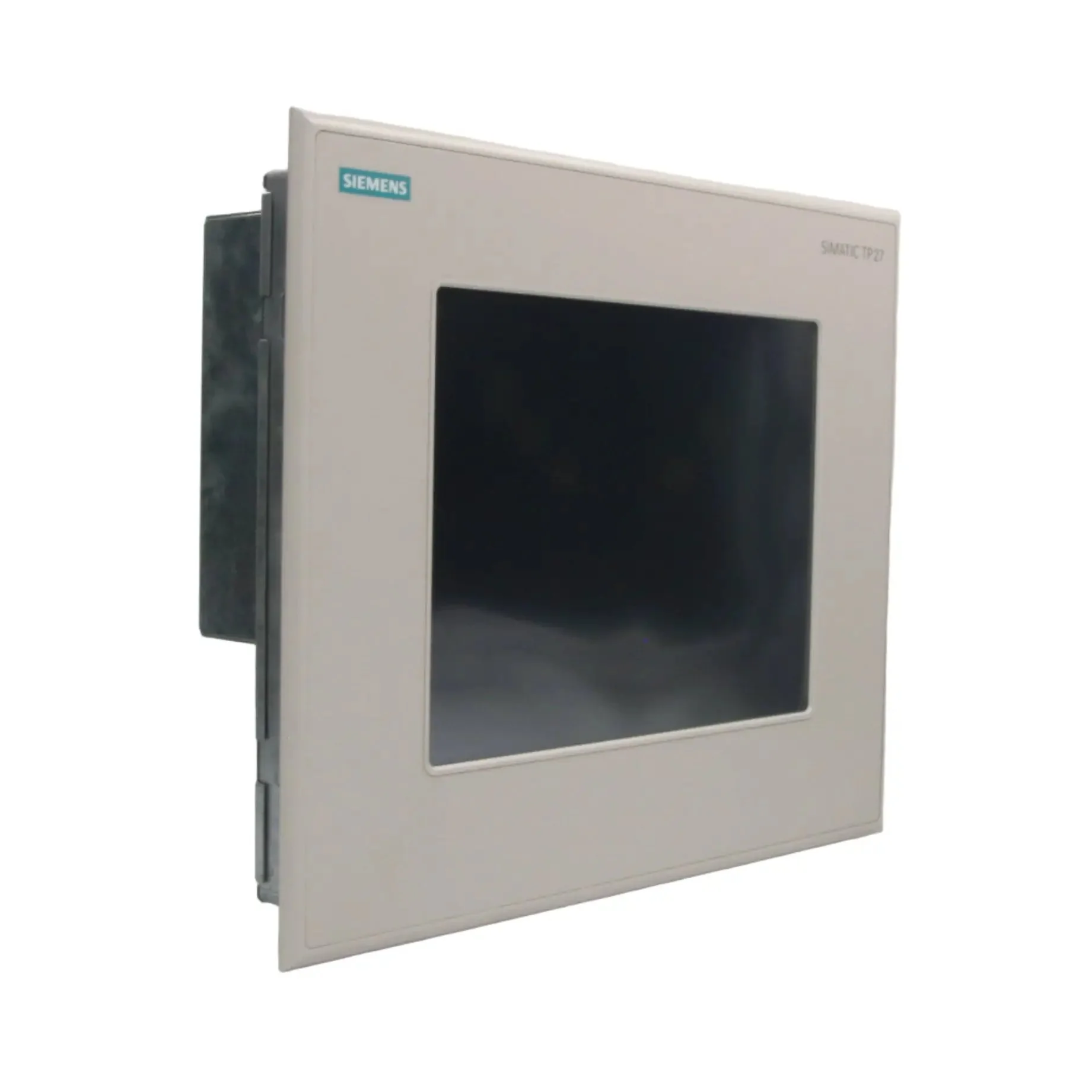

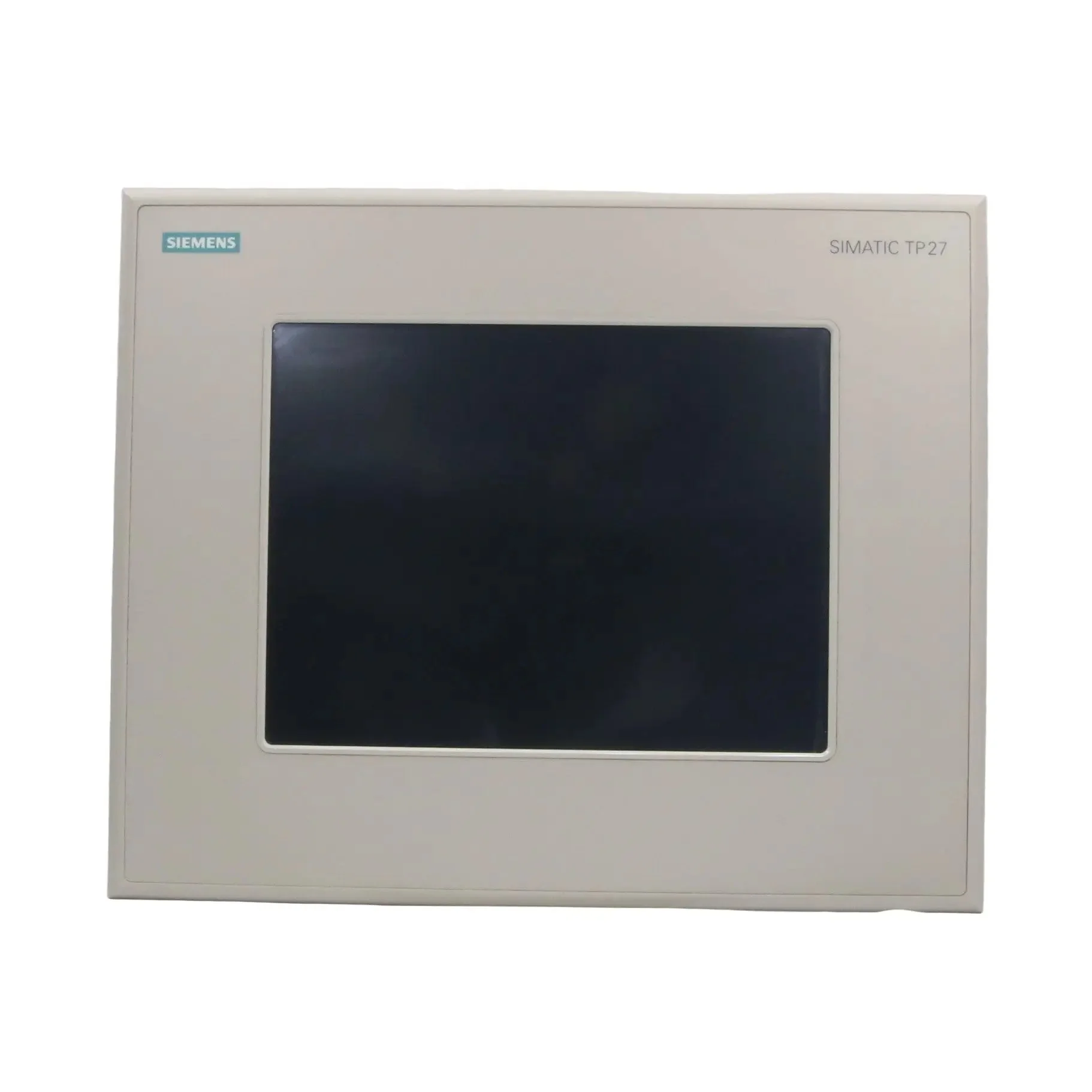

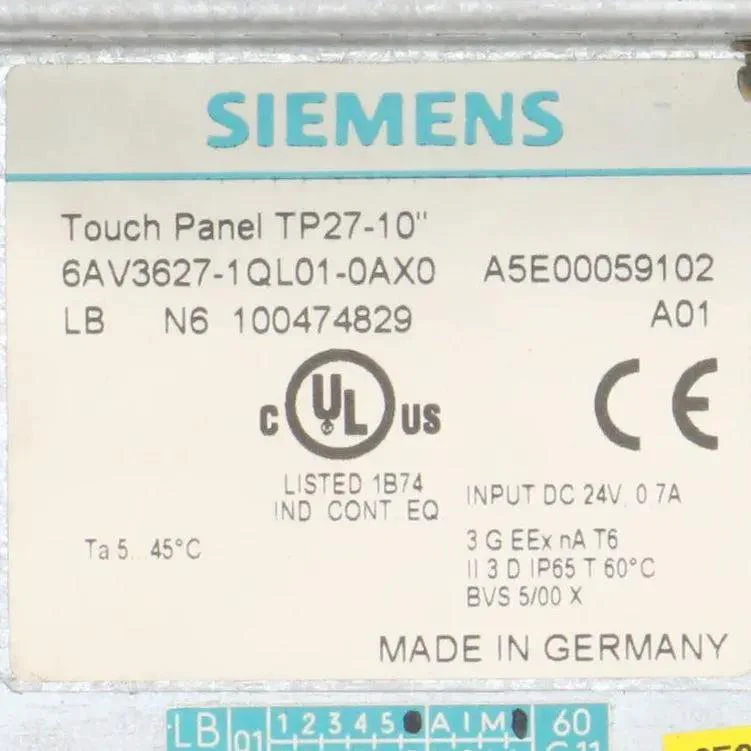

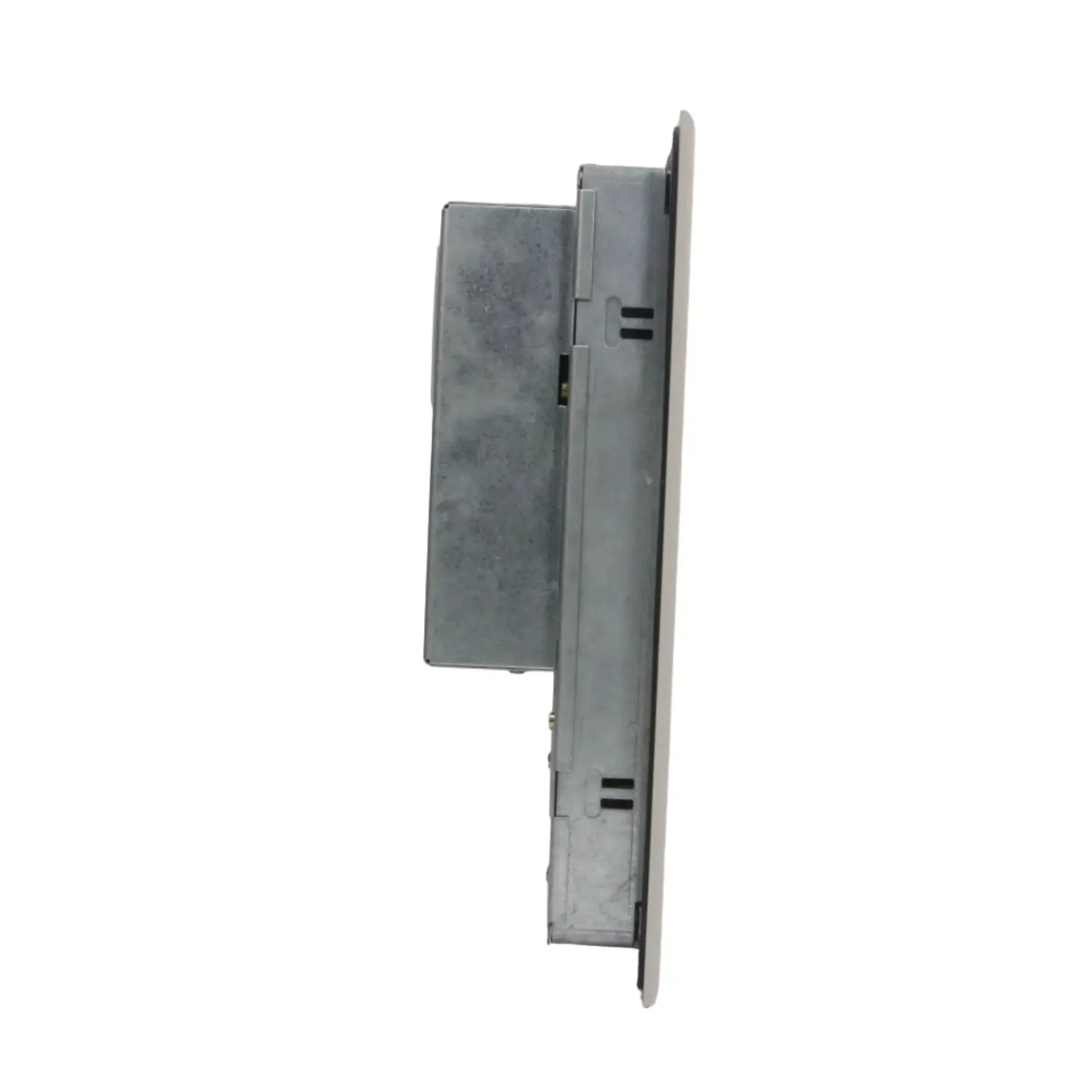

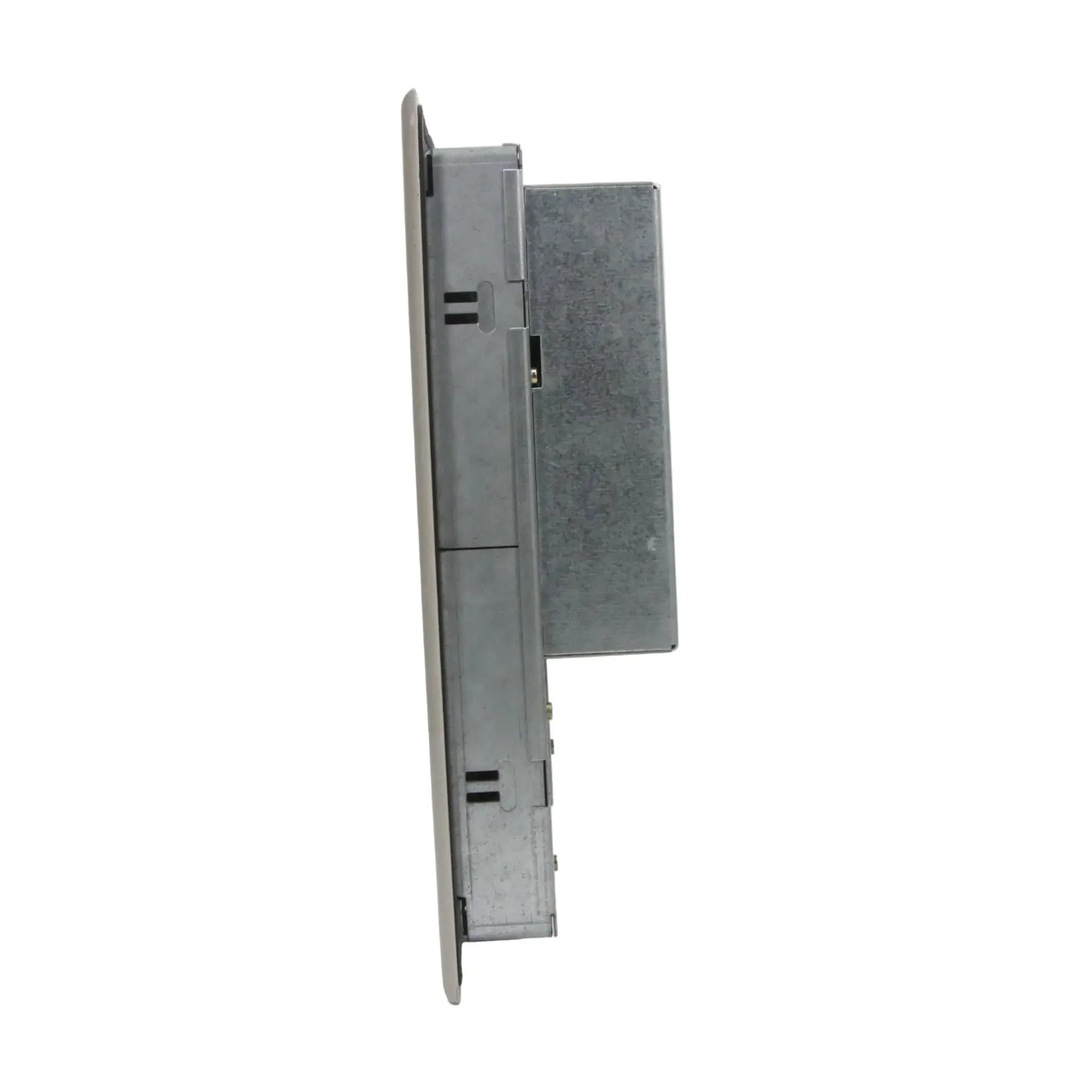

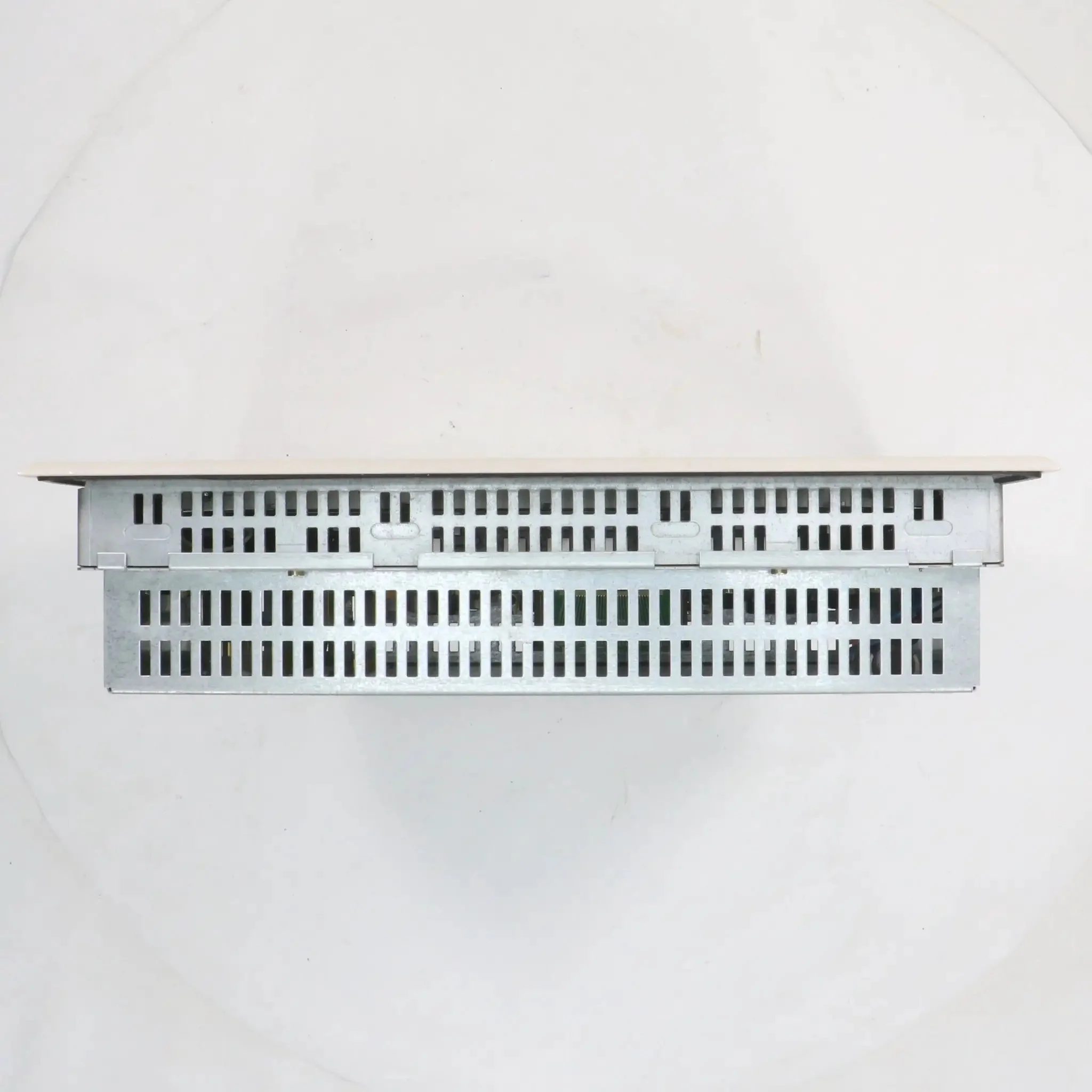

Siemens TP27-10 6AV3627-1QL01-0AX0 Touch Screen Panel

Brand: Siemens
Model: SIMATIC TP27-10
Type: Touch Screen Operator Panel
Part Number: 6AV3627-1QL01-0AX0
- Material: Polycarbonate/ABS housing for panel mounting and industrial durability
- Display Type: 10.4-inch STN Colour LCD
- Touch Type: Analog Resistive
- Memory: 1 MB Flash EPROM

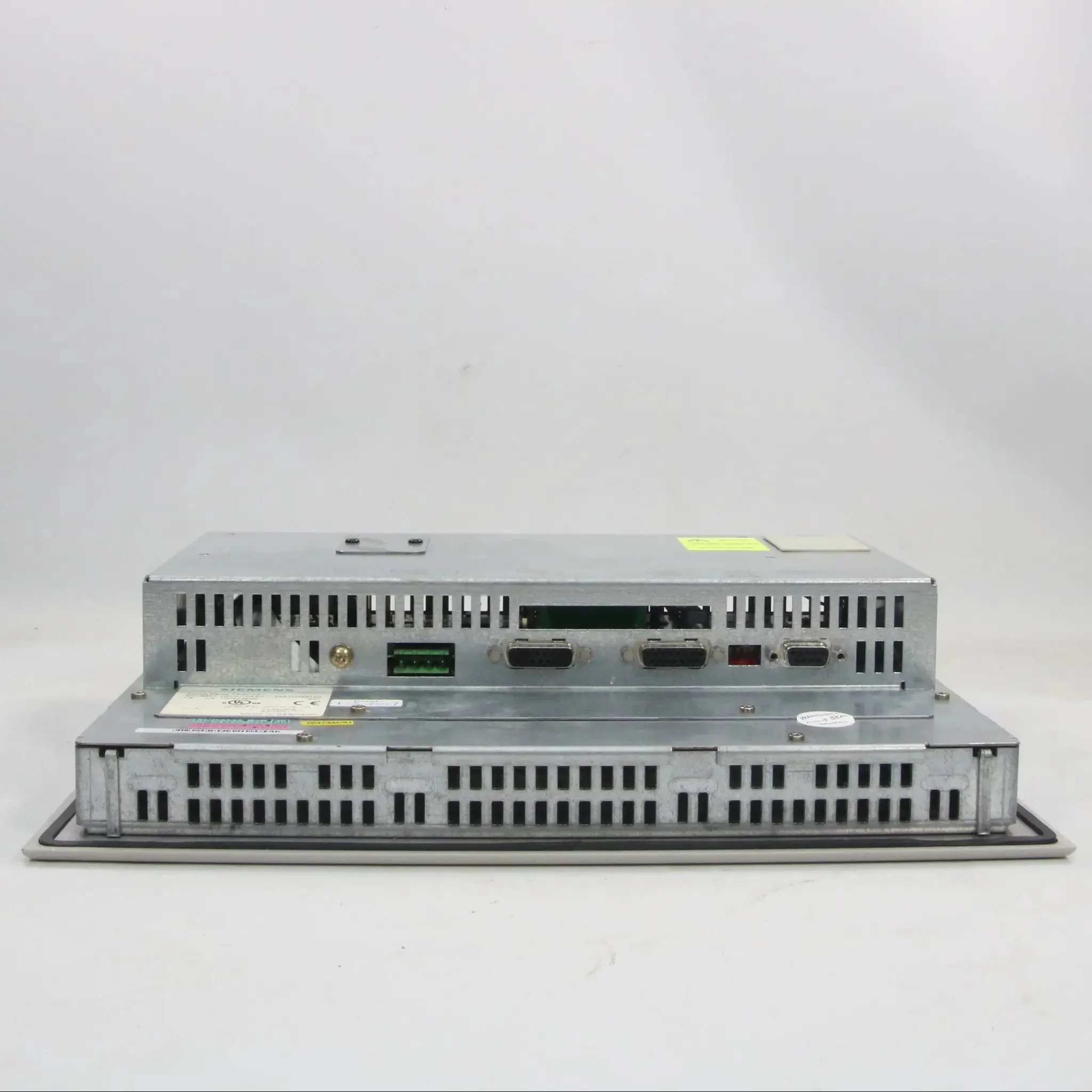

- Interfaces: 2 x RS-232; 1 x RS 422/485
- Power Supply: 24 VDC
- Power Consumption: ≤10 W
- Operating System: Windows CE
- Resolution: 640 x 480 pixels (VGA)
- Backlight: CCFL
- Operating Temperature Range: 0°C to +50°C
- Humidity: 10-90% RH
- Protection Rating: IP65 front
- Vibration Resistance: 9.8 m/s² (10-55 Hz)
- Shock Resistance: 147 m/s² (11 ms)
- Standards: IEC/EN 61131-2; CE marked; EMC compliant (Class A)
- Certification: CE; RoHS compliant; UL/CSA listed
- Features: Multilingual text display; supports SIMATIC S7/M7 PLCs; suitable for basic to mid-level HMI in machinery control; Discontinued
Dimension: 340 x 280 x 80 mm
Weight: 3.9 kg
Country of Origin: Germany
HS Code: 8537.10
