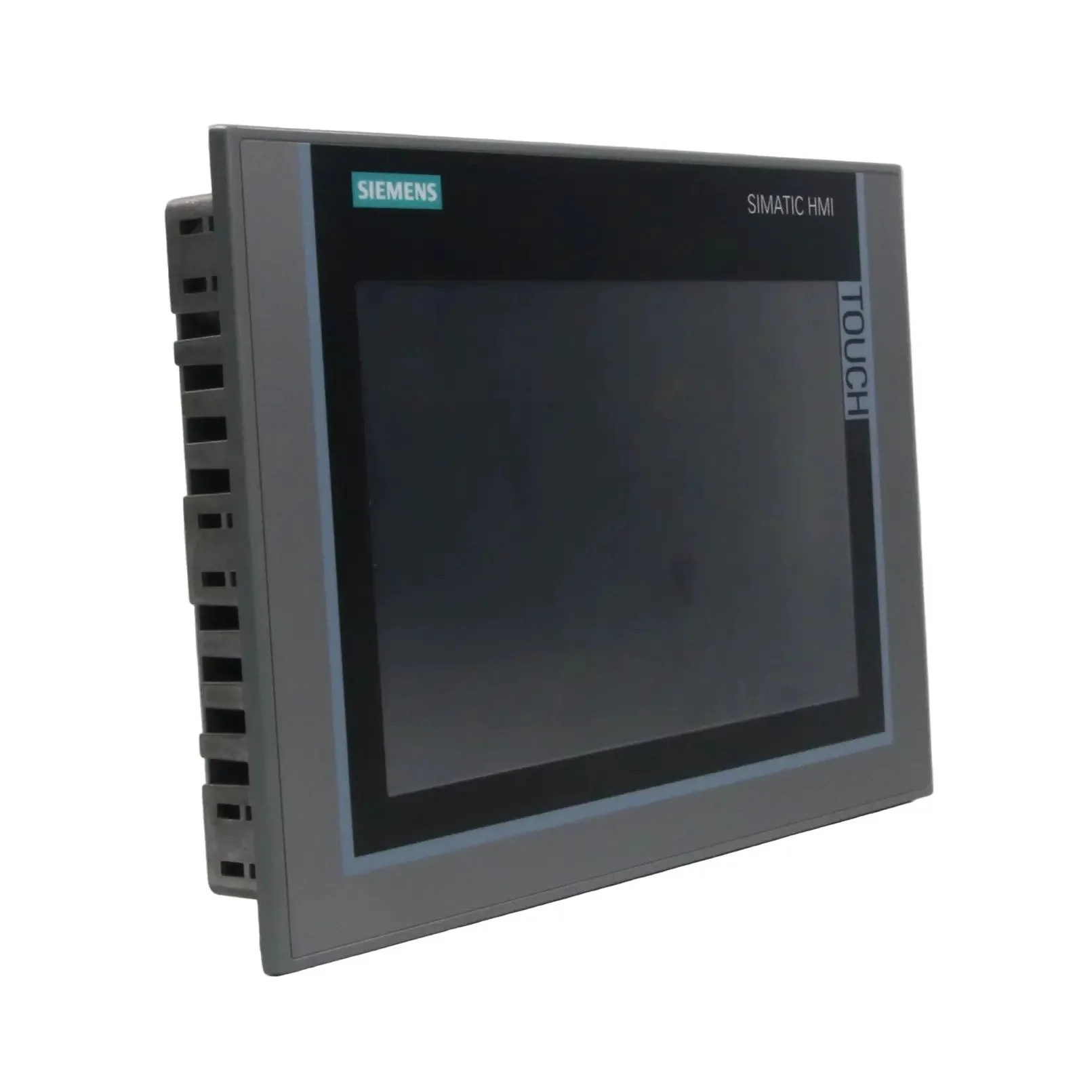

Siemens TP900 Comfort 6AV2 124-0JC01-0AX0 Touch Screen Panel
Brand: Siemens
Model: SIMATIC HMI TP 900 Comfort
Type: Touch Screen Panel (Operator Interface)

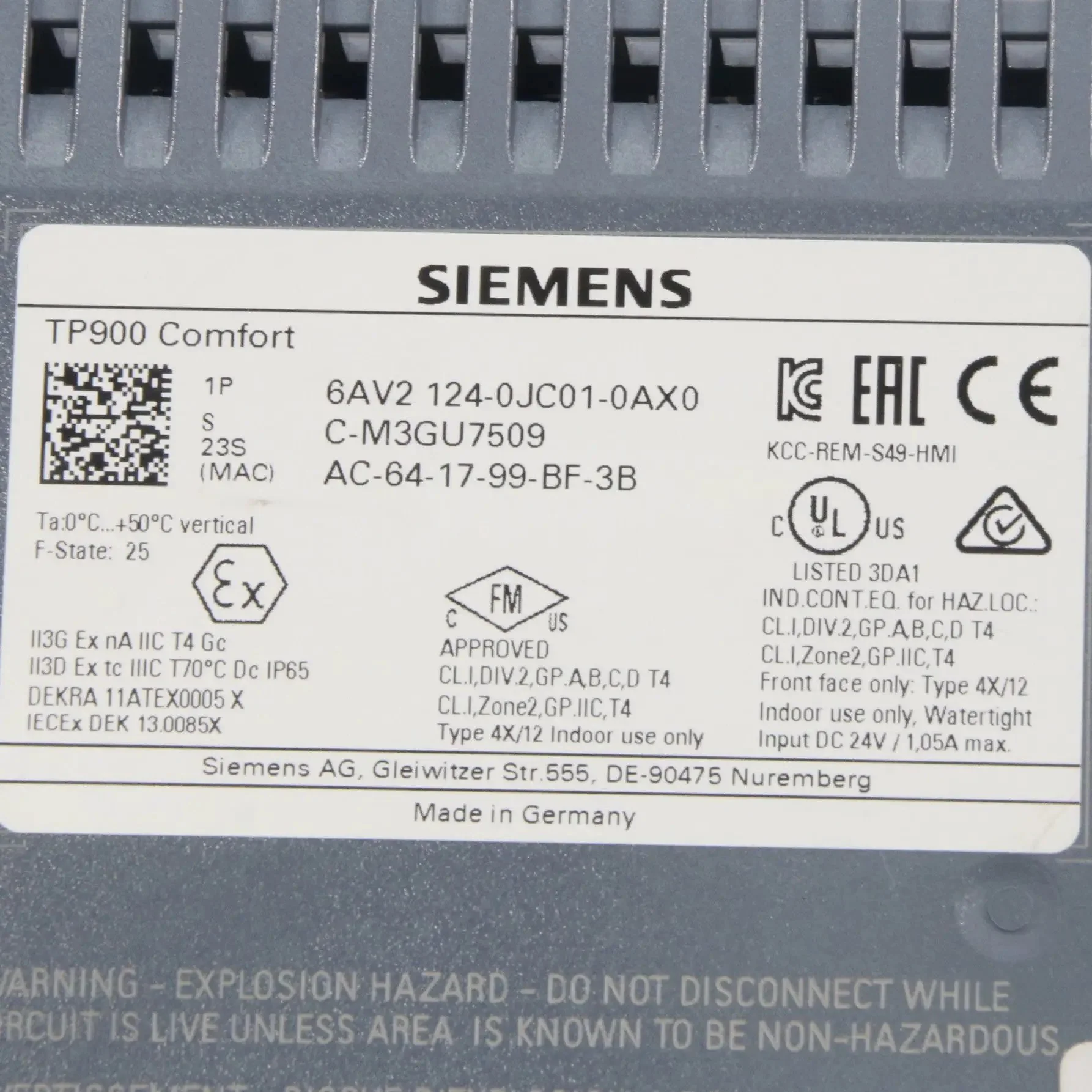

Part Number: 6AV2 124-0JC01-0AX0
- Material: Aluminium die-cast front with polycarbonate/ABS housing for panel mounting and durability
- Display Type: 9" TFT Widescreen Colour LCD - 800 x 480 WVGA resolution, 16 million colours
- Touch Type: Analog resistive
- Processor: Intel X86
- Memory: 12 MB configuring memory (Flash), 2 MB internal
- Interfaces: 2 x Ethernet RJ-45 (10/100/1000 Mbit/s, PROFINET); 1 x RS-422/485 (MPI/DP); 2 x USB 2.0 (host/device); 1 x SD/MMC card slot
- Power Supply: 24 VDC
- Power Consumption: ≤20 W
- Operating System: Windows Embedded Compact
- Programming Software: WinCC Comfort/Advanced
- Backlight: LED
- Operating Temperature Range: 0°C to +50°C
- Humidity: 10-90% RH
- Protection Rating: IP65 front
- Vibration Resistance: 9.8 m/s² (10-55 Hz)
- Shock Resistance: 147 m/s² (11 ms)
- Standards: IEC/EN 61131-2; CE marked; EMC compliant (Class A)
- Certification: CE; RoHS compliant; UL/cUL listed
- Features: Multi-touch gestures; high-resolution widescreen; PROFINET Interface; MPI/PROFIBUS DP; Ethernet IP; MODBUS; integrated web server; remote access via VNC; supports recipes, alarms, trends; suitable for complex HMI in process and machine control
Dimension: 270 x 190 x 70 mm
Weight: 2.3 kg
Country of Origin: Germany
HS Code: 8537.10
Description
Brand: Siemens
Model: SIMATIC HMI TP 900 Comfort
Type: Touch Screen Panel (Operator Interface)
Part Number: 6AV2 124-0JC01-0AX0
- Material: Aluminium die-cast front with polycarbonate/ABS housing for panel mounting and durability
- Display Type: 9" TFT Widescreen Colour LCD - 800 x 480 WVGA resolution, 16 million colours
- Touch Type: Analog resistive
- Processor: Intel X86
- Memory: 12 MB configuring memory (Flash), 2 MB internal
- Interfaces: 2 x Ethernet RJ-45 (10/100/1000 Mbit/s, PROFINET); 1 x RS-422/485 (MPI/DP); 2 x USB 2.0 (host/device); 1 x SD/MMC card slot
- Power Supply: 24 VDC
- Power Consumption: ≤20 W
- Operating System: Windows Embedded Compact
- Programming Software: WinCC Comfort/Advanced
- Backlight: LED
- Operating Temperature Range: 0°C to +50°C
- Humidity: 10-90% RH
- Protection Rating: IP65 front
- Vibration Resistance: 9.8 m/s² (10-55 Hz)
- Shock Resistance: 147 m/s² (11 ms)
- Standards: IEC/EN 61131-2; CE marked; EMC compliant (Class A)
- Certification: CE; RoHS compliant; UL/cUL listed
- Features: Multi-touch gestures; high-resolution widescreen; PROFINET Interface; MPI/PROFIBUS DP; Ethernet IP; MODBUS; integrated web server; remote access via VNC; supports recipes, alarms, trends; suitable for complex HMI in process and machine control
Dimension: 270 x 190 x 70 mm
Weight: 2.3 kg
Country of Origin: Germany
HS Code: 8537.10
