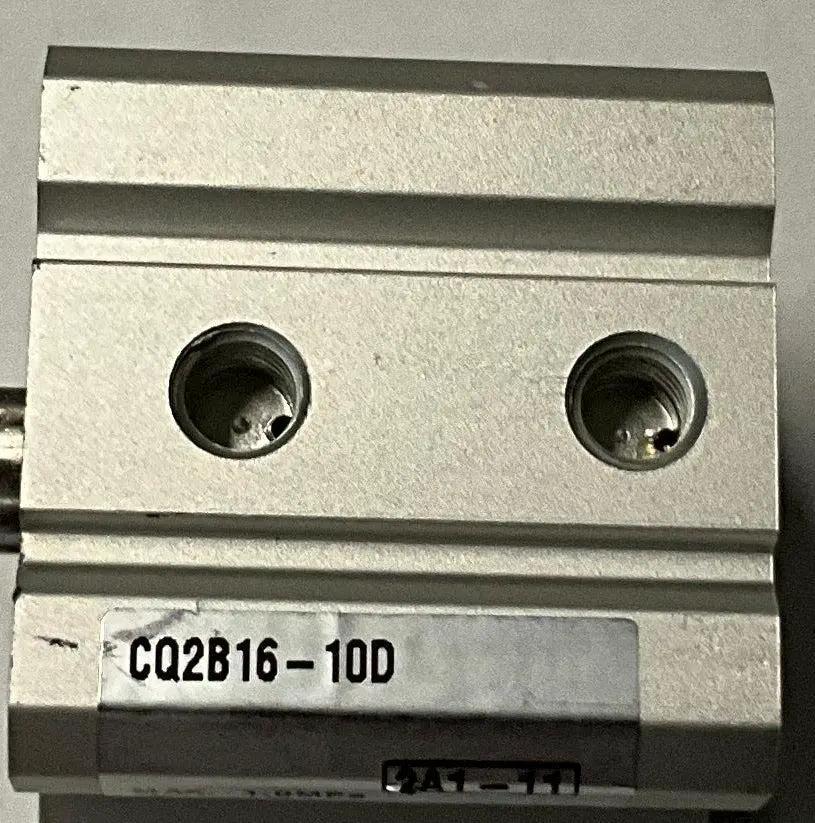

SMC CQ2B16-10D Compact Cylinder

Brand: SMC
Model: CQ2B16-10D
Type: Compact Cylinder
Part Number: CQ2B16-10D

Technical Specs:
- Cylinder Type: Double acting, single rod, standard type
- Bore Size: 16 mm
- Stroke Length: 10 mm
- Mounting: Through-hole (B type, standard)
- Port Thread Type: M5 x 0.8 (for 16 mm bore)
- Operating Pressure Range: 0.07 to 1.0 MPa
- Proof Pressure: 1.5 MPa
- Operating Temperature Range: -10°C to 70°C
- Piston Speed: 50 to 500 mm/s
- Operating Medium: Air
- Cushioning: None
- Body Material: Aluminum alloy
- Rod Material: Stainless steel
- Seal Material: NBR
- Magnet: None
- Auto Switch Capability: Compatible with auto switches
- Additional Features:
  - Space-saving design with short overall length
  - Auto switch mounting grooves for easy installation and safety
  - Lightweight and robust construction
- Certifications: CE compliant

Dimensions: 35 x 30 x 30 mm

Weight: 50 g

Country of Origin: China

HS Code: 8412.31
