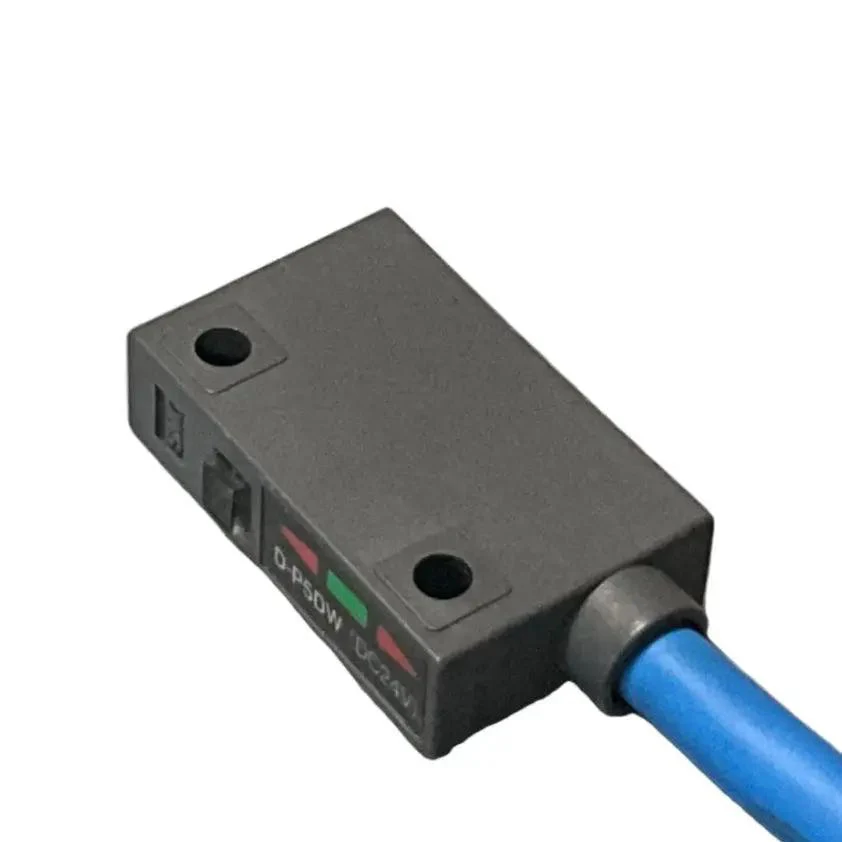

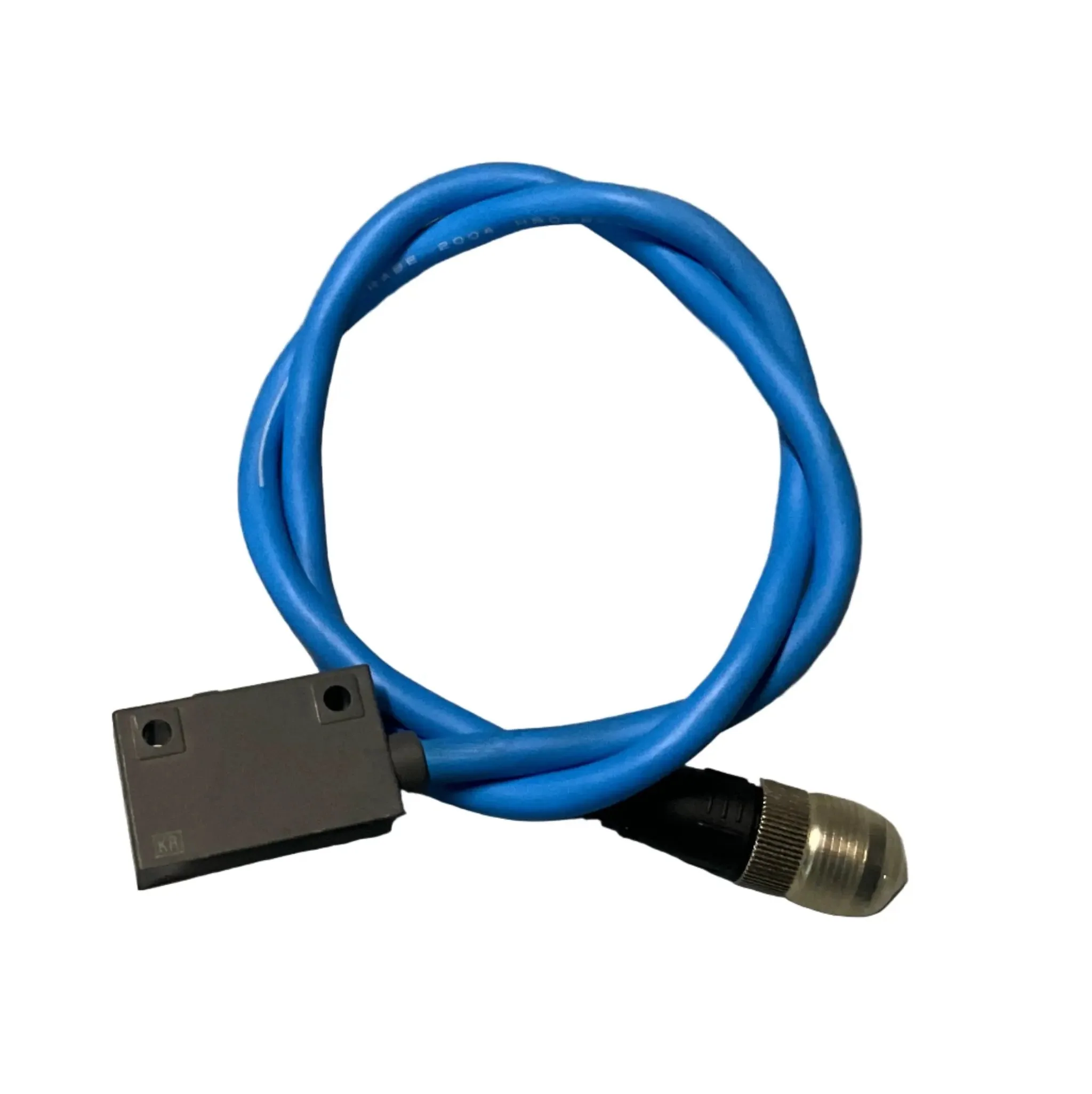

SMC D-P5DW Solid State Auto Switch
Brand: SMC
Part Number: D‑P5DW
Type: Solid‑State Auto Switch (2‑wire type, magnetic field resistant, 2‑colour LED indicator)
Electrical Characteristics:
Supply Voltage : DC 24 V (range DC 20–28 V)
Load Current: 6–40 mA
Internal Voltage Drop: ≤ 5 V
Leak Current : ≤ 1 mA at DC 24 V
Operating Time : ≤ 40 ms
Indicator: Two‑colour LED (Red when in operating position; Green at optimum detection)
Magnetic Field Resistance: AC 16,000 A/m
Surge Protection: Built‑in
Environment & Physical:
Operating Temperature: –10 °C to +60 °C
Ingress Protection: IP67 (IEC 529 / JIS C0920)
Impact Proof / Mechanical Strength: 1,000 m/s²
Insulation Resistance: ≥ 50 MΩ at DC 500 V
Dielectric Strength : AC 1,000 V for 1 min
Additional Application Context:
Intended Loads: 24 V DC relays and PLC inputs
Mounting / Entry: Grommet
Applicable Actuators: CDA1, CDQ2, MK, MK2, MDU series
Country of origin: Japan
Weight: 50g
HS Code: 8536.50
