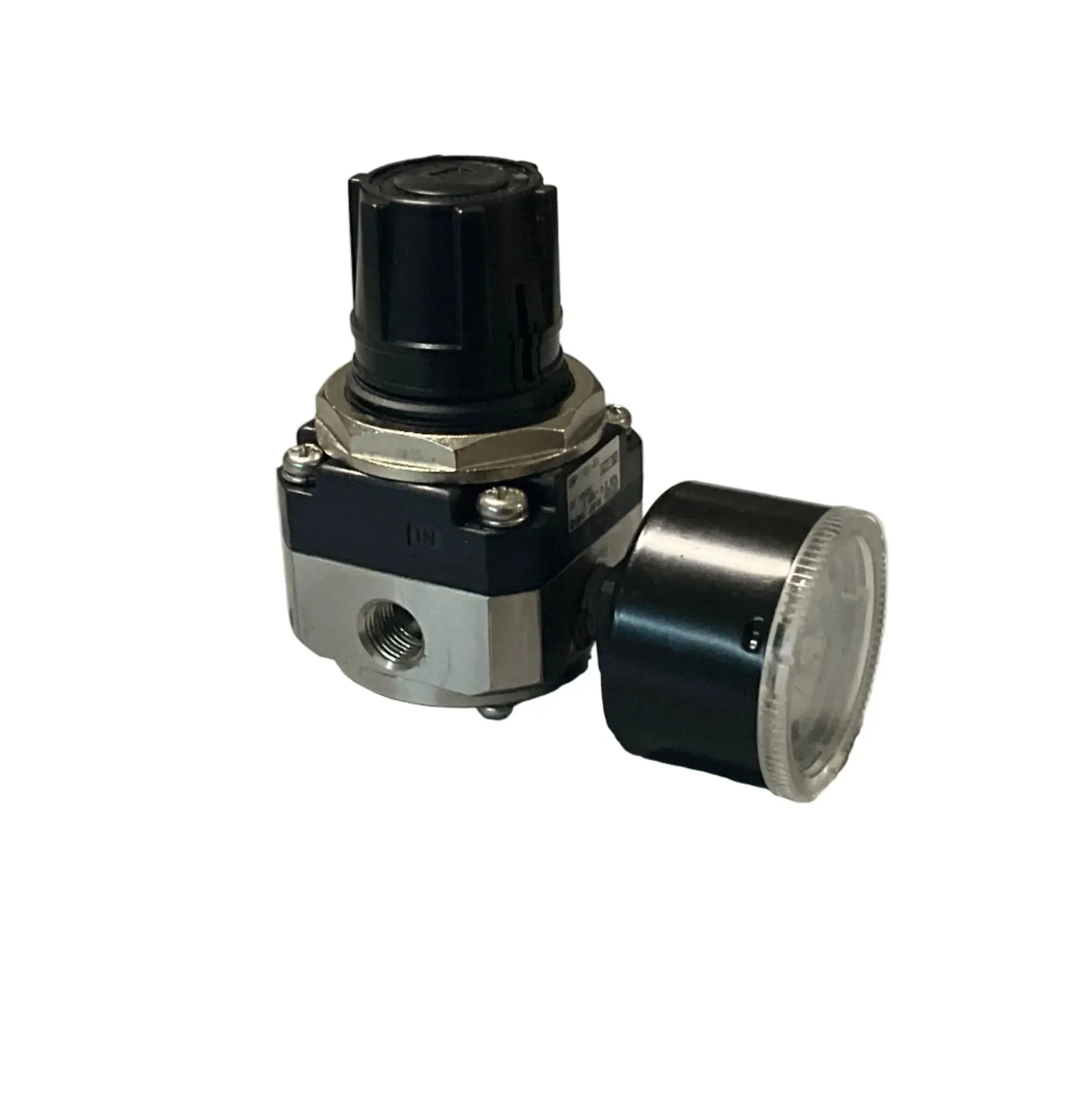

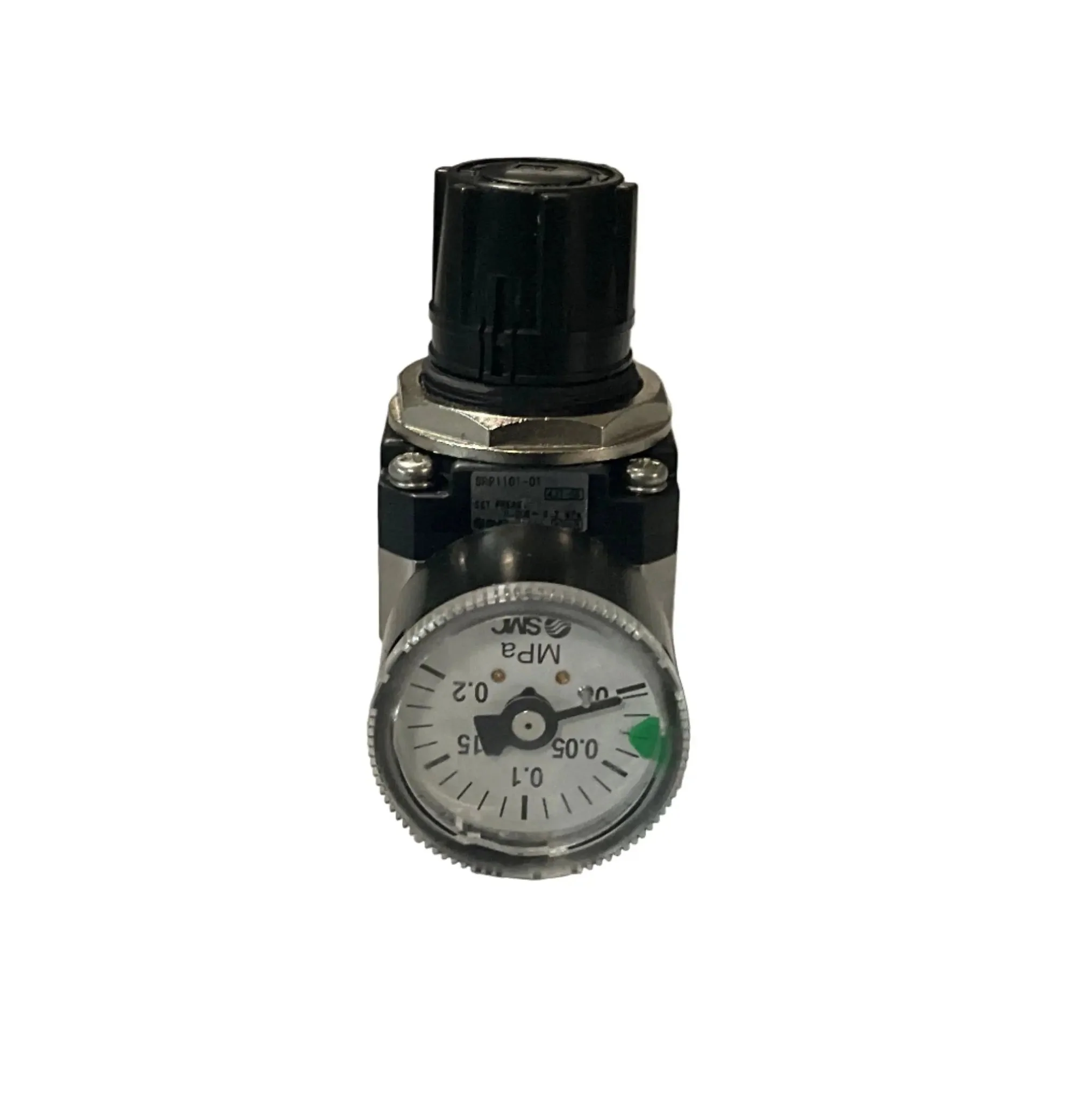

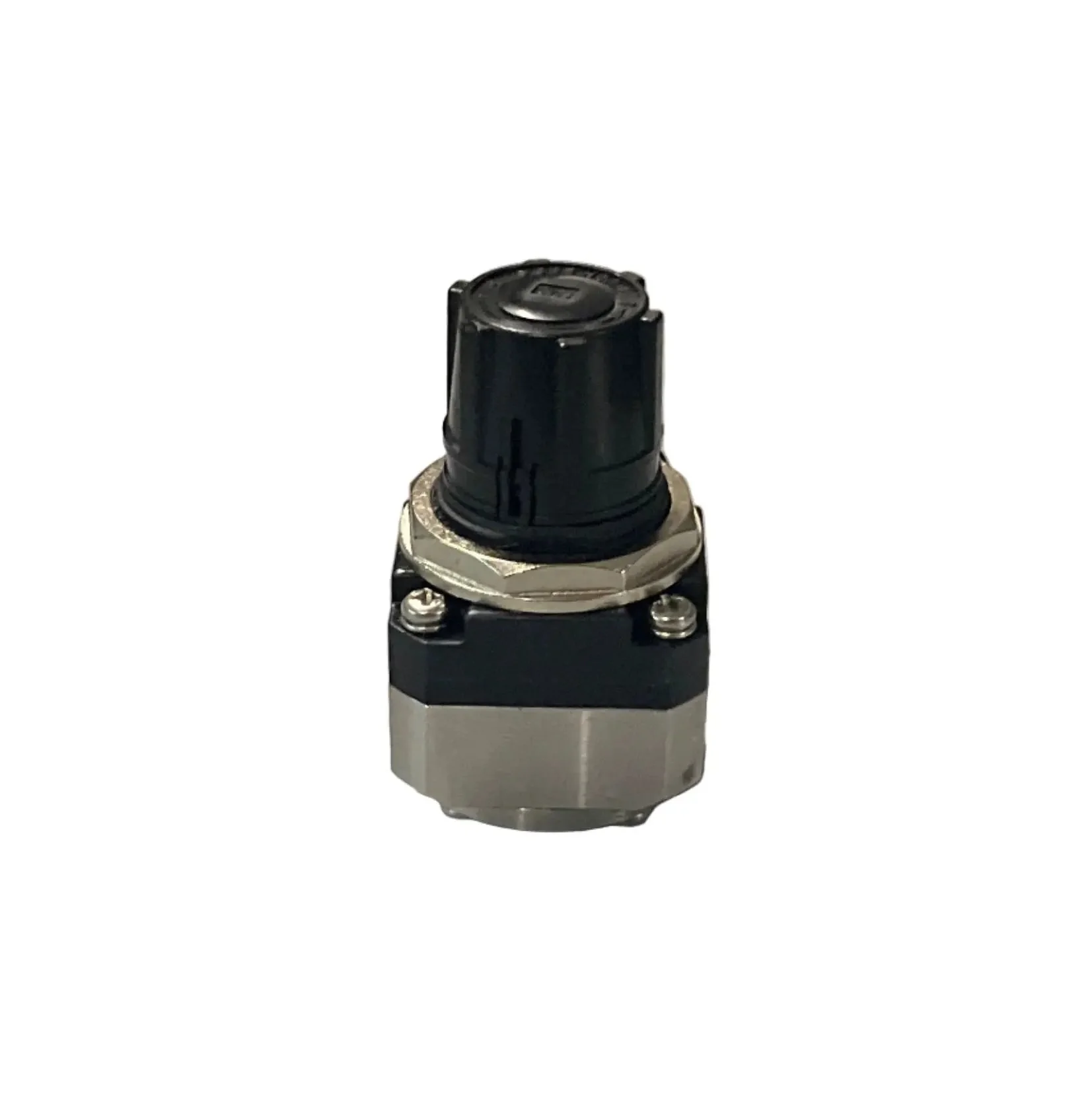

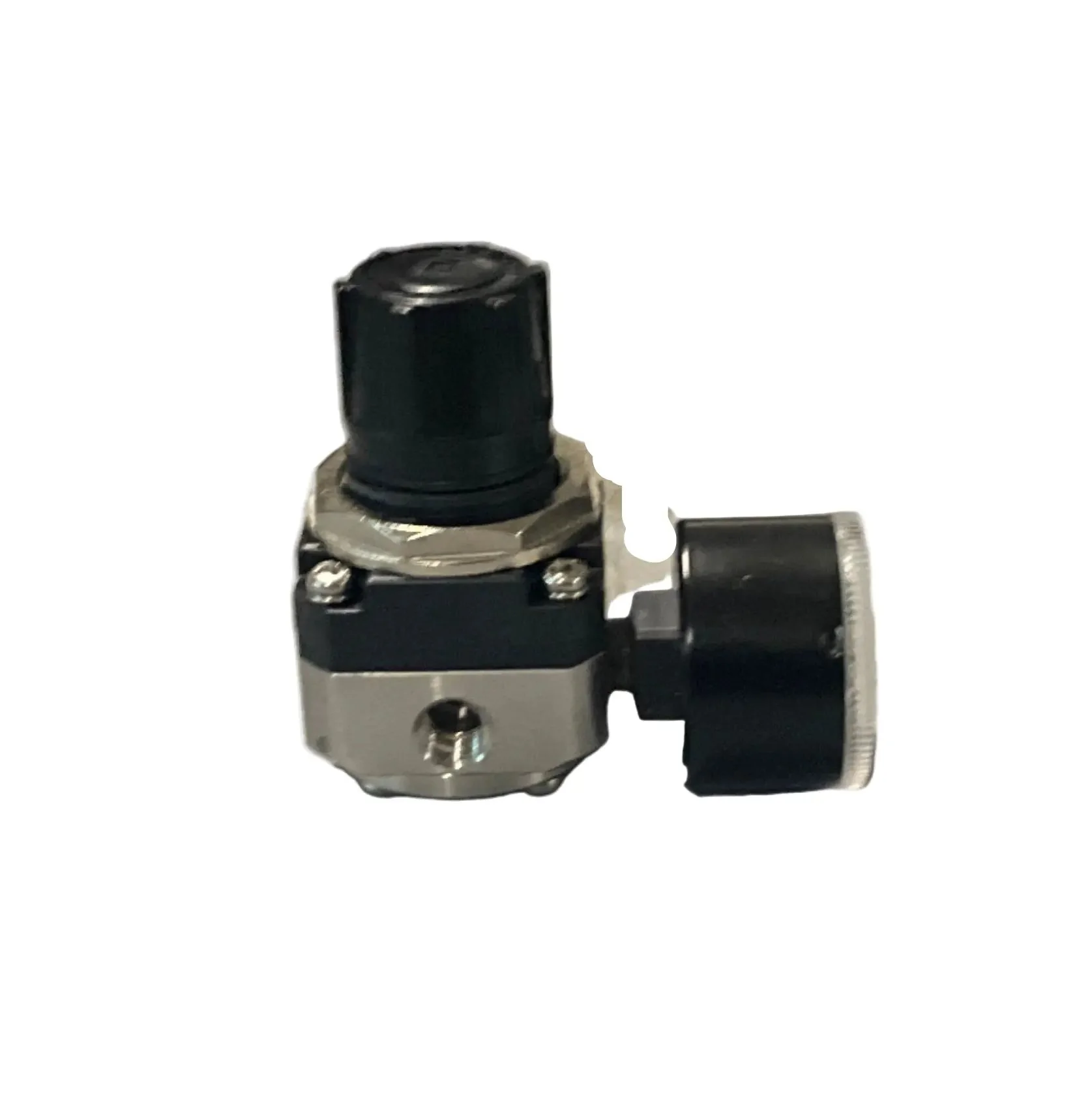

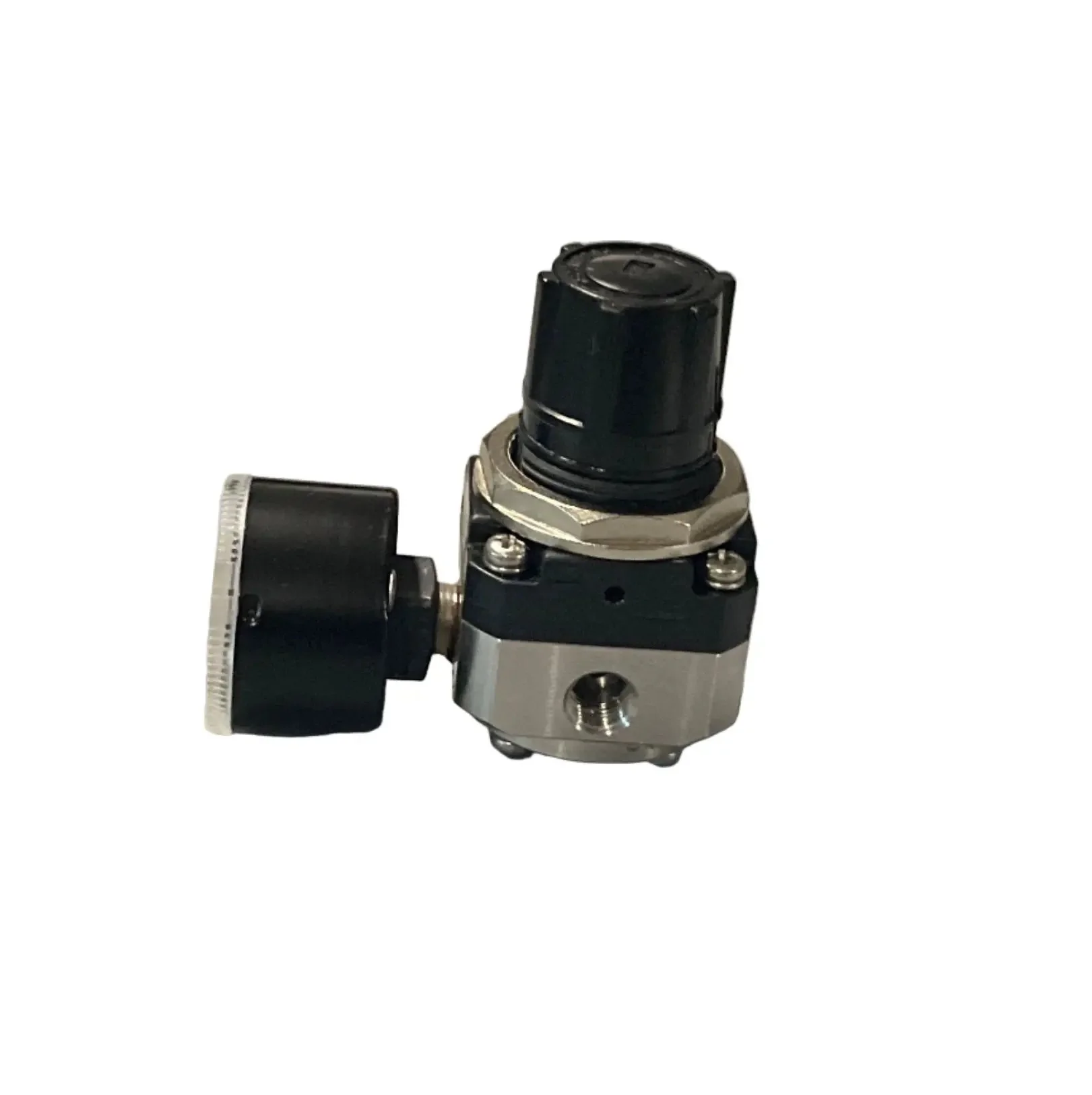

SMC SRP1101-01 Precision Clean Regulator

Brand: SMC
Part Number: SRP1101-01
Type: Precision Clean Regulator

Applicable Fluids: Air, N₂, CO₂, Ar
Proof Pressure: 1.5 MPa
Max Operating Pressure: 1.0 MPa (≈ 145 psi)
Regulating Pressure Range:
  - Low: 0.005–0.2 MPa
  - High: 0.01–0.4 MPa
Bleed Volume: ≤ 0.5 L/min (ANR) @ 0.2 MPa
Sensitivity: 0.3% F.S.
Repeatability: ±1% F.S.
Operating Temp: 0–60 °C

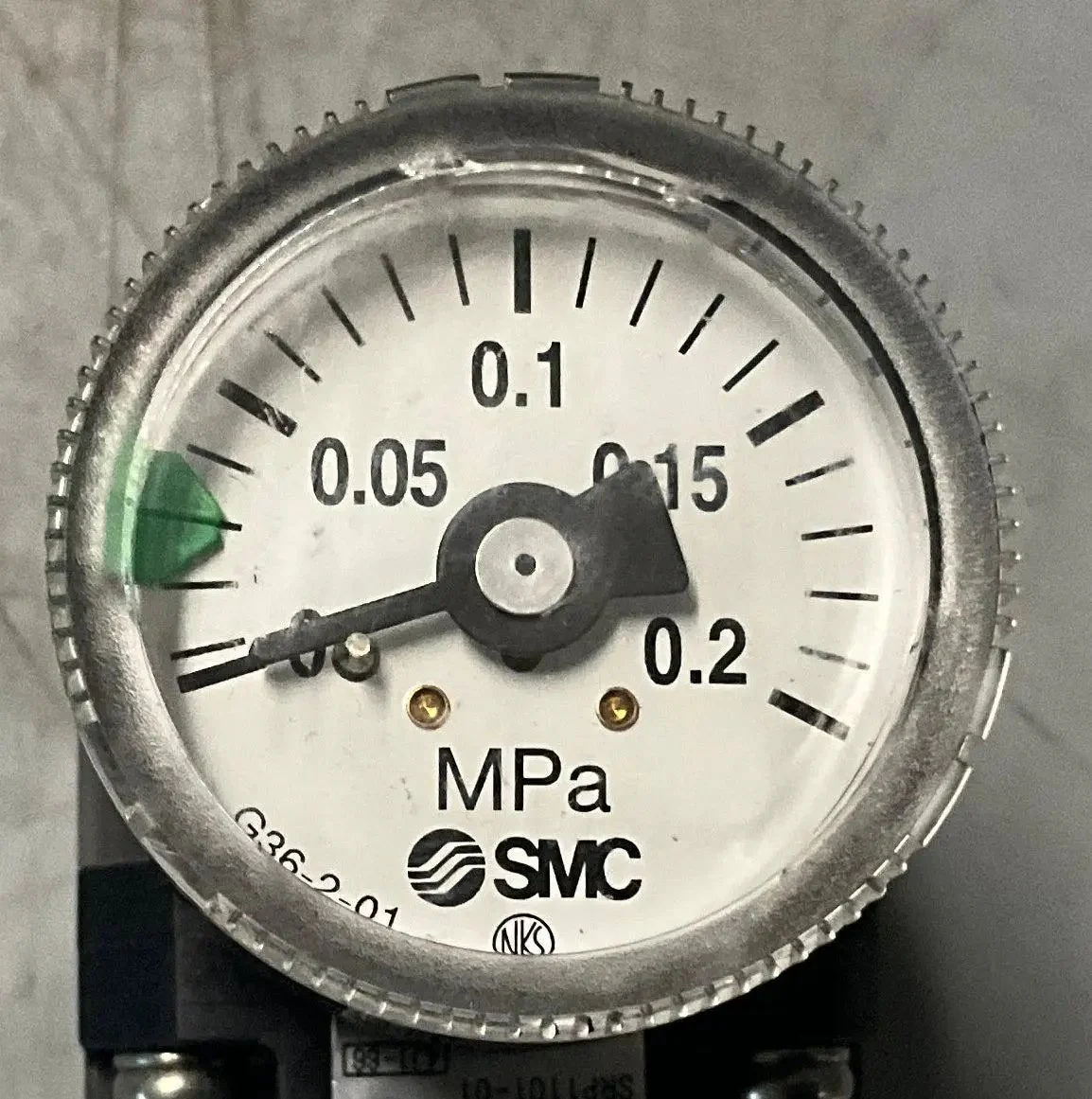

Gauge range: 0 - 0.2 MPa

Cleanroom Assembly: Class 10,000
Wetted Parts Cleaning: Degrease-washed
Connection Ports: M5×0.8, Rc 1/8, NPT 1/8, G 1/8
Weight: 330g

Country of Origin: Japan

HS Code: 8481.10
