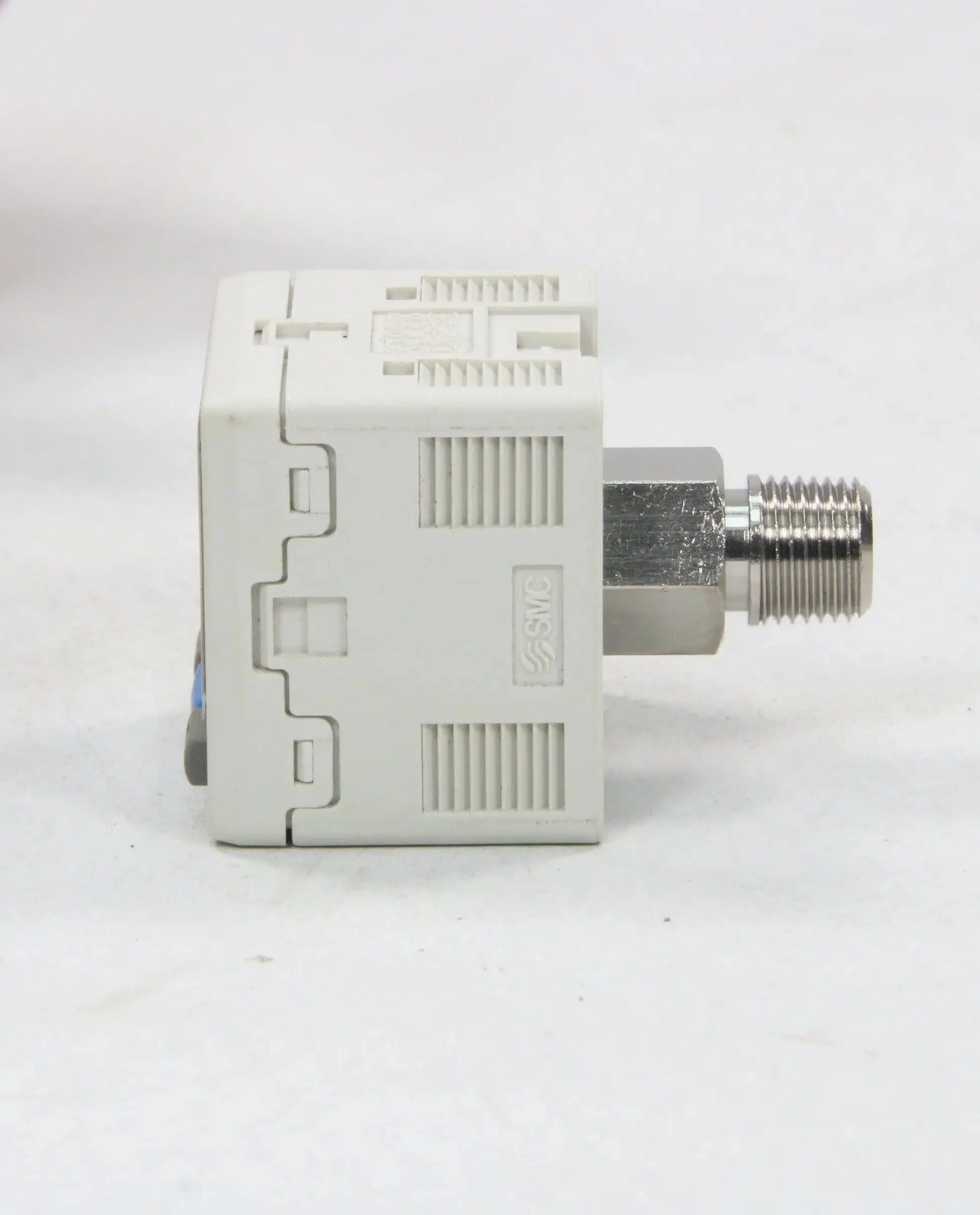

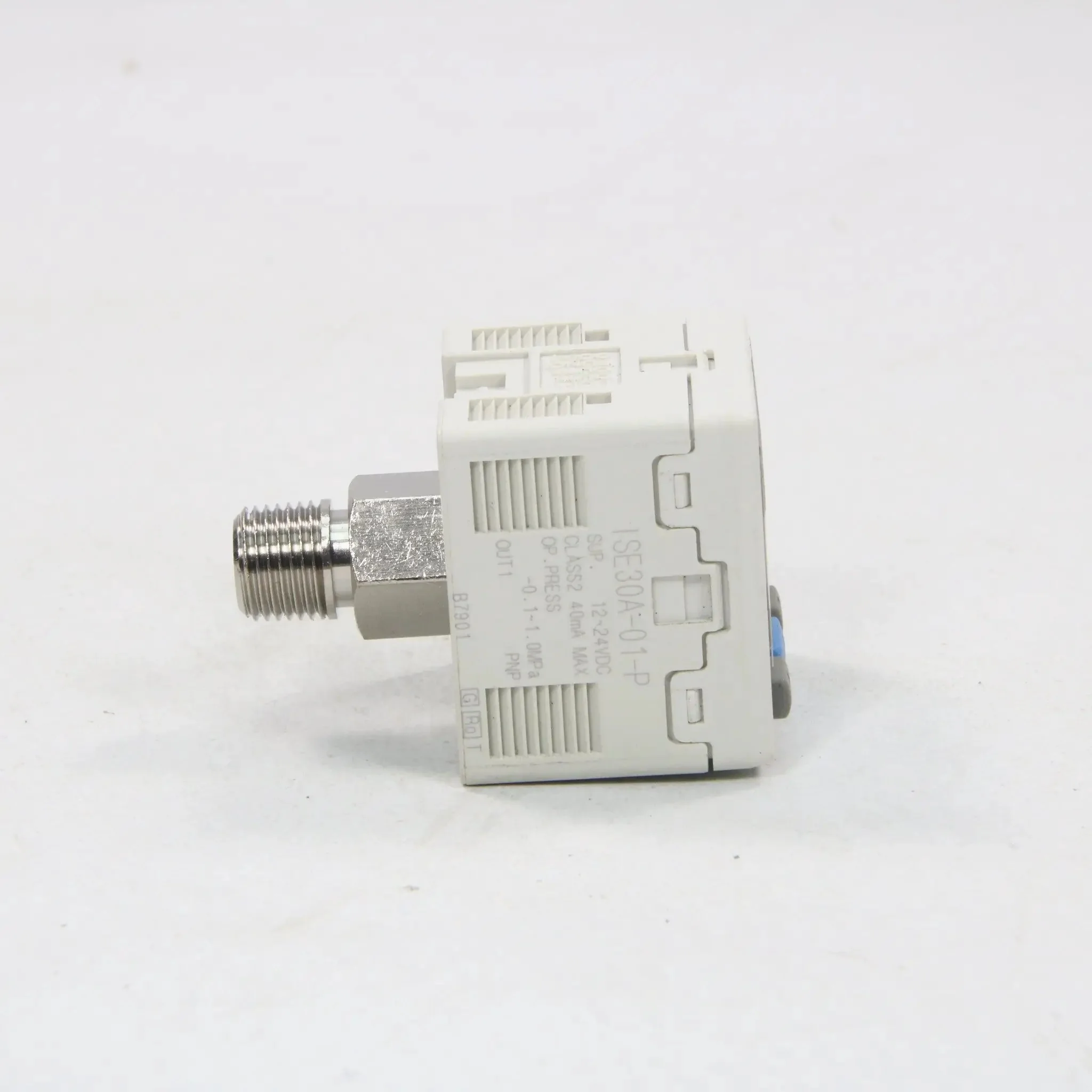

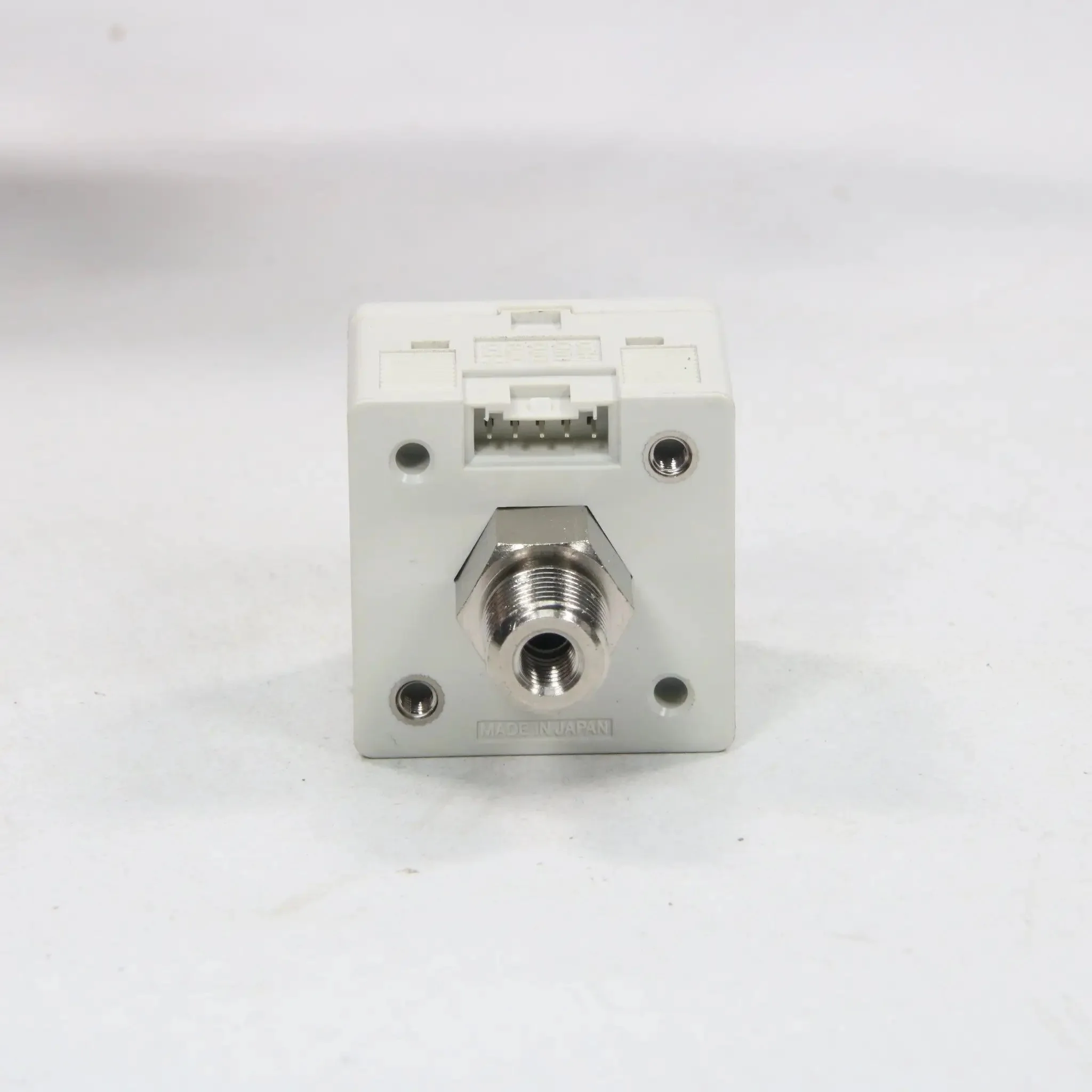

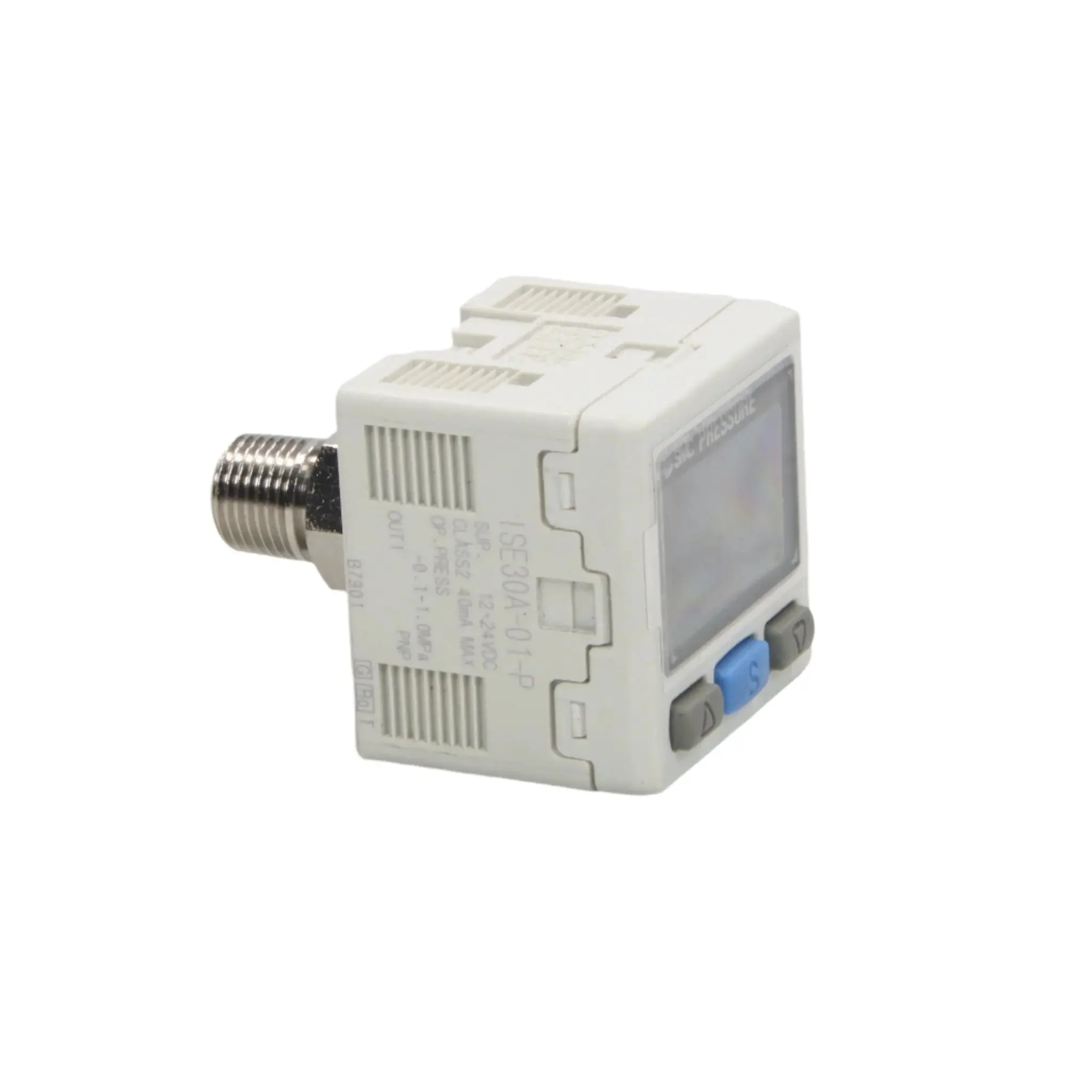

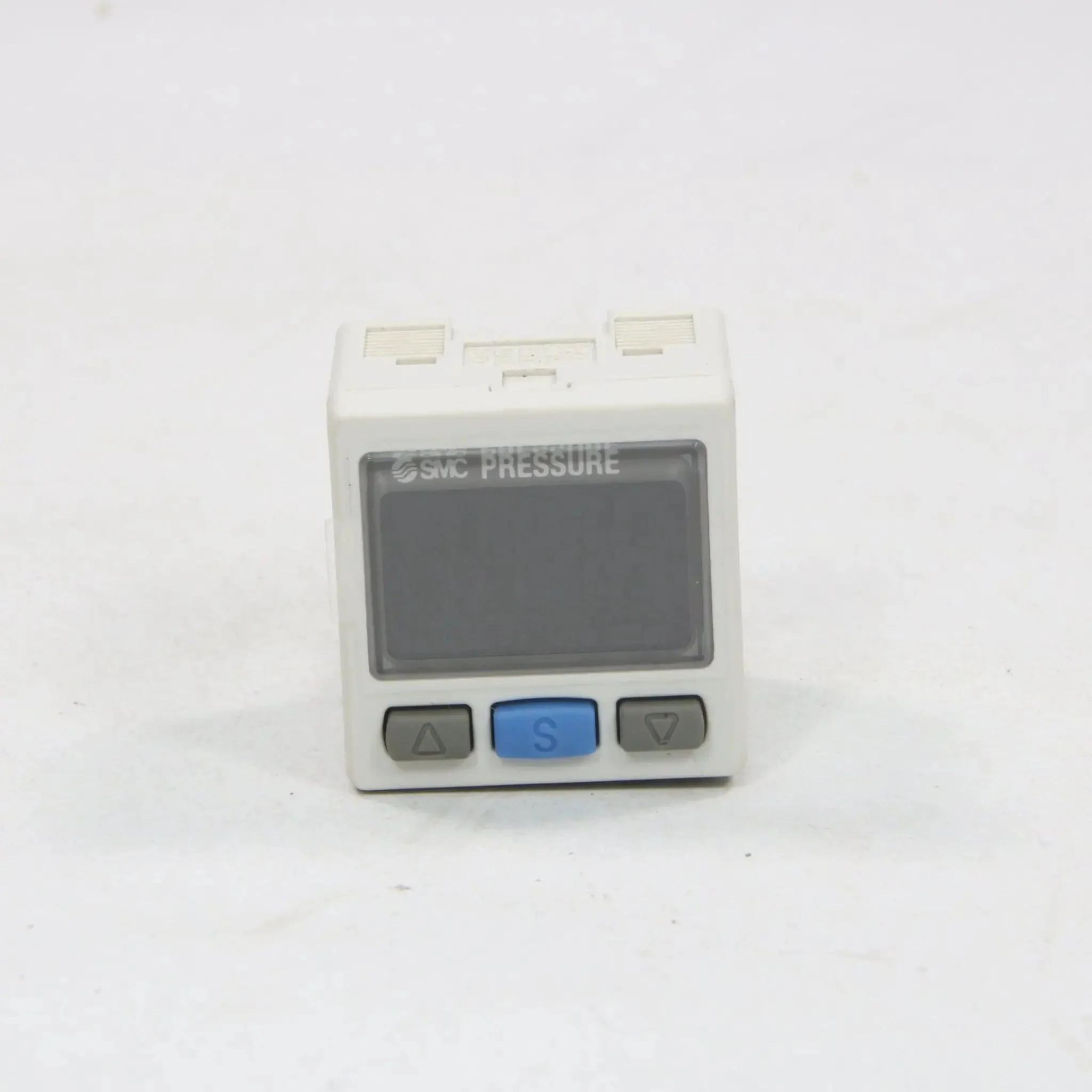

SMC ISE30A-01-P Digital Pressure Switch
- Brand: SMC
- Part Number: ISE30A-01-P
- Type: Digital Pressure Switch
- Pressure Range: -0.100 to 1.000 MPa
- Output Type: PNP Open Collector (1 output)
- Analog Output: Optional 1–5 V or 4–20 mA
- Display: 4-digit, 2-color (red/green)
- Mounting: Panel or bracket; supports vertical and horizontal orientations
- Port Size: R1/8 (M5 female thread)
- Operating Temperature: 0 to 50°C
- Power Supply: 12–24 VDC ±10%
- Current Consumption: ≤40 mA
- Repeatability: ±0.2% F.S. ±1 digit
- Hysteresis Mode: Adjustable from 0 to variable
- Response Time: 2.5 ms (with anti-chatter function)
- Display Accuracy: ±2% F.S. ±1 digit at 25°C
- Compliance: CE, UL/CSA, RoHS
$3,980.18
Original: $13,267.26
-70%SMC ISE30A-01-P Digital Pressure Switch—
$13,267.26
$3,980.18
Description
- Brand: SMC
- Part Number: ISE30A-01-P
- Type: Digital Pressure Switch
- Pressure Range: -0.100 to 1.000 MPa
- Output Type: PNP Open Collector (1 output)
- Analog Output: Optional 1–5 V or 4–20 mA
- Display: 4-digit, 2-color (red/green)
- Mounting: Panel or bracket; supports vertical and horizontal orientations
- Port Size: R1/8 (M5 female thread)
- Operating Temperature: 0 to 50°C
- Power Supply: 12–24 VDC ±10%
- Current Consumption: ≤40 mA
- Repeatability: ±0.2% F.S. ±1 digit
- Hysteresis Mode: Adjustable from 0 to variable
- Response Time: 2.5 ms (with anti-chatter function)
- Display Accuracy: ±2% F.S. ±1 digit at 25°C
- Compliance: CE, UL/CSA, RoHS
