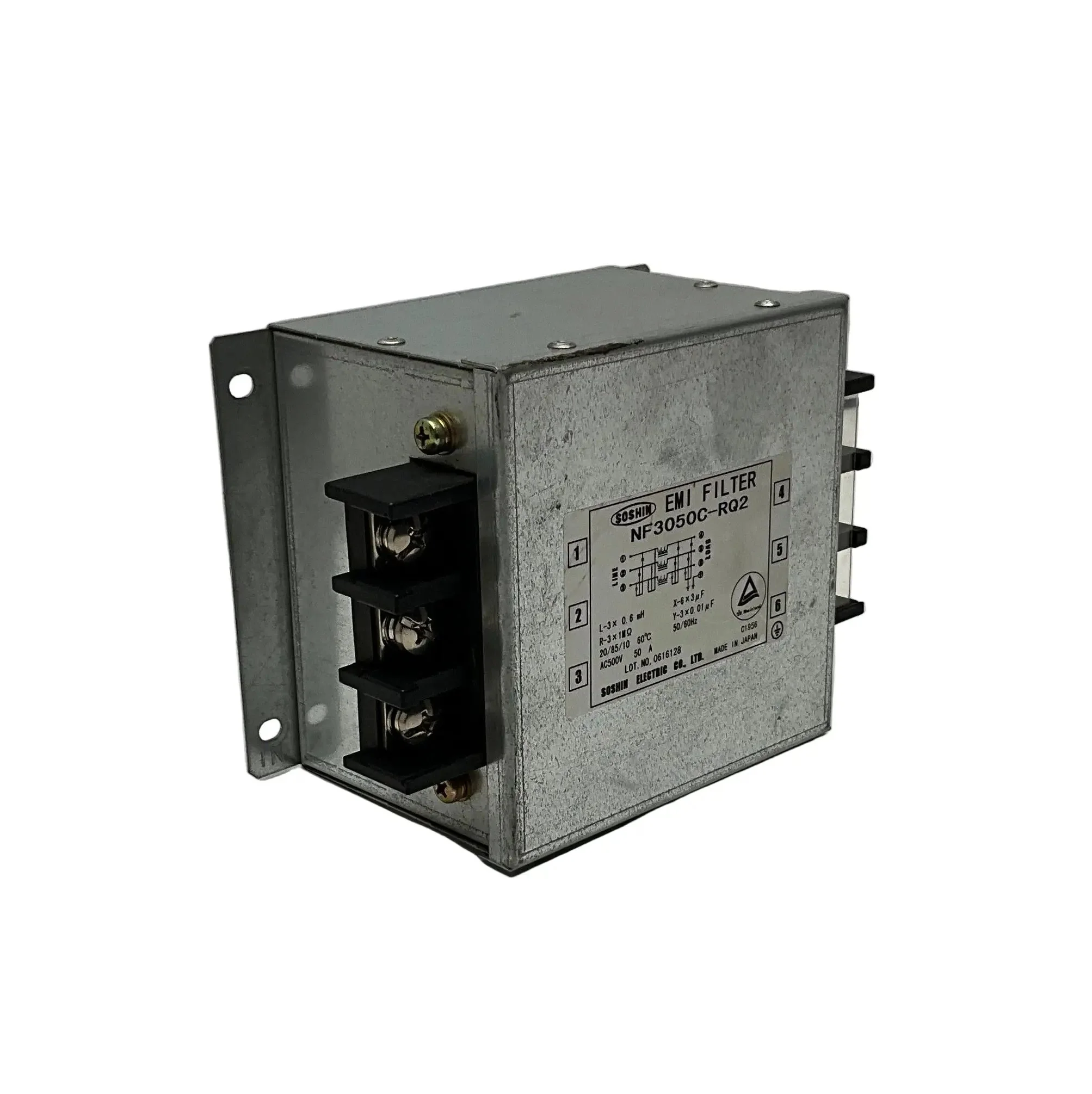

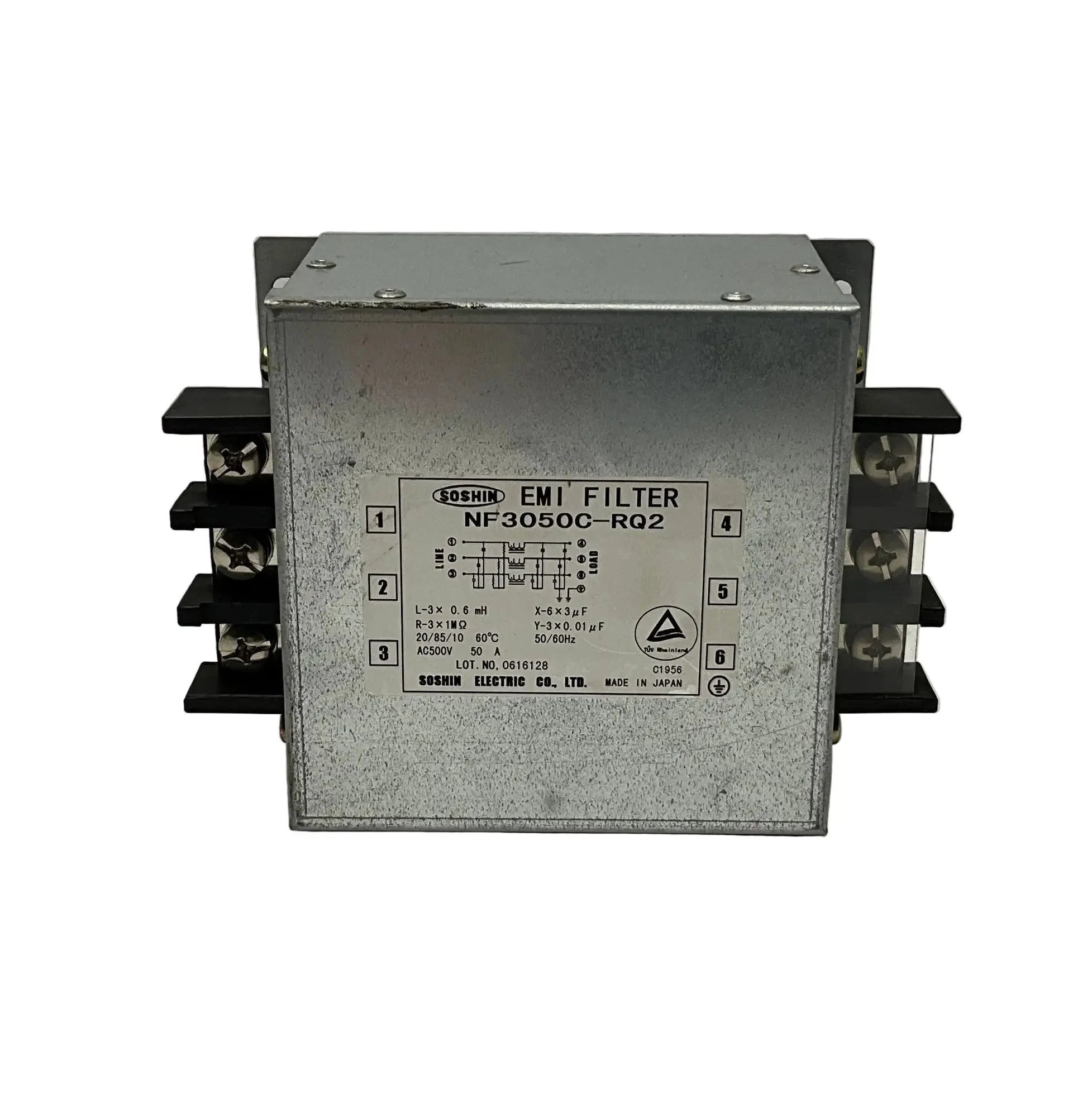

Soshin Electric NF3050C-RQ2 EMI Filter

Brand: Soshin Electric
Model: NF3050C-RQ2
Type: EMI Filter
Part Number: NF3050C-RQ2

Technical Specs:
- Filter Type: 3-phase EMI filter
- Rated Voltage: 500 V AC
- Rated Current: 50 A
- Frequency: 50/60 Hz
- Configuration: 3-phase 3-line
- Leakage Current: < 10 mA at 250 V AC
- Operating Temperature Range: -25°C to 60°C
- Storage Temperature Range: -40°C to 85°C
- Humidity: 95% RH max
- Housing Material: Metal
- Mounting: Chassis
- Additional Features:
  - Compact and low-profile
  - Integrated structure for reduced wiring and space
  - High attenuation for conducted EMI
- Certifications: UL, CSA, TUV compliant

Dimensions: 180 x 120 x 90 mm

Weight: 1.9 kg

Country of Origin: Japan

HS Code: 8548.90
