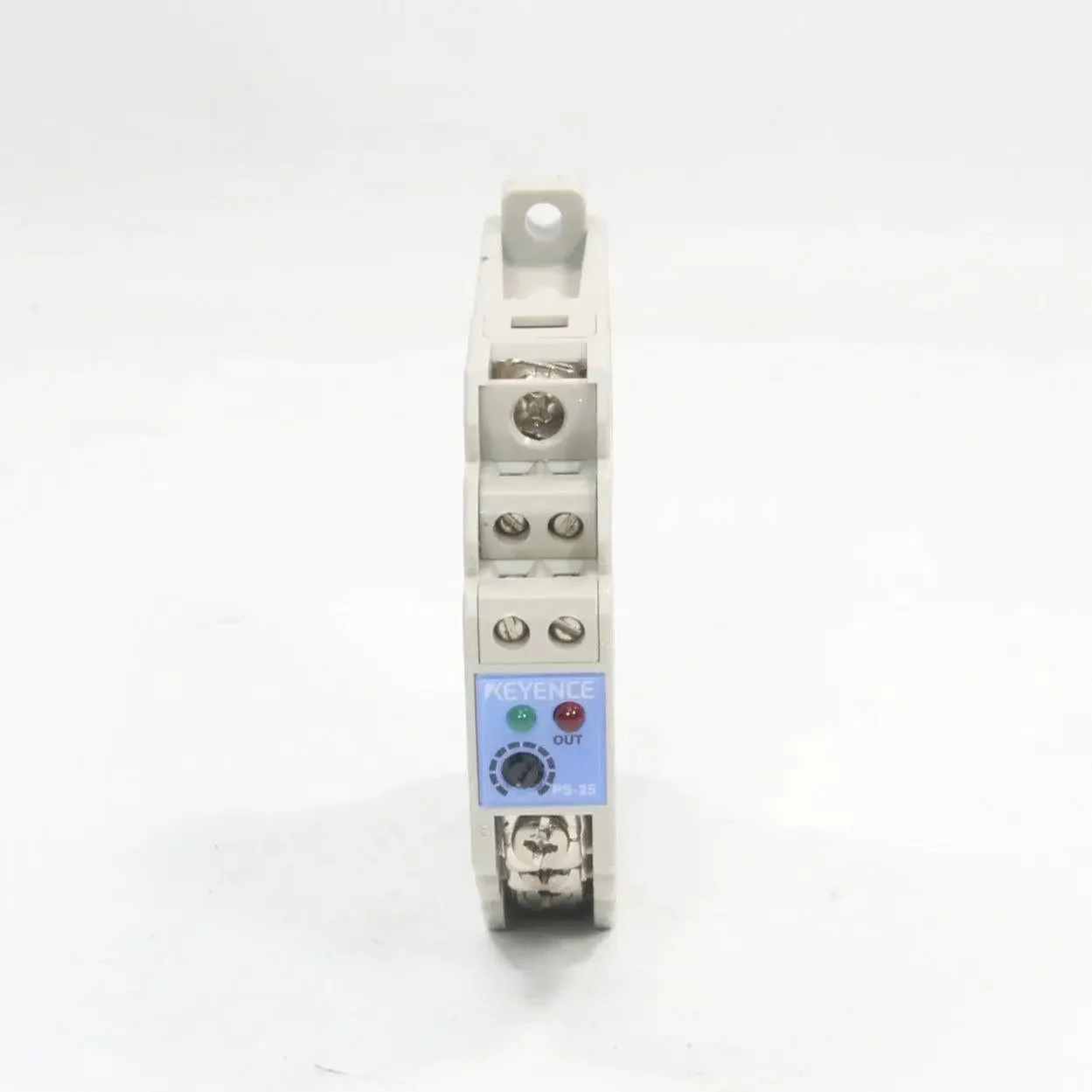

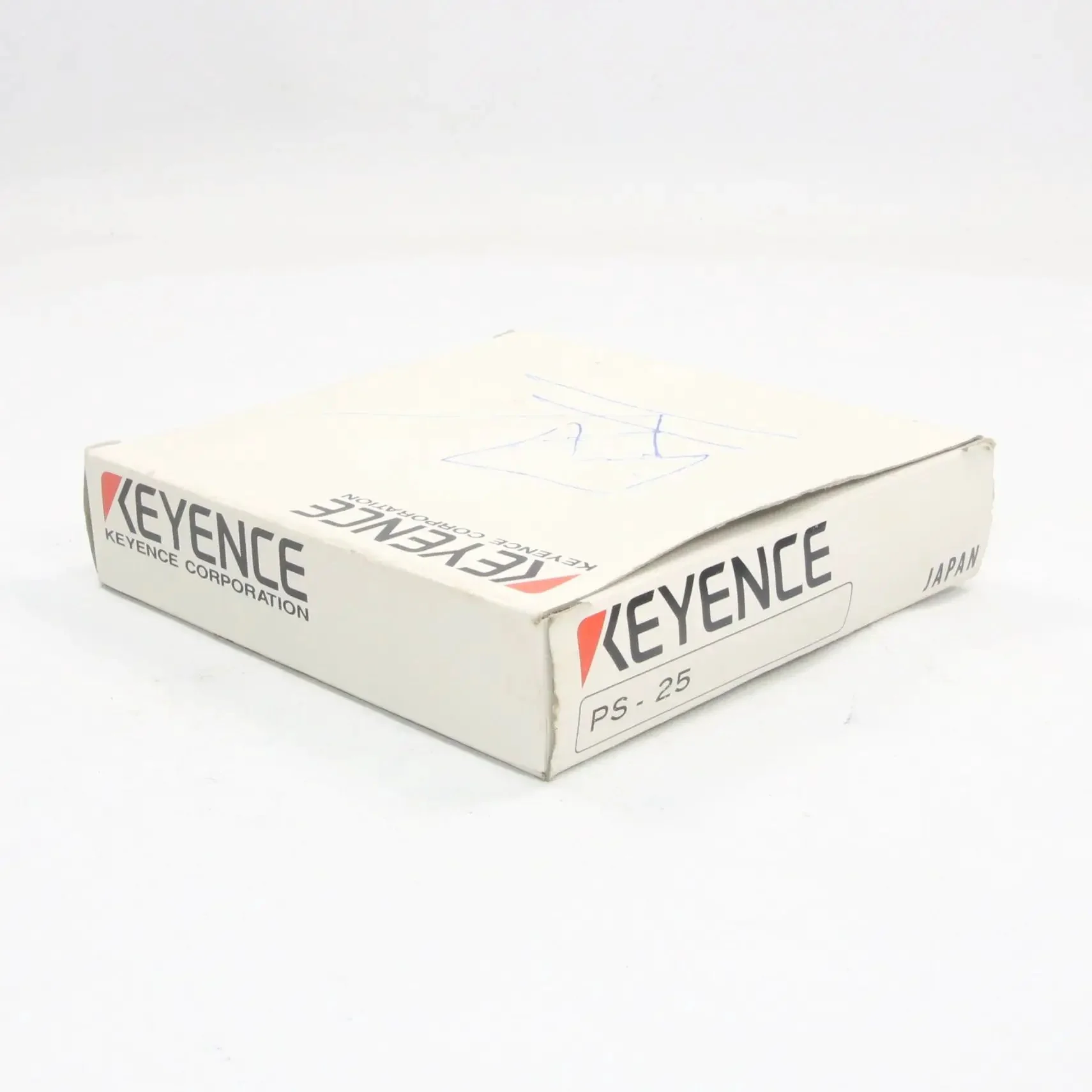

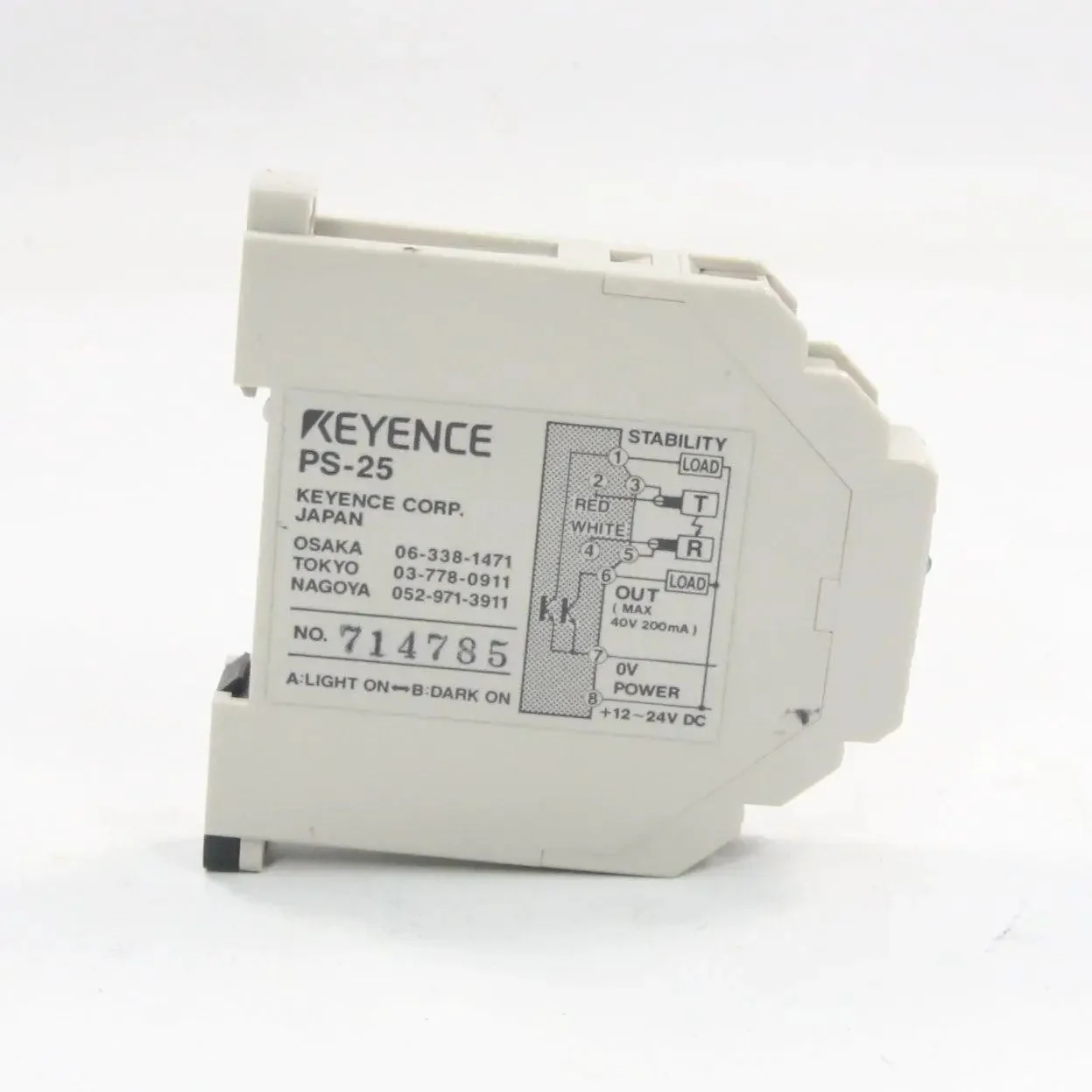

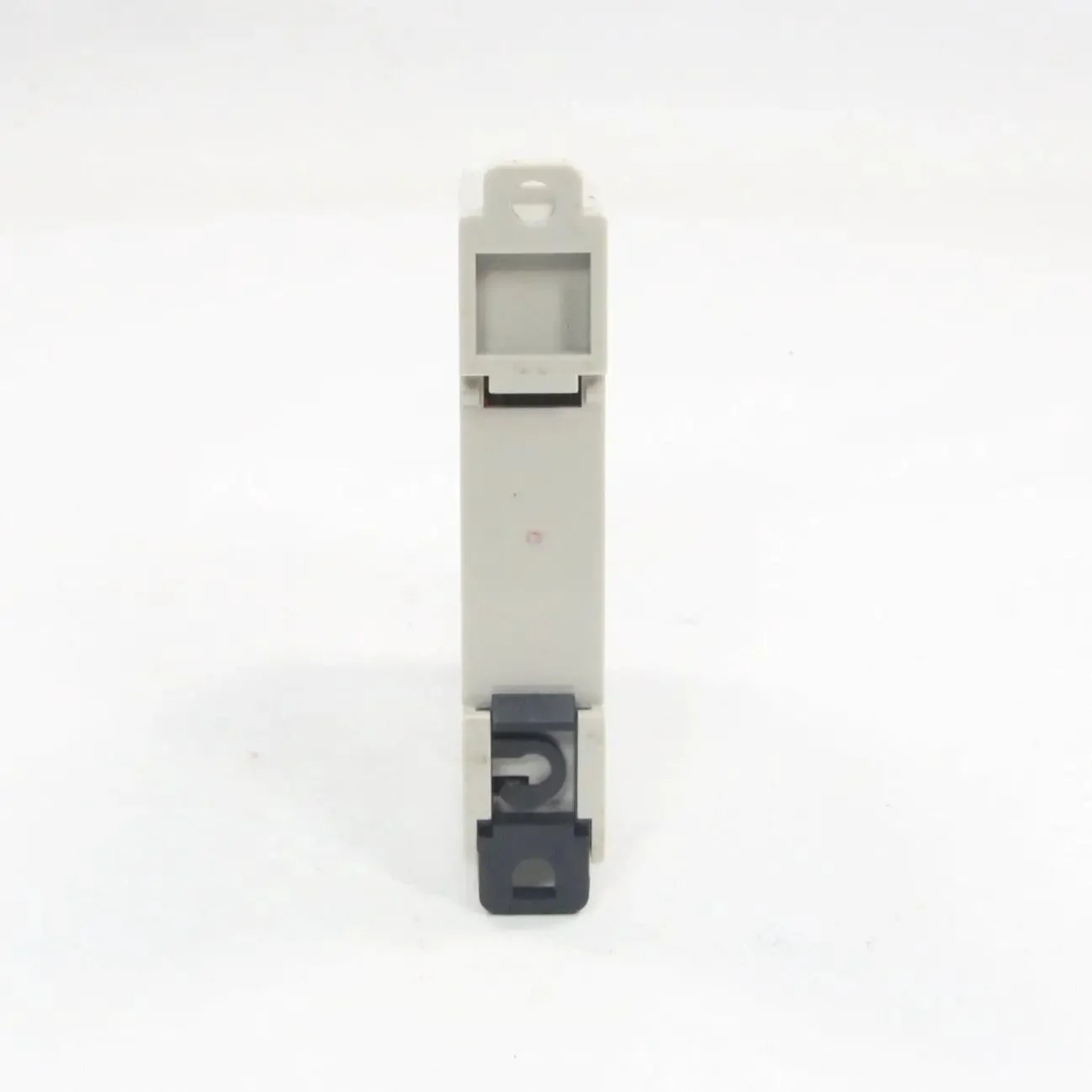

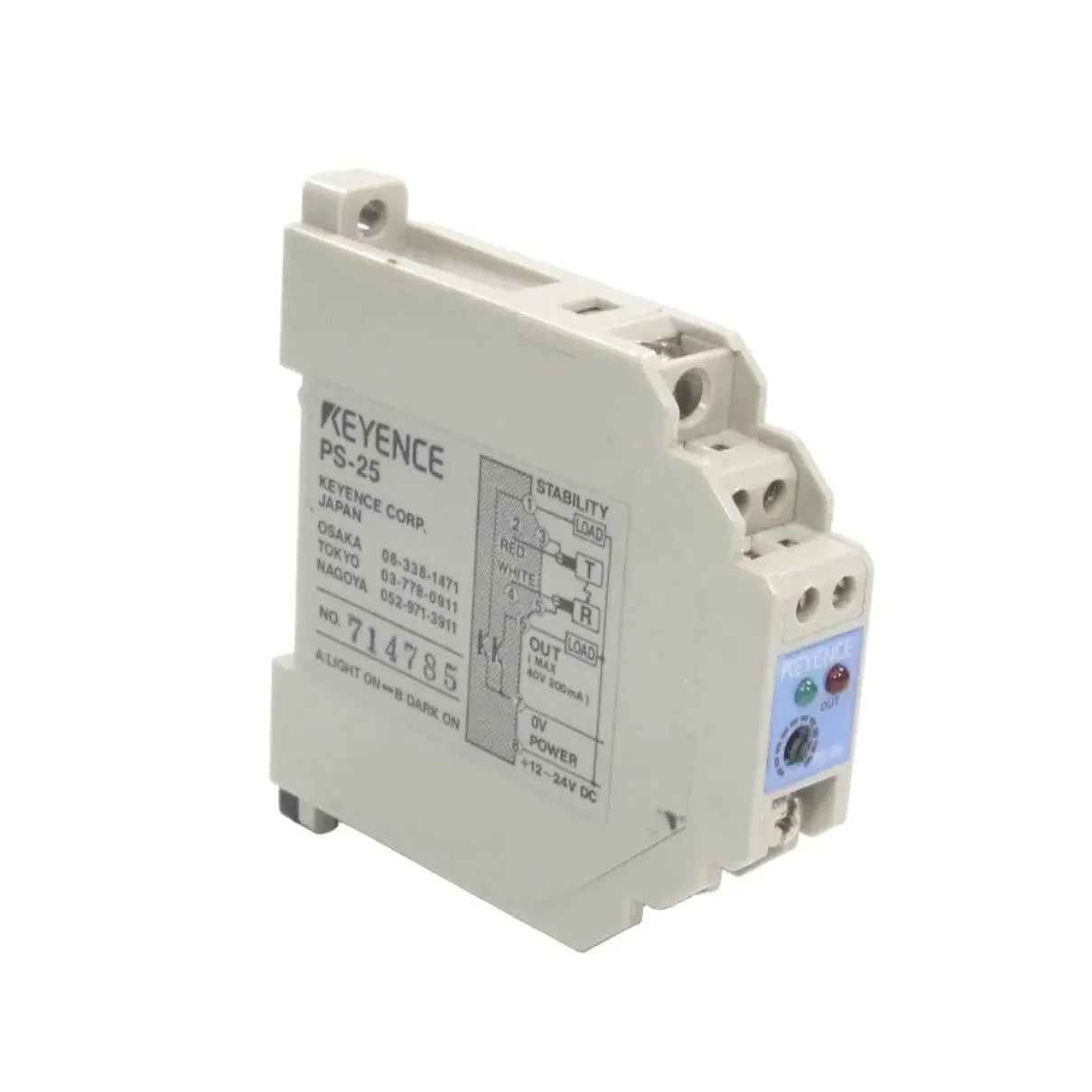

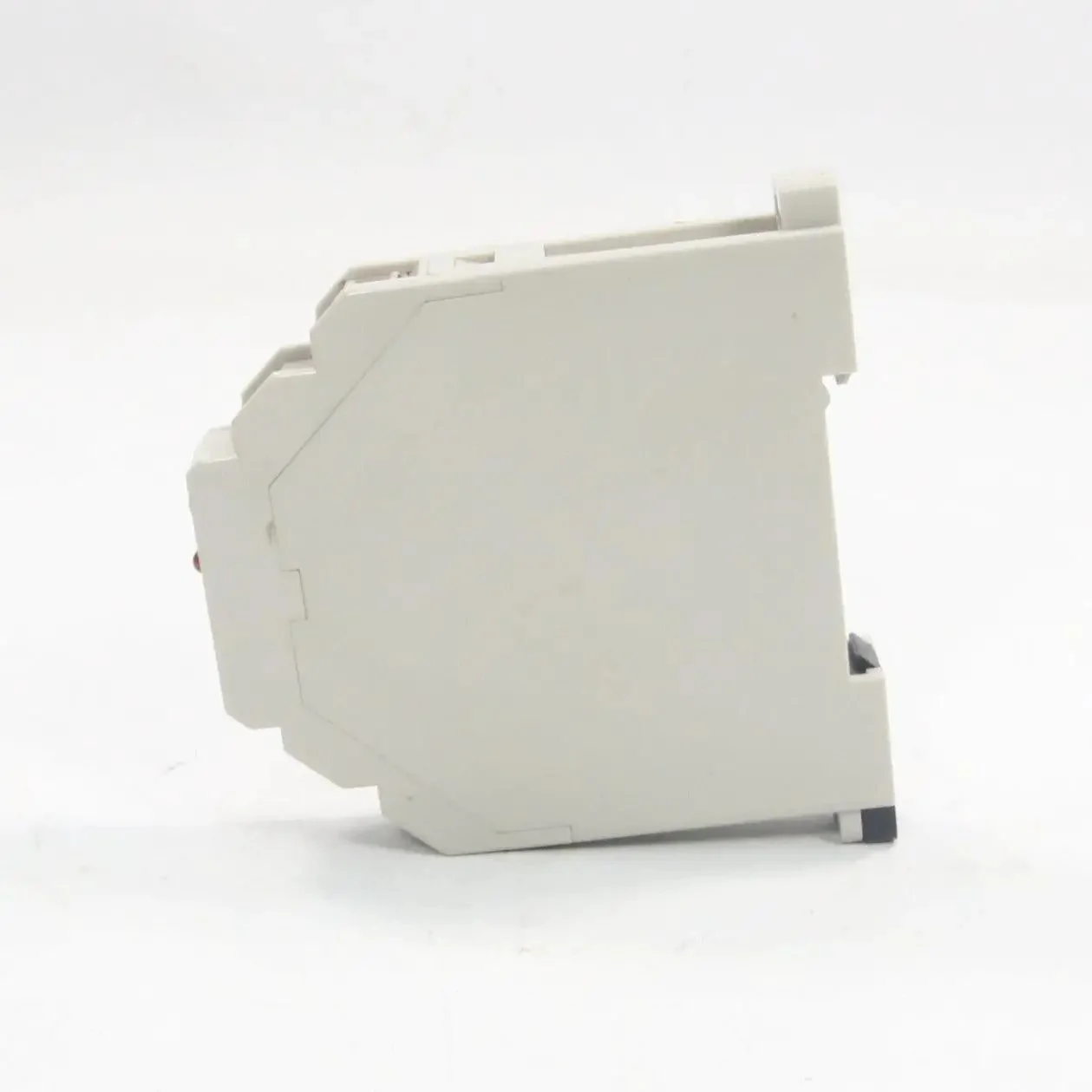

Keyence PS-25 Photoelectric Sensor Amplifier

- Brand: Keyence
- Model: PS-25
- Type: Photoelectric Sensor Amplifier
- Technical Specifications:
  - Function: Amplifier unit for separate-type photoelectric sensors in the PS series
  - Output Type: NPN open collector
  - Supply Voltage: 12-24 V DC
  - Current Consumption: 45 mA max
  - Output Current: 200 mA max
  - Output Voltage Drop: 40 V max
  - Response Time: ~1 ms
  - Operation Mode: Light-ON/DARK-ON selectable
  - Sensitivity Adjustment: 1-turn trimmer
  - Ambient Temperature: -10 to +50°C
  - Ambient Humidity: 35 to 85% RH
  - Vibration Resistance: 10-55 Hz
  - Connection: M8 connector (4-pin)
  - Indicators: Red LED (output), Green LED (stable operation)
  - Protection Rating: IP67
  - Features: DC type NPN output, suitable for industrial photoelectric sensing,                discontinued model
  - Dimensions: 115 x 115 x 25 mm
- Weight: 70 g
- Country of Origin: Japan
- HS Code: 85365019
