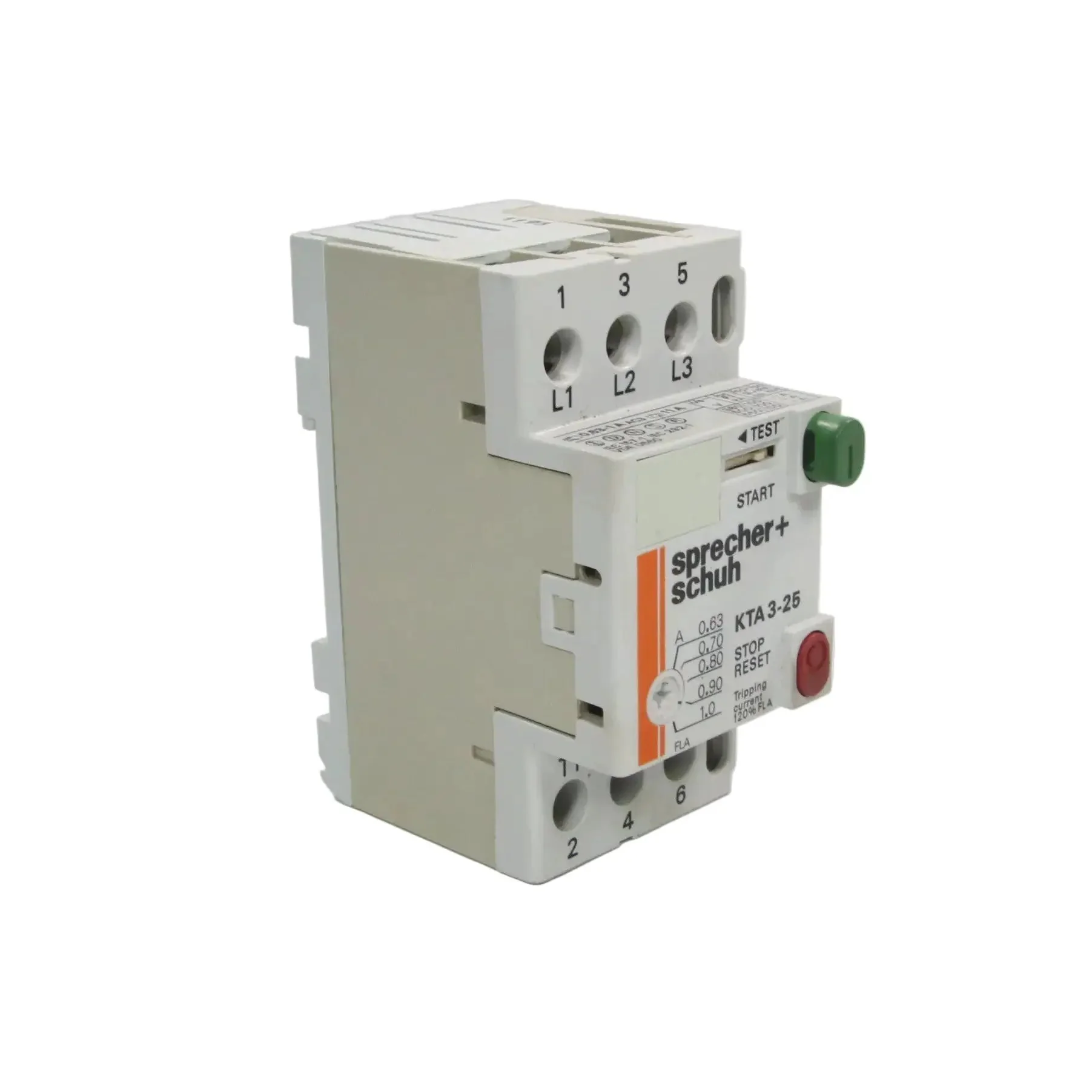

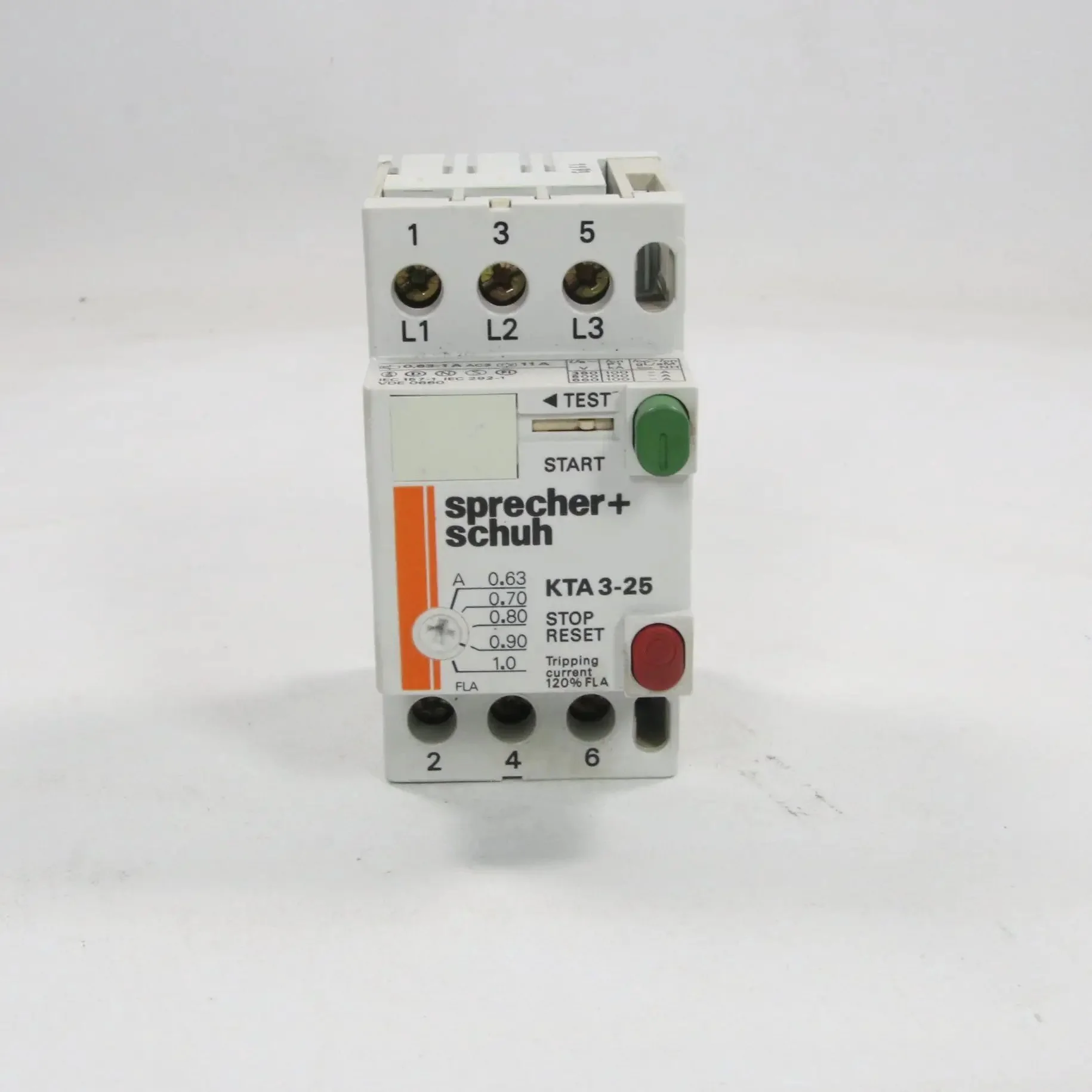

Sprecher + Schuh KTA 3-25 Motor Circuit Protector 0.63 - 1.0 A

- Brand: Sprecher + Schuh
- Model: KTA 3-25
- Type: Motor Circuit Protector (MCP) / Motor Protection Circuit Breaker
- All tech specs:
  - Function: Motor protection circuit breaker for short-circuit and overload protection of 3-phase motors
  - Rated Operational Voltage (Ue): 660 V AC (50/60 Hz)
  - Rated Insulation Voltage (Ui): 690 V
  - Current Setting Range: 0.63 – 1.0 A
  - Tripping current: 120% FLA
  - Phase Failure Protection: Yes
  - Number of Poles: 3-pole
  - Mounting: DIN rail or screw mounting
  - Terminal Type: Screw terminals
  - Operating Temperature: -25 °C to +55 °C
  - Protection Rating: IP20
  - Standards: IEC 157-1, IEC 292-1
  - Features: Adjustable thermal setting, fixed magnetic trip, high breaking capacity, compact design, manual ON/OFF/Trip reset, discontinued product
- Dimensions: 70 x 50 x 90 mm
- Weight: 280 g
- Country of origin: Switzerland
- HS code: 853630
