Telemecanique ATS46D47N Altistart 46 Soft Starter
Brand: Telemecanique (Schneider Electric)
Model: Altistart 46
Type: Soft Starter
Part Number: ATS46D47N
Technical Specs:
- Power Rating: 22 kW (30 HP) at 400 V AC
- Rated Operational Current: 47 A
- Rated Voltage: 220 to 460 V AC - 1 Phase
- Frequency: 50/60 Hz
- Stop/Run - 20mA/24V DC
- Starting Method: Torque control, current limitation, voltage ramp
- Starting Torque: Up to 150% of rated torque
- Stopping Method: Soft stop, freewheel stop, braking ramp
- Protection Features: Motor overload (Class 10), phase loss, under/over voltage, thermal protection, motor stall, locked rotor
- Auxiliary Relays: 2 programmable (1 NO + 1 NC)
- Analog Input: 1 (0-10 V or 4-20 mA)
- Digital Inputs: 5
- Digital Outputs: 2
- Communication: Modbus RTU
- Enclosure Rating: IP20
- Operating Temperature: -10°C to +40°C
- Storage Temperature: -40°C to +65°C
- Short Circuit Capacity: 5KA

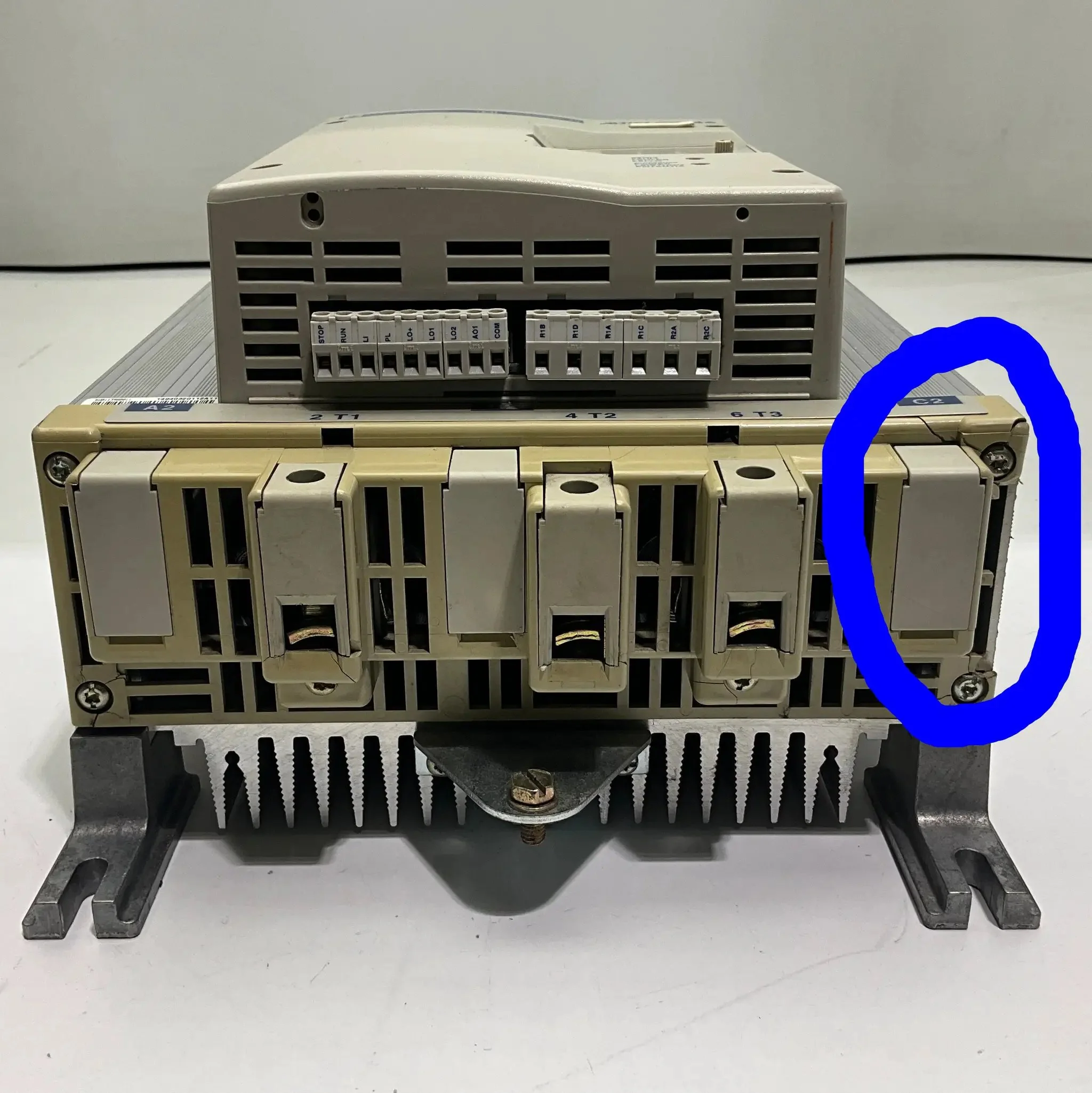

* Damage to lower case - See image
- Dimensions: 330 x 240 x 180 mm
- Weight: 6.8 kg
Country of Origin: France
HS Code: 8504.40
Original: $1,094.29
-70%$1,094.29
$328.29
Description
Brand: Telemecanique (Schneider Electric)
Model: Altistart 46
Type: Soft Starter
Part Number: ATS46D47N
Technical Specs:
- Power Rating: 22 kW (30 HP) at 400 V AC
- Rated Operational Current: 47 A
- Rated Voltage: 220 to 460 V AC - 1 Phase
- Frequency: 50/60 Hz
- Stop/Run - 20mA/24V DC
- Starting Method: Torque control, current limitation, voltage ramp
- Starting Torque: Up to 150% of rated torque
- Stopping Method: Soft stop, freewheel stop, braking ramp
- Protection Features: Motor overload (Class 10), phase loss, under/over voltage, thermal protection, motor stall, locked rotor
- Auxiliary Relays: 2 programmable (1 NO + 1 NC)
- Analog Input: 1 (0-10 V or 4-20 mA)
- Digital Inputs: 5
- Digital Outputs: 2
- Communication: Modbus RTU
- Enclosure Rating: IP20
- Operating Temperature: -10°C to +40°C
- Storage Temperature: -40°C to +65°C
- Short Circuit Capacity: 5KA
* Damage to lower case - See image
- Dimensions: 330 x 240 x 180 mm
- Weight: 6.8 kg
Country of Origin: France
HS Code: 8504.40
