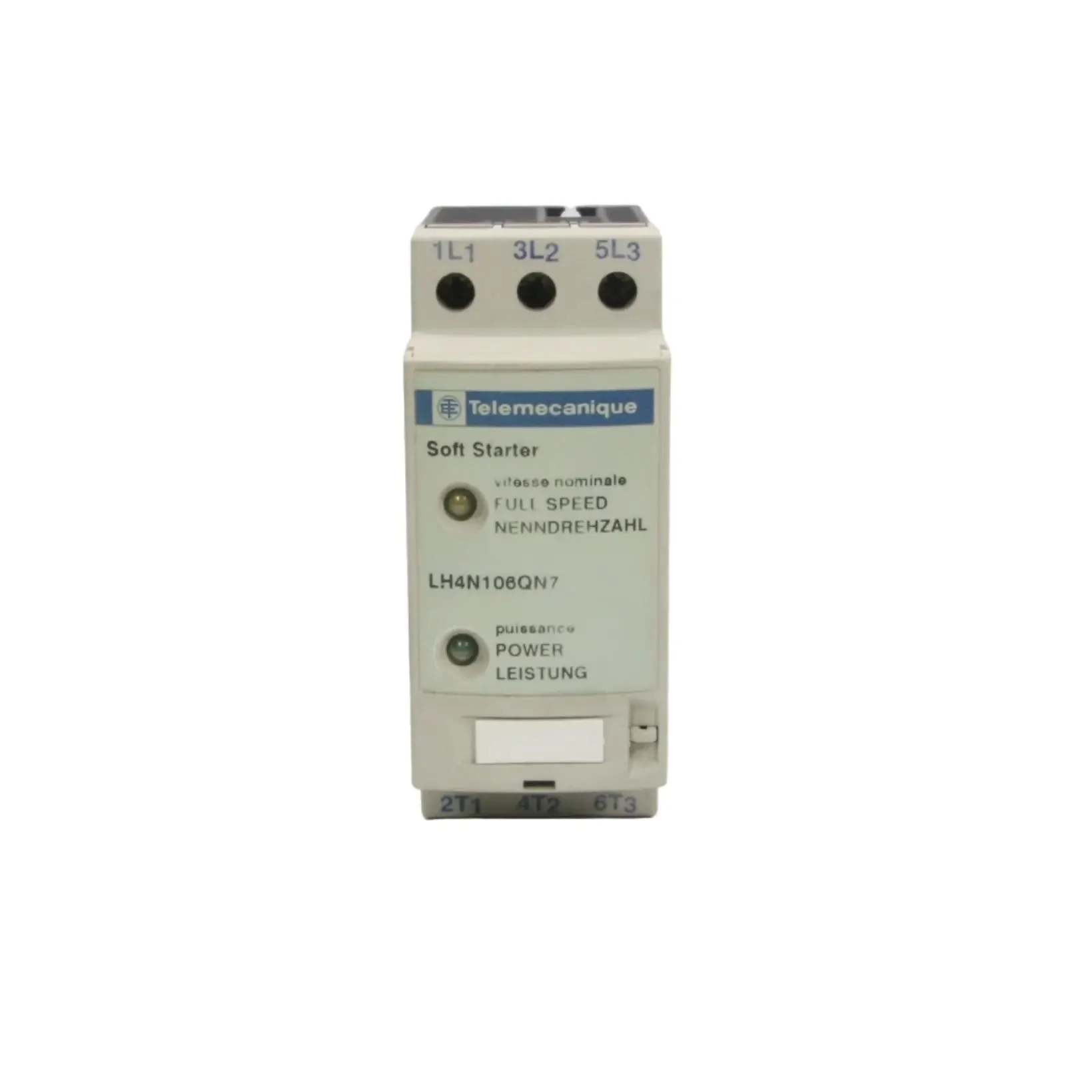

Telemecanique LH4N106QN7 Soft Starter
- Brand: Telemecanique (Schneider Electric)
- Model: LH4N106QN7
- Type: Soft Starter
- Technical Specifications:
- Function: Modular soft starter for 3-phase asynchronous motors, provides soft start and soft stop
- Power Rating: 2.2 kW (380 V AC)
- Voltage Range: 380-415 V AC, 50/60 Hz
- Current Rating: 6 A
- Phases: 3
- Control: Thyristor-based, ramp-up/ramp-down time adjustable
- Protection: Thermal overload, phase loss, short-circuit
- Operating Temperature: -10°C to +50°C
- Protection Rating: IP20
- Mounting: DIN rail
- Standards: IEC/EN 60947-4-2 compliant
- Features: Compact design, easy installation, suitable for pump and fan applications
- Dimensions: 110 x 110 x 45 mm
- Weight: 450 g
- Country of Origin: France
- HS Code: 850440
Original: $178.54
-70%$178.54
$53.56
Description
- Brand: Telemecanique (Schneider Electric)
- Model: LH4N106QN7
- Type: Soft Starter
- Technical Specifications:
- Function: Modular soft starter for 3-phase asynchronous motors, provides soft start and soft stop
- Power Rating: 2.2 kW (380 V AC)
- Voltage Range: 380-415 V AC, 50/60 Hz
- Current Rating: 6 A
- Phases: 3
- Control: Thyristor-based, ramp-up/ramp-down time adjustable
- Protection: Thermal overload, phase loss, short-circuit
- Operating Temperature: -10°C to +50°C
- Protection Rating: IP20
- Mounting: DIN rail
- Standards: IEC/EN 60947-4-2 compliant
- Features: Compact design, easy installation, suitable for pump and fan applications
- Dimensions: 110 x 110 x 45 mm
- Weight: 450 g
- Country of Origin: France
- HS Code: 850440
