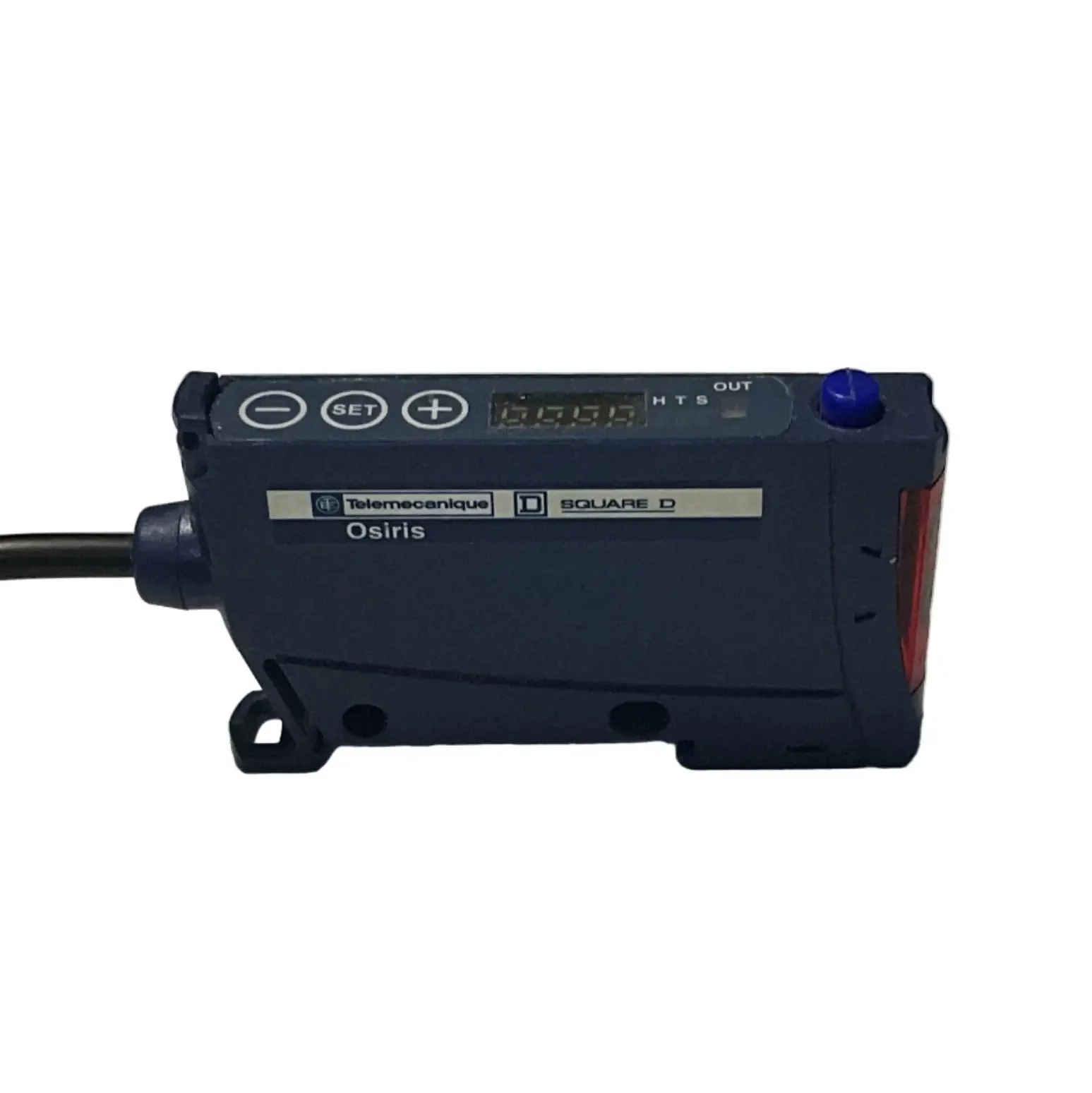

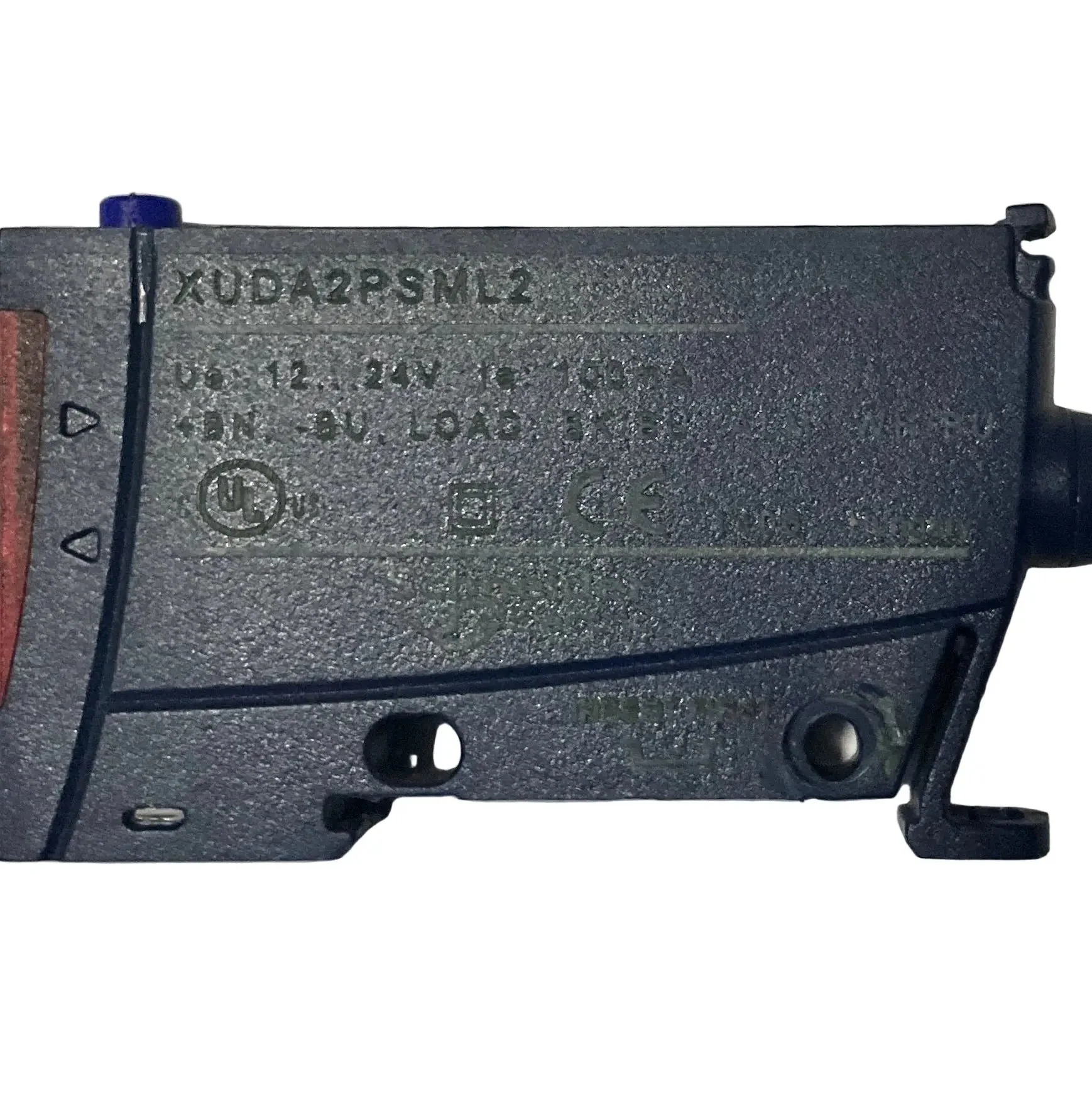

Telemecanique XUDA2PSML2 Photoelectric Sensor

Brand: Telemecanique
Model: XUDA2PSML2
Type: Photoelectric Sensor (Fibre Optic Amplifier)
Part Number: XUDA2PSML2

Series: Osiris

Technical Specs:
- Sensor Type: Optical fibre amplifier
- Output Type: PNP
- Output Configuration: NO/NC programmable (1 normally open or 1 normally closed)
- Electrical Connection: Cable, 2 m
- Supply Voltage: 12 to 24 V DC
- Operating Voltage Range: 10.8 to 26.4 V DC
- Load Current: 100 mA
- Switching Frequency: 1000 Hz (1 kHz)
- Response Time: 0.1 ms (0.0001 s) with 0.1 ms delay
- Fibre Optic Type: Plastic fibre
- Detection System: Thru-beam or diffuse
- Sensitivity Adjustment: Teach mode with fine adjustment setting
- Display: 4-digit, 7-segment display for signal level and threshold indication
- Indicators: Green LED (S, stability), Yellow LED (OUT, output state)
- Protection Features: Short-circuit protection, overload protection
- Alarm Output: 50 mA with overload and short-circuit protection
- Enclosure Rating: IP65
- Vibration Resistance: ±0.5 mm or 7 gn (f = 10-55 Hz) per IEC 60068-2-6
- Shock Resistance: 30 gn (duration = 11 ms) per IEC 60068-2-27
- Operating Temperature Range: -10°C to 55°C
- Mounting: DIN rail mountable
- Wiring: 3-wire configuration
- Certifications: CE, RoHS compliant (with exemptions), REACH compliant
- Additional Features: Adjustable detection thresholds, programmable light/dark switching, fibre locking mechanism

Dimension: 65 x 40 x 10mm

Weight: 60g

Country of Origin: France

HS Code: 8541.49
