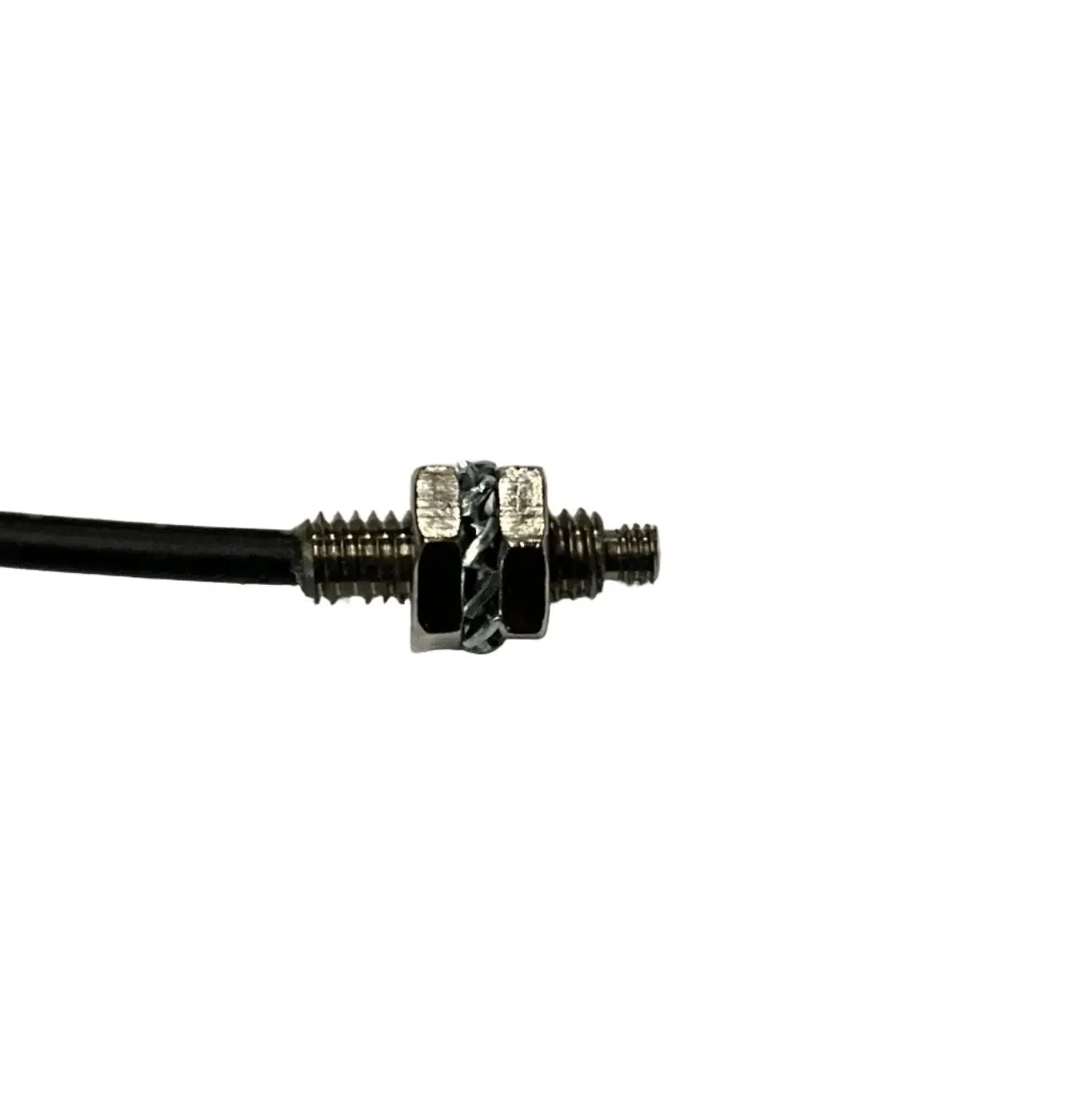

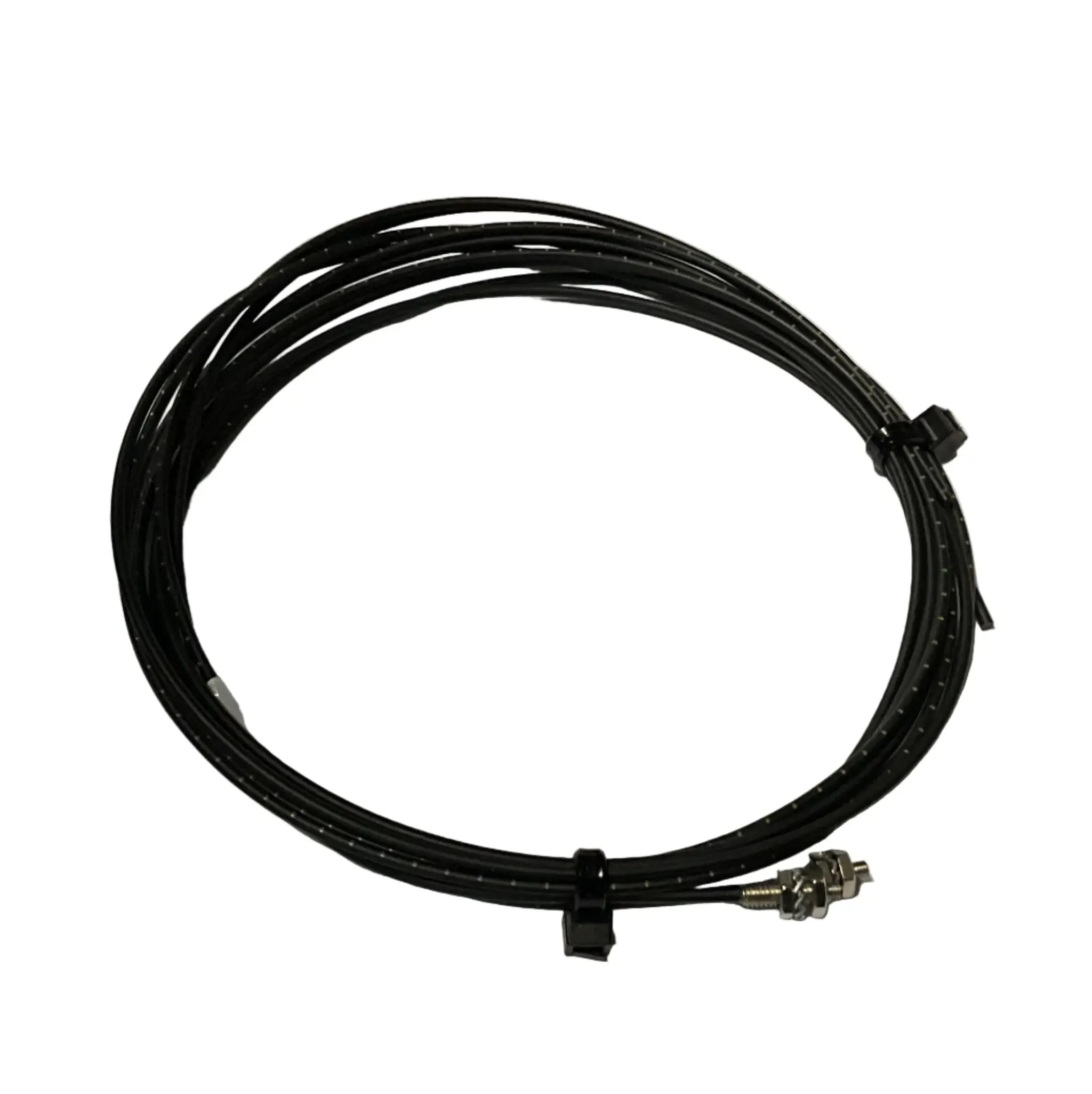

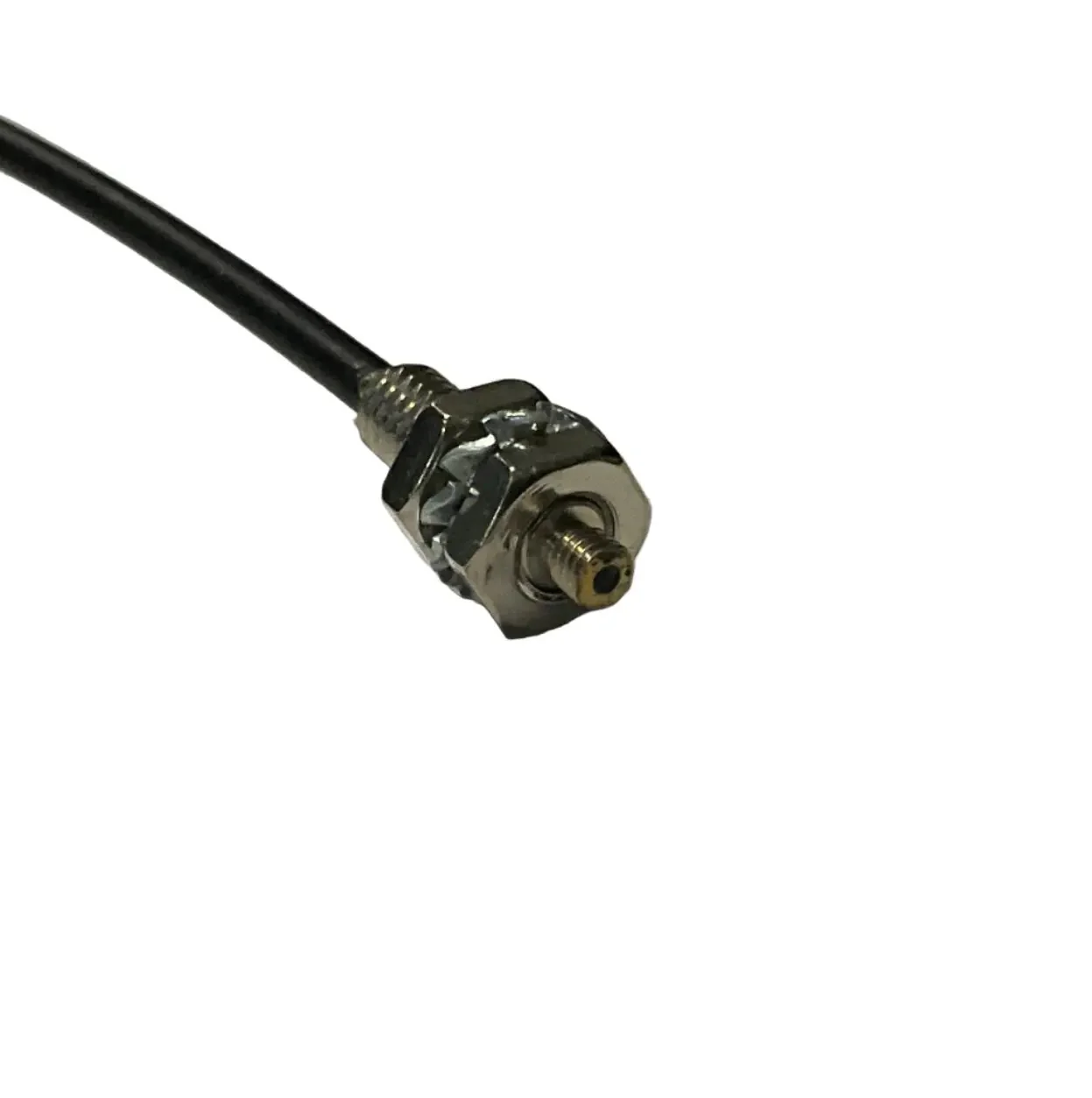

Telemecanique XUFN12301 Plastic Fibre Optic Light Guide

Brand: Telemecanique Sensors (Schneider Electric)
Model: XUFN12301
Type: Plastic Fibre Optic Light Guide (Thru-Beam)
Part Number: XUFN12301

Technical Specs:
- Detection Type: Thru-beam
- Sensing Distance: 200 mm
- Fibre Optic Type: Plastic fibre
- Fibre Cable Length: 2 m
- Minimum Bending Radius: 25 mm
- Fibre Core: 2 core strands at detector face
- Cable Cross-Section: Figure of eight cross-section, terminating in a round cross-section at the sensing face
- Thread Size: M4 x 0.7 (for mounting)
- Operating Temperature Range: -25°C to 60°C
- Protection Rating: IP64
- Housing Material: Polyethylene (PE)
- Additional Features:
  - Can be fitted with an optional lens
  - Fibre can be cut to adjust sensing distance
  - Designed for general-purpose applications with compatible amplifiers
- Certifications: CE compliant

Dimensions:
- Sensing Head Dimensions: 15 x M2.6 x 0.45 mm
- Cable Length: 2 m

Weight: 10 g

Country of Origin: France

HS Code: 9001.10
