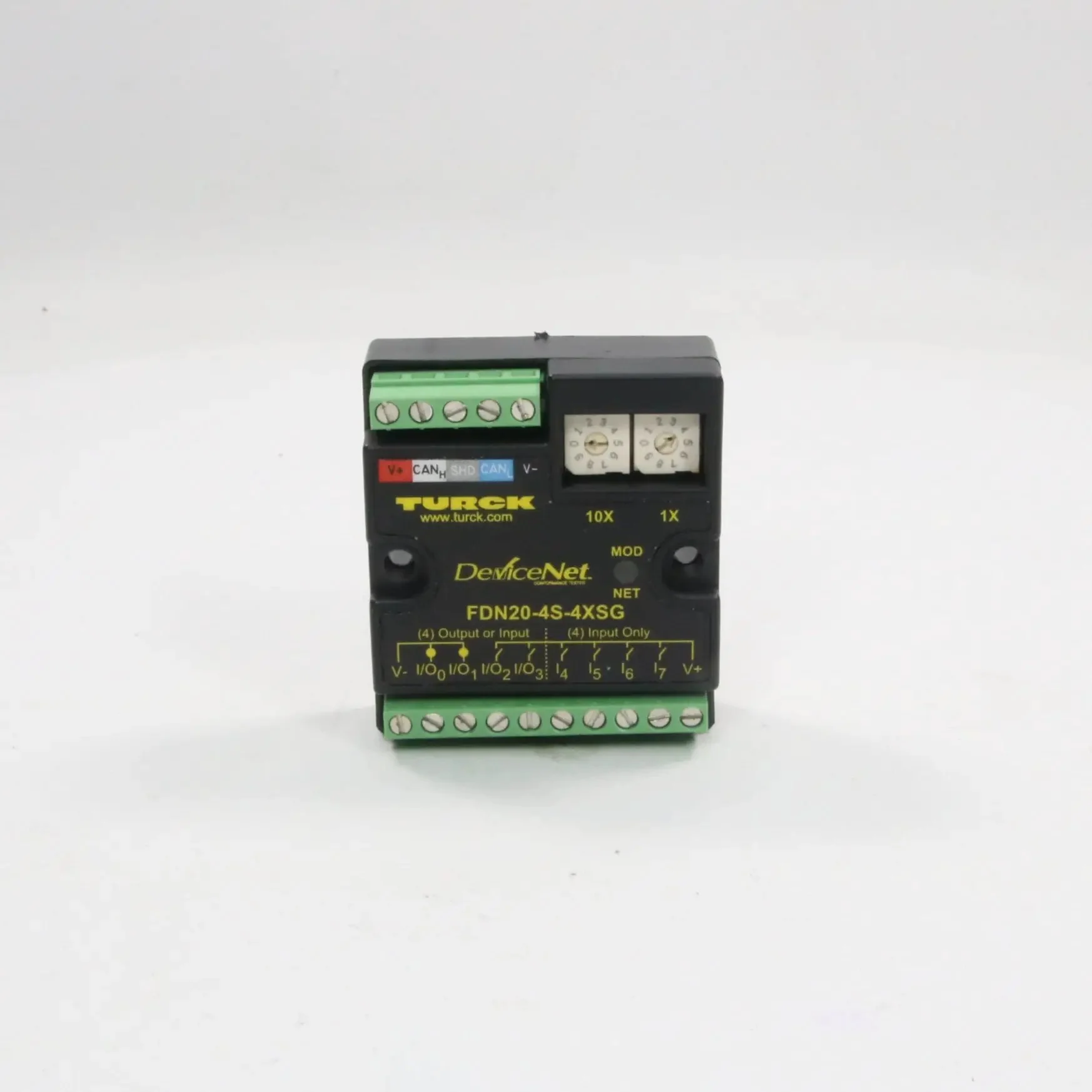

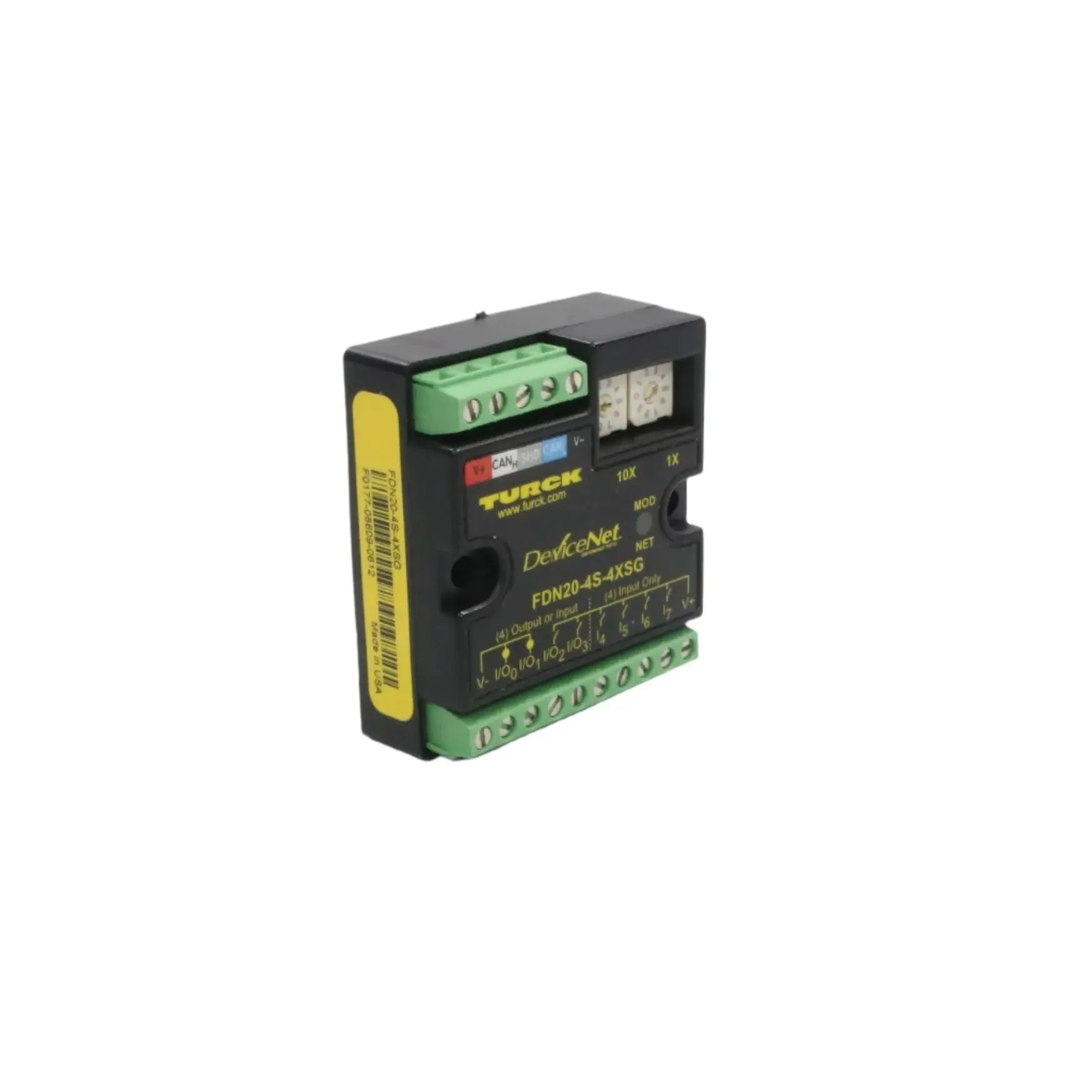

Turck FDN20-4S-4XSG DeviceNet I/O Module

Description:
The Turck FDN20-4S-4XSG is a compact I/O station designed for DeviceNet networks. It features 4 digital inputs and 4 universal digital channels that can be configured as either digital inputs

• Key Features:
• DeviceNet slave communication protocol
• 4 digital inputs and 4 configurable digital channels (DI/DO)
• 24 VDC PNP input/output with 0.5 A output current
• Screw-clamp terminal block for easy wiring
• Rotary coding switch for setting DeviceNet address
• Protection class IP20 for indoor use
• Operating temperature range: -40°C to +70°C
• Compact design for space-saving installations
• Specifications:
• Model: FDN20-4S-4XSG
• Protocol: DeviceNet
• Inputs: 4 digital inputs
• Outputs: 4 configurable digital channels (DI/DO)
• Supply Voltage: 24 VDC
• Input/Output Type: PNP
• Output Current: 0.5 A
• Connection: Screw-clamp terminal block
• Addressing: Rotary coding switch
• Protection Class: IP20
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: Up to 95% RH, non-condensing
• Dimensions: 62.5 mm (W) x 55 mm (H) x 23.45 mm (D)
• Weight: 105 g
