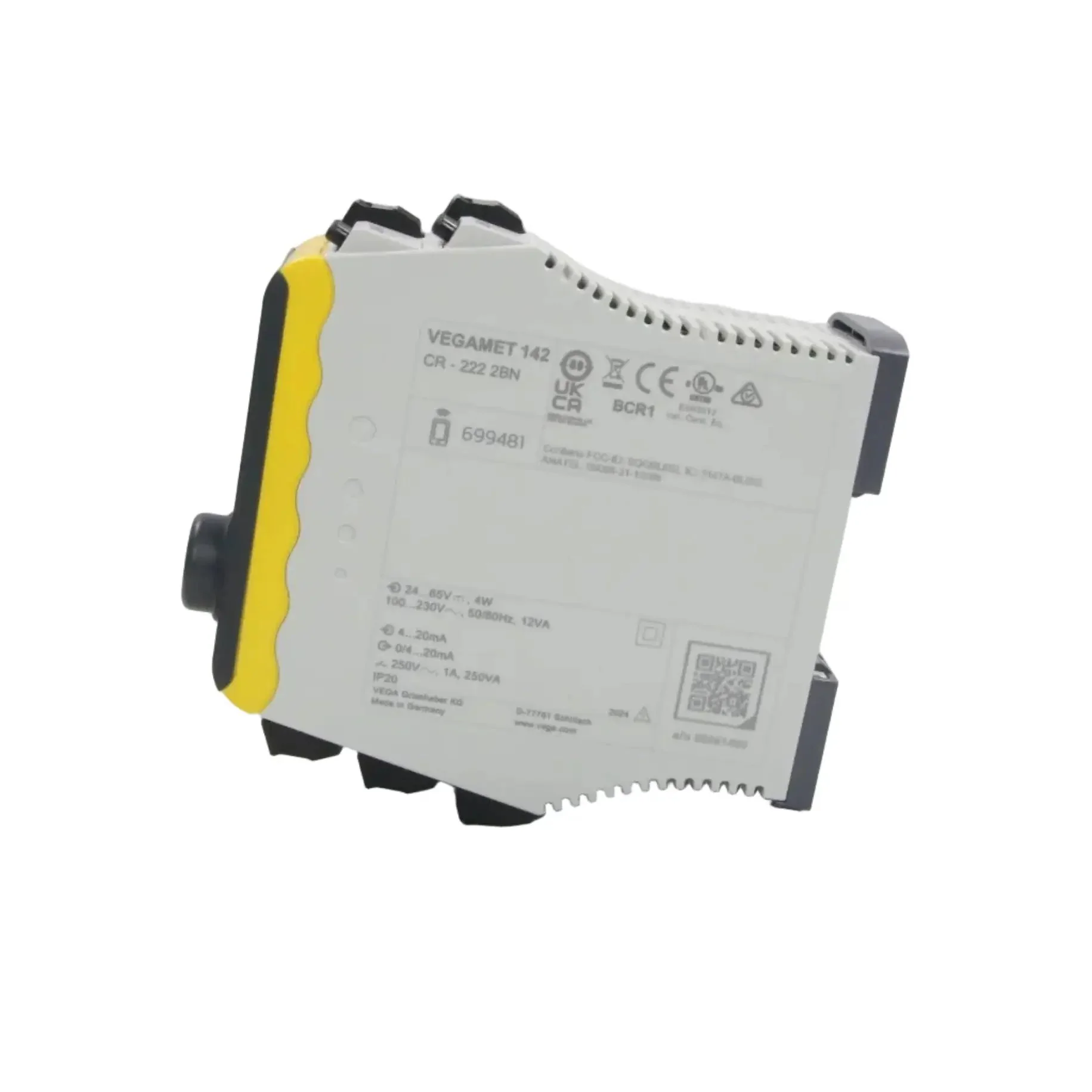

Vega Vegamet 142 Compact Controller

- Brand: Vega
- Model: VEGAMET 142 (CR-222 2BN variant)
- Type: Compact Signal Conditioning Instrument / Controller
- All Tech Specs
  - Function: Compact controller for level, gauge and process pressure measurement; displays and controls measured values from 4...20 mA sensors
  - Input: 2 x 4...20 mA sensor inputs (active/passive)
  - Output: 2 x relay outputs (SPDT, 250 V AC / 3 A)
  - Supply Voltage: 20...253 V AC/DC, 50/60 Hz
  - Power Consumption: Max. 10 VA / 5 W
  - Display: Integrated illuminated LCD with plain text indication
  - Operation: 4 keys on front panel
  - Additional Features: Pump control (alternating/on-off), flow measurement in open channels, totaliser, trend curve
  - Linearisation: 32-point programmable curve
  - Failure Monitoring: Relay for sensor fault indication
  - Housing: Polycarbonate
  - Protection Rating: IP65 front / IP20 rear
  - Mounting: Carrier rail (35 mm DIN rail)
  - Ambient Temperature: -20°C to +60°C
  - Approvals: CE
  - Dimensions: 220 x 160 x 70 mm (box)
- Weight: 400 g
- Country of origin: Germany
- HS code: 903289
