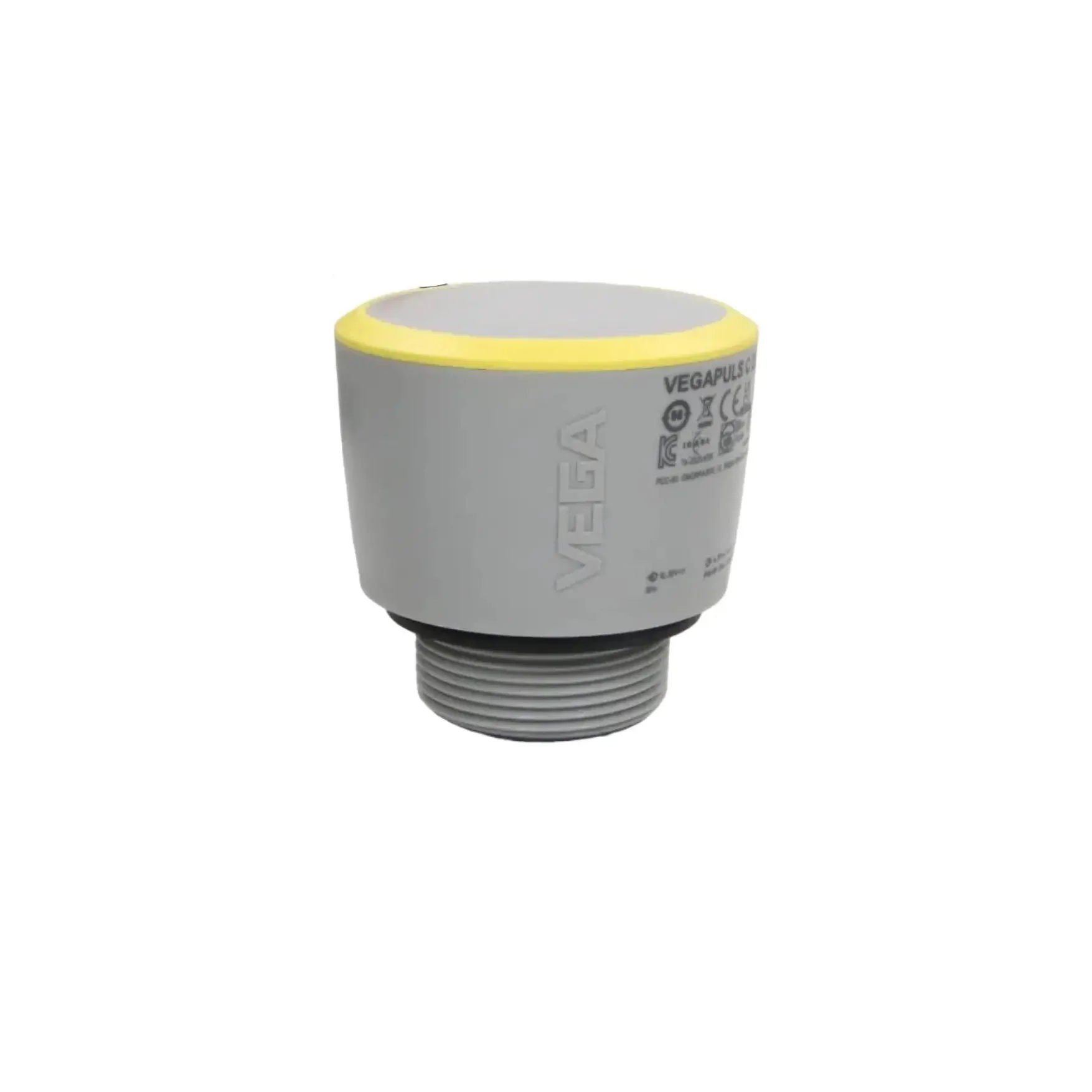

Vega Vegapuls C 22 Radar Level Sensor
- Brand: Vega
- Model: VEGAPULS C 22 (RA-222239)
- Type: Radar Level Sensor (Non-contact, 80 GHz)
- Technical Specifications:
- Measuring Principle: 80 GHz FMCW radar for continuous non-contact level measurement
- Measuring Range: 15 m
- Accuracy: ±2 mm
- Beam Angle: 8°
- Process Temperature: -40°C to +80°C
- Process Pressure: -1 to +3 bar
- Process Fitting: Thread G1½"
- Housing Material: Plastic PBT
- Lens Antenna: PVDF
- Output: 4-20 mA / HART
- Supply Voltage: 12-35 V DC
- Power Consumption: < 1 W
- Protection Rating: IP66/IP68 (3 bar), Type 6P
- Approvals: Ex ia IIC T4 Ga (intrinsically safe), hygienic approvals optional
- Features: Easy Bluetooth setup via VEGA Tools app, compact design, high resistance to buildup/false echoes, suitable for aggressive media
- Dimensions: 79 mm x 135 mm (300 x 300 x 100 mm box)
- Weight: 1.1 kg
- Country of Origin: Germany
- HS Code: 902610
Original: $153,083.78
-70%$153,083.78
$45,925.13
Description
- Brand: Vega
- Model: VEGAPULS C 22 (RA-222239)
- Type: Radar Level Sensor (Non-contact, 80 GHz)
- Technical Specifications:
- Measuring Principle: 80 GHz FMCW radar for continuous non-contact level measurement
- Measuring Range: 15 m
- Accuracy: ±2 mm
- Beam Angle: 8°
- Process Temperature: -40°C to +80°C
- Process Pressure: -1 to +3 bar
- Process Fitting: Thread G1½"
- Housing Material: Plastic PBT
- Lens Antenna: PVDF
- Output: 4-20 mA / HART
- Supply Voltage: 12-35 V DC
- Power Consumption: < 1 W
- Protection Rating: IP66/IP68 (3 bar), Type 6P
- Approvals: Ex ia IIC T4 Ga (intrinsically safe), hygienic approvals optional
- Features: Easy Bluetooth setup via VEGA Tools app, compact design, high resistance to buildup/false echoes, suitable for aggressive media
- Dimensions: 79 mm x 135 mm (300 x 300 x 100 mm box)
- Weight: 1.1 kg
- Country of Origin: Germany
- HS Code: 902610
