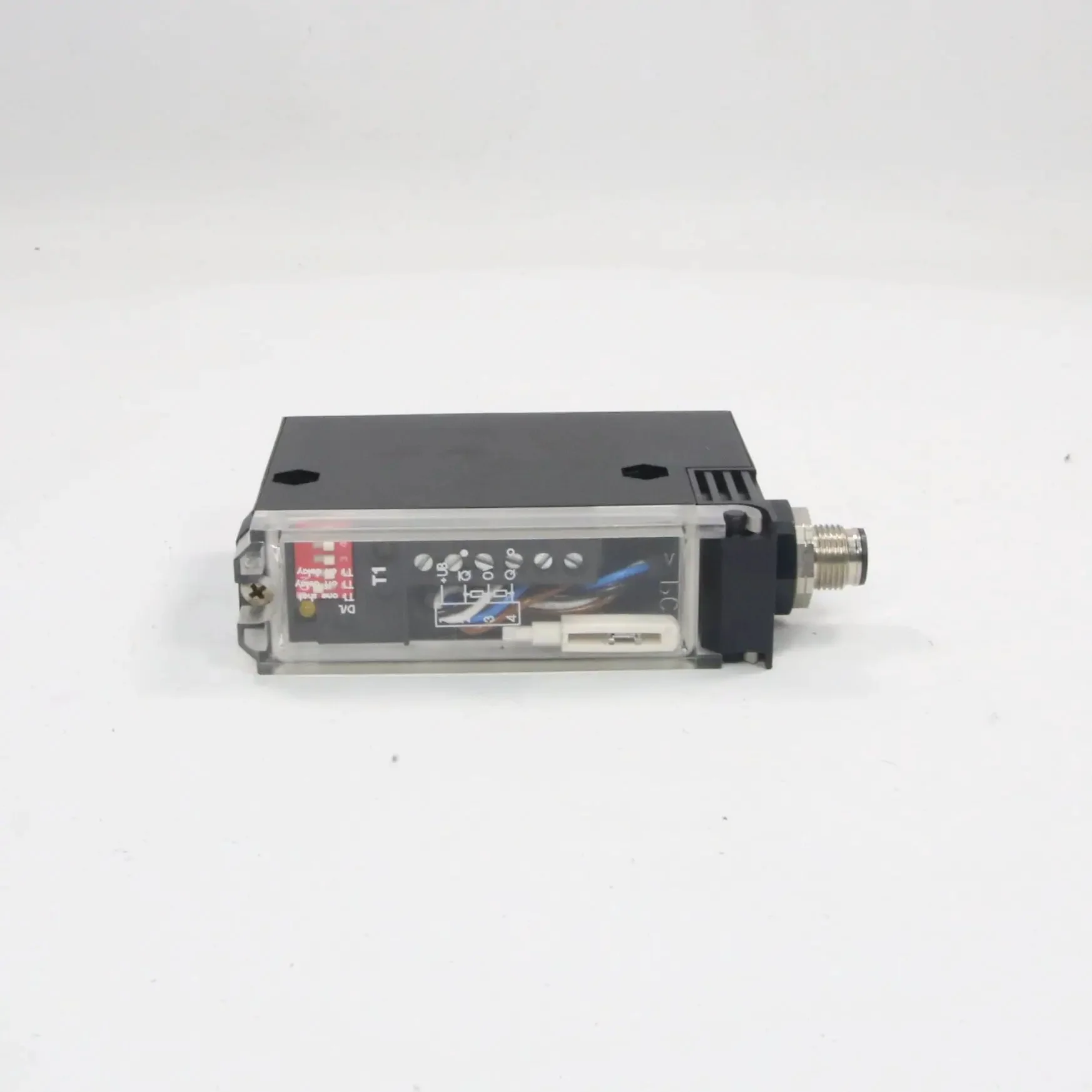

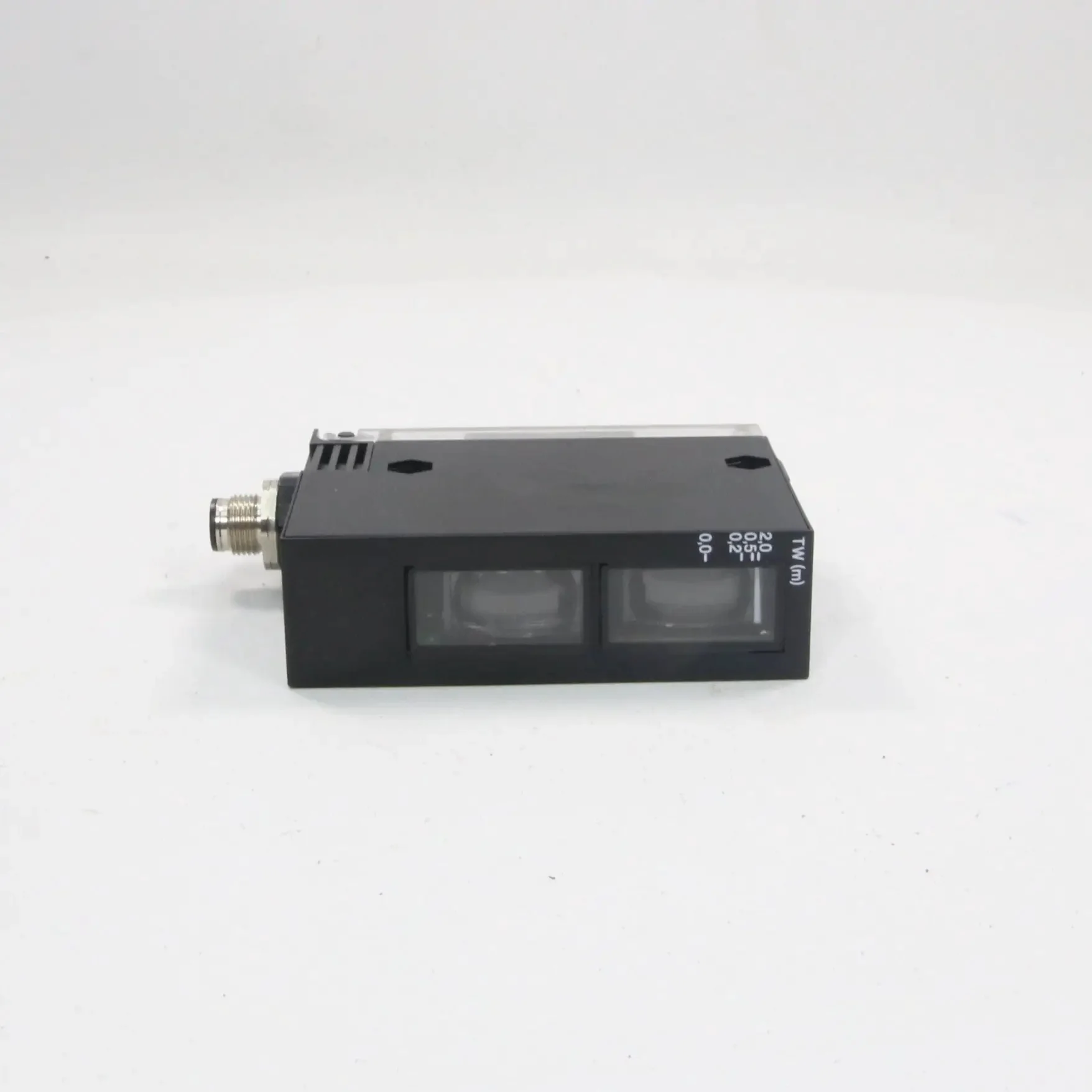

Pepperl + Fuchs Visolux RL23 Series Background Suppression Sensor
- Brand: Pepperl + Fuchs
- Identity Number: RL23-8-H-20000-IR/47/92/104
- Part Number: 419464
- Model: Visolux RL23 Series Background Suppression Sensor
- Type: Diffuse Mode Sensor with Background Suppression
- Light Source: Modulated Infrared LED
- Detection Range: 50 mm to 2000 mm
- Minimum Detection Range: 50 mm
- Maximum Detection Range: 3000 mm
- Opening Angle: 1.5°
- Diameter of Light Spot: 50 mm at 2000 mm detection range
- Ambient Light Limit: 5000 Lux
- Response Time: 50 ms
- Switching Frequency: 10 Hz
- Switching Type: Light/Dark ON
- Signal Output: 2 PNP, complementary, short-circuit protected, reverse polarity protected
- Switching Voltage: 30 V DC
- Switching Current: Max. 200 mA
- Timer Function: ON delay (GAN), OFF delay (GAB), one shot (IAB), programmable, adjustment range 0.1 ... 10 s
- Programming Switches: Light/Dark switching, sensing range adjuster, time adjuster
- Operating Voltage: 10 ... 30 V DC
- Ripple: 10%
- No-load Supply Current: 100 mA
- Housing Material: Terluran® GV15
- Optical Surface: Scratch-resistant glass
- Degree of Protection: IP65
- Connection: 4-pin, M12 x 1 connector
- Dimensions (H x W x D): 91 mm x 26.8 mm x 67.6 mm
- Weight: 180 g
- Ambient Temperature Range: -20 ... 60 °C
- Conformity: EN 60947-5-2
$224.62
Pepperl + Fuchs Visolux RL23 Series Background Suppression Sensor—
$224.62
Description
- Brand: Pepperl + Fuchs
- Identity Number: RL23-8-H-20000-IR/47/92/104
- Part Number: 419464
- Model: Visolux RL23 Series Background Suppression Sensor
- Type: Diffuse Mode Sensor with Background Suppression
- Light Source: Modulated Infrared LED
- Detection Range: 50 mm to 2000 mm
- Minimum Detection Range: 50 mm
- Maximum Detection Range: 3000 mm
- Opening Angle: 1.5°
- Diameter of Light Spot: 50 mm at 2000 mm detection range
- Ambient Light Limit: 5000 Lux
- Response Time: 50 ms
- Switching Frequency: 10 Hz
- Switching Type: Light/Dark ON
- Signal Output: 2 PNP, complementary, short-circuit protected, reverse polarity protected
- Switching Voltage: 30 V DC
- Switching Current: Max. 200 mA
- Timer Function: ON delay (GAN), OFF delay (GAB), one shot (IAB), programmable, adjustment range 0.1 ... 10 s
- Programming Switches: Light/Dark switching, sensing range adjuster, time adjuster
- Operating Voltage: 10 ... 30 V DC
- Ripple: 10%
- No-load Supply Current: 100 mA
- Housing Material: Terluran® GV15
- Optical Surface: Scratch-resistant glass
- Degree of Protection: IP65
- Connection: 4-pin, M12 x 1 connector
- Dimensions (H x W x D): 91 mm x 26.8 mm x 67.6 mm
- Weight: 180 g
- Ambient Temperature Range: -20 ... 60 °C
- Conformity: EN 60947-5-2
