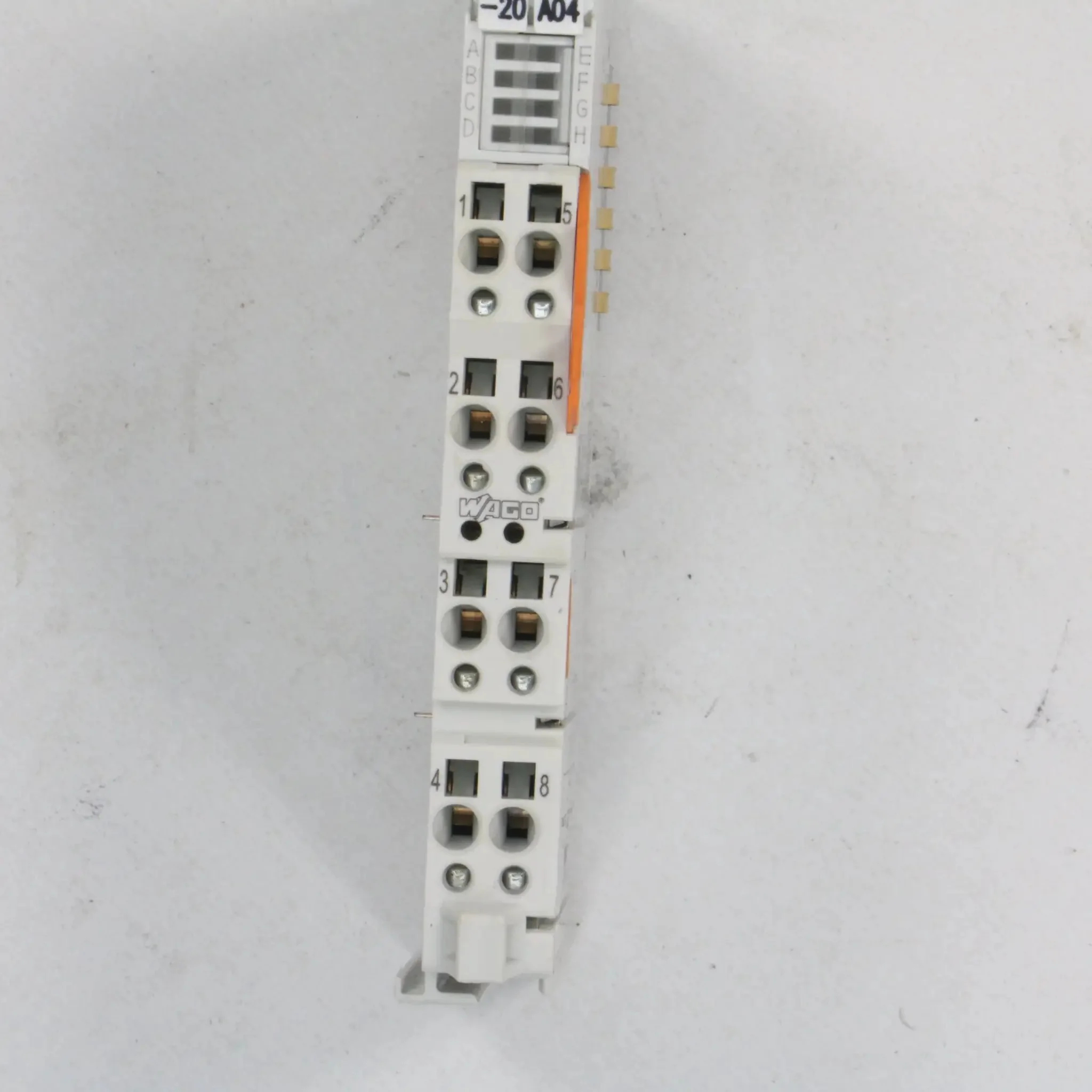

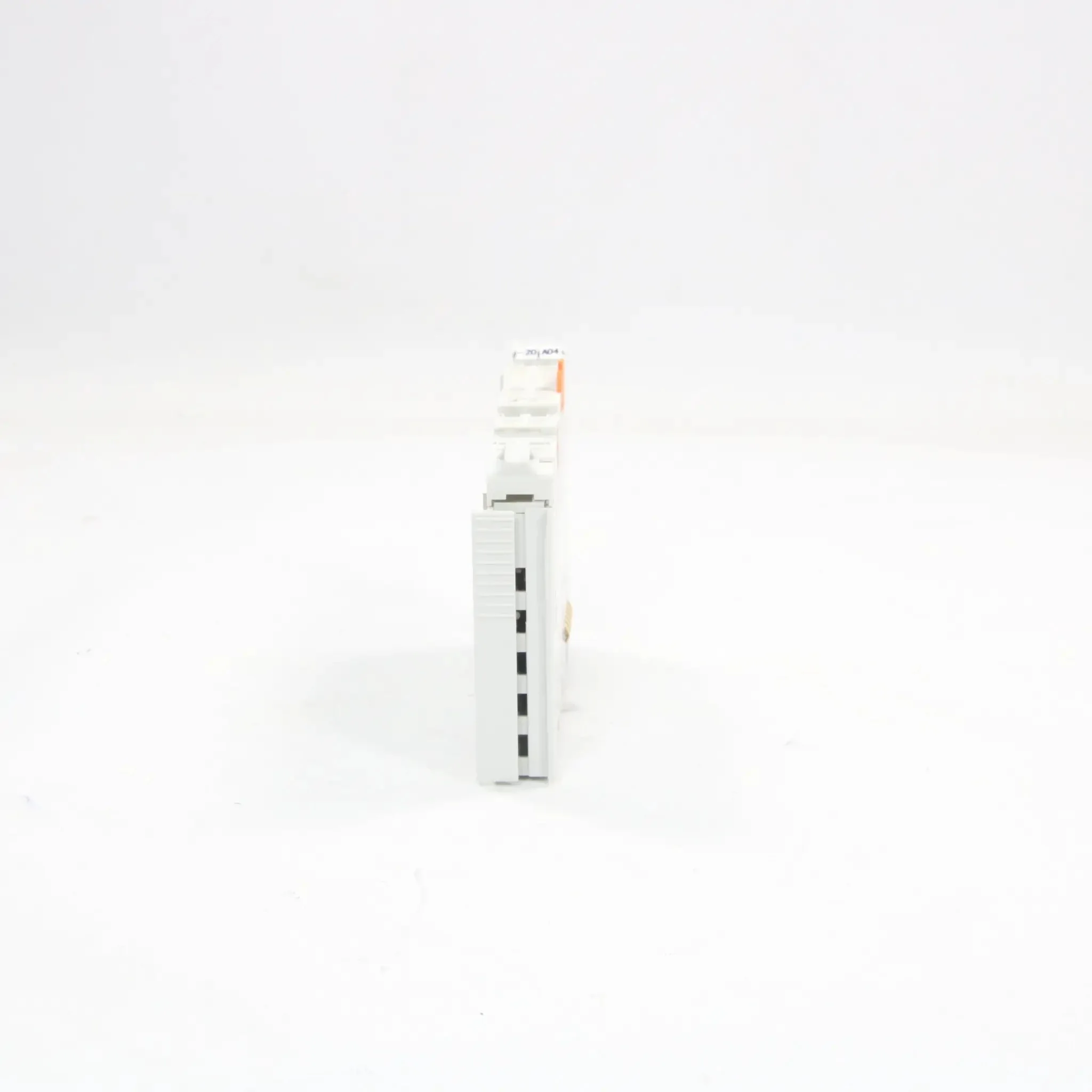

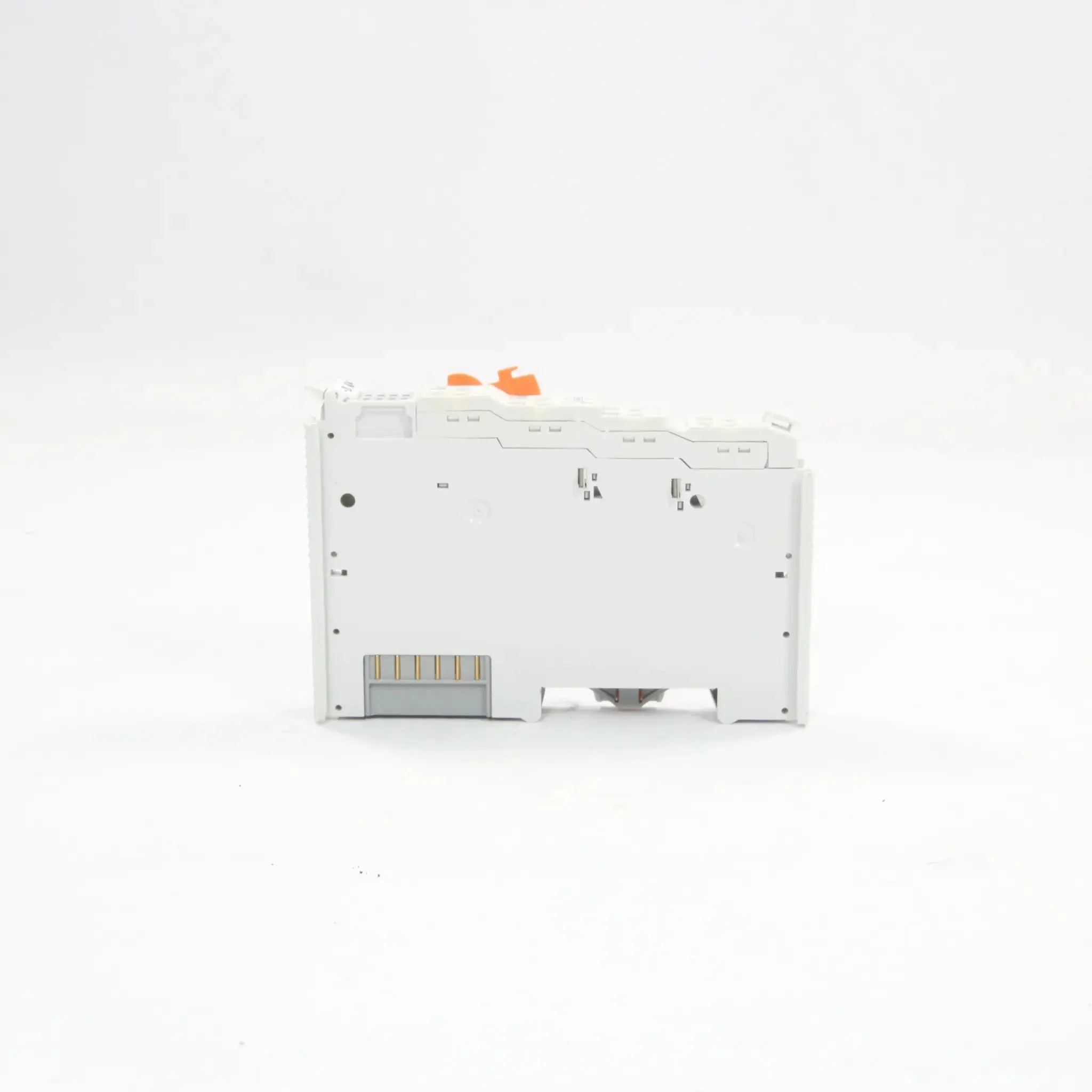

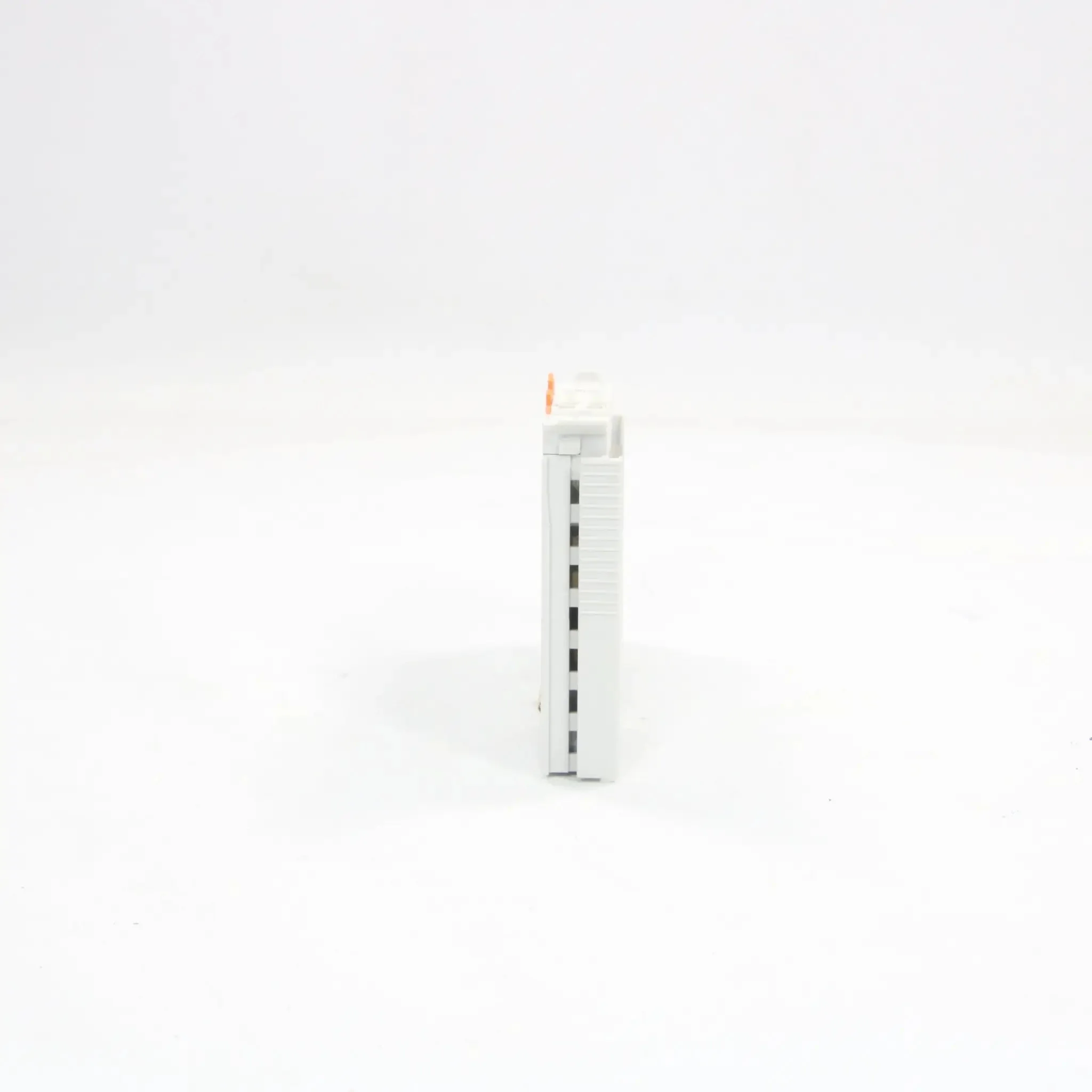

Wago 753-430 digital input module
- Brand: WAGO
- Model: 753-430
- Type: 8-channel digital input module (for WAGO I/O System 753 Series)
- All Tech Specs:
- Material: Polycarbonate, polyamide 6.6 housing
- Voltage: 24V DC (supply voltage, -15% to +20% tolerance)
- Input Current: 4.5 mA (typical per channel)
- Input Type: 8 digital inputs (high-side switching, 3-wire or 2-wire connection)
- Input Filter: 3 ms (response time for signal processing)
- Current Consumption: 9 mA (5V system supply); 25 mA (field supply, no external load)
- Connection Technology: 8 x Push-in CAGE CLAMP® (spring terminal for 0.08–2.5 mm² / 28–14 AWG conductors)
- Isolation: 500V (system/field)
- Operating Temperature Range: 0°C to +55°C (+32°F to +131°F)
- Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
- Protection Rating: IP20 (protected against solid objects; no water protection)
- Mounting Type: DIN-35 rail
- Vibration Resistance: 4g per IEC 60068-2-6
- Certification: CE marked; RoHS compliant (ROHS3); ATEX, CCCEx, EAC, IECEx, INMETRO, KC, UL approvals
- Features: Pluggable connector (753 Series plug sold separately); LED indicators (green) for input status (DI 1–8)
- Dimension: 100 mm height x 12 mm width x 69 mm depth (3.937 in x 0.472 in x 2.717 in)
- Weight: 0.055 kg (55 g, approximate)
- Country of Origin: Germany
- HS Code: 8536.90 (electrical apparatus for switching or protecting electrical circuits)
Original: $74.87
-70%$74.87
$22.46
Description
- Brand: WAGO
- Model: 753-430
- Type: 8-channel digital input module (for WAGO I/O System 753 Series)
- All Tech Specs:
- Material: Polycarbonate, polyamide 6.6 housing
- Voltage: 24V DC (supply voltage, -15% to +20% tolerance)
- Input Current: 4.5 mA (typical per channel)
- Input Type: 8 digital inputs (high-side switching, 3-wire or 2-wire connection)
- Input Filter: 3 ms (response time for signal processing)
- Current Consumption: 9 mA (5V system supply); 25 mA (field supply, no external load)
- Connection Technology: 8 x Push-in CAGE CLAMP® (spring terminal for 0.08–2.5 mm² / 28–14 AWG conductors)
- Isolation: 500V (system/field)
- Operating Temperature Range: 0°C to +55°C (+32°F to +131°F)
- Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
- Protection Rating: IP20 (protected against solid objects; no water protection)
- Mounting Type: DIN-35 rail
- Vibration Resistance: 4g per IEC 60068-2-6
- Certification: CE marked; RoHS compliant (ROHS3); ATEX, CCCEx, EAC, IECEx, INMETRO, KC, UL approvals
- Features: Pluggable connector (753 Series plug sold separately); LED indicators (green) for input status (DI 1–8)
- Dimension: 100 mm height x 12 mm width x 69 mm depth (3.937 in x 0.472 in x 2.717 in)
- Weight: 0.055 kg (55 g, approximate)
- Country of Origin: Germany
- HS Code: 8536.90 (electrical apparatus for switching or protecting electrical circuits)
