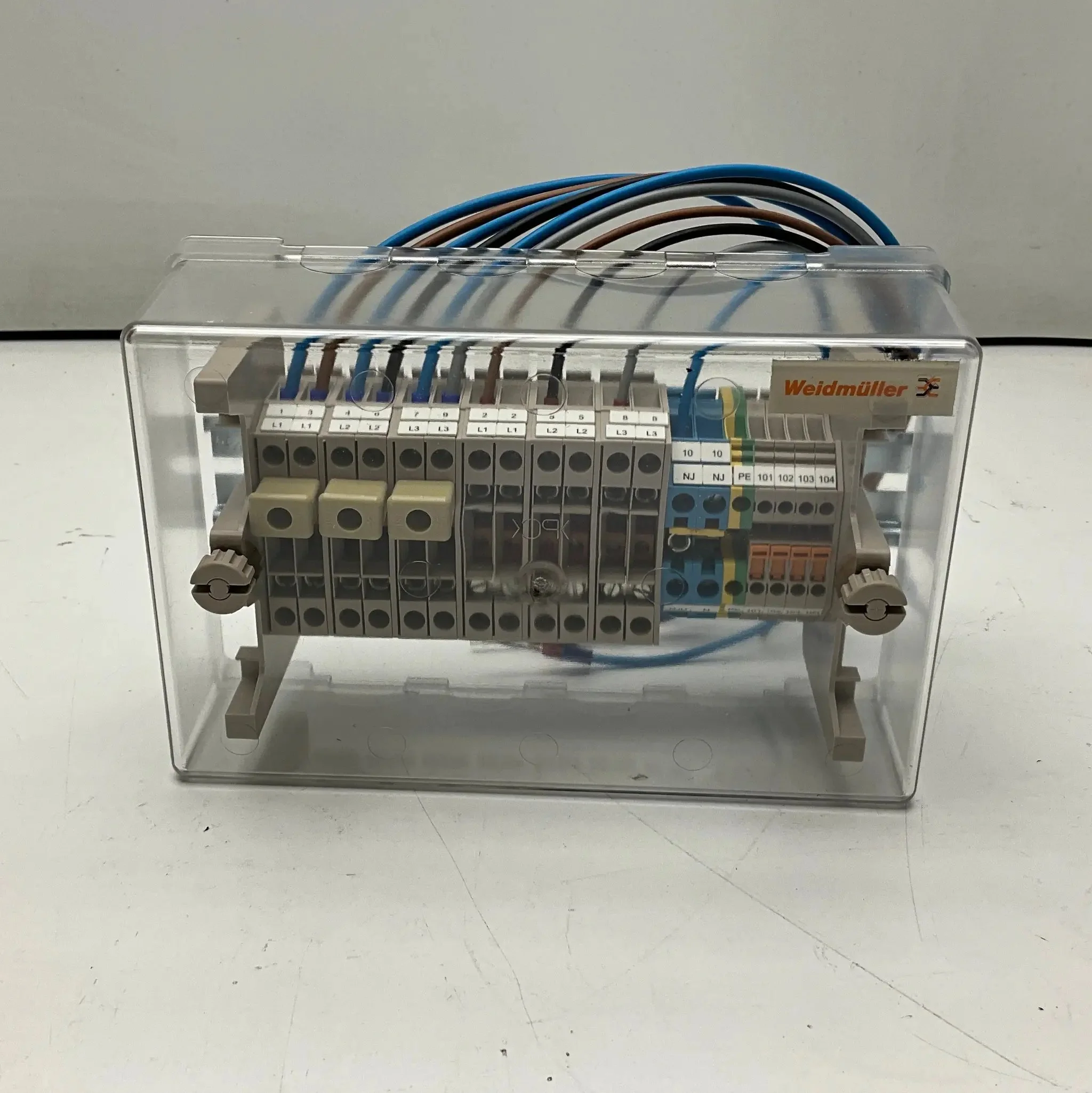

Weidmuller IBL96 Meter Test Terminal Block

Brand: Weidmüller
Model: IBL 96
Type: Meter Test Terminal Block
Part Number: 7770006854

Technical Specs:
- Function: Meter test terminal block for connecting metering equipment with current transformers according to IBL 96 standard (SS 437 01 40)
- Rated Voltage: 800 V AC
- Rated Current: 100 A
- Conductor Cross-Section: 0.5 to 35 mm² (solid/stranded)
- Connection Type: Screw connection with push-in jumper slots
- Number of Levels: Single level
- Test Facility: Integrated test plug for voltage testing without disconnection
- Insulation Material: Wemid (nylon 6.6)
- Flammability Class: UL 94 V-0
- Pollution Degree: 3
- Ambient Temperature Range: -50°C to +120°C
- Additional Features:
  - Complete with cover and connection wires
  - Vibration-resistant design for industrial environments
  - Marker slot for identification
- Certifications: UL 1059, CSA Class 6228-01, VDE 0600, EAC

Dimensions: 230 x 150 x 110 mm

Weight: 800 g

Country of Origin: Germany

HS Code: 8536.90
