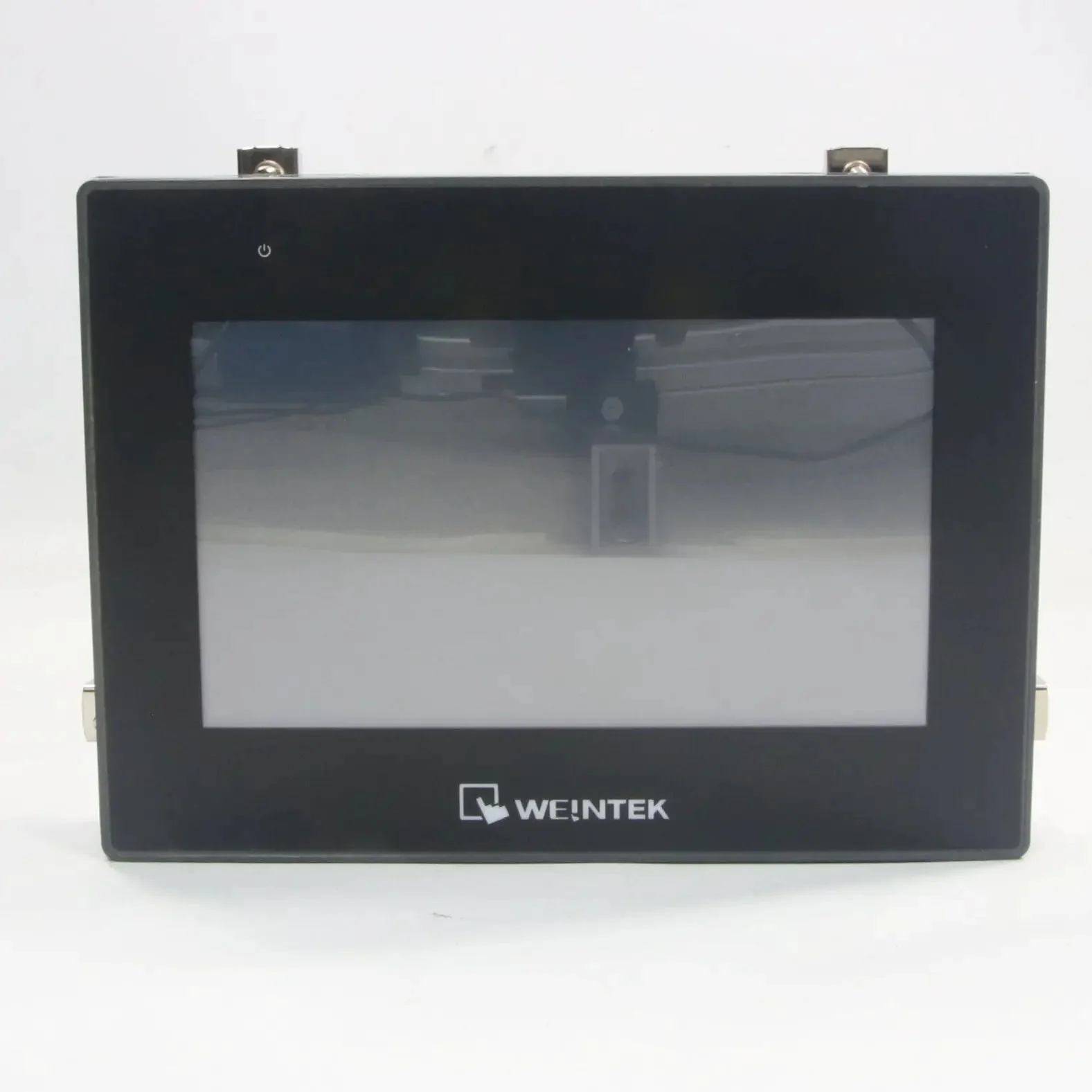

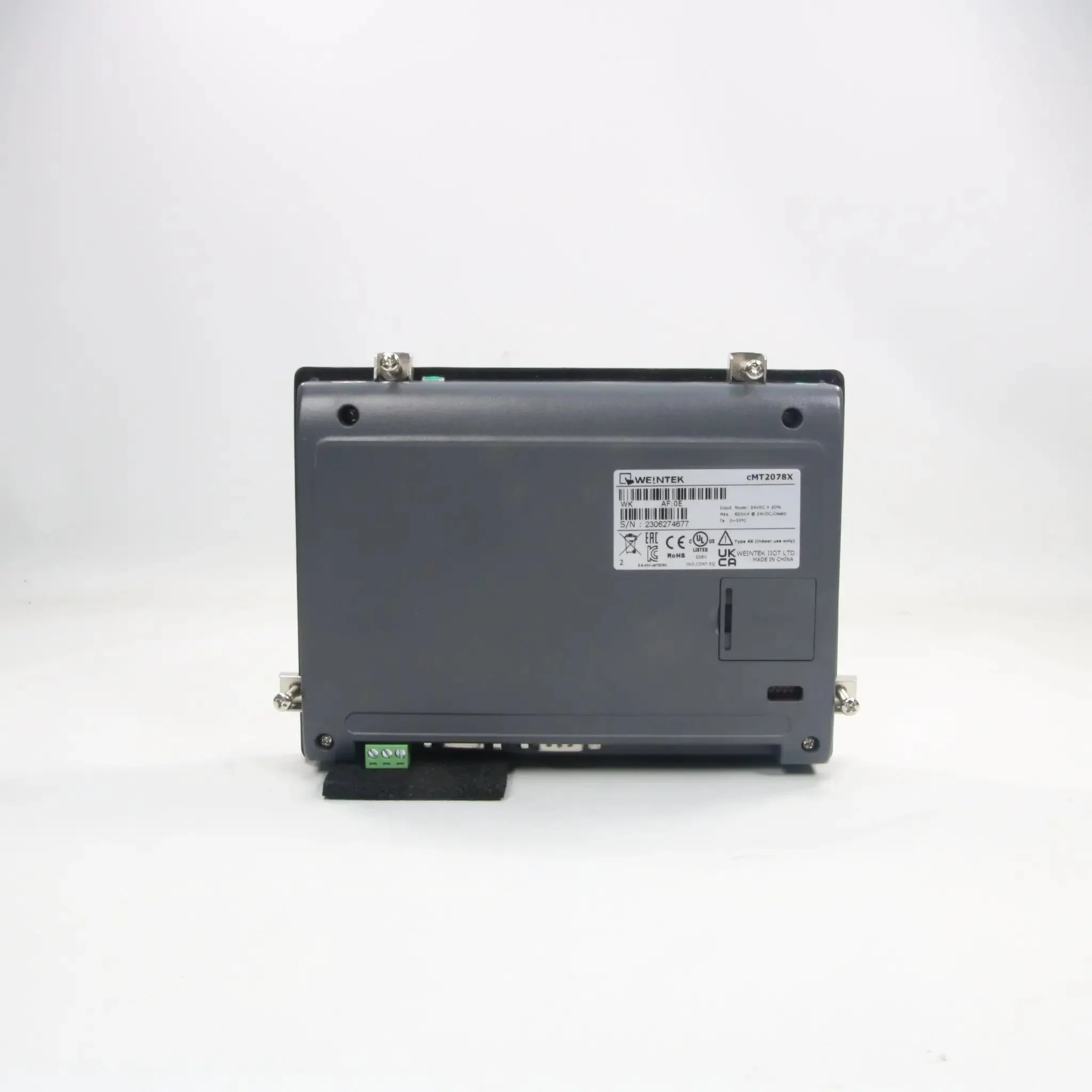

Weintek cMT2078X

- Brand: Weintek
- Model: cMT2078X
- Type: HMI (Human Machine Interface) Panel
- Technical Specifications:
  - Display: 7-inch TFT LCD, 800 x 480 resolution, LED backlight, 16.7 million colors, 400 cd/m² brightness, 800:1 contrast ratio
  - Touch Screen: 4-wire resistive touch
  - Processor: Quad-core Cortex-A35 CPU, 1.5 GHz, with high-performance dedicated 3D processor
  - Memory: 1 GB RAM, 4 GB flash memory
  - Power Supply: 24 VDC ±20%
  - Ethernet Ports: 2 x 10/100 Base-T (dual Ethernet)
  - Serial Ports: Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W; Con.B: COM1 RS-232 4W, COM3 RS-232 2W (MPI not supported)
  - USB Ports: USB 2.0 Host
  - Cooling System: Fan-less
  - Protection Rating: NEMA 4X (indoor), IP66 front panel
  - Software: Programmed using EasyBuilder Pro (free download, version V6.08.01 or later)
  - Features: Built-in RTC (Real-Time Clock), optional EasyAccess 2.0 for remote access, optional CODESYS runtime, supports multi-connection, server/client architecture, IoT readiness, high computing power for demanding applications
  - Operating System: Not specified (embedded Linux-based)
  - Certifications: UL Listed, CE, RoHS compliant
  - Applications: Industrial automation, PLC/SCADA integration, remote monitoring, machine control, supports +400 PLCs and controllers
- Dimensions: Approximately 200 mm x 150 mm x 40 mm
- Weight: 600 gram
- Country of Origin: China
- HS Code: 84716060
