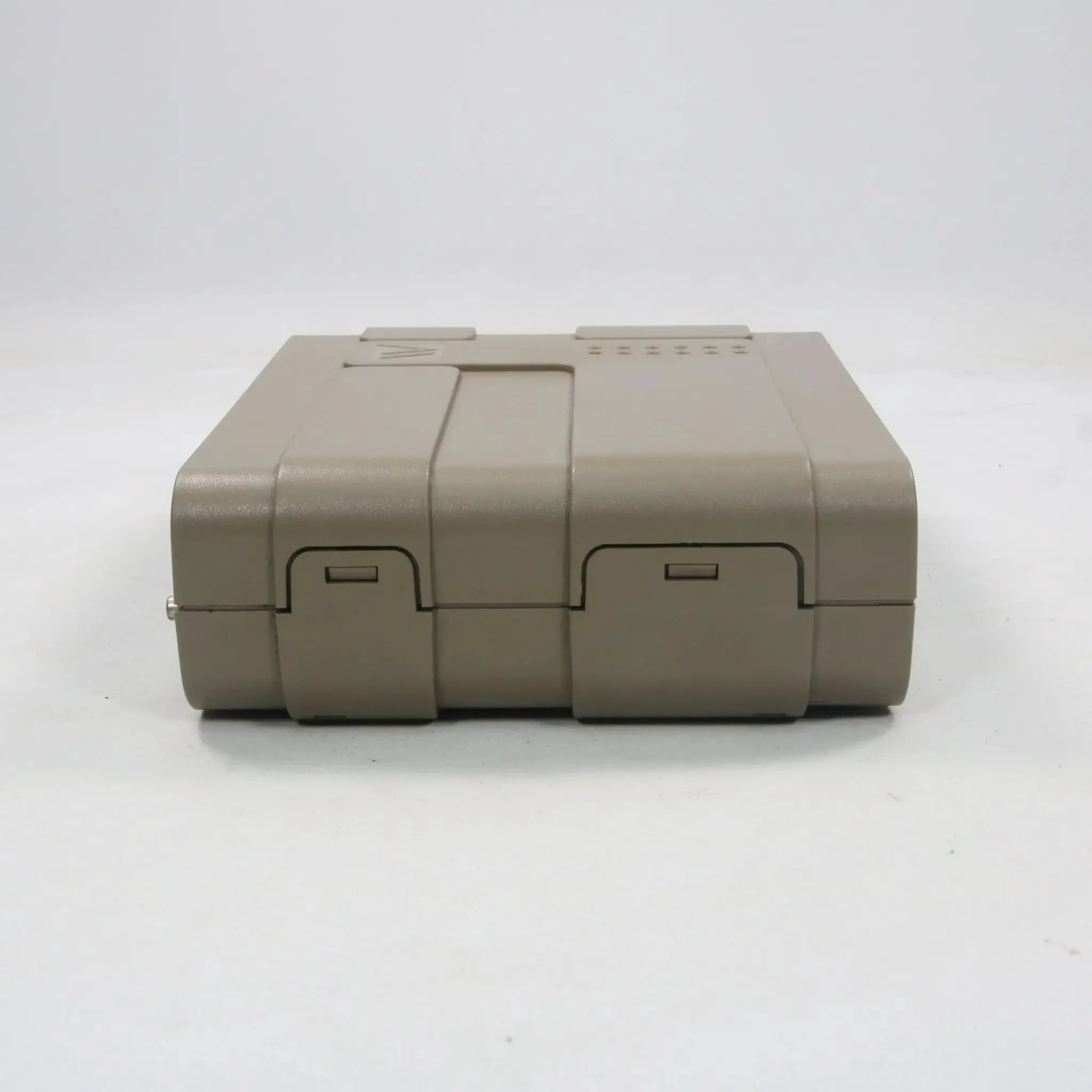

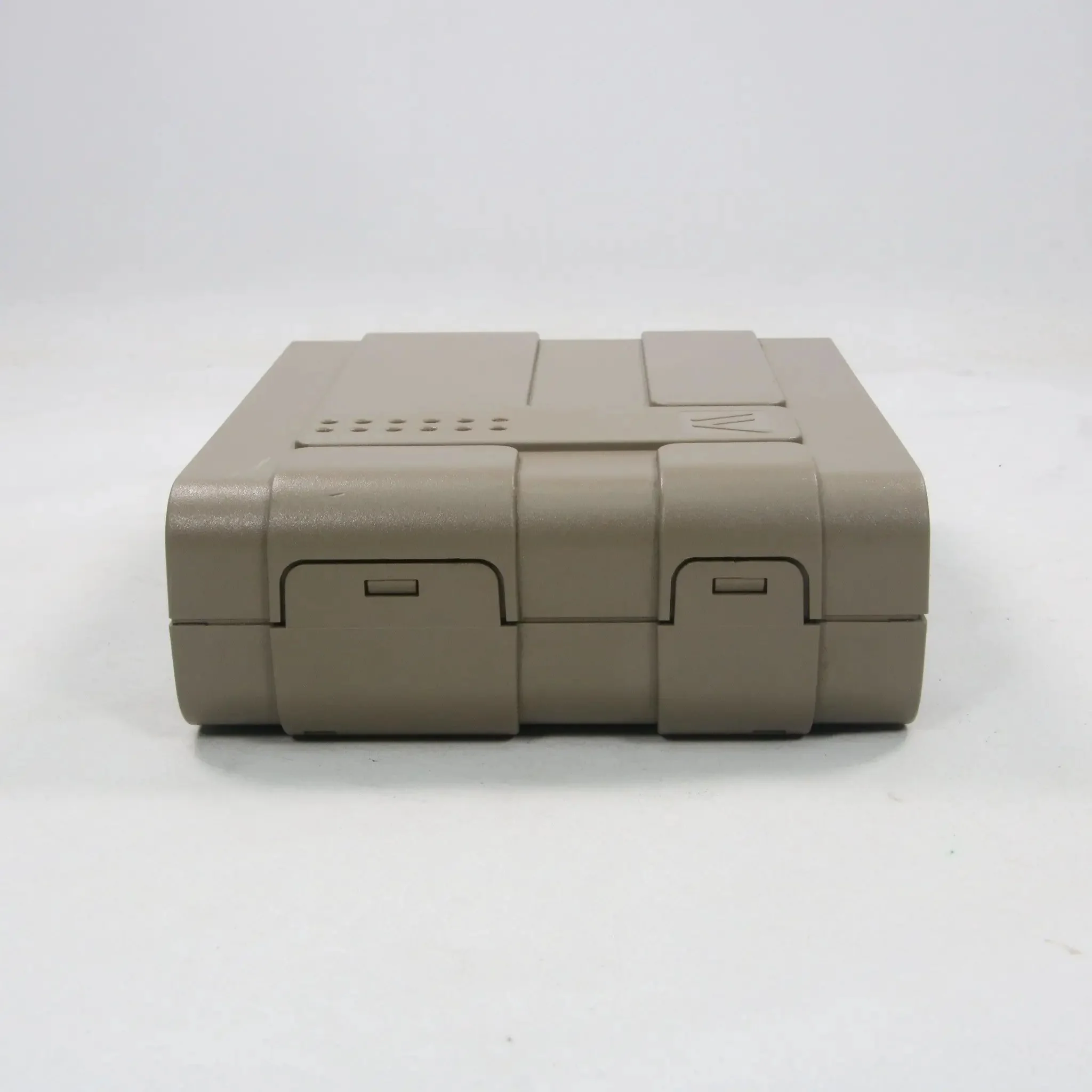

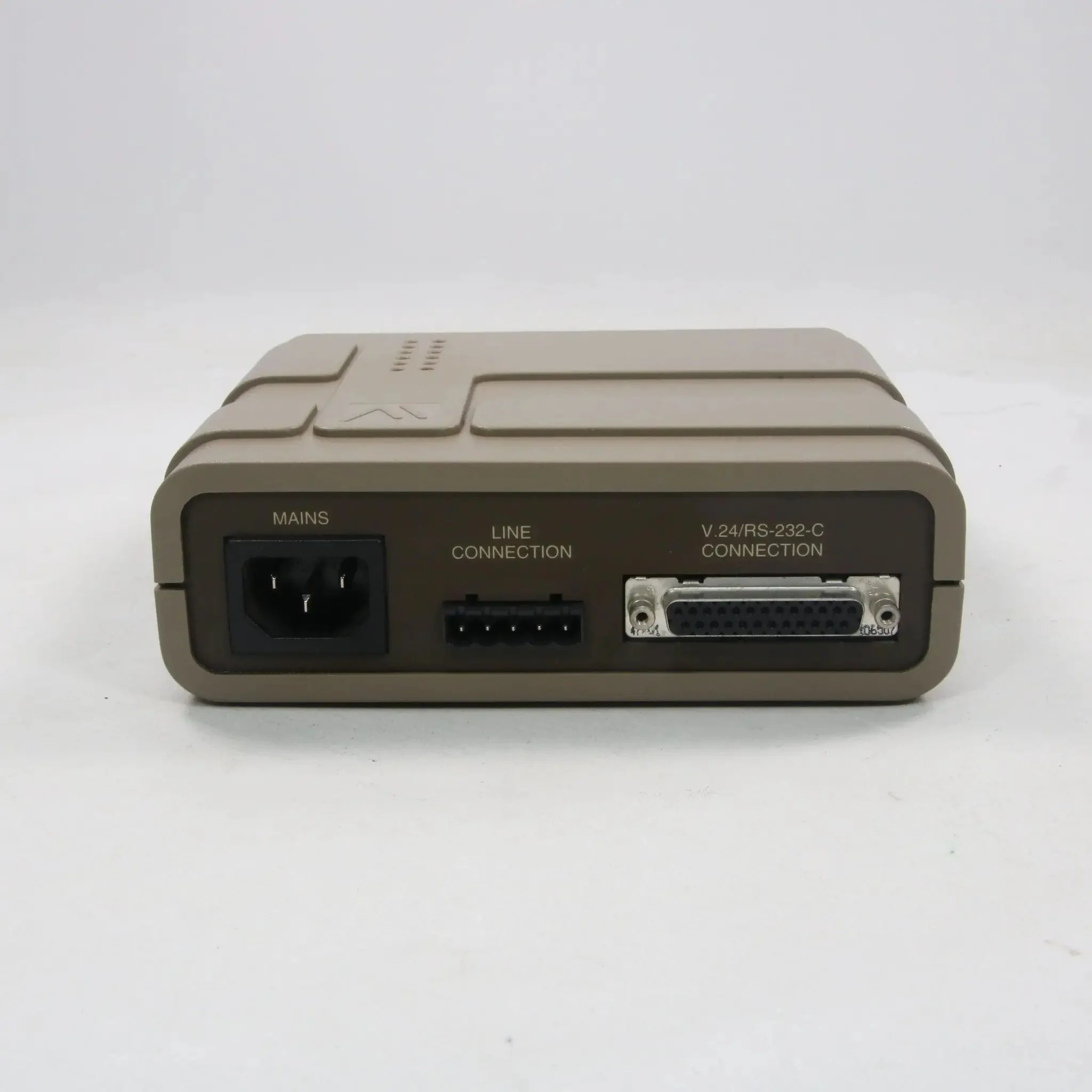

Westermo Access MA-45 Converter
- Westermo
- Access MA-45
- Converter
- Art. Nr: 3045-0001
- S/N: 1888
- Type: RS-232 To RS-422/485 Converter
- Asynchronous, full/half duplex or simplex EIA RS-232-C/ITU-T V.24
25-position D-sub female, DCE
EIA RS-422/RS-485/ITU-T V.11
- Up to 115.2 kbit/s Power, RD, CTS, RTS
- TD Galvanic insulation with opto-coupler (data transmission)
- Mains: Breakdown voltage 440 V at 230 V AC and 220 V at 115 V AC
- Interface: Breakdown voltage transmitter and receiver 7 V. Surge capacity 0.6 kW for 1ms
- Switchable 115/230 V +15/–10% 48–62 Hz
$56,130.72
Westermo Access MA-45 Converter—
$56,130.72
Description
- Westermo
- Access MA-45
- Converter
- Art. Nr: 3045-0001
- S/N: 1888
- Type: RS-232 To RS-422/485 Converter
- Asynchronous, full/half duplex or simplex EIA RS-232-C/ITU-T V.24
25-position D-sub female, DCE
EIA RS-422/RS-485/ITU-T V.11
- Up to 115.2 kbit/s Power, RD, CTS, RTS
- TD Galvanic insulation with opto-coupler (data transmission)
- Mains: Breakdown voltage 440 V at 230 V AC and 220 V at 115 V AC
- Interface: Breakdown voltage transmitter and receiver 7 V. Surge capacity 0.6 kW for 1ms
- Switchable 115/230 V +15/–10% 48–62 Hz
