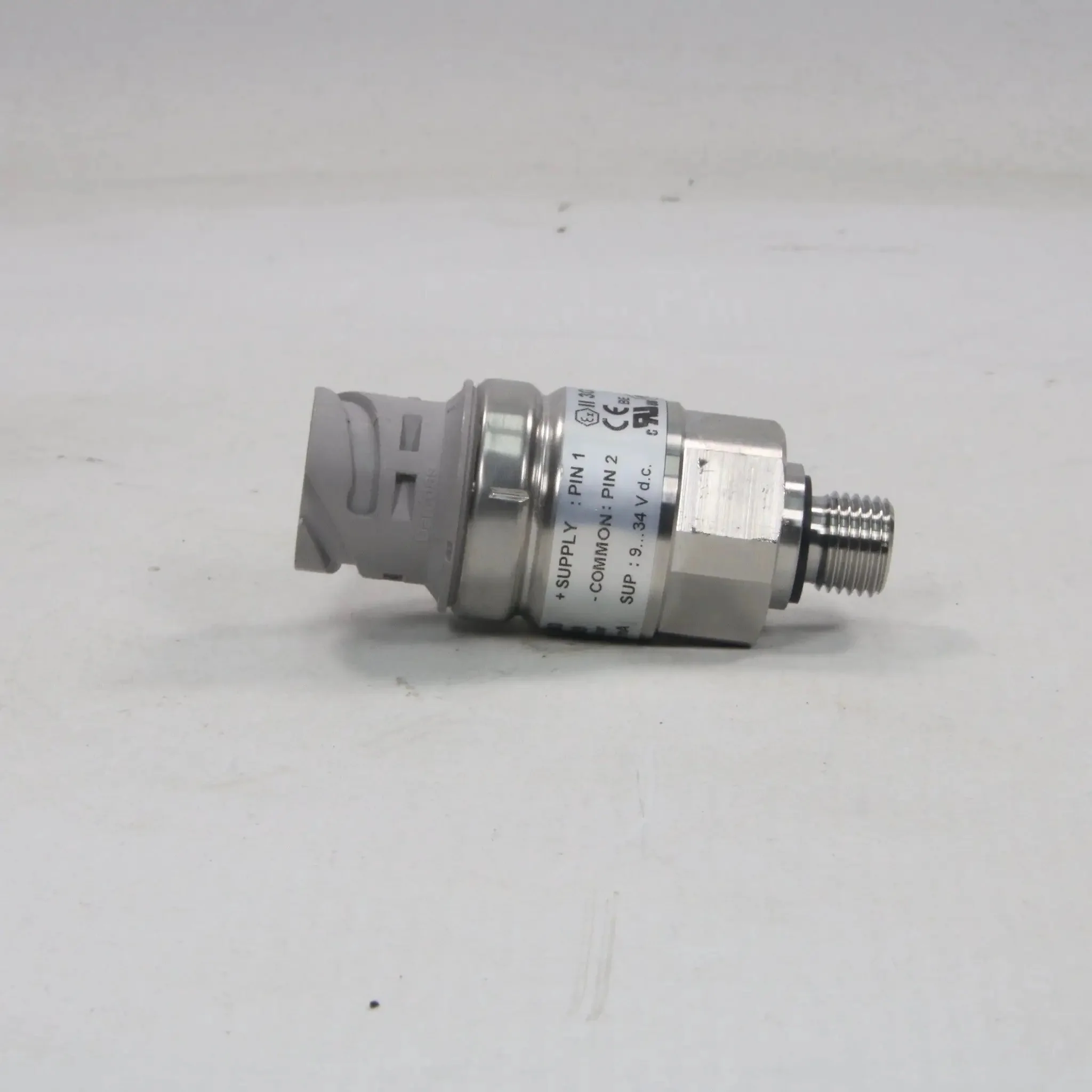

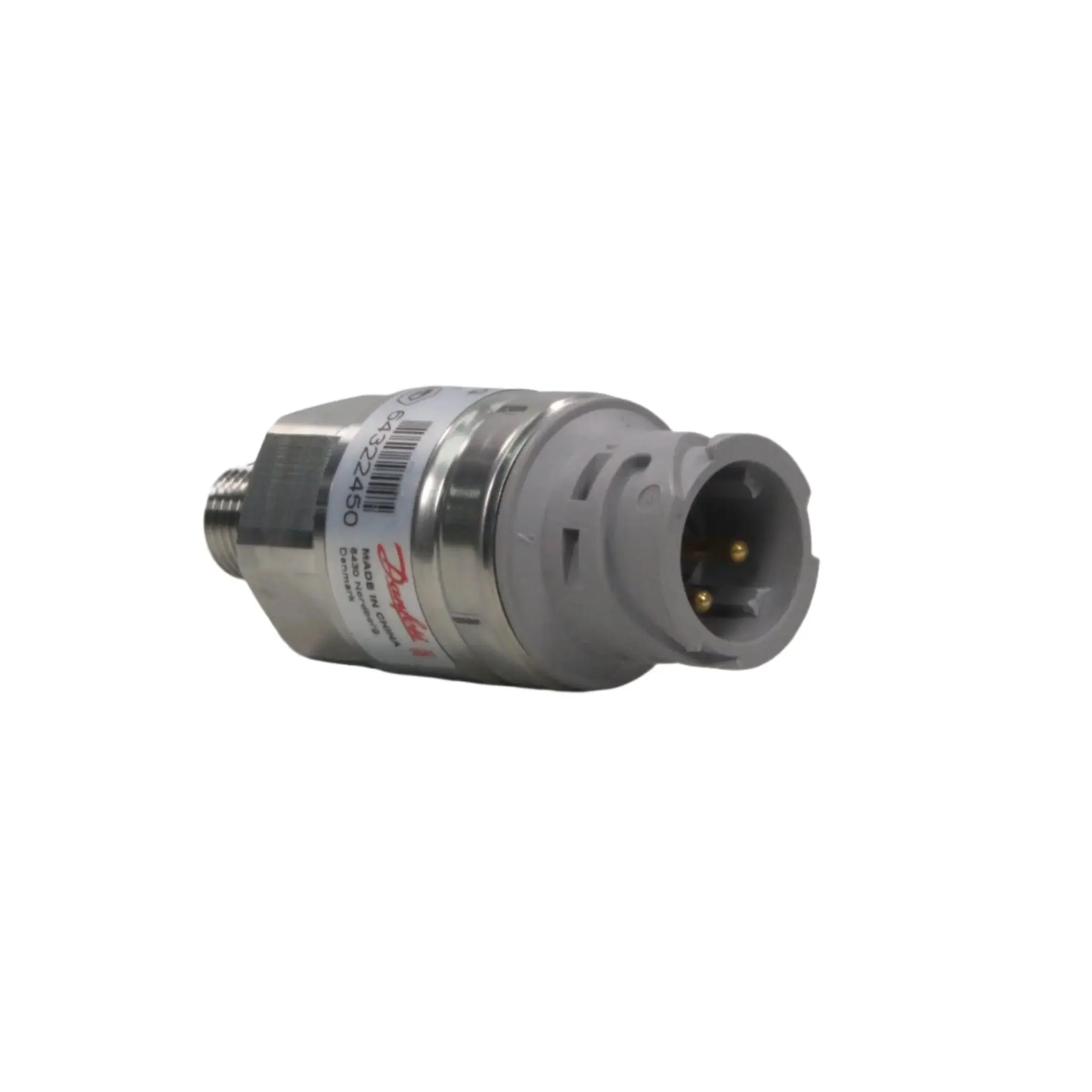

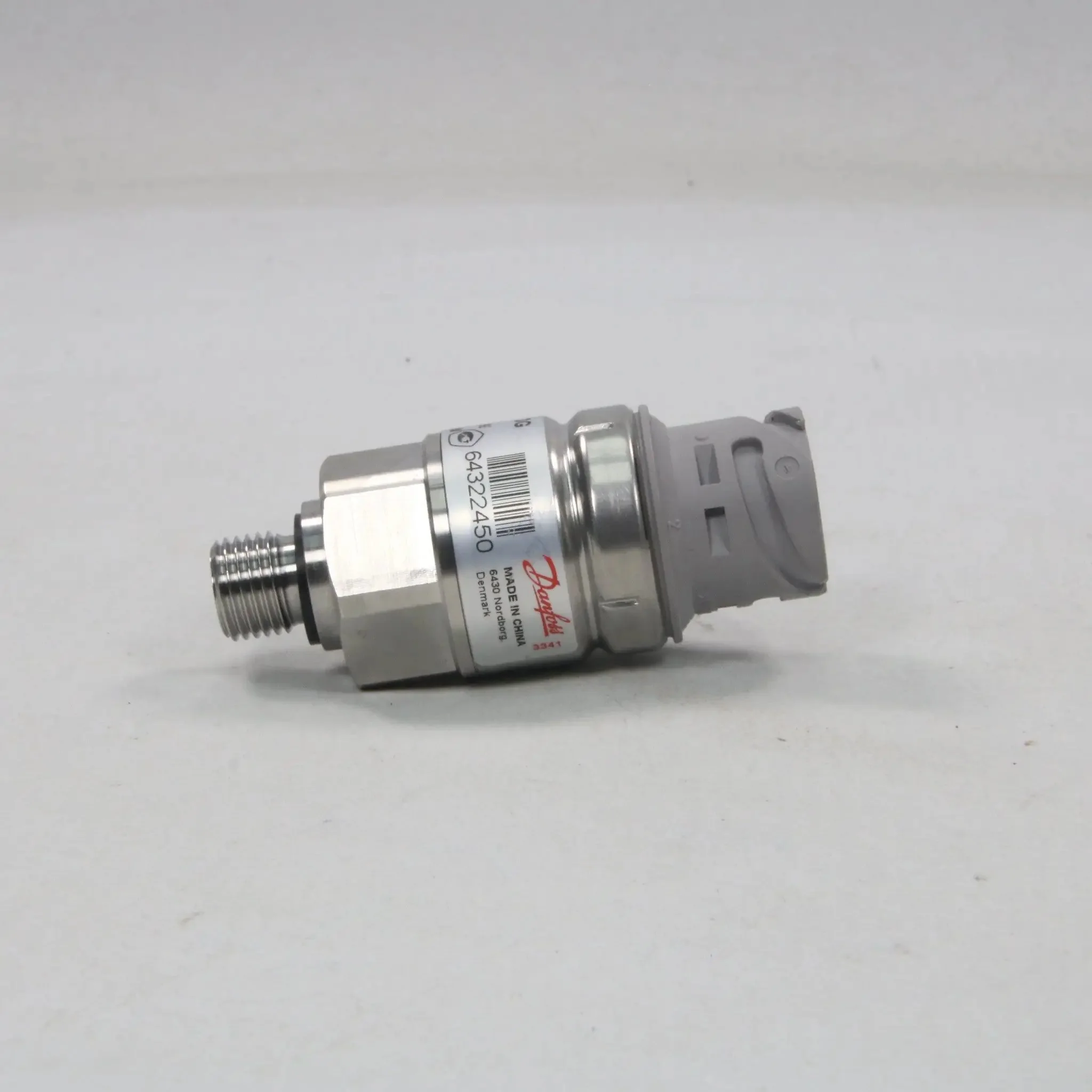

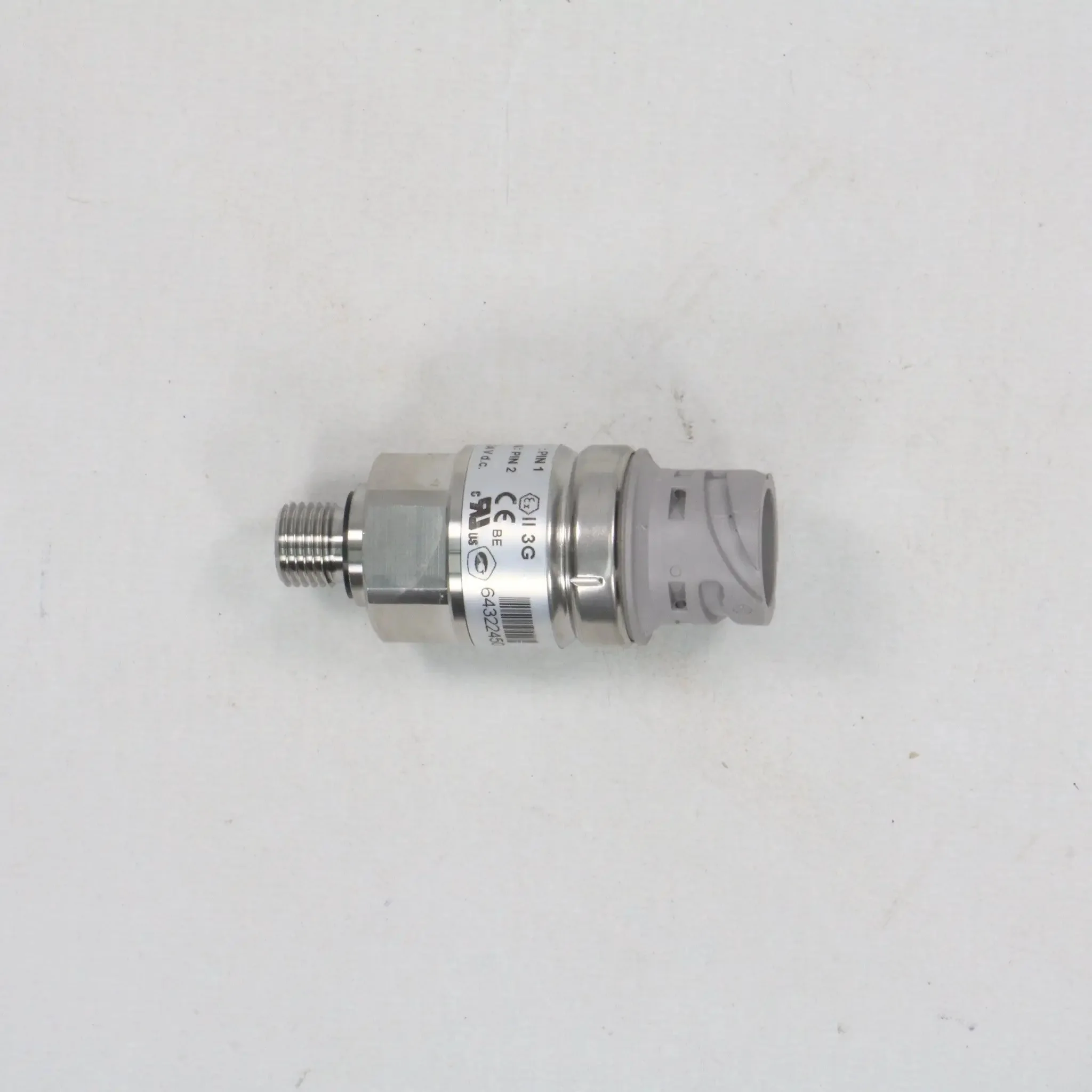

Danfoss MBS 3250 060G6849 Pressure Transmitter
Brand: Danfoss
Part Number: 060G6849
Series/Type: MBS 3250 Pressure Transmitter
Pressure Reference: Gauge (relative)
Pressure Range: 0 to 1 bar (0 to 14.5 psi)
Output Signal: 4–20 mA (current)

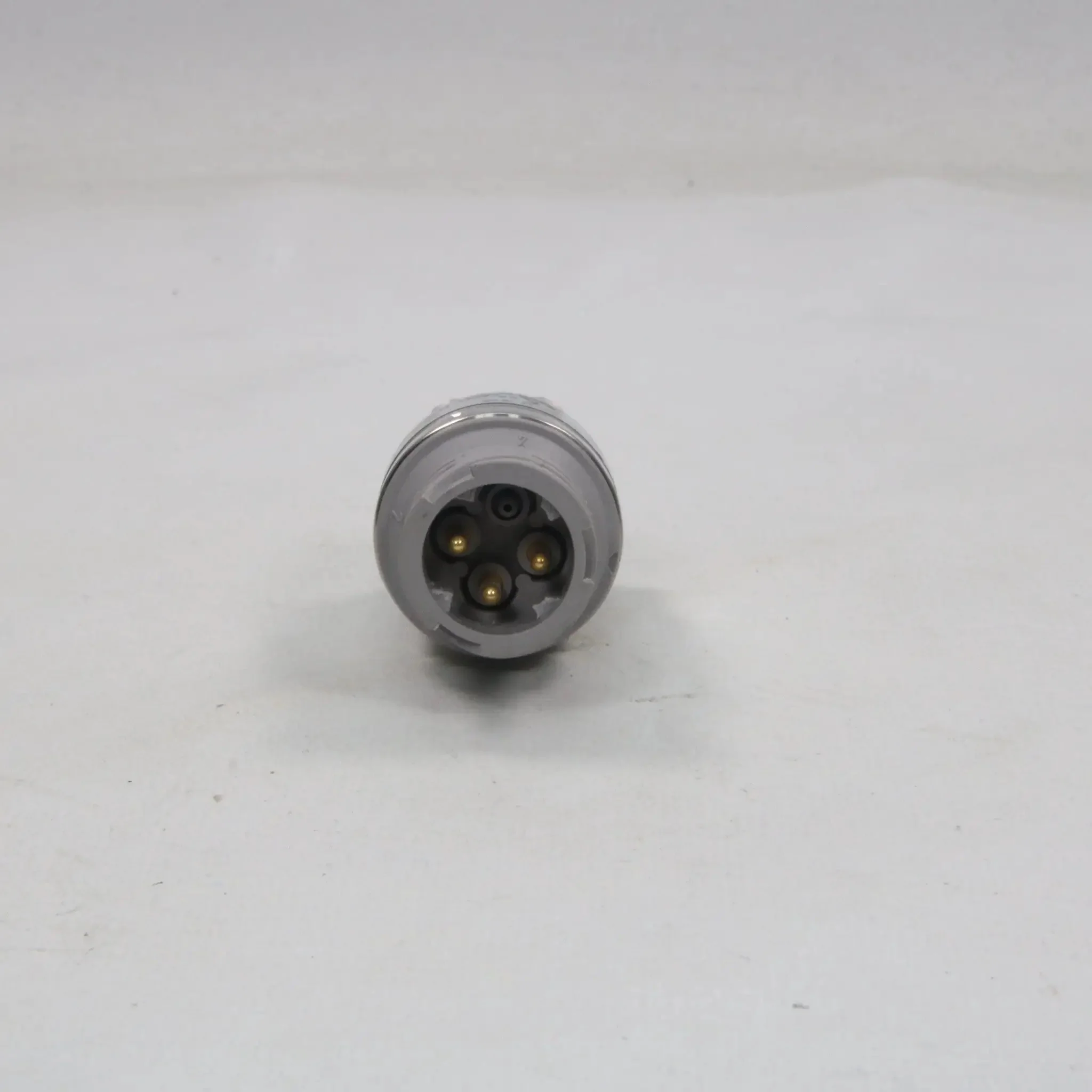

Electrical Connection: 4‑pin bayonet, ISO 15170 standard

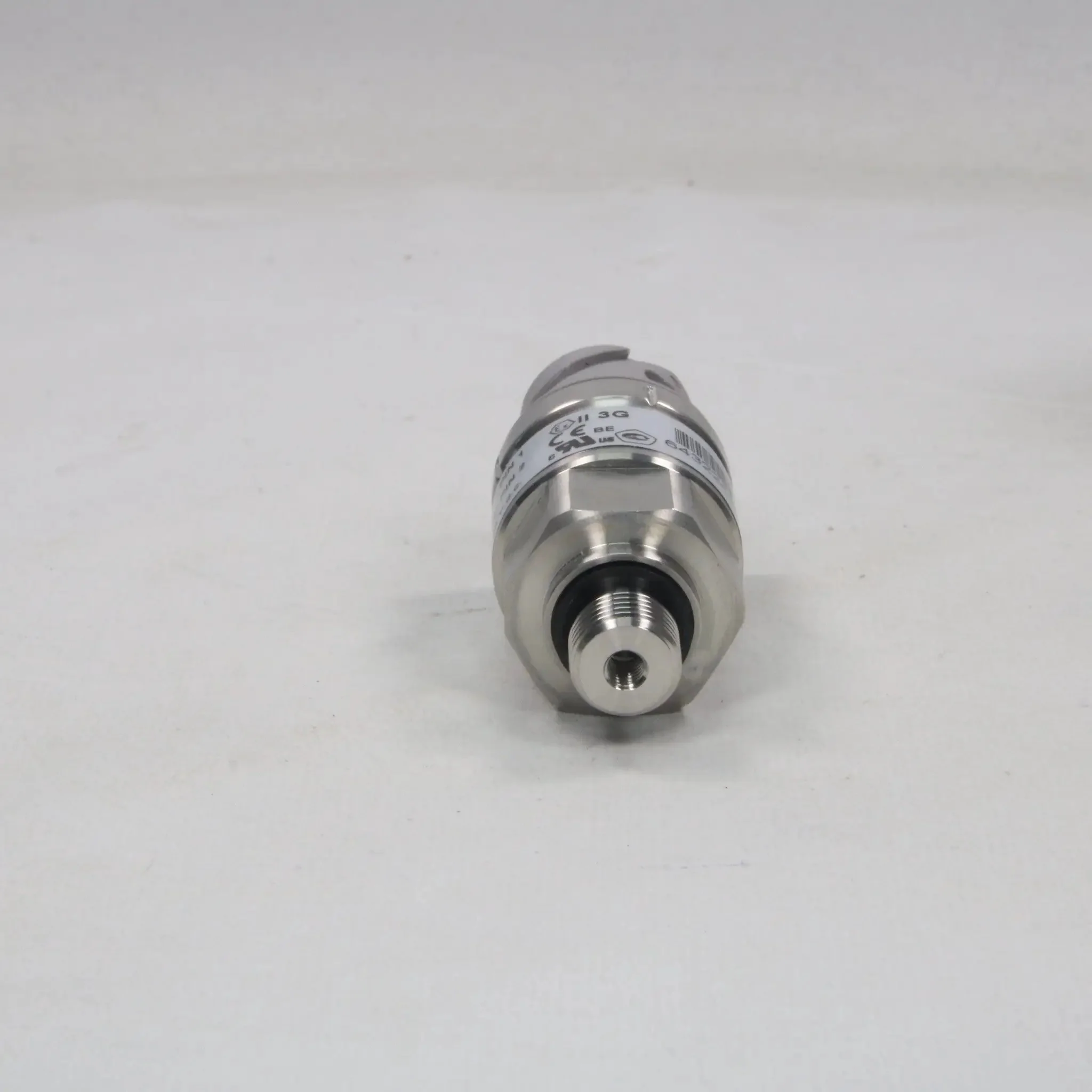

Pressure Connection: G 1/4 (male), DIN 3852‑E / ISO 1179‑2 Form E, wrench size 27 mm
Accuracy (typical): ±0.5 % FS; Maximum ±1.0 % FS
Compensated Temperature Range: 0 °C to +100 °C
Operating Ambient Temperature: –40 °C to +100 °C
Media (Process) Temperature Range: –40 °C to +125 °C
Ingress Protection (Enclosure): IP67
Pulse‑Snubber: Yes
Response Time (max): 4 ms
Supply Voltage: 9 V to 32 V DC
Overload Pressure (max): 6 bar
Output: 4 to 20mA
Additional Features: No adjustable zero-point or span
Weight: 145g
Country of origin: China
Original: $228.76
-70%$228.76
$68.63
Description
Brand: Danfoss
Part Number: 060G6849
Series/Type: MBS 3250 Pressure Transmitter
Pressure Reference: Gauge (relative)
Pressure Range: 0 to 1 bar (0 to 14.5 psi)
Output Signal: 4–20 mA (current)
Electrical Connection: 4‑pin bayonet, ISO 15170 standard
Pressure Connection: G 1/4 (male), DIN 3852‑E / ISO 1179‑2 Form E, wrench size 27 mm
Accuracy (typical): ±0.5 % FS; Maximum ±1.0 % FS
Compensated Temperature Range: 0 °C to +100 °C
Operating Ambient Temperature: –40 °C to +100 °C
Media (Process) Temperature Range: –40 °C to +125 °C
Ingress Protection (Enclosure): IP67
Pulse‑Snubber: Yes
Response Time (max): 4 ms
Supply Voltage: 9 V to 32 V DC
Overload Pressure (max): 6 bar
Output: 4 to 20mA
Additional Features: No adjustable zero-point or span
Weight: 145g
Country of origin: China
