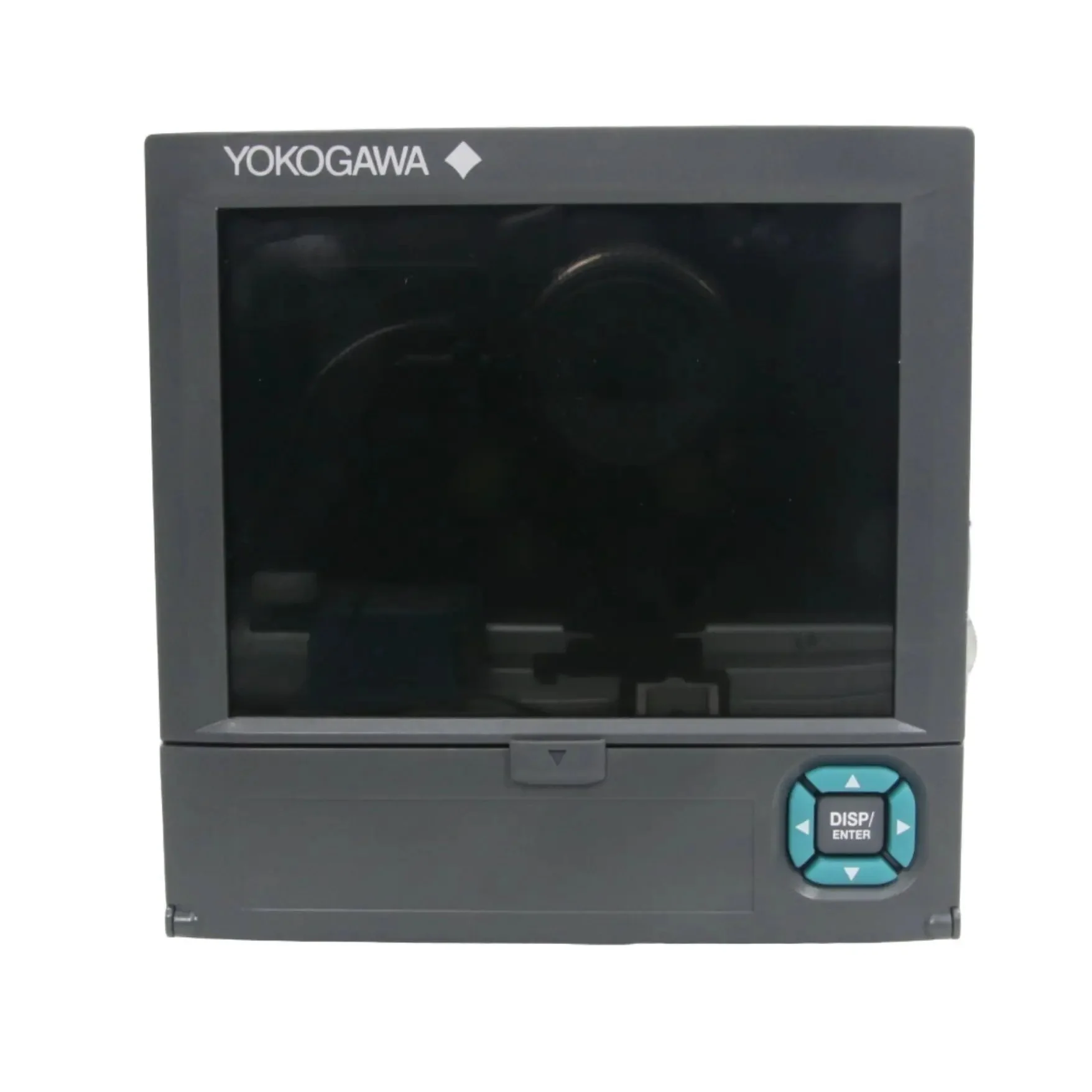

Yokogawa FX1006-4-2-L Paperless Recorder

- Brand: Yokogawa
- Model: FX1006-4-2-L
- Type: Paperless Recorder
- All Tech Specs:
  - Material: Metal
  - Display: 5.7-inch TFT colour LCD - resolution 320 x 240 dots, touch-enabled for operation
  - Channels: 6 universal inputs
  - Sampling Interval: 100 ms
  - External Memory: MCF10P-512MS Compact Flash
  - Internal Memory: 400MB Internal Flash
  - Input Types: Universal - thermocouple J/K/T/E/R/S/B/N/L/U, RTD Pt100/Ni100, DCV -20 to +60 mV/1-5 V/10 V
  - Output: Alarm relay
  - Power Supply: 100-240 VAC (50/60 Hz)
  - Power Consumption: ≤30 VA (AC)
  - Operating Temperature Range: 0°C to +50°C
  - Humidity: 20-80% RH
  - Protection Rating: IP20
  - Standards: IEC/EN 61010-1; CE marked; EMC compliant (Class A)
  - Certification: CE; RoHS compliant; UL listed options
  - Features: Real-time display (waveforms, trends, bar graphs); email/SMTP alerts; web server for remote access; supports Modbus TCP/RTU; batch/group functions for data management
- Dimension: 180 x 144 x 144 mm
- Weight: 1.6 kg
- Country of Origin: Japan
- HS Code: 9033.19
