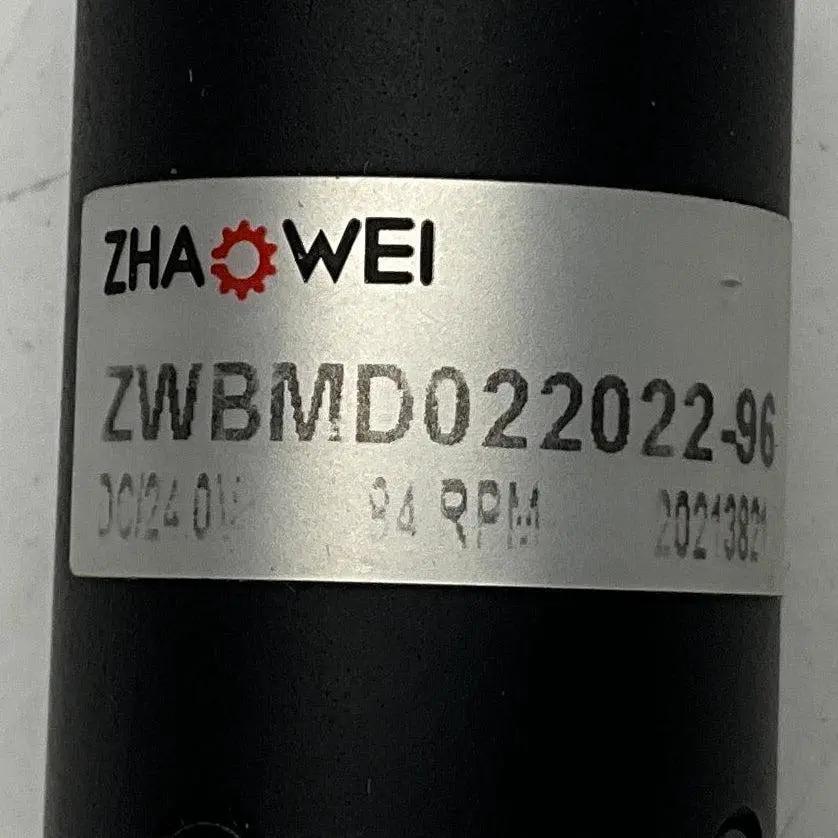

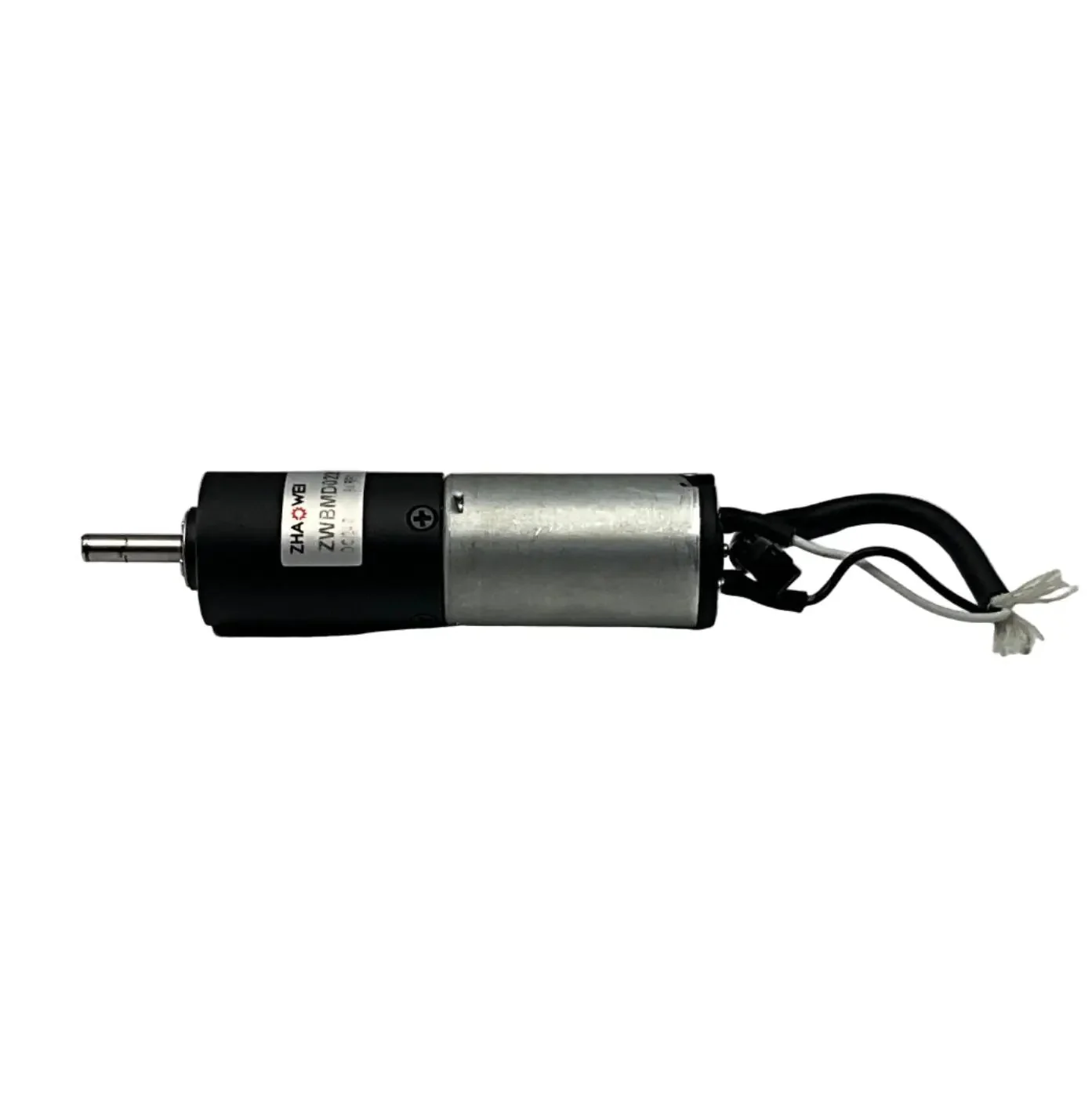

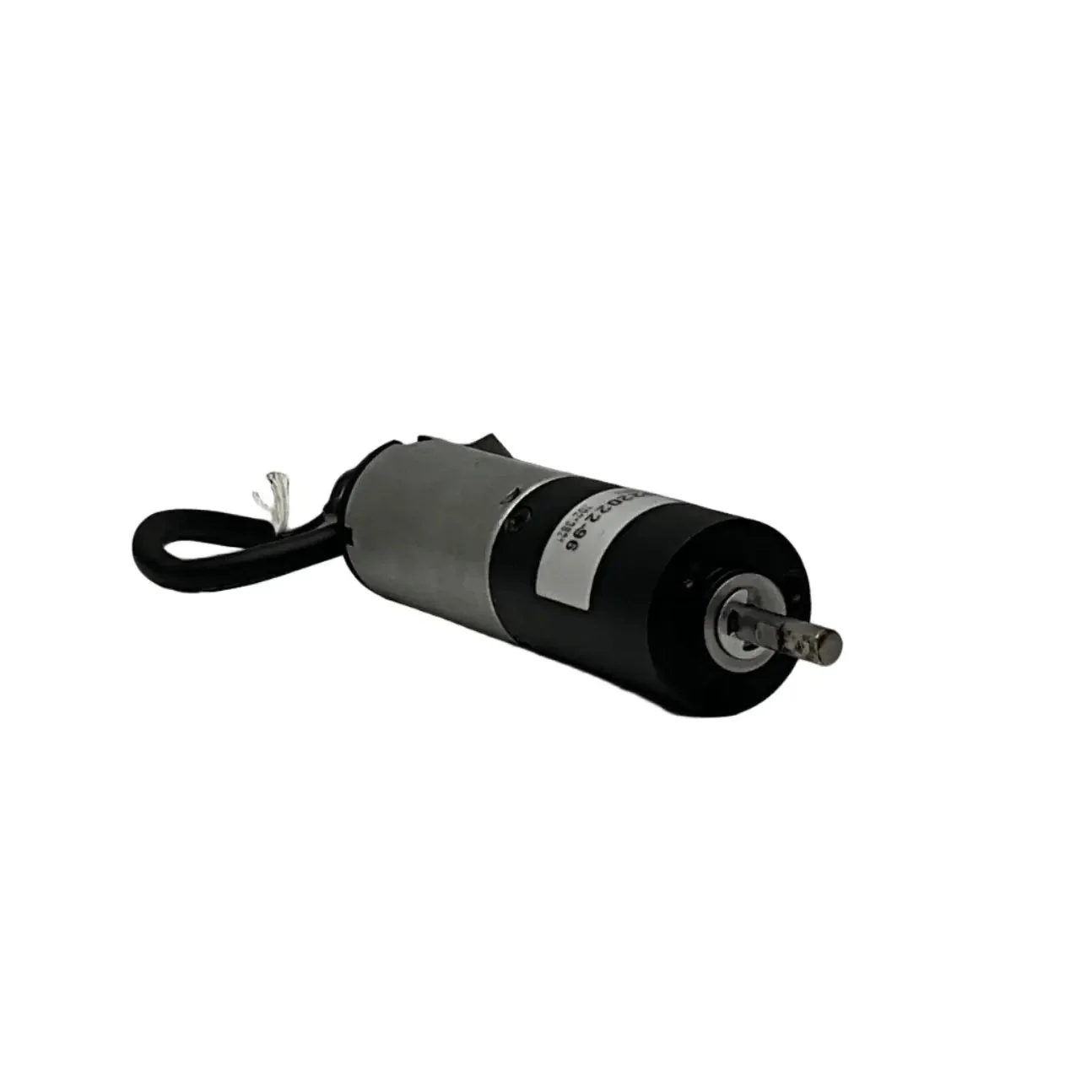

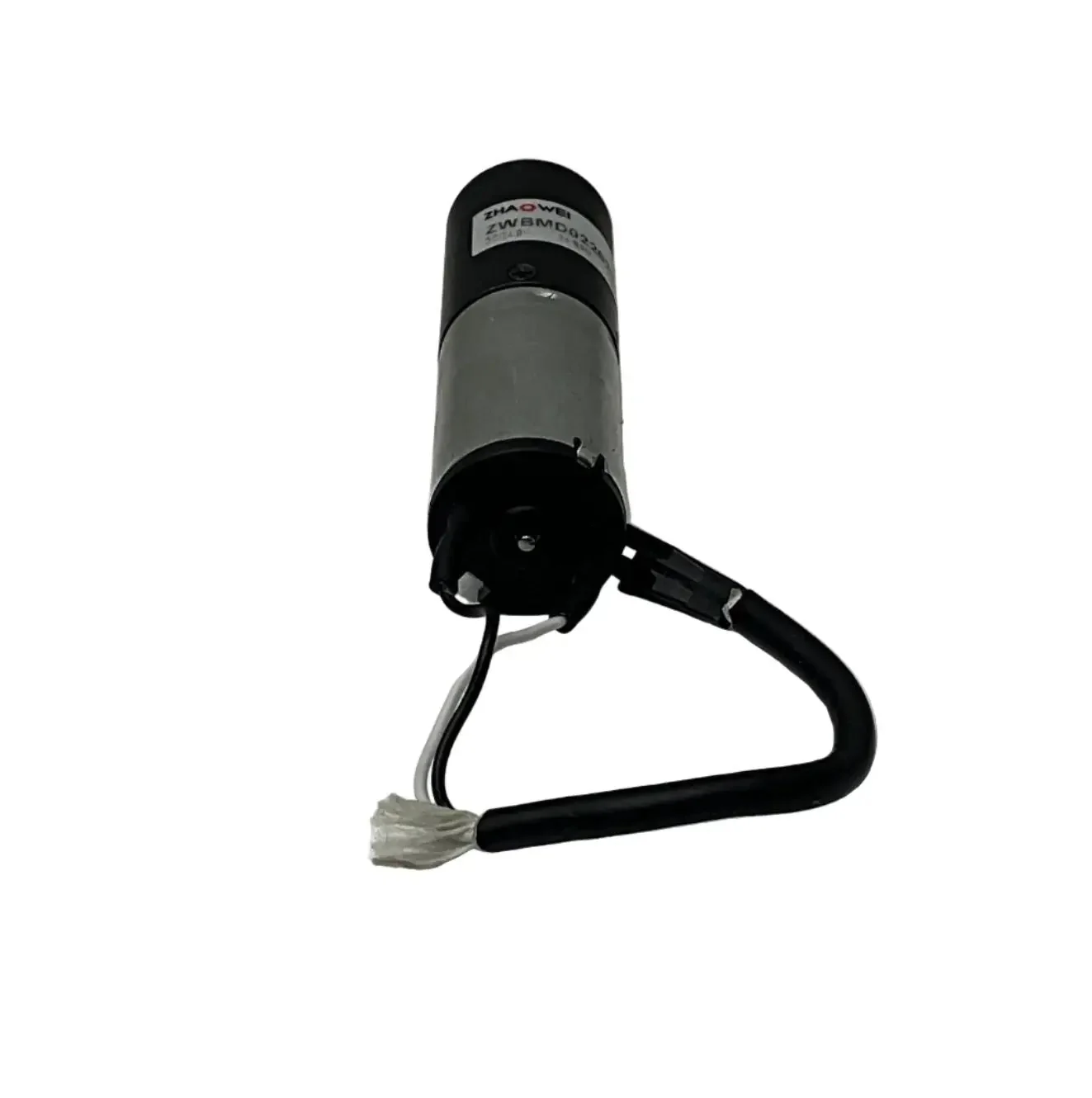

Zhaowei ZWBMD022022-96 Servo Motor

Brand: Zhaowei
Model: ZWBMD022022-96
Type: Planetary Gear Motor (DC Motor with Gearbox)
Part Number: ZWBMD022022-96

Technical Specs:
- Motor Type: DC brushed planetary gear motor
- Voltage Range: 24 V DC
- Load Current: 300 mA
- Rated Speed (Output): 84 rpm
- Rated Torque (Max): (1.47 Nm)
- Gearbox Stages: 3-4 stages
- Reduction Ratio: 96:1
- Efficiency: Up to 90%
- Direction of Rotation: Reversible
- Axial Endplay: ≤ 0.2 mm
- Radial Loading on Output Shaft: ≤ 120 N
- Operating Temperature Range: -30°C to +100°C
- Additional Features:
  - Metal planetary gearbox for high durability
  - Low noise and vibration
  - Compact design for space-constrained applications

Dimension:
- Outer Diameter: 22 mm
- Overall Length: 92 mm

Weight: 120 g

Country of Origin: China

HS Code: 8501.31
