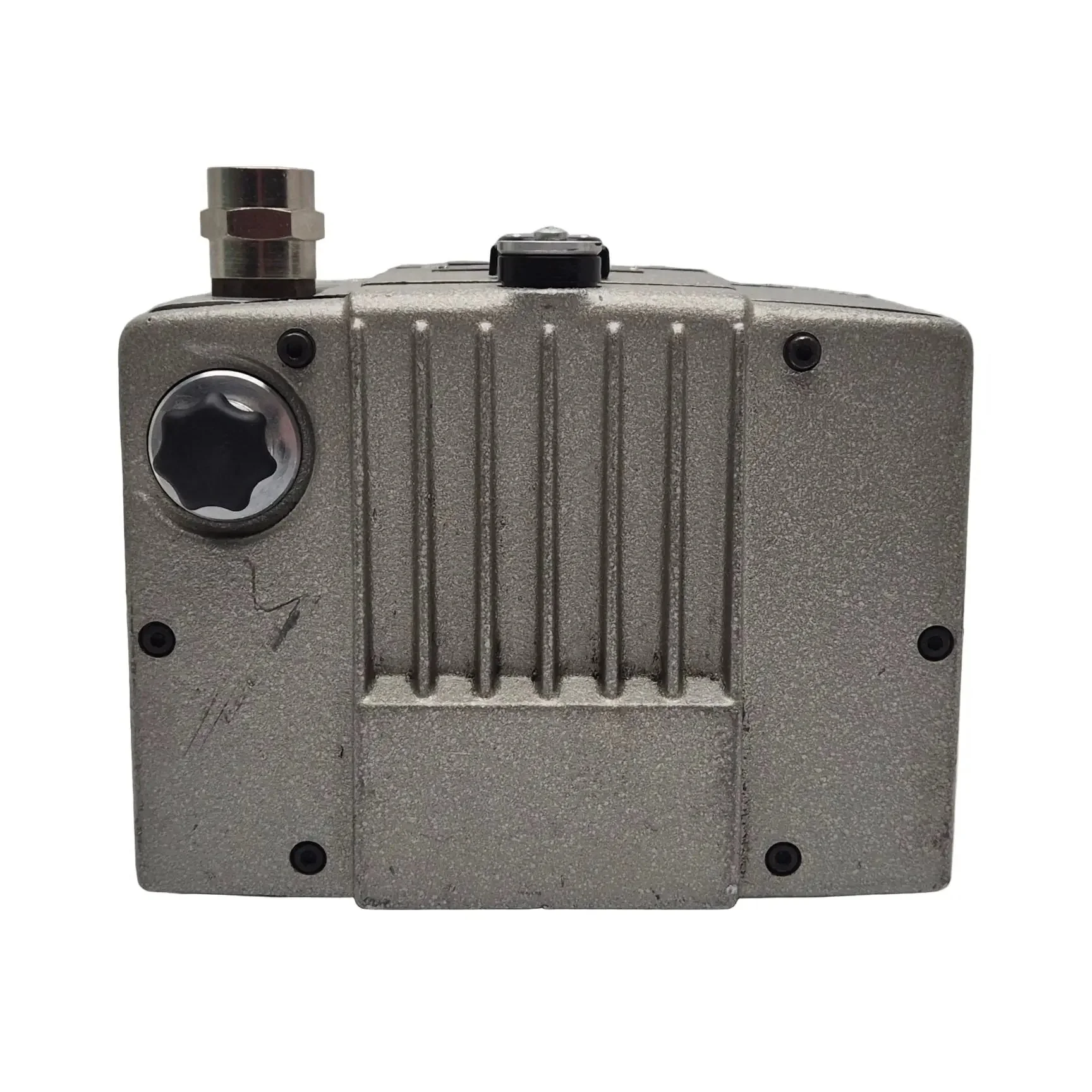

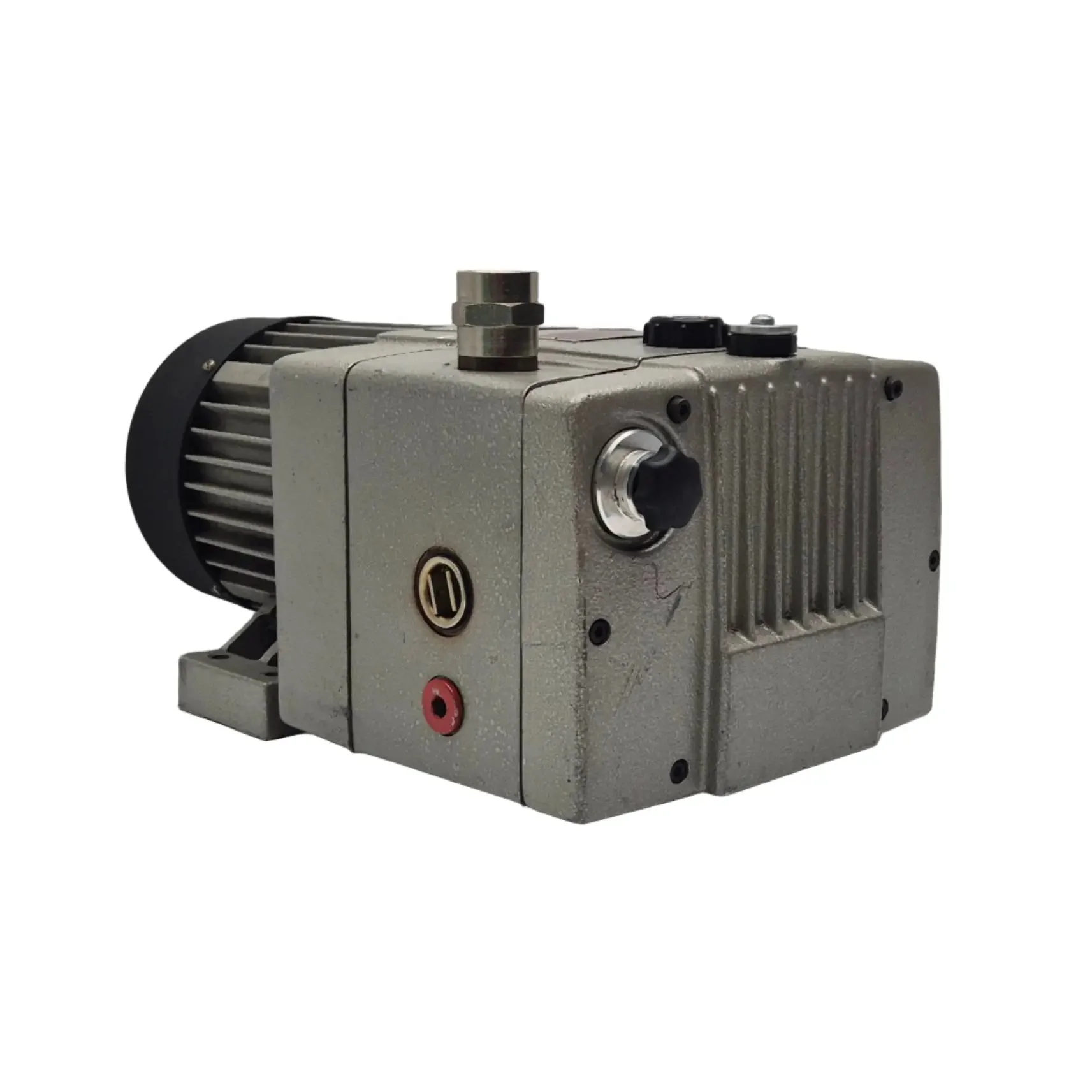

Brand: Rietschle Werie

Part Number: 022889

Model: VGA‑15

Type: Vacuum Pump (oil‑lubricated rotary vane)

Capacity: 14 m³/h

Final Pressure: 20 mbar (absolute)

Rated Voltage: 220/380 V (Delta–Star connection)

Rated Power: 0.80 kW

Rated Current: 2.3 A (at one voltage), 1.3 A (at the other)

Nominal Motor Speed: 2850 rpm

Frequency: 50 Hz

Protection Class: IP54

Insulation Class: F

Weight: Approx. 20 kg

Construction & Features:

Oil‑flooded rotary vane design

Built-in fine micro‑filter on the suction (inlet) side

Oil and oil‑mist separator on the exhaust side

Cooling system via motor‑integrated fan

Integral non‑return (check) valve to prevent back‑leakage and oil pull‑in on shutdown

Country of origin: Switzerland

HS Code: 8414.10
