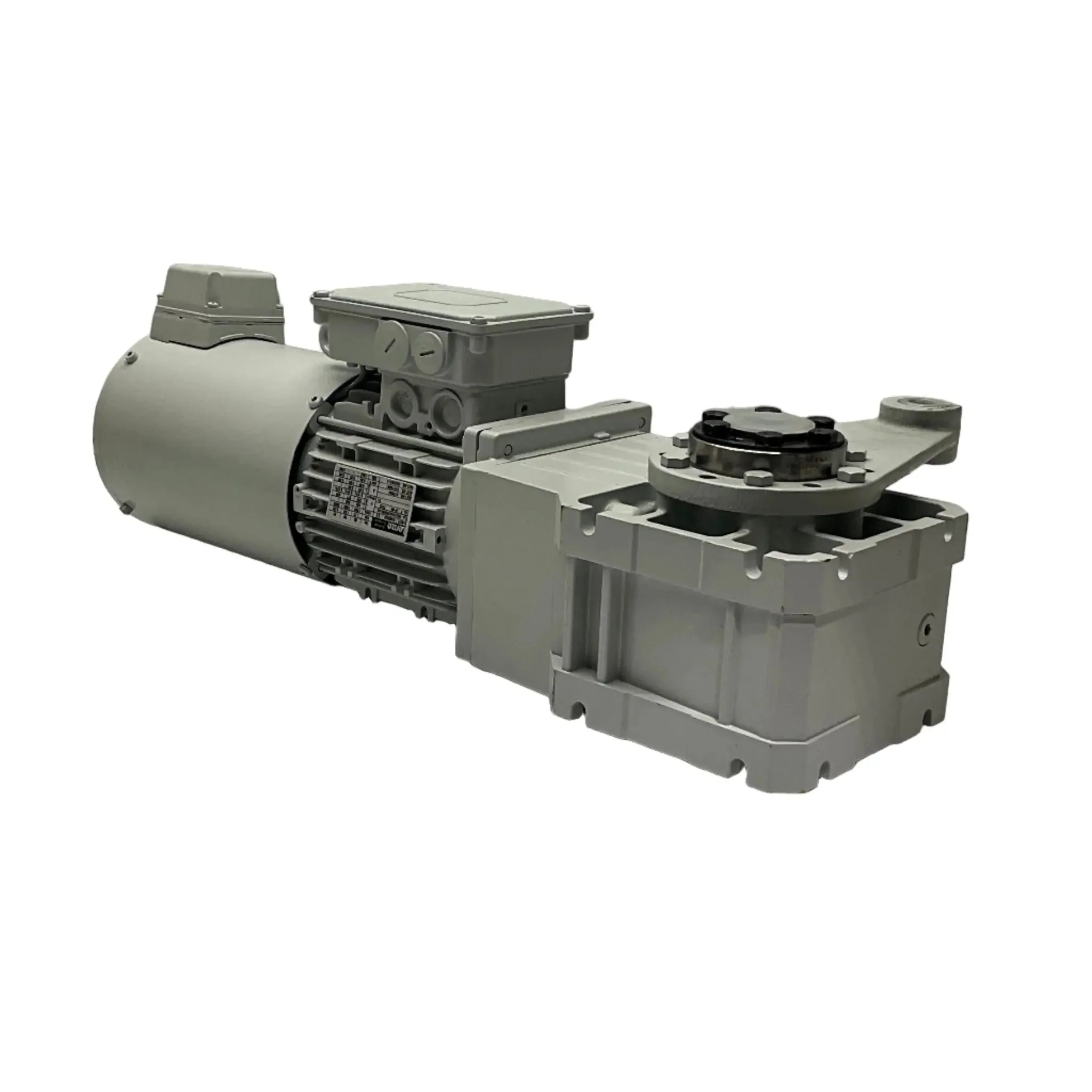

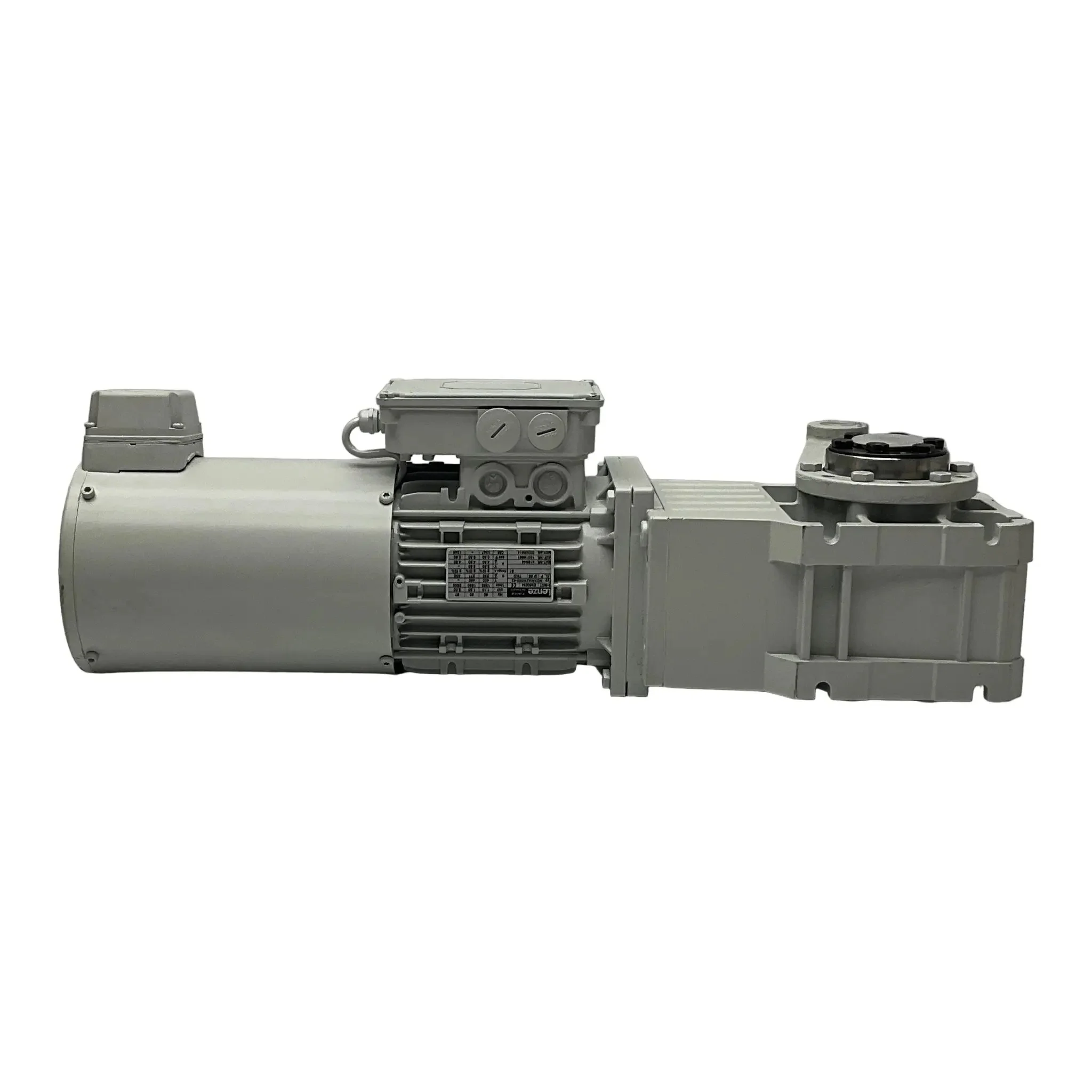

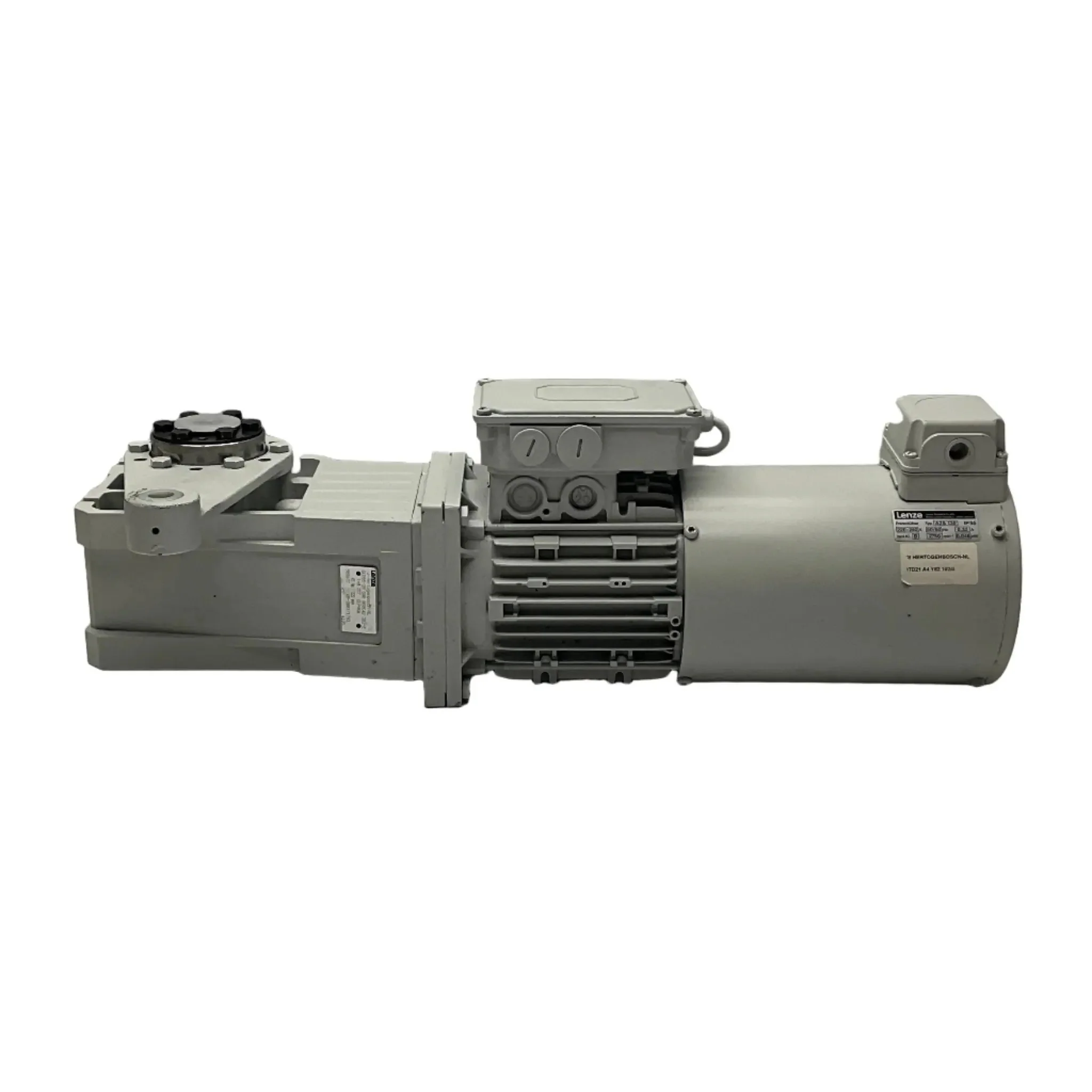

Lenze MDXMA2M080-42 Gearmotor

- Brand: Lenze
- Model: MDXMA2M080-42
- Type: Gearmotor
- Technical Specifications:

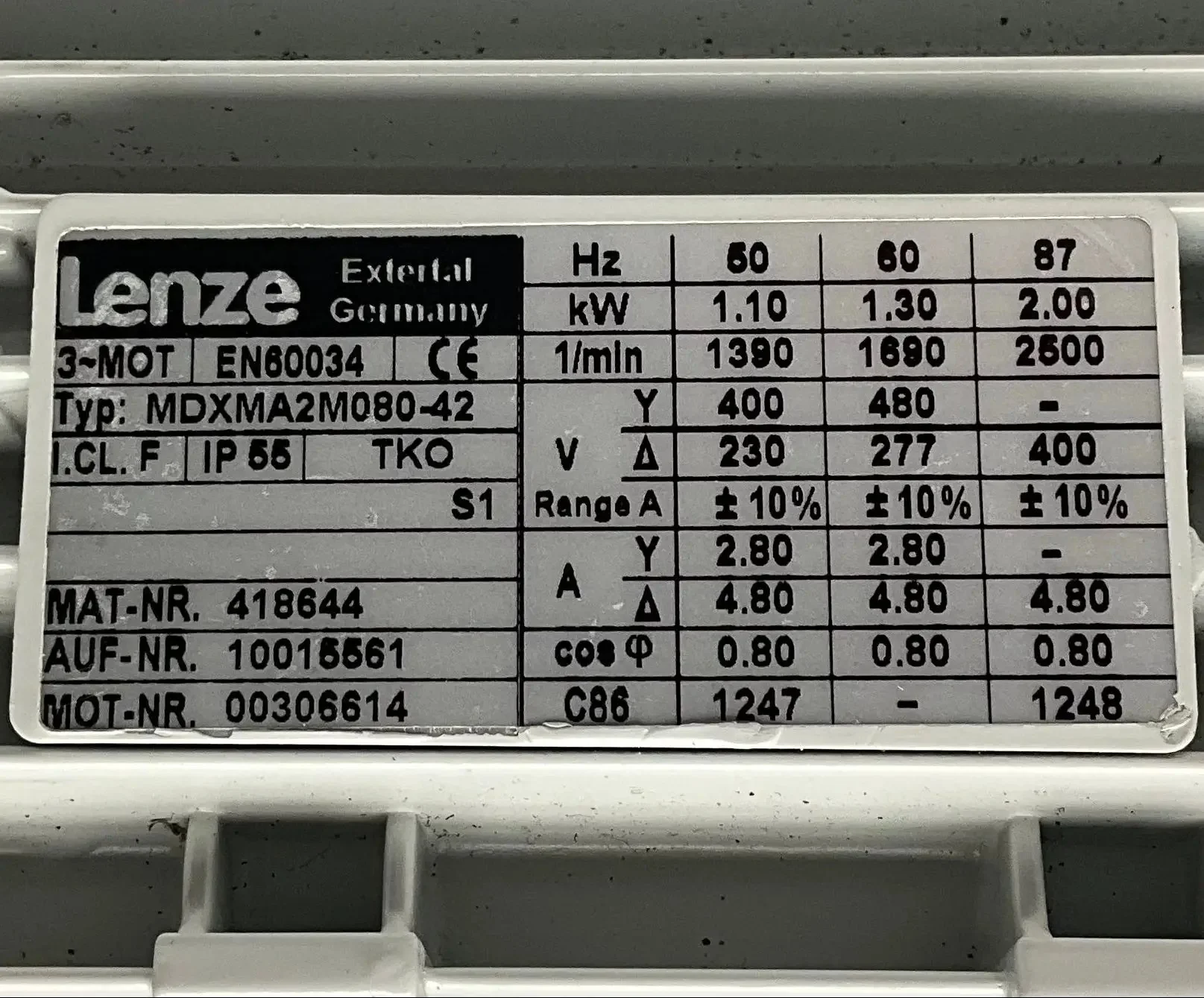

  - Rated Power: 1.10 kW @ 50 Hz
  - Rated Torque: 7.6 Nm
  - Rated Speed: 1390 rpm
  - Voltage: 3 × 400 V AC (50/60 Hz)

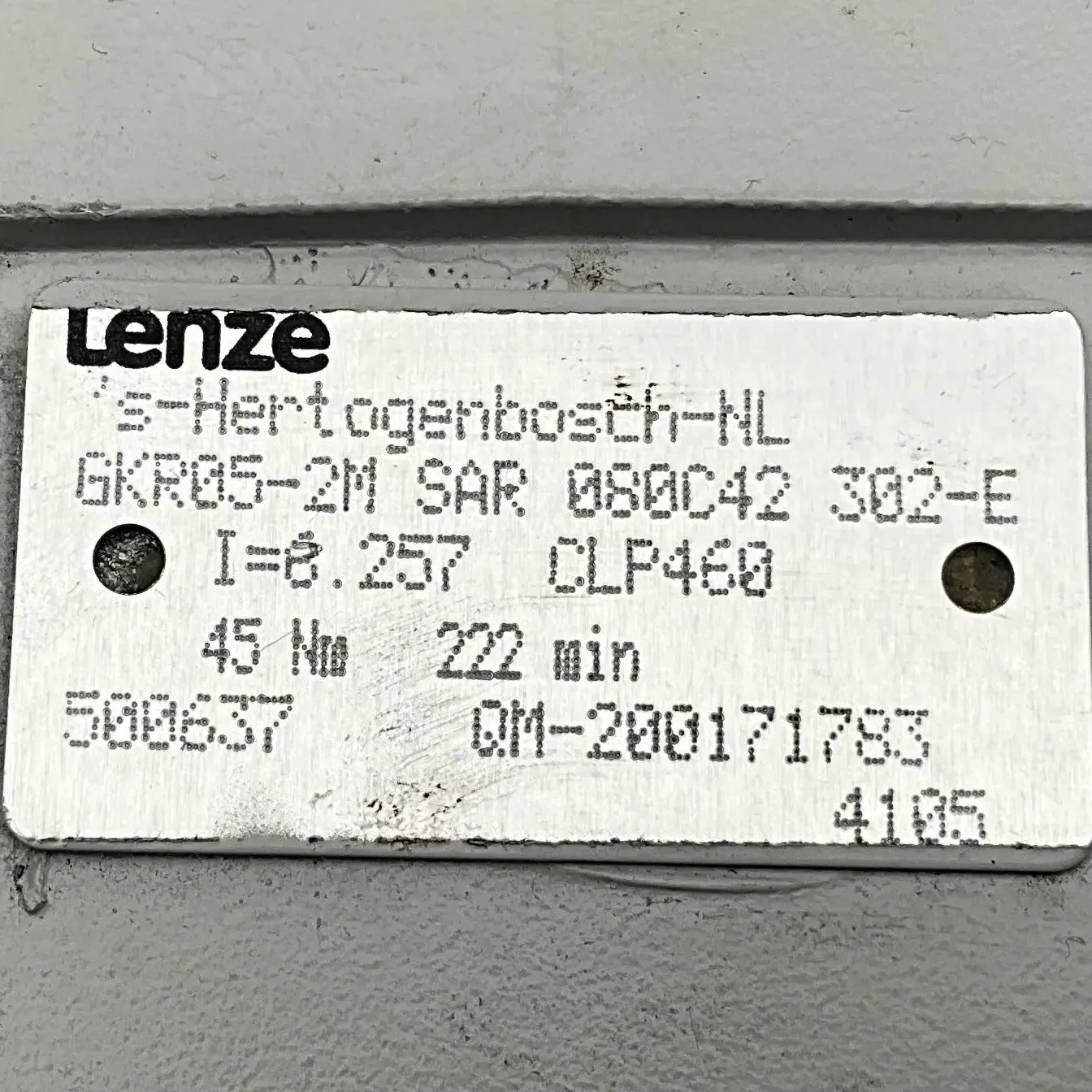

  - Gearbox: GKR05-2M
    - Ratio i = 6.257
    - Output Torque: 45 Nm
    - Output Speed: ~222 rpm

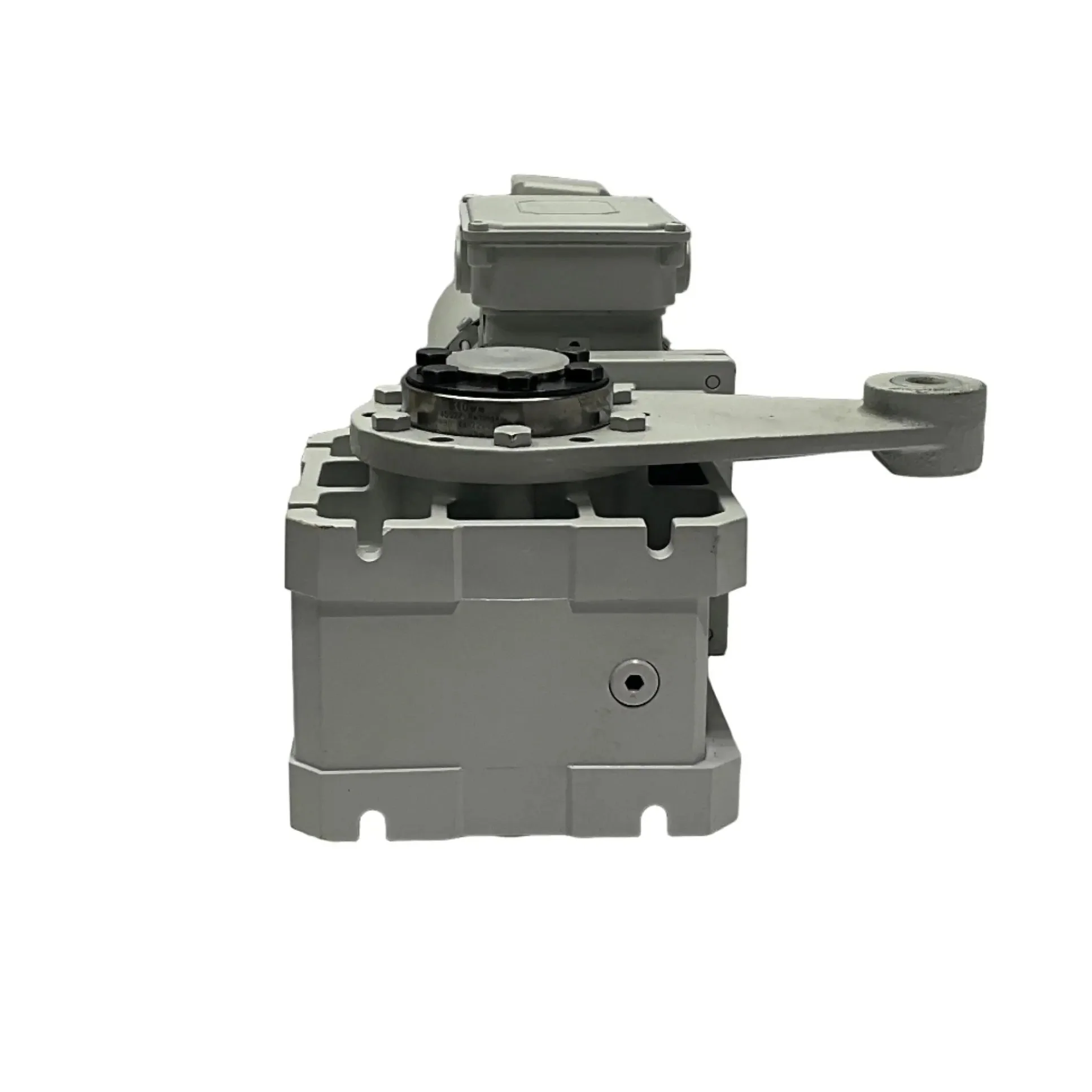

    - Hollow shaft with shrink disc
    - Mounting: Foot + flange

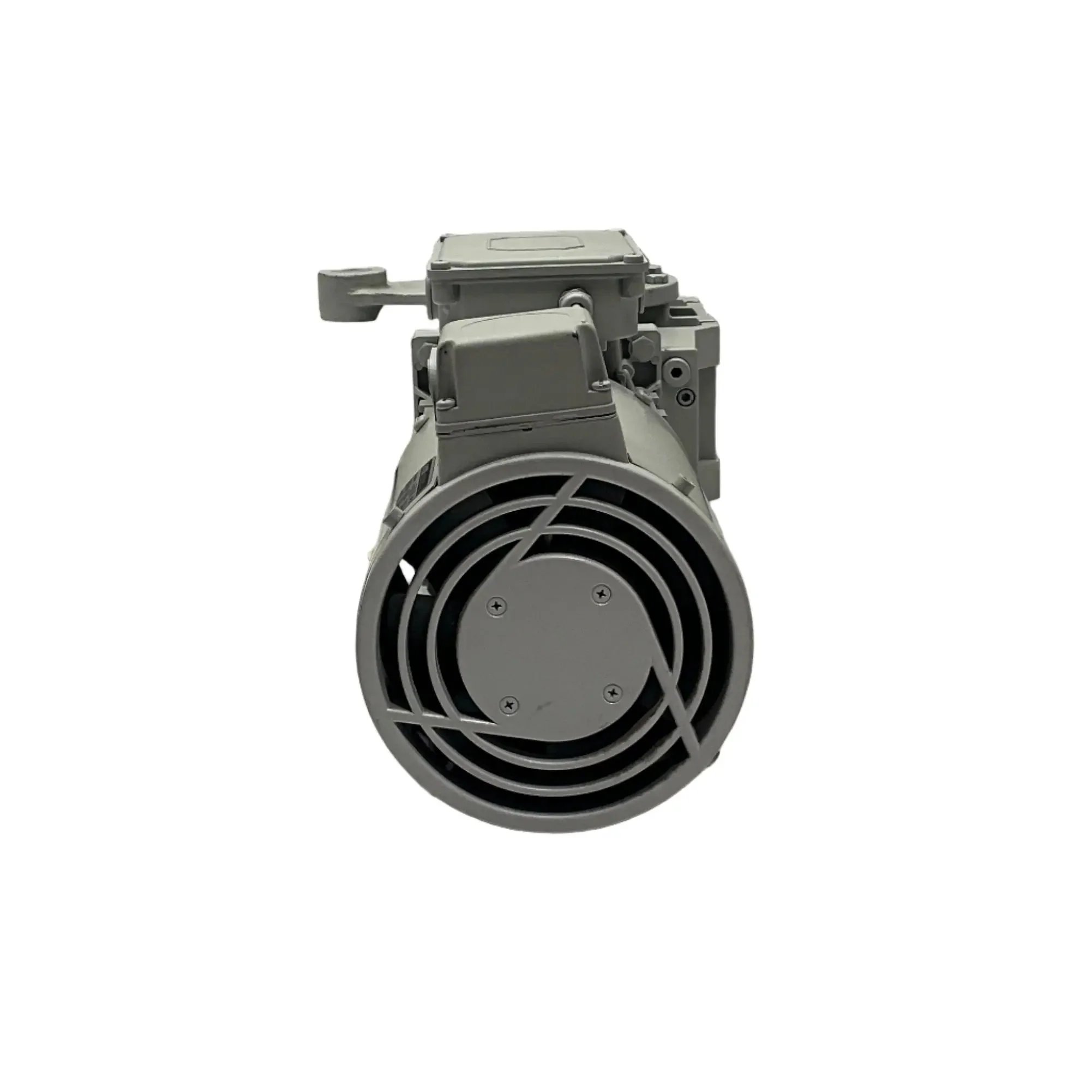

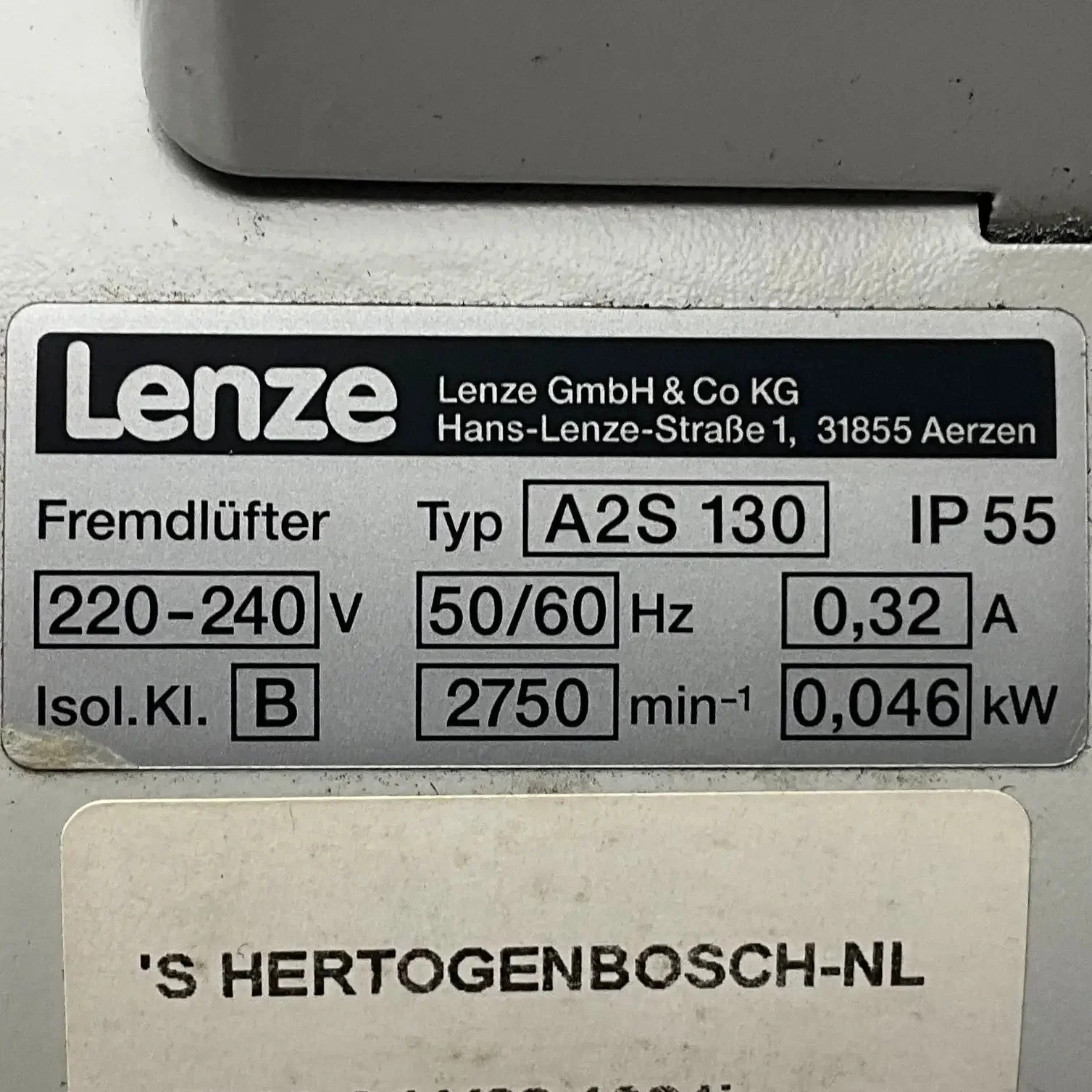

    - Fan: Fremlufter A2S130 (forced cooling fan)
    - Voltage: 220 - 240 V AC single-phase
    - Power: 0,046 kW
    - Purpose: Enables 100 % torque at standstill and low-speed operation without derating
  - Protection Rating: IP55 (motor + gearbox), IP54 (fan)
  - Thermal Class: 155 (F)
 - Dimensions: 640 x 280 x 220 mm
- Weight: 26 kg
- Country of Origin: Germany
- HS Code: 850152
