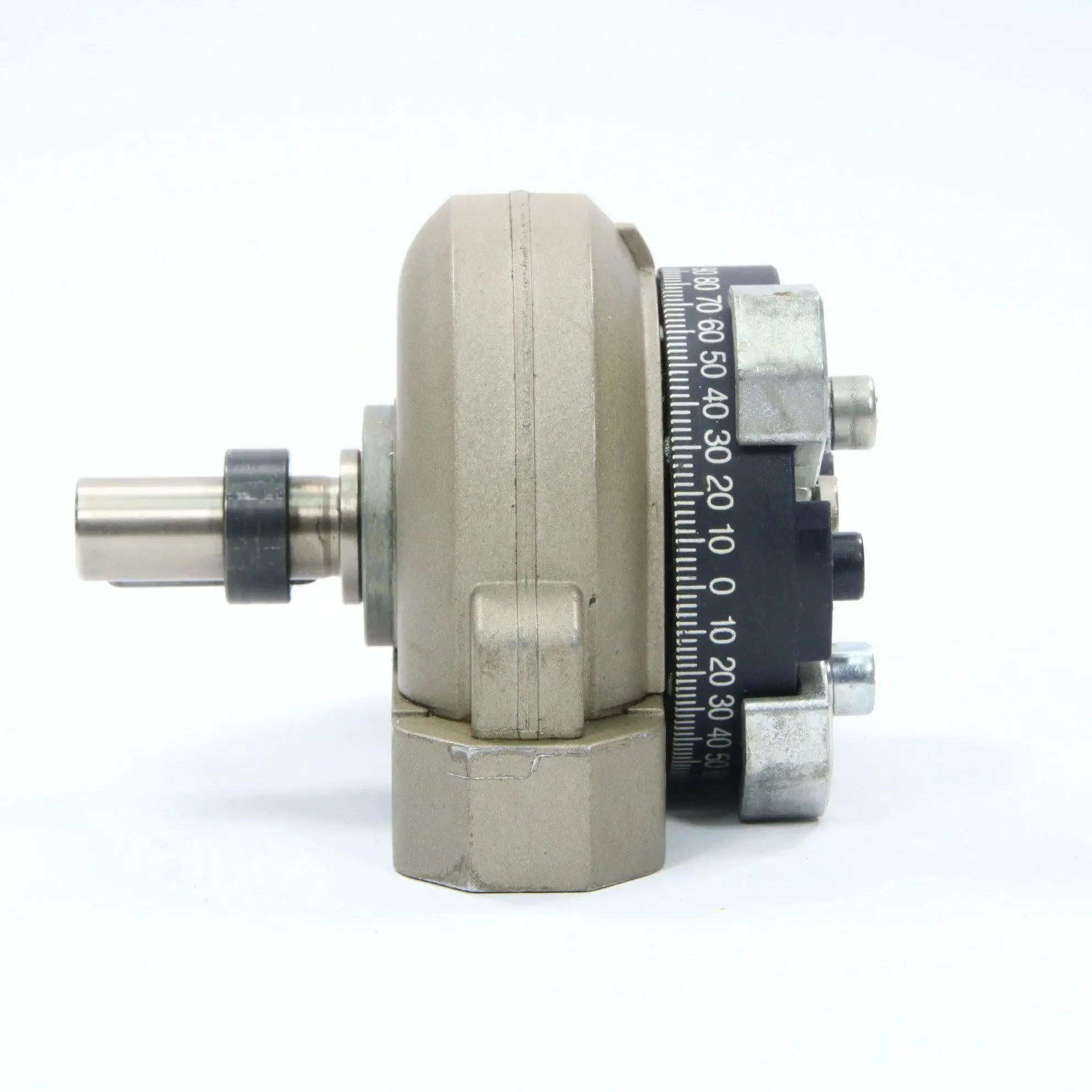

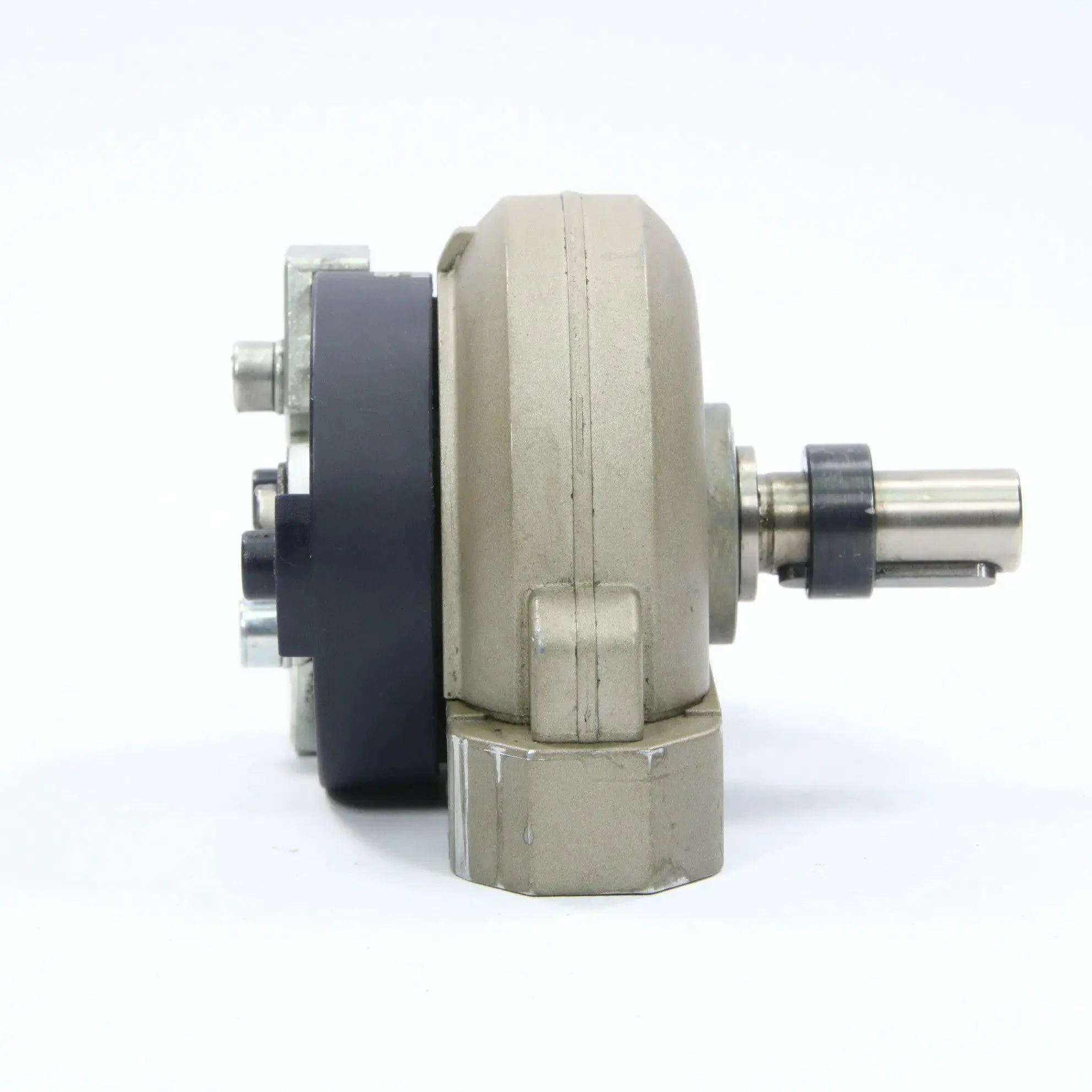

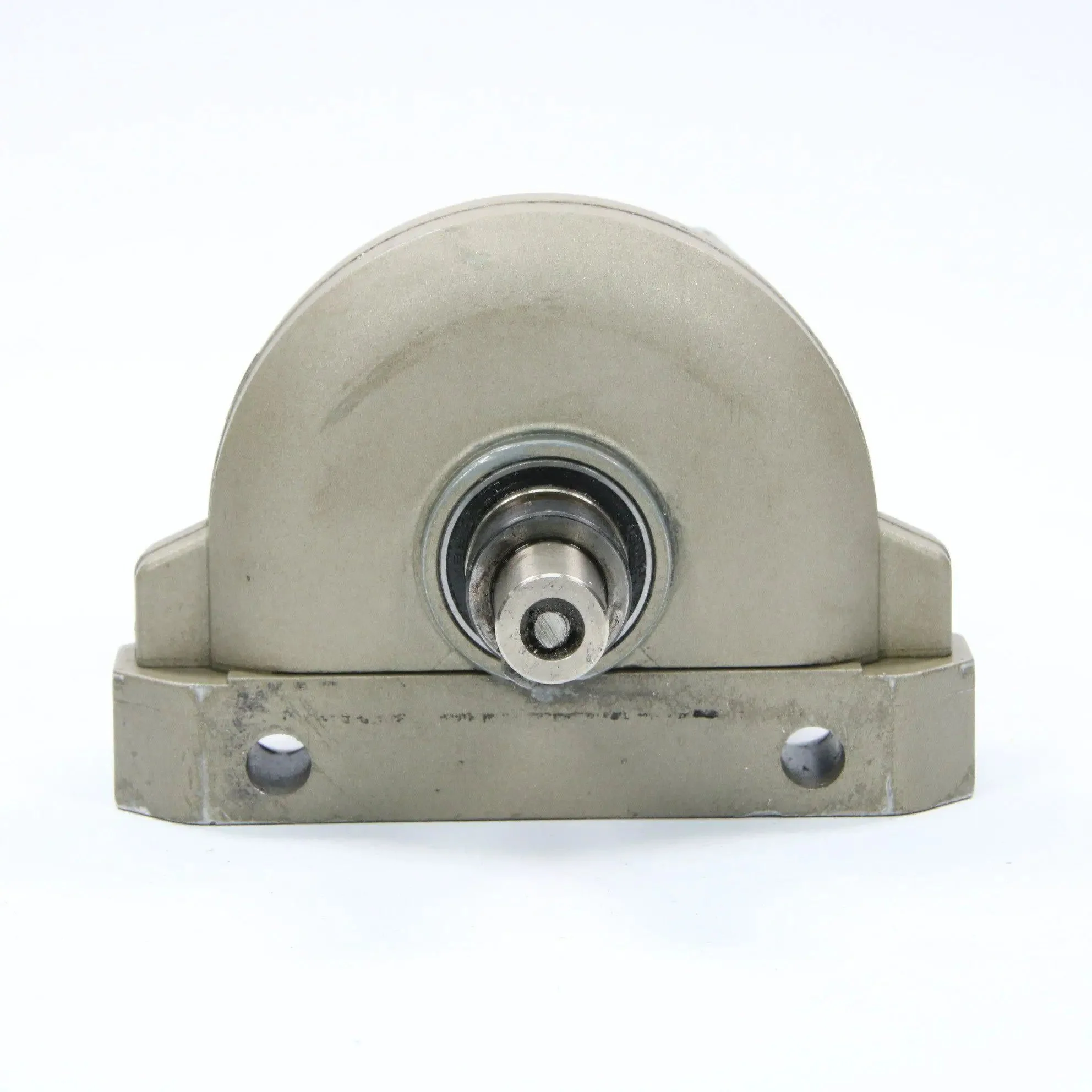

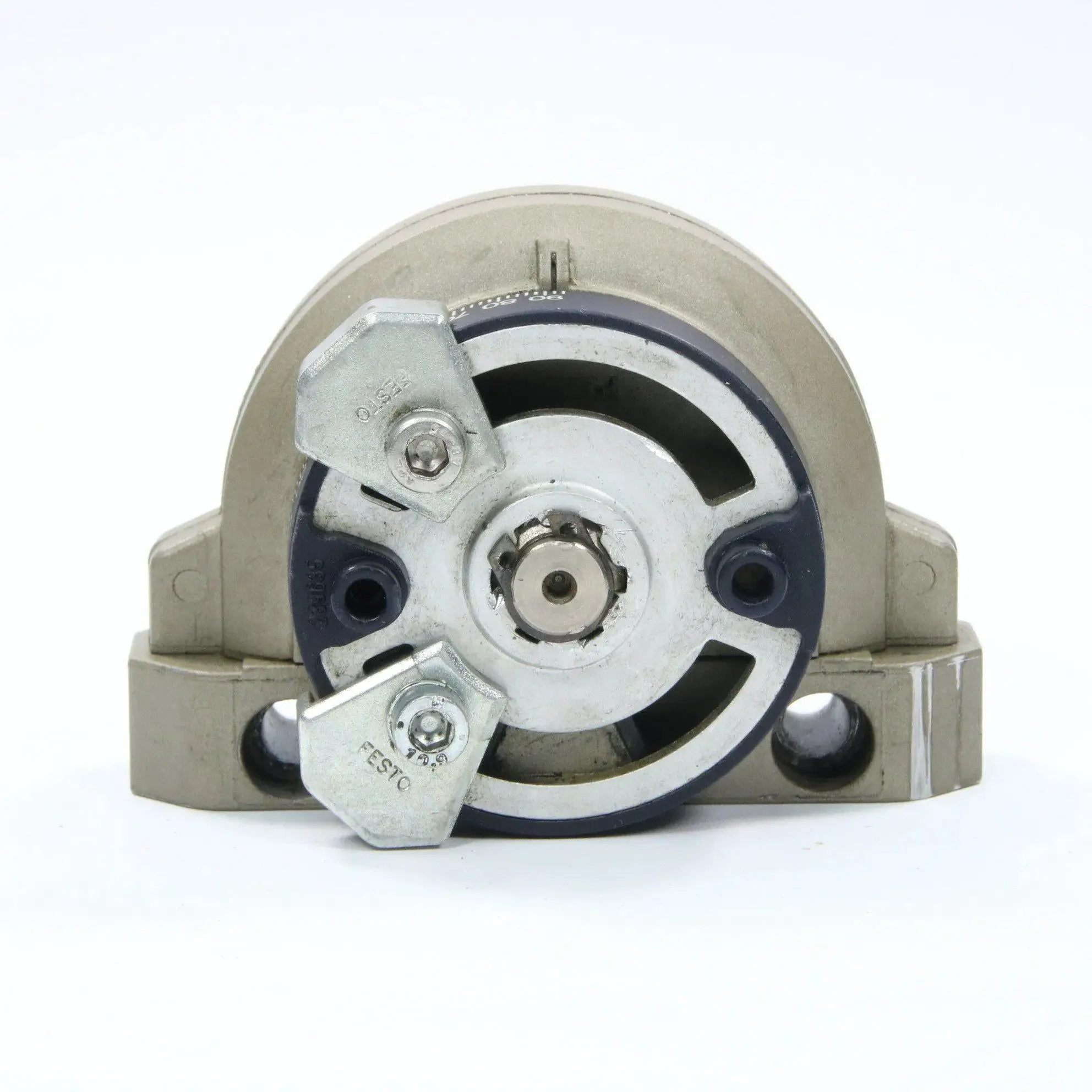

Festo Quarter turn actuator DSR-25-180-P

Festo Quarter turn actuator DSR-25-180-P

• Size 25
• Cushioning angle 0.9 deg
• Adjustment range of swivel angle 0 deg ... 180 deg
• Swivel angle 0 deg ... 180 deg
• Type code DSR
• Cushioning Elastic cushioning rings/pads at both ends
• Mounting position Any
• Mode of operation Double-acting
• Design Rotary vane
• Position sensing None
• Operating pressure 1.5 bar ... 8 bar
• Max. swivel frequency at 6 bar 3 Hz
• Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
• Ambient temperature -10 °C ... 60 °C
• Theoretical torque at 6 bar 20 Nm
• Product weight 520 g
• Type of mounting With through-hole
• Drive shaft material Steel

• Nickel-plated
• Seals material NBR
