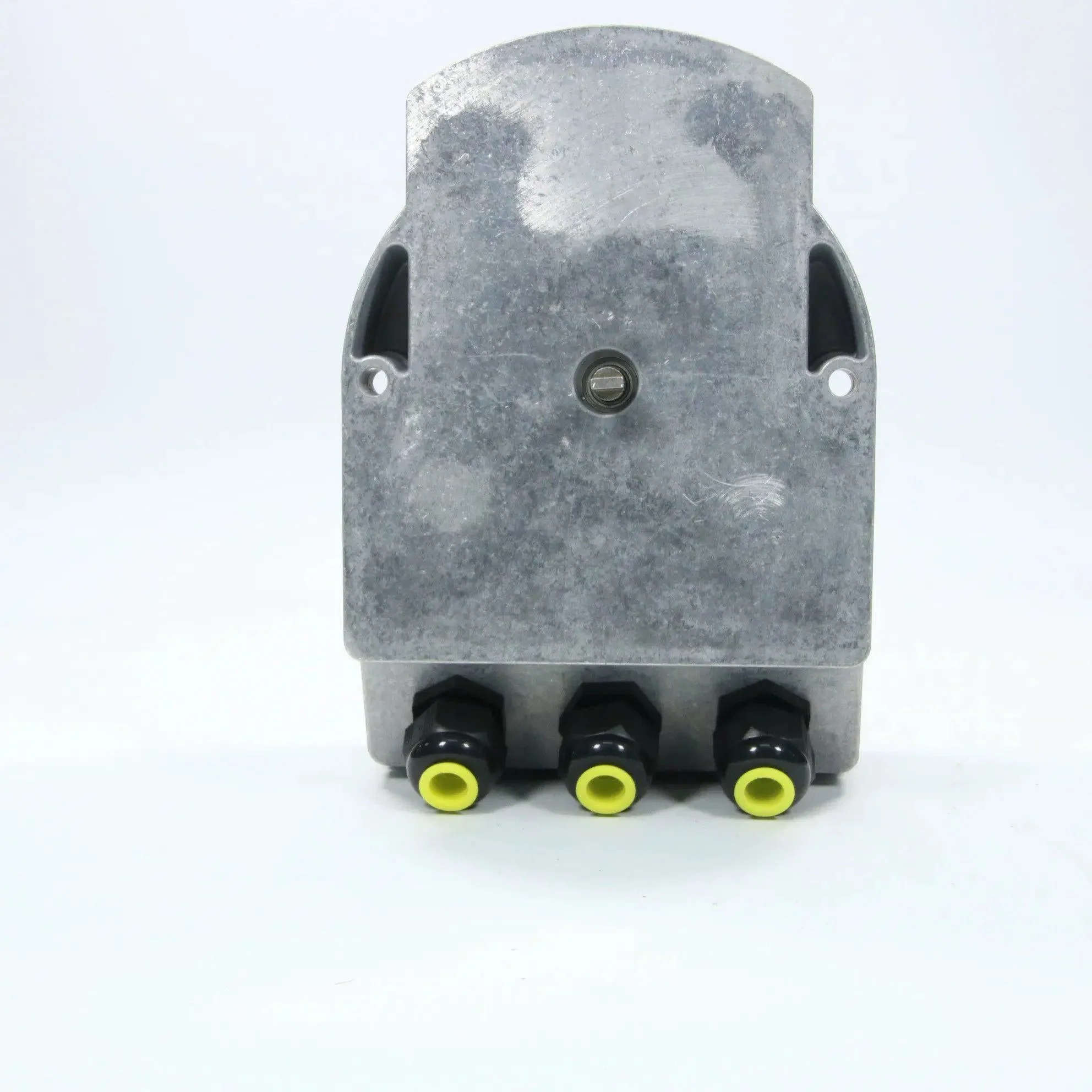

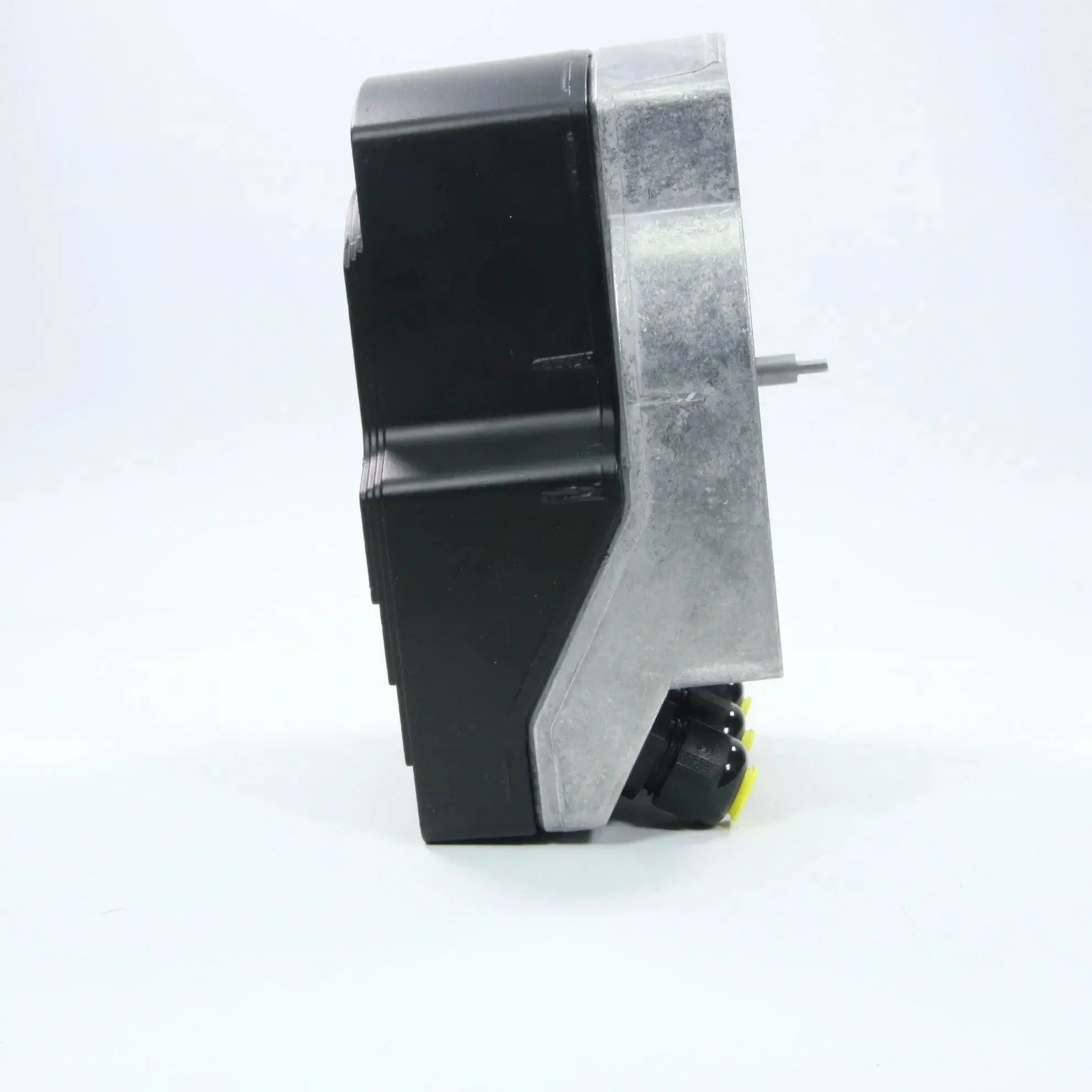

Krom Schroder Actuator IC40SA3A 88300093

- Brand: Kromschröder (Honeywell)
- Model: IC40SA3A
- Type: Electric Actuator
- Technical Specifications:
  - Function: Transmits rotary movements (0-90°) for actuation of gas and air valves
  - Series: IC 40
  - Control: 4-20 mA analogue input and digital inputs
  - Torque: 3 Nm
  - Mains Voltage: 100-230 V AC, 50/60 Hz
  - Running Time: Adjustable between 4.5 and 75 seconds
  - Operating Mode: 2-point operation
  - Running Time (Default): 7.5 seconds
  - Enclosure: IP 65 (dust-tight and protected against water jets)
  - Position Feedback: Externally readable position indicator
  - Programming: Programmable via optical interface using BCSoft software
  - Closing Function: Emergency closing function
  - Applications: Suitable for mounting on Kromschröder butterfly valves (BVG, BVGF, BVA, BVAF, BVH, BVHS) or VFC linear flow control valve
  - Additional Features: Supports continuous or stage-controlled burners, spacious connection chamber, optional feedback potentiometer, statistics and fault history via BCSoft
- Weight: Approximately 2 kg
- Country of Origin: Germany
- HS Code: 8501.40
