Festo Rotary Actuator, Double Acting, 180° Swivel, 92mm Bore,DSR-32-180-P

Festo Rotary Actuator, Double Acting, 180° Swivel, 92mm Bore,DSR-32-180-P

Festo Rotary Actuator, Double Acting, 180° Swivel, 92mm Bore,
  • Size 32
  • Cushioning angle 1.2 deg
  • Rotation angle adjustment range 0 ... 180 deg
  • Swivel angle 0 ... 180 deg
  • Cushioning P: Flexible cushioning rings/plates at both ends
  • Assembly position Any
  • Mode of operation double-acting
  • Design structure Rotary vane
  • Position detection No
  • Operating pressure 1.5 ... 8 bar
  • Max. swivel frequency at 6 bar 3 Hz
  • Ambient temperature -10 ... 60 °C
  • Theoretical torque at 6 bar 10 Nm
  • Product weight 1,300 g
  • Mounting type with through hole
  • Pneumatic connection G1/8
  • Material of drive shaft Steel
  • Nickel plated
  • Material seals NBR
$80.74

Original: $269.14

-70%
Festo Rotary Actuator, Double Acting, 180° Swivel, 92mm Bore,DSR-32-180-P—

$269.14

$80.74
Product image 1
Product image 2

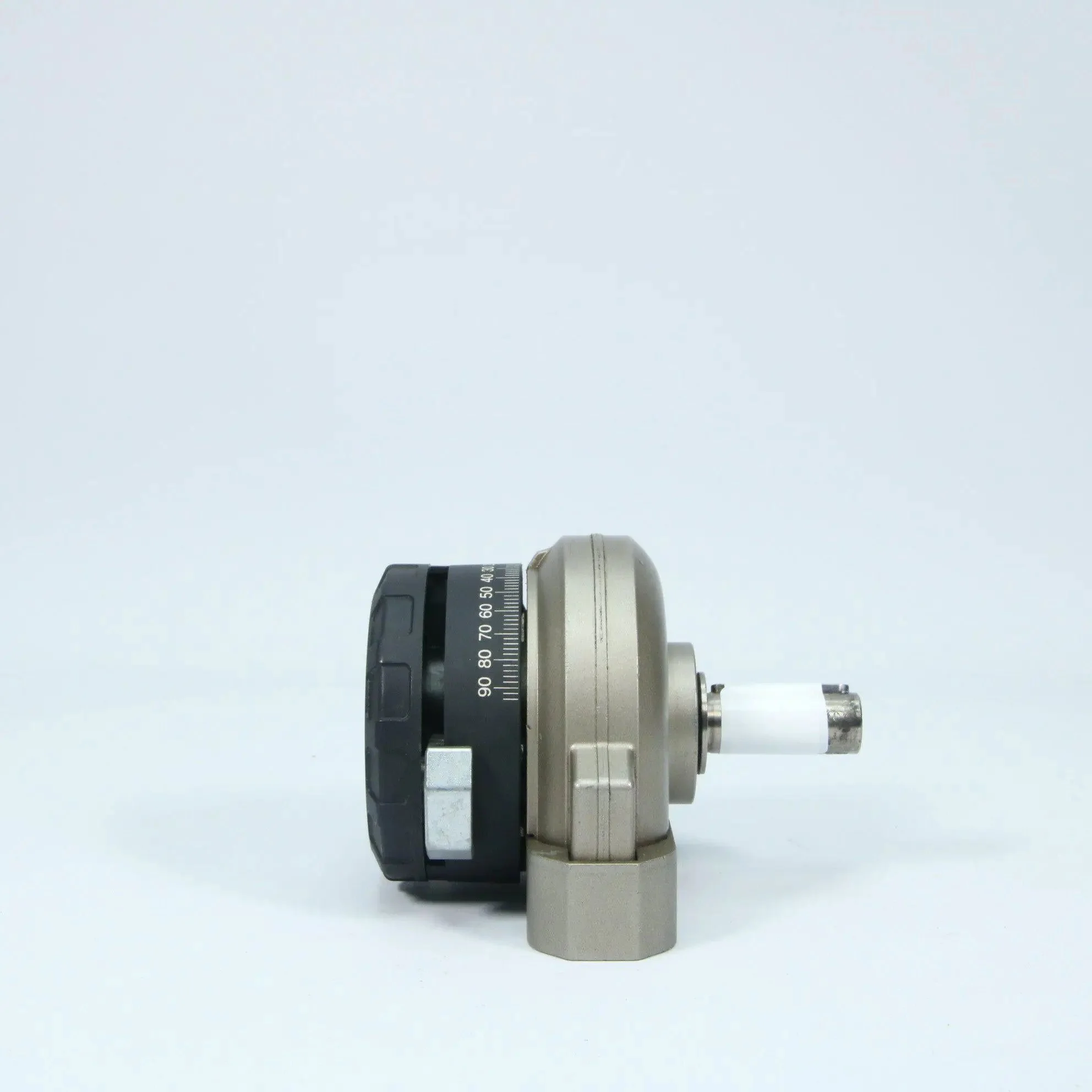

Product image 3

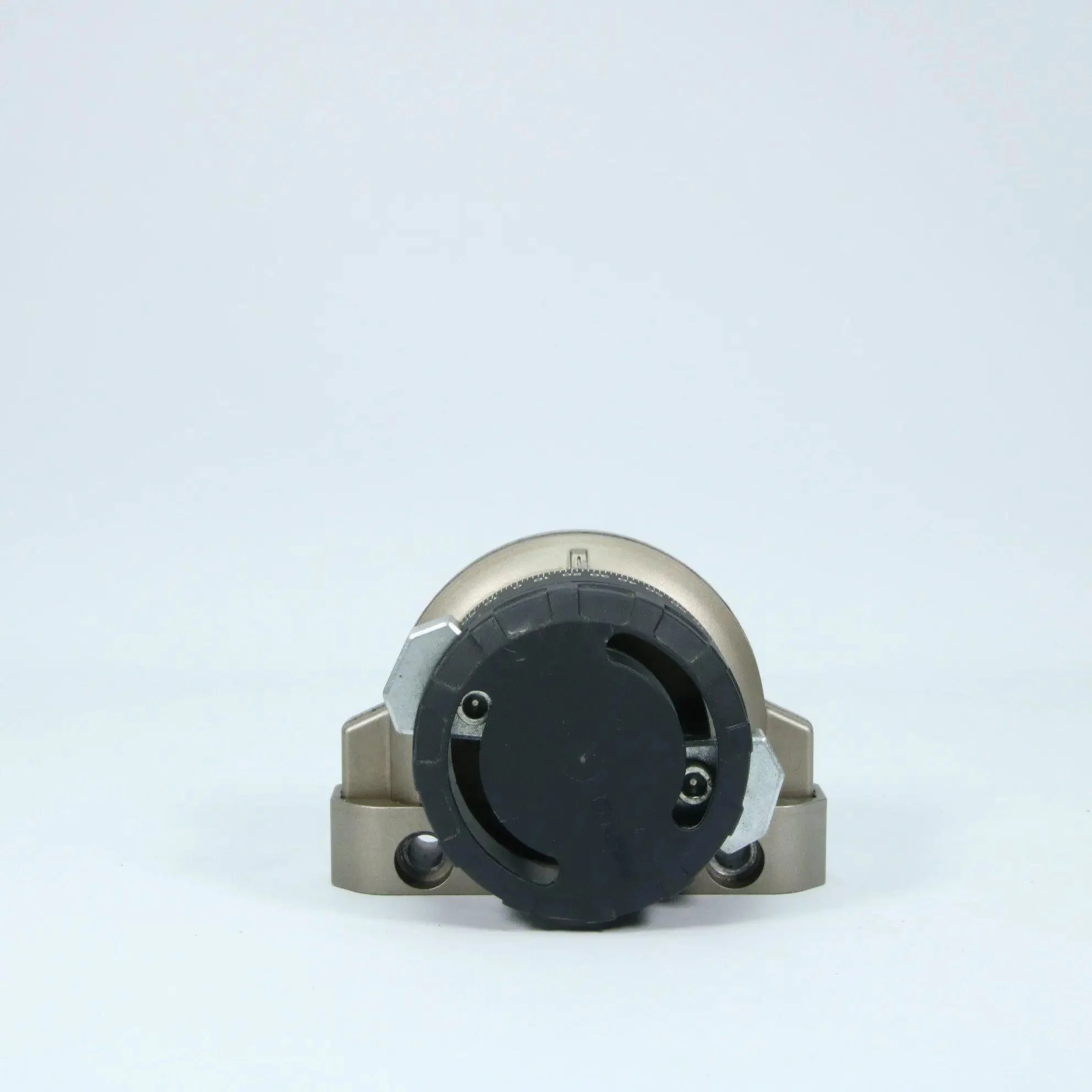

Product image 4

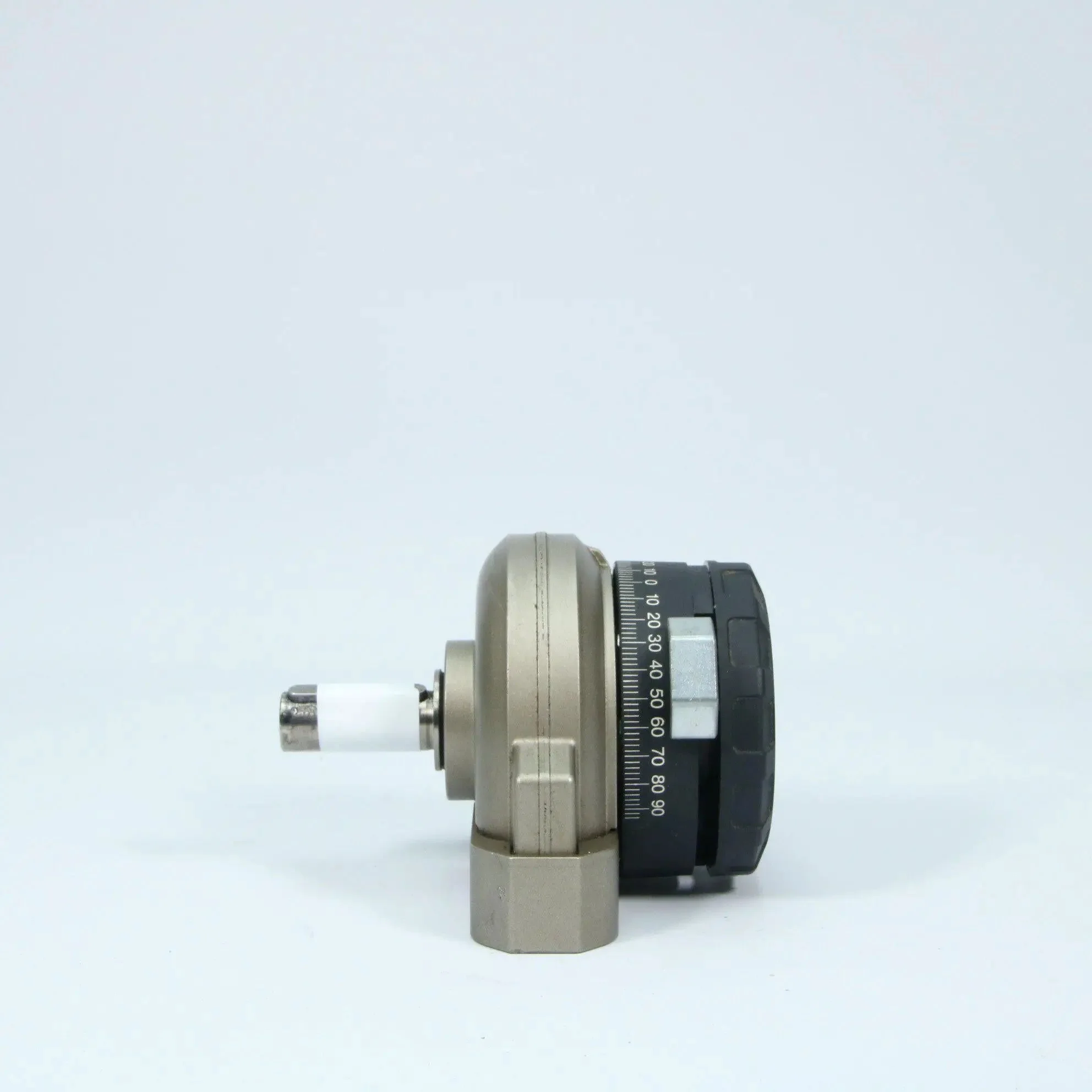

Product image 5

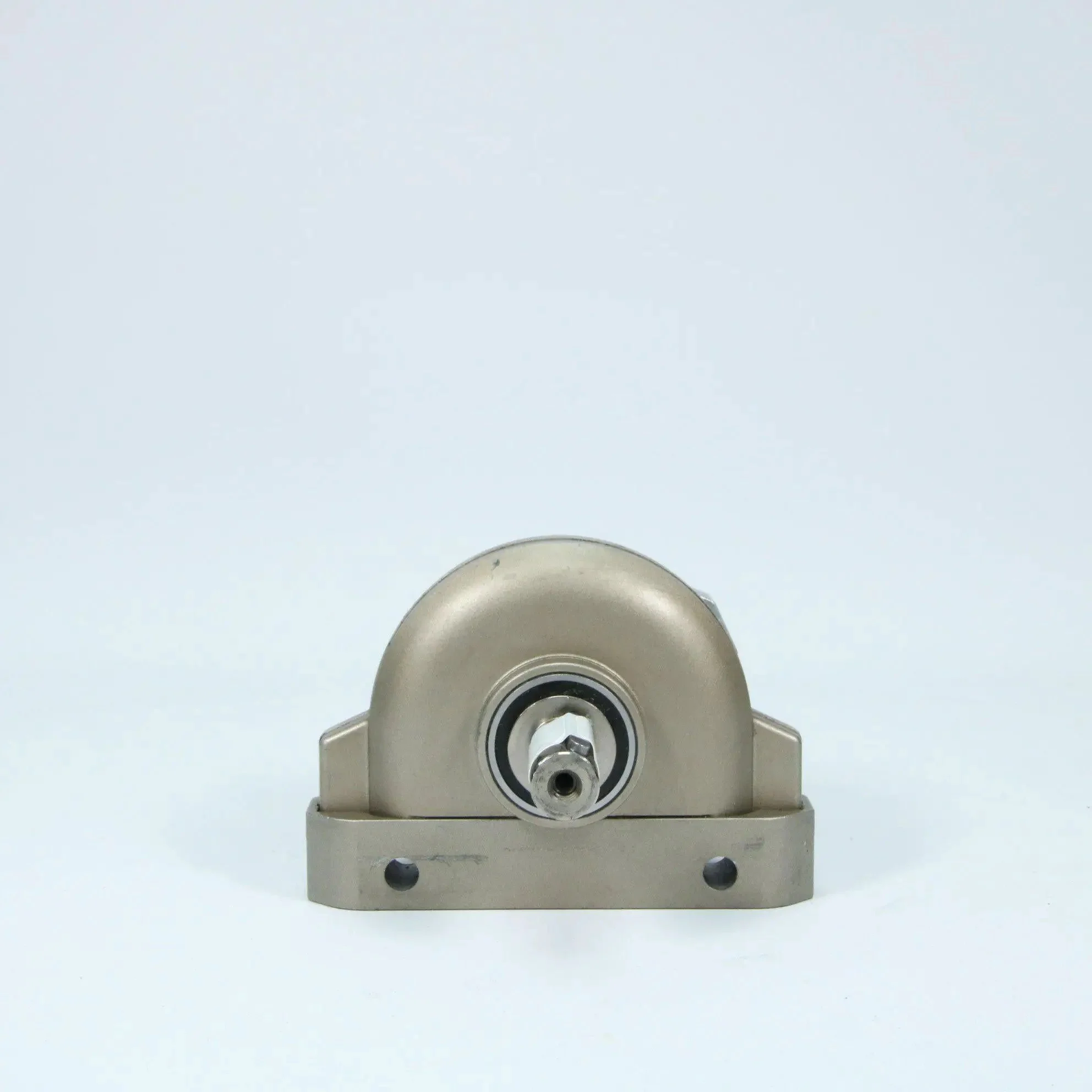

Product image 6

Description

Festo Rotary Actuator, Double Acting, 180° Swivel, 92mm Bore,
  • Size 32
  • Cushioning angle 1.2 deg
  • Rotation angle adjustment range 0 ... 180 deg
  • Swivel angle 0 ... 180 deg
  • Cushioning P: Flexible cushioning rings/plates at both ends
  • Assembly position Any
  • Mode of operation double-acting
  • Design structure Rotary vane
  • Position detection No
  • Operating pressure 1.5 ... 8 bar
  • Max. swivel frequency at 6 bar 3 Hz
  • Ambient temperature -10 ... 60 °C
  • Theoretical torque at 6 bar 10 Nm
  • Product weight 1,300 g
  • Mounting type with through hole
  • Pneumatic connection G1/8
  • Material of drive shaft Steel
  • Nickel plated
  • Material seals NBR
