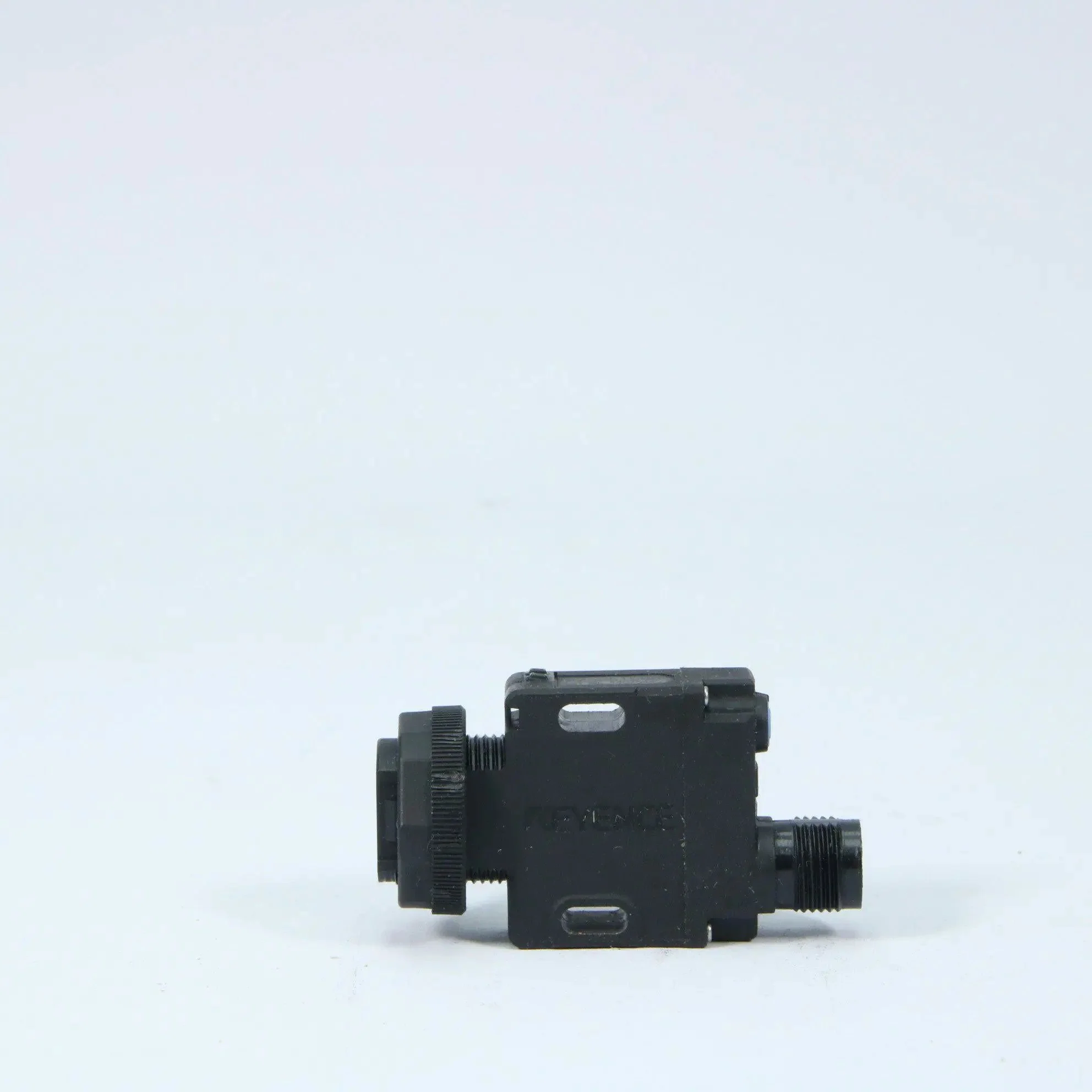

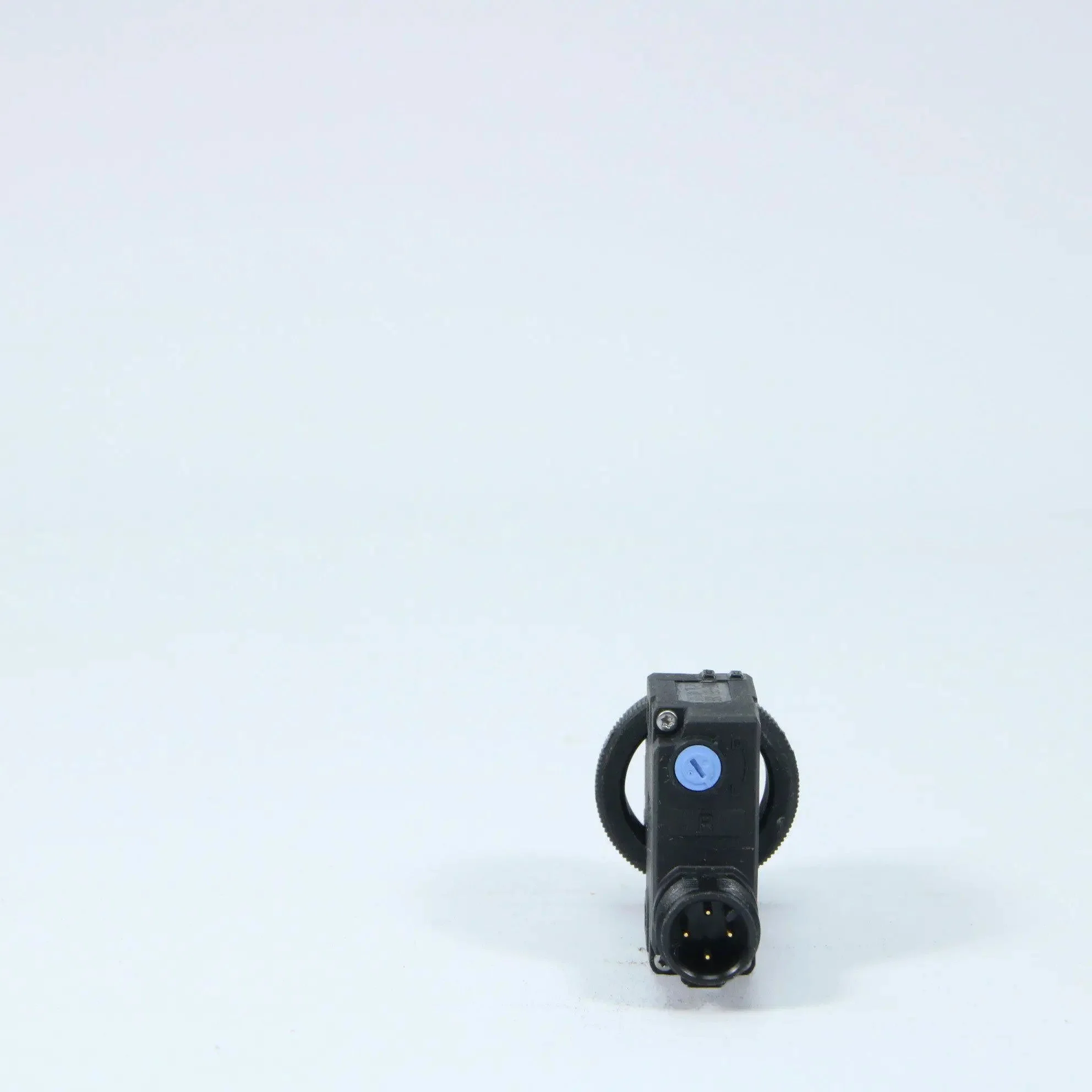

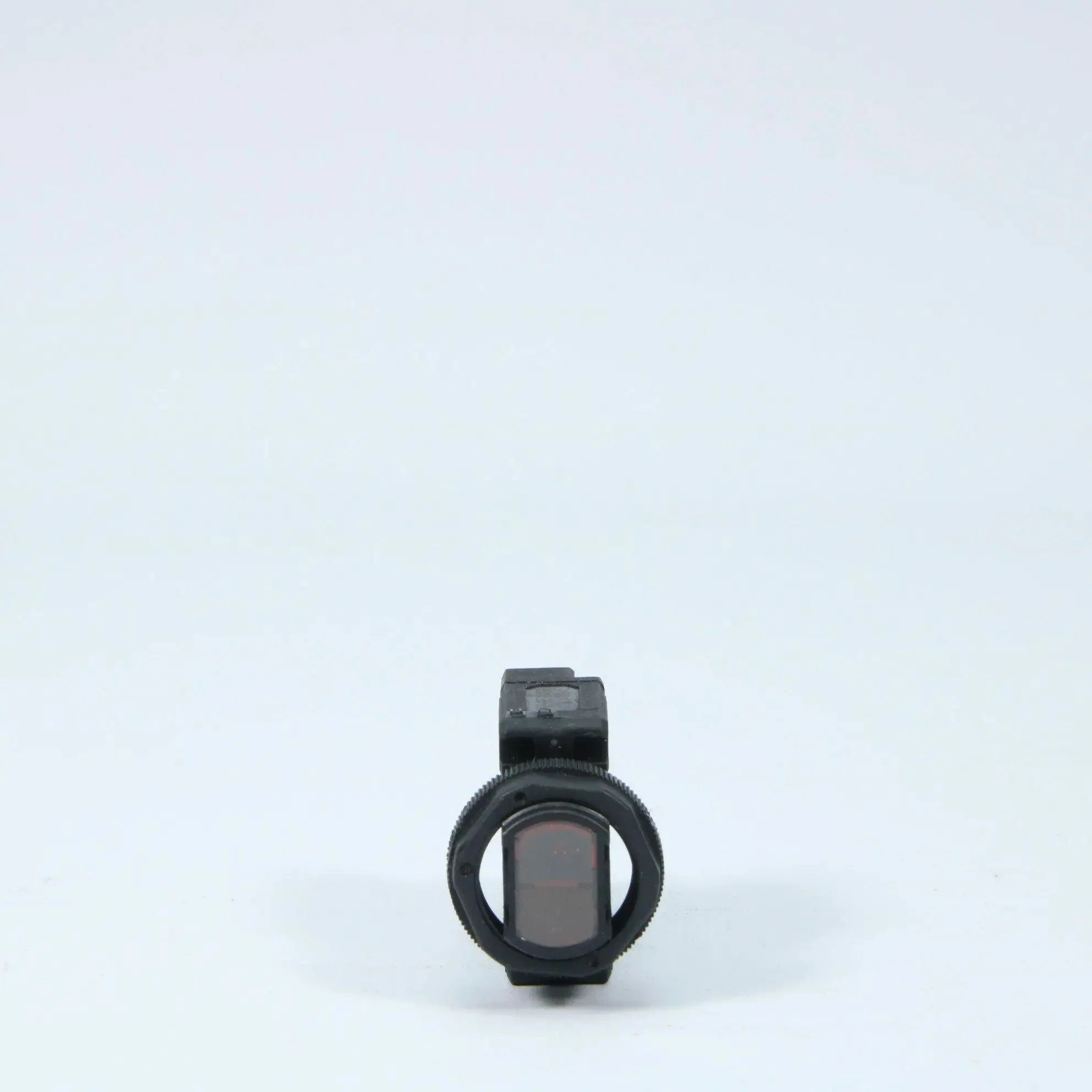

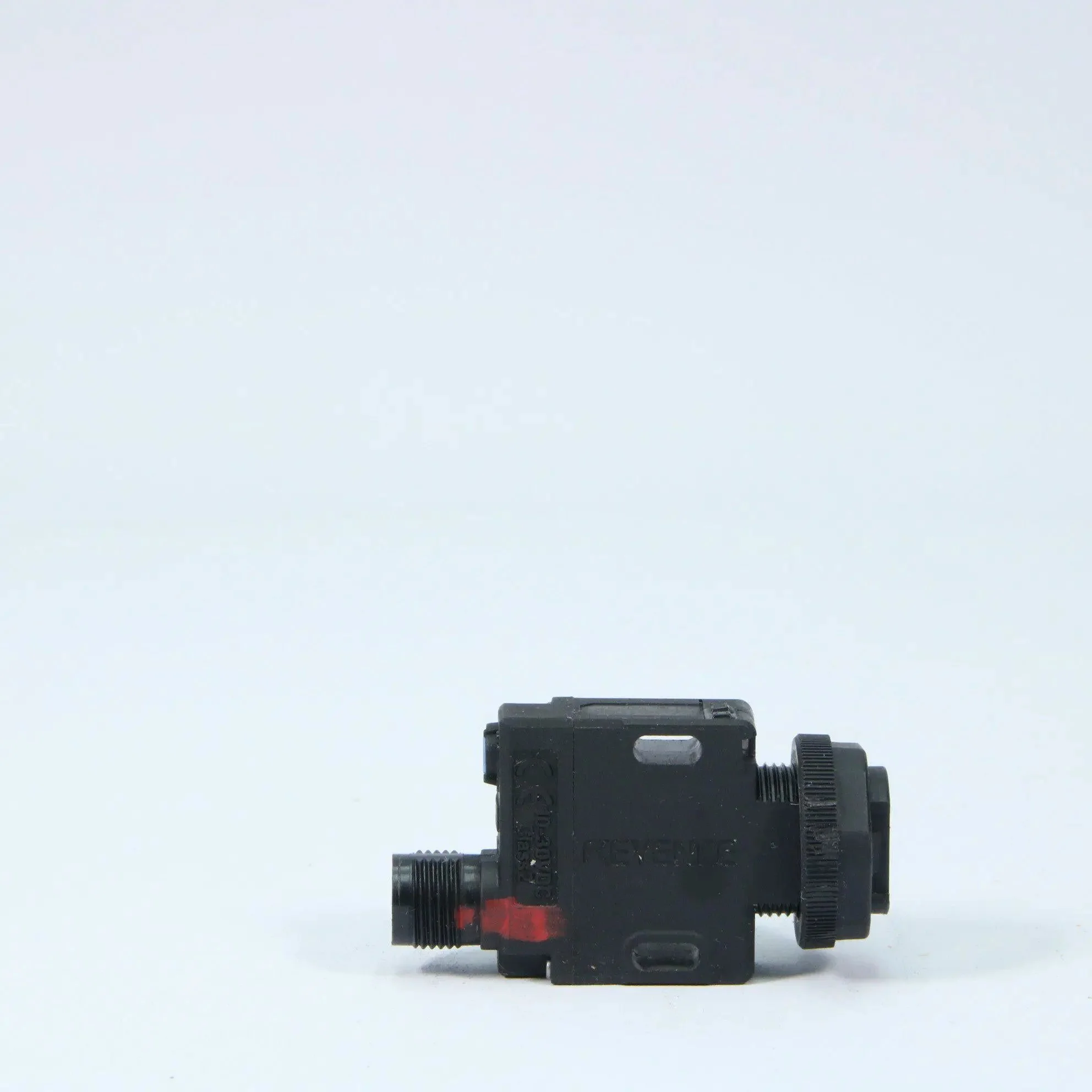

Keyence PZ-G51CB Photoelectric Sensor Receiver

Keyence PZ-G51CB Photoelectric Sensor Receiver

• Model PZ-G51CB
• Type Thrubeam, Standard
• Shape Threaded
• OutputBipolar
  (NPN+PNP)
• Cable connection M12 connector *1
• Detecting distance 20 m
• Light source Red LED
• Sensitivity adjustment 1-turn trimmer (230°)
• Response time 500 µs
• Operation mode LIGHT-ON/DARK-ON (switch-selectable)
• Indicators (LED)
  Power (T): Orange LED
  Output (R): Orange LED
  Stable operation: Green LED
  Light receiving: Red LED
• Control output Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max.
• Protection circuit Reversed polarity, over current protection, surge absorber
