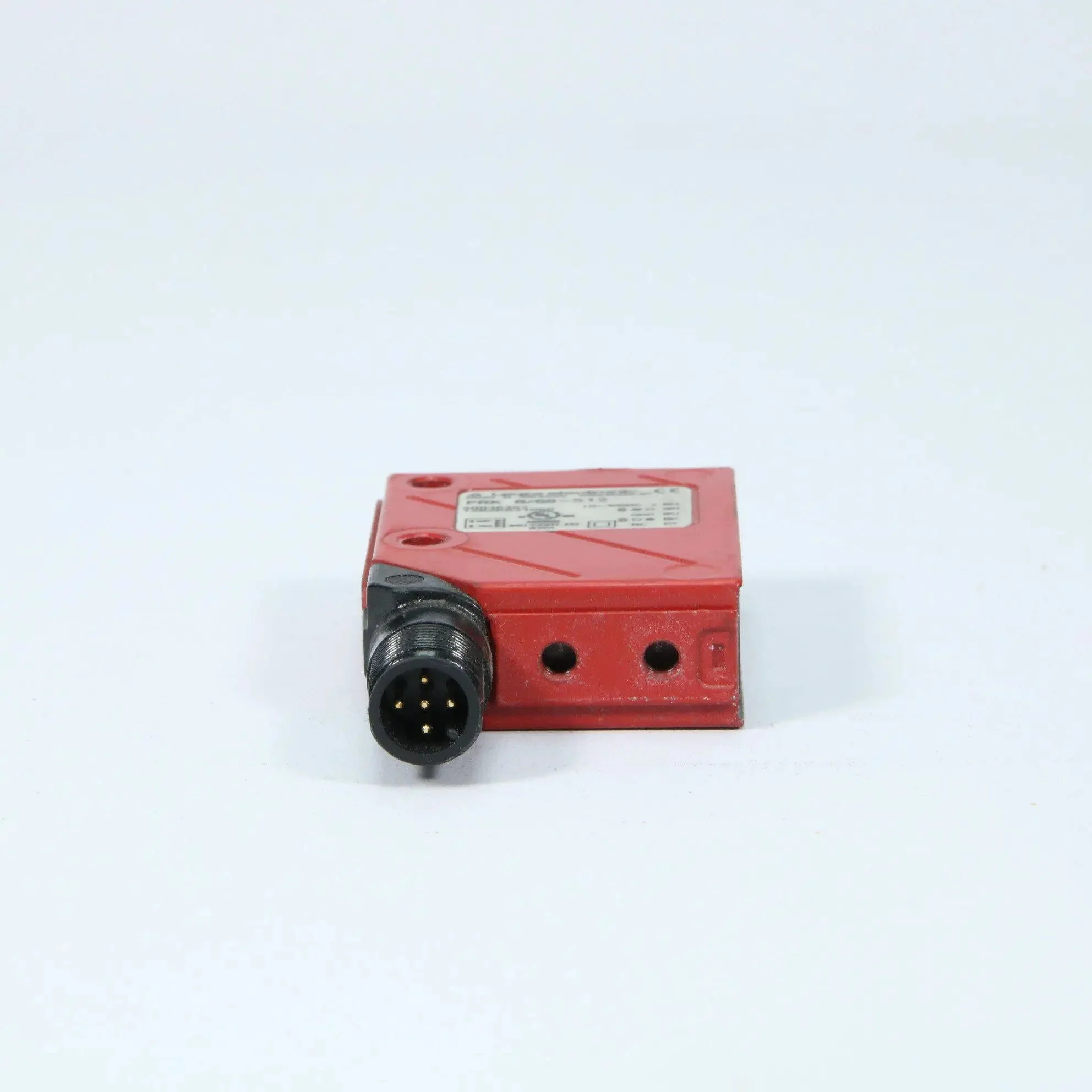

Leuze PRK 8/66-S12 Polarized Retro-Reflective Photoelectric Sensor

Leuze PRK 8 66-S12: Polarized Retro Reflective Photoelectric Sensor

Series: 8

• Operating principle: Reflection principle
• Operating range: 0.1 - 6.4 m
• Operating range limit: 0.1 - 8 m
• Light source: LED, Red
• Switching frequency: 1500 Hz
• Response time: 0.33 ms
• Protective circuit: Polarity reversal protection, Short circuit protected
• Supply voltage: 10 - 30 V, DC
• Number of digital switching outputs: 2
• Output 1 switching element: Transistor, Push-pull
• Output 1 switching principle: Light switching (PNP)/dark switching (NPN)
• Output 2 switching element: Transistor, Push-pull
• Output 2 switching principle: Dark switching (PNP)/light switching (NPN)
• Type of connection: Connector
• Thread size: M12
• Number of pins: 5-pin
• Design: Cubic
• Type of fastening: Through-hole mounting, Dovetail grooves, Mounting thread, Via optional mounting device
• Degree of protection: IP 67, IP 69K
• Certifications: c UL US


• Retro-reflective photoelectric sensors with visible red light or laser and degree of protection IP 67 and IP 69K.


• Advantages:
• Push-pull or NPN/PNP outputs immune to interference
• M12 turning connector or cable connection
• Sensitivity adjustment with potentiometer or teach-in
