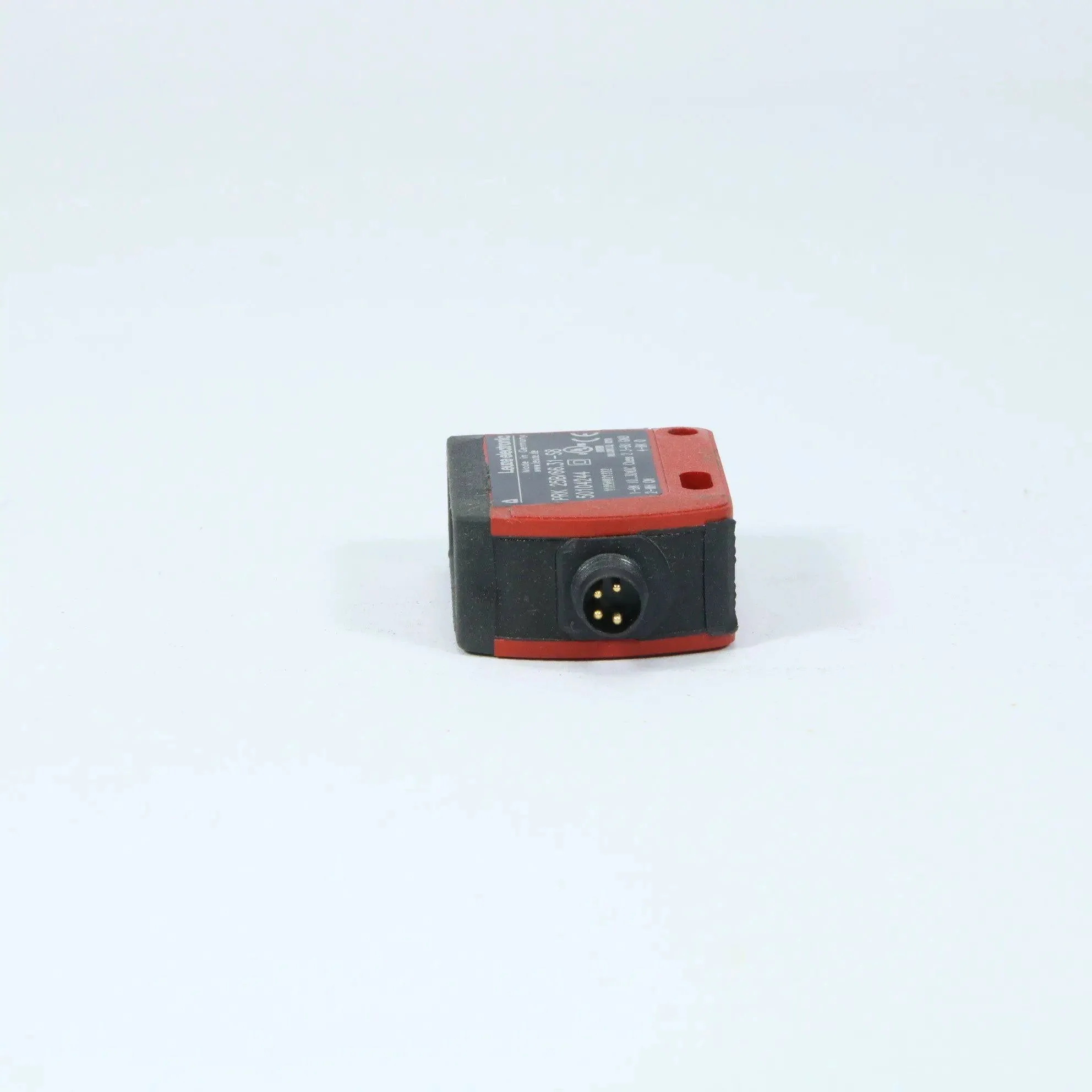

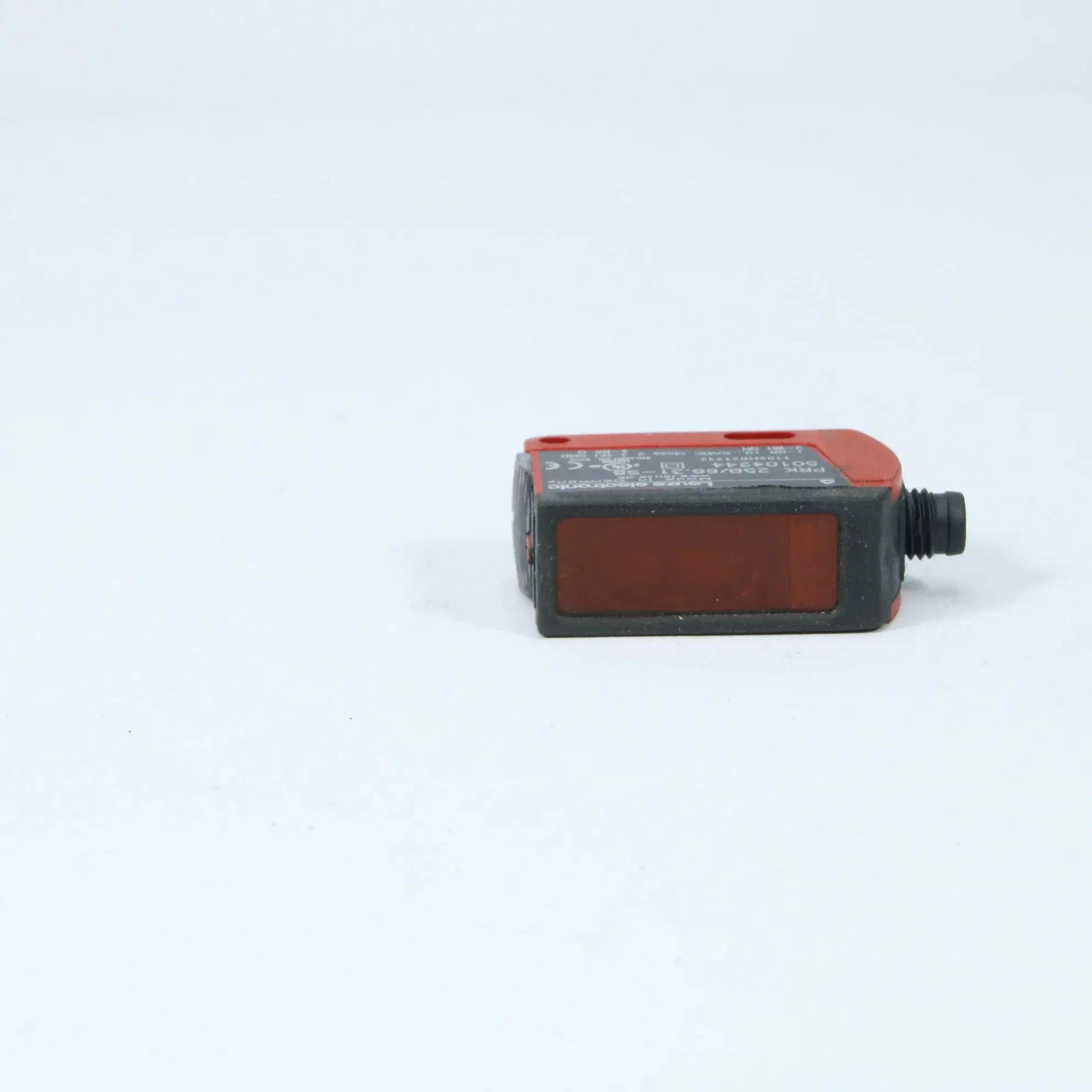

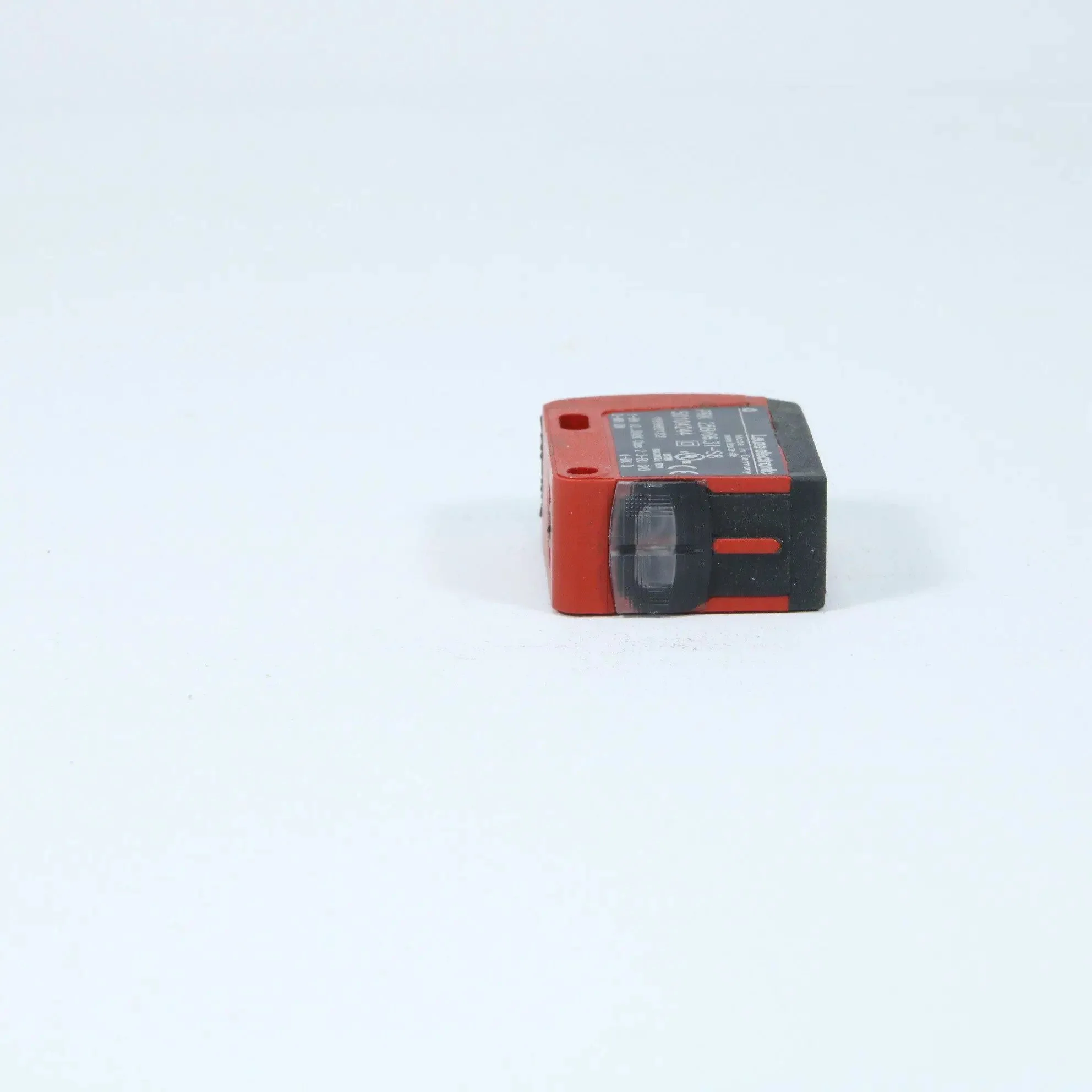

Leuze PRK 25B/66.31-S8 - Polarized retro-reflective Photoelectric Sensor

Leuze PRK 25B/66.31-S8 - Polarized retro-reflective Photoelectric Sensor

• Series 25B
• Operating principle Reflection principle
• Application Detection of stretch-wrapped objects


• Operating range 0.05 ... 6 m
• Operating range limit 0.05 ... 8 m
• Light source LED, Red


• Protective circuit Polarity reversal protection, Short circuit protected

Performance data

• Supply voltage UB 10 ... 30 V, DC
• Residual ripple 0 ... 15 %, From UB
• Open-circuit current 0 ... 20 mA

Outputs

• Number of digital switching outputs 2 Piece(s)
• Switching output 1
• Switching element Transistor, Push-pull
• Switching principle Light switching (PNP)/dark switching (NPN)
• Switching output 2
• Switching element Transistor, Push-pull
• Switching principle Dark switching (PNP)/light switching (NPN)
