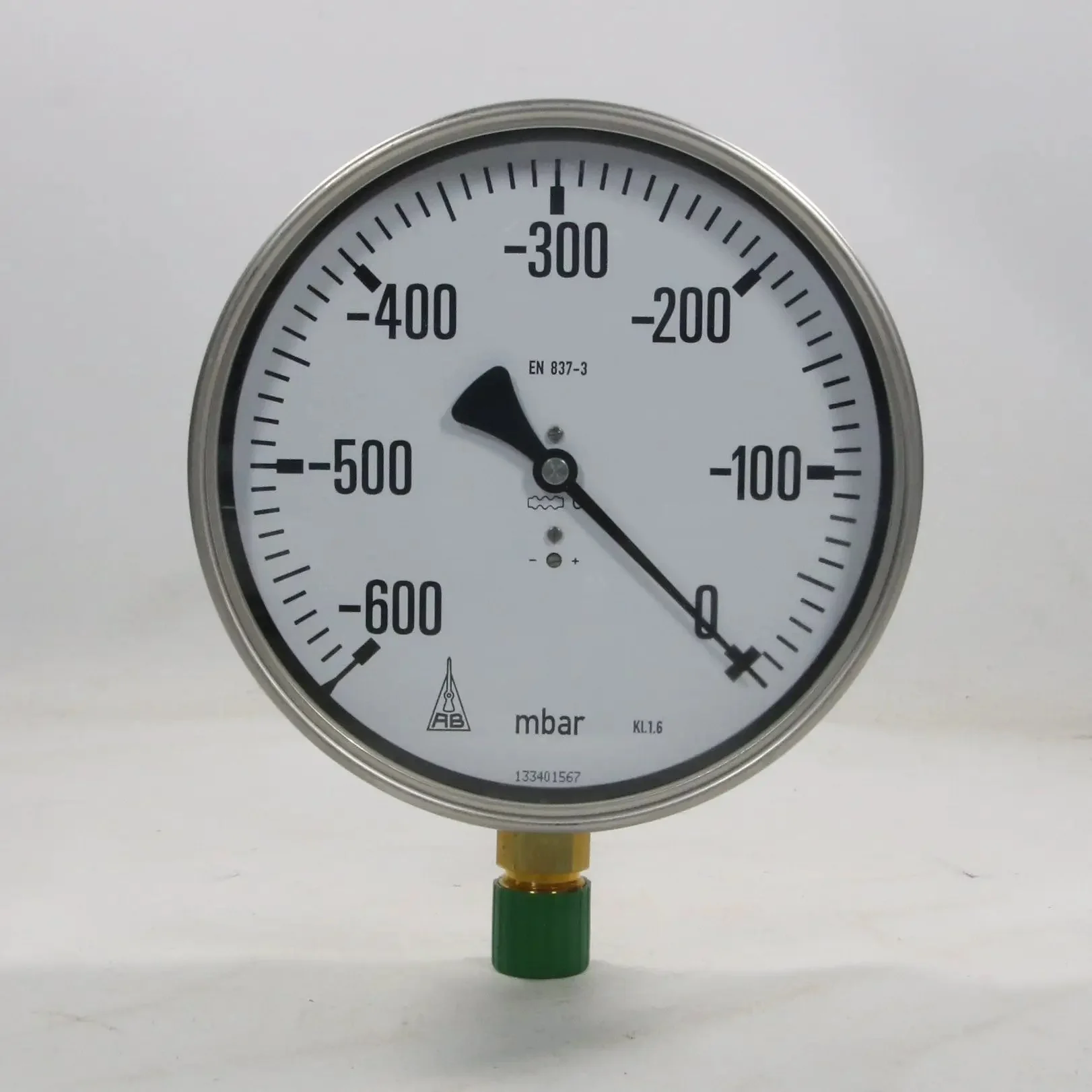

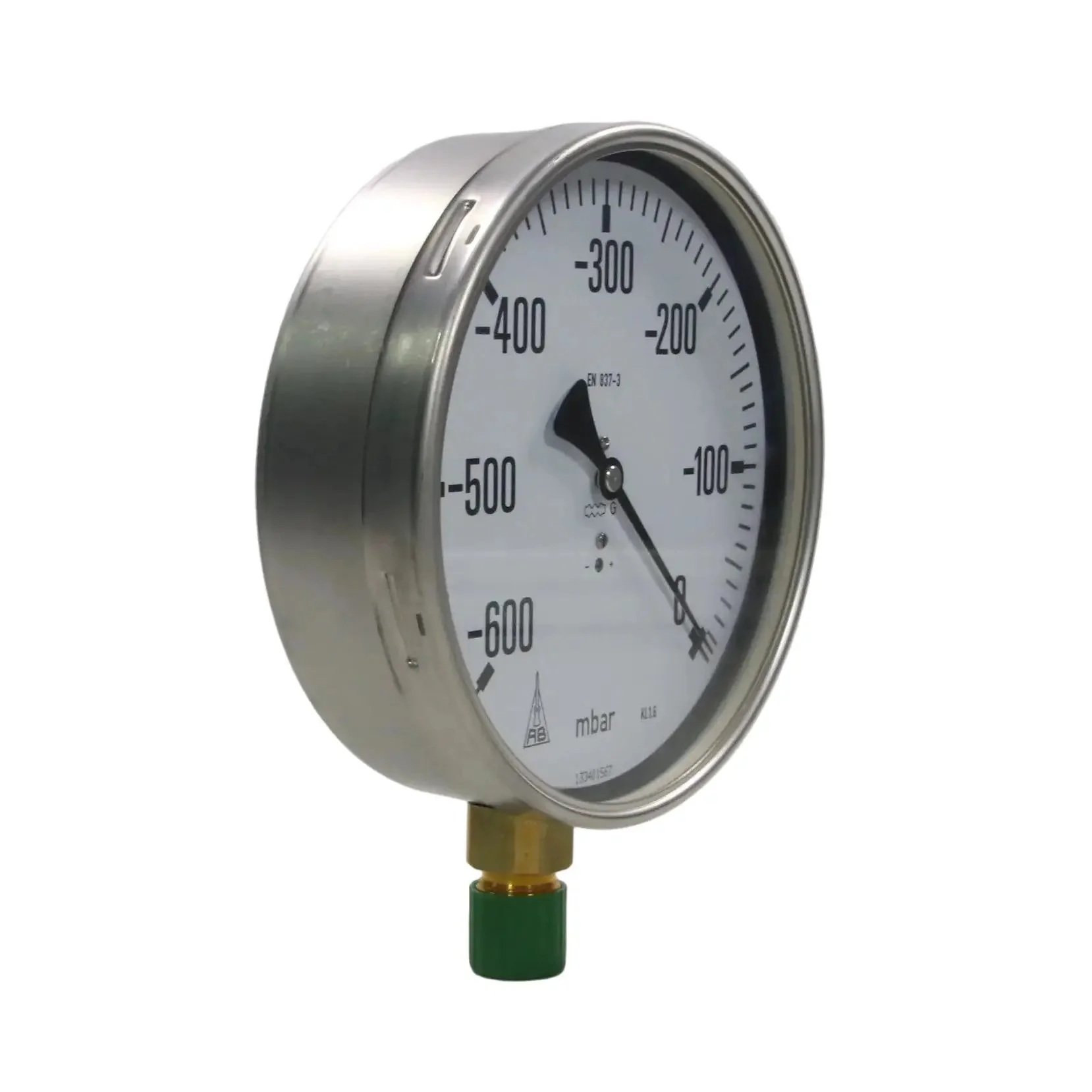

Armaturenbau KPCh 160-1 Capsule Spring Manometer - -600...0 mbar

- Brand: Armaturenbau GmbH

- Model: KPCh 160-1

- Type: Capsule Spring Manometer for Vacuum

- Part number: 133401567

Technical specifications:
- Nominal size: 160 mm
- Measuring range: -600...0 mbar
- Accuracy class: 1.6
- Capsule element: Bellows/capsule
- Case: Stainless steel 1.4301
- Window: Instrument glass
- Movement: Brass
- Process connection: G1/2" B
- Wetted parts: Copper alloy
- Overpressure safety: Up to 1.3x full scale
- Temperature range: Ambient -20°C to +60°C
- Protection class: IP44
- Additional features: Zero adjustment screw; suitable for low-pressure/vacuum applications
- Standards: Compliant with EN 837-1 (pressure gauges); DIN 16005 (safety); CE marked

Weight: 1.1 kg

Dimensions: 160 x 200 x 50 mm

Country of origin: Germany

HS code: 9026.20
