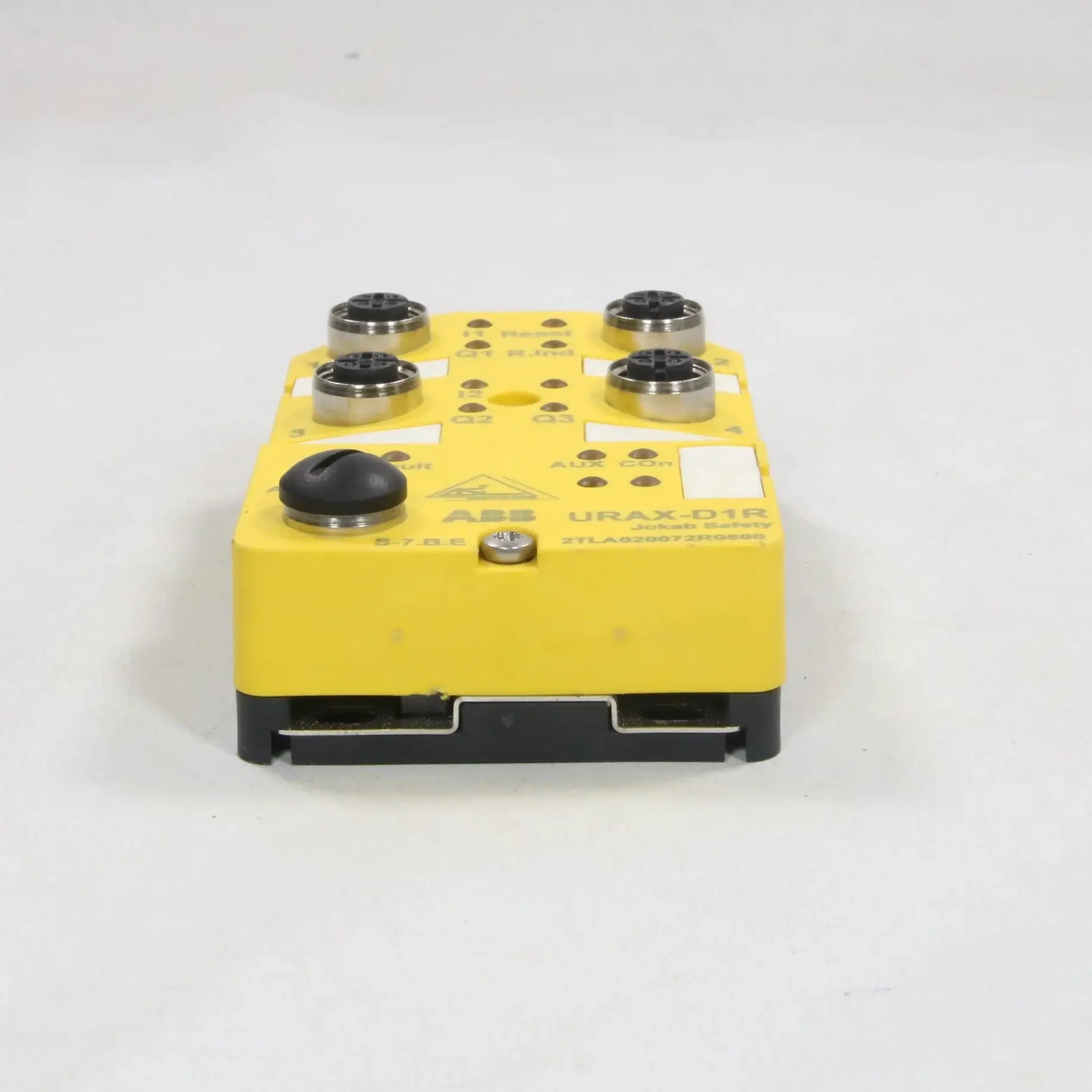

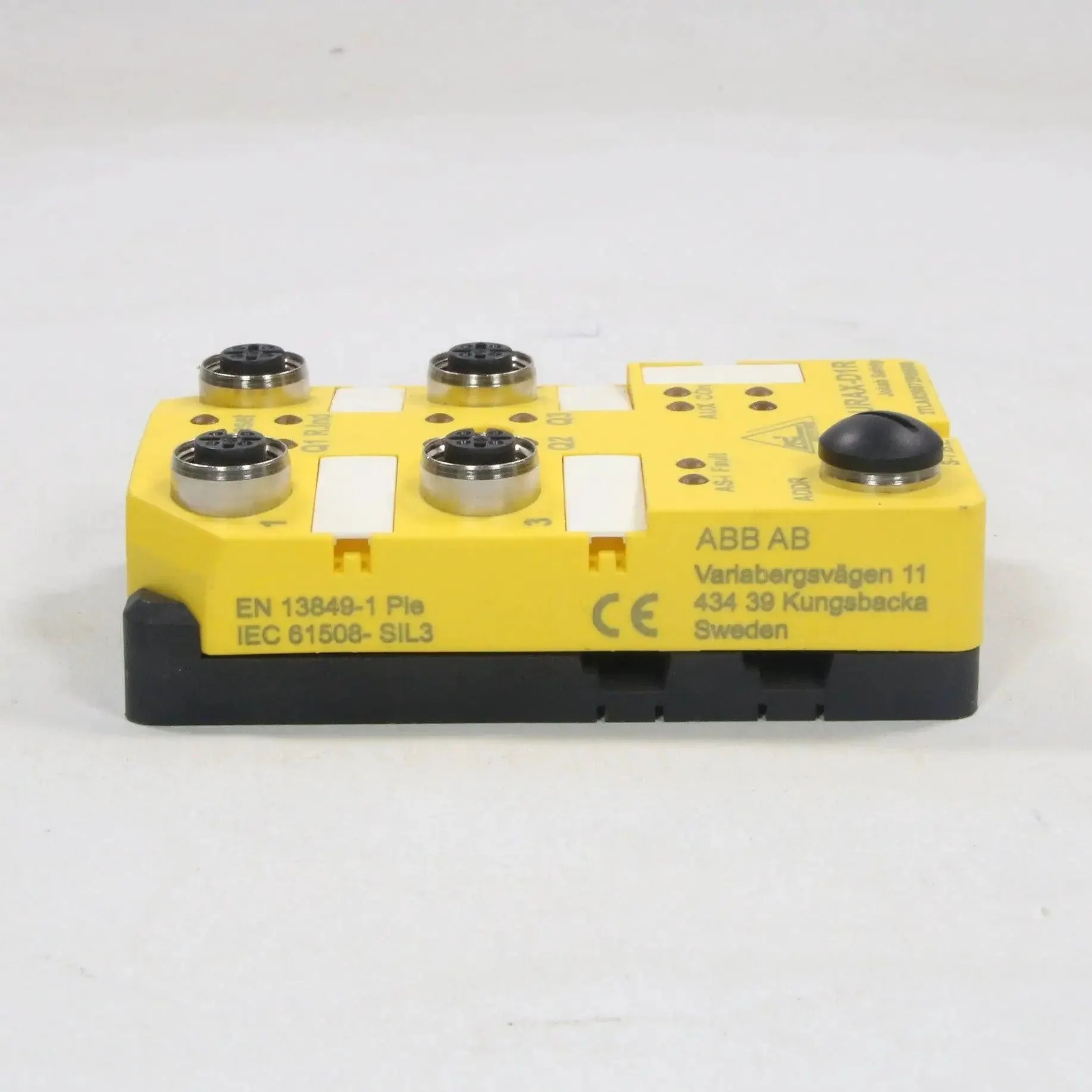

ABB / Jokab Safety URAX-D1R Safety Input Slave

- Brand: ABB / Jokab Safety

- Model: URAX-D1R

- Type: Safety Input Slave

- Part number: 2LA020072R0500
  - Function: AS-Interface Safety at Work slave module for connecting safety devices to AS-i safety networks
  - Safety Inputs: 1 dual-channel input
  - Input Type: OSSD  or mechanical contacts
  - Input Voltage: via AS-i bus
  - Safety Category: Up to Cat. 4 / PL e (EN ISO 13849-1)
  - Safety Integrity Level: SIL 3 (IEC 61508)
  - Performance Level: PL e
  - Response Time: ≤ 12 ms
  - AS-i Address: 1 slave address
  - AS-i Version: AS-i Safety at Work
  - Protection Rating: IP67
  - Operating Temperature: -25 °C to +60 °C
  - Housing Material: Plastic (PA6-GF)
  - Mounting: Direct mounting or on DIN rail adapter
  - Features: Integrated dual-channel input monitoring, EDM output for external device monitoring, LED status indicators (AS-i, safety, fault), diagnostic LEDs
  - Certifications: CE, cULus, TÜV Rheinland (functional safety), AS-i certified

Dimensions: 100 x 60 x 30 mm

Weight: 200 g

Country of origin: Sweden

HS code: 853710
