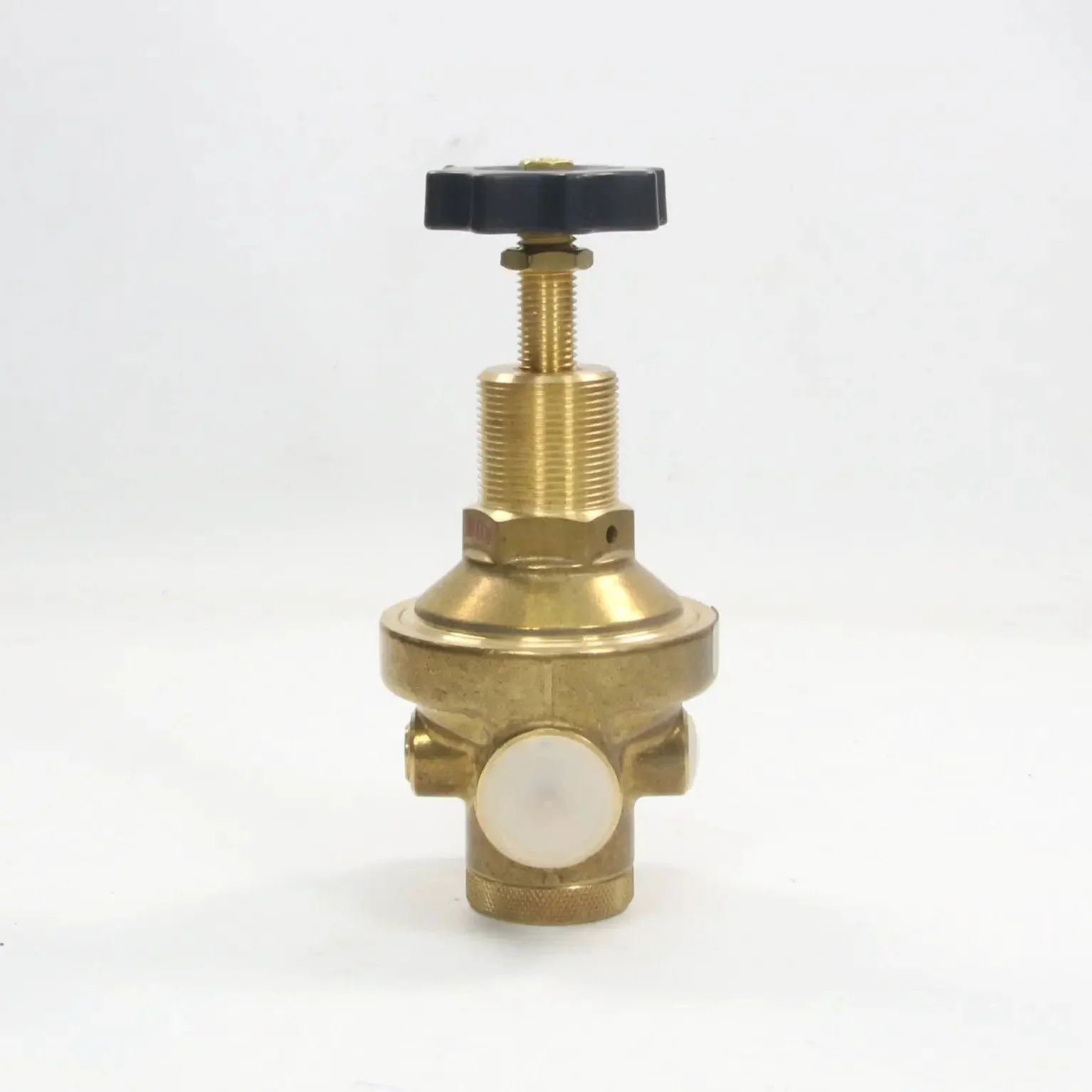

AirCom Pneumatic R280-04B Diaphragm Pressure Regulator

- Brand: AirCom Pneumatic
- Model: R280-04B
- Type: Diaphragm Pressure Regulator
- Technical Specifications:
  - Function: High-pressure diaphragm regulator for compressed air, non-corrosive gases, or liquids
  - Media: Compressed air, non-corrosive gases or liquids
  - Supply Pressure: Max. 40 bar, differential pressure = 25 bar
  - Pressure Range: 0.2 - 6 bar
  - Connection Thread: G1/2
  - Flow Rate Air: 1250 Nl/min
  - Kv Value: 0.8 m³/h
  - Adjustment: Handwheel with locknut
  - Relieving Function: Relieving
  - Gauge Port: G1/4 on both sides of the body, one screw plug supplied
  - Mounting Position: Any
  - Temperature Range: -10°C to 90°C
  - Body Material: Brass
  - Elastomer: NBR/Buna-N
  - Inner Valve: Brass
  - Features: No air consumption, no constant bleed, solid design
  - Dimensions: 160 x 80 x 60 mm
- Weight: 1 kg
- Country of Origin: Germany
- HS Code: 84811005
