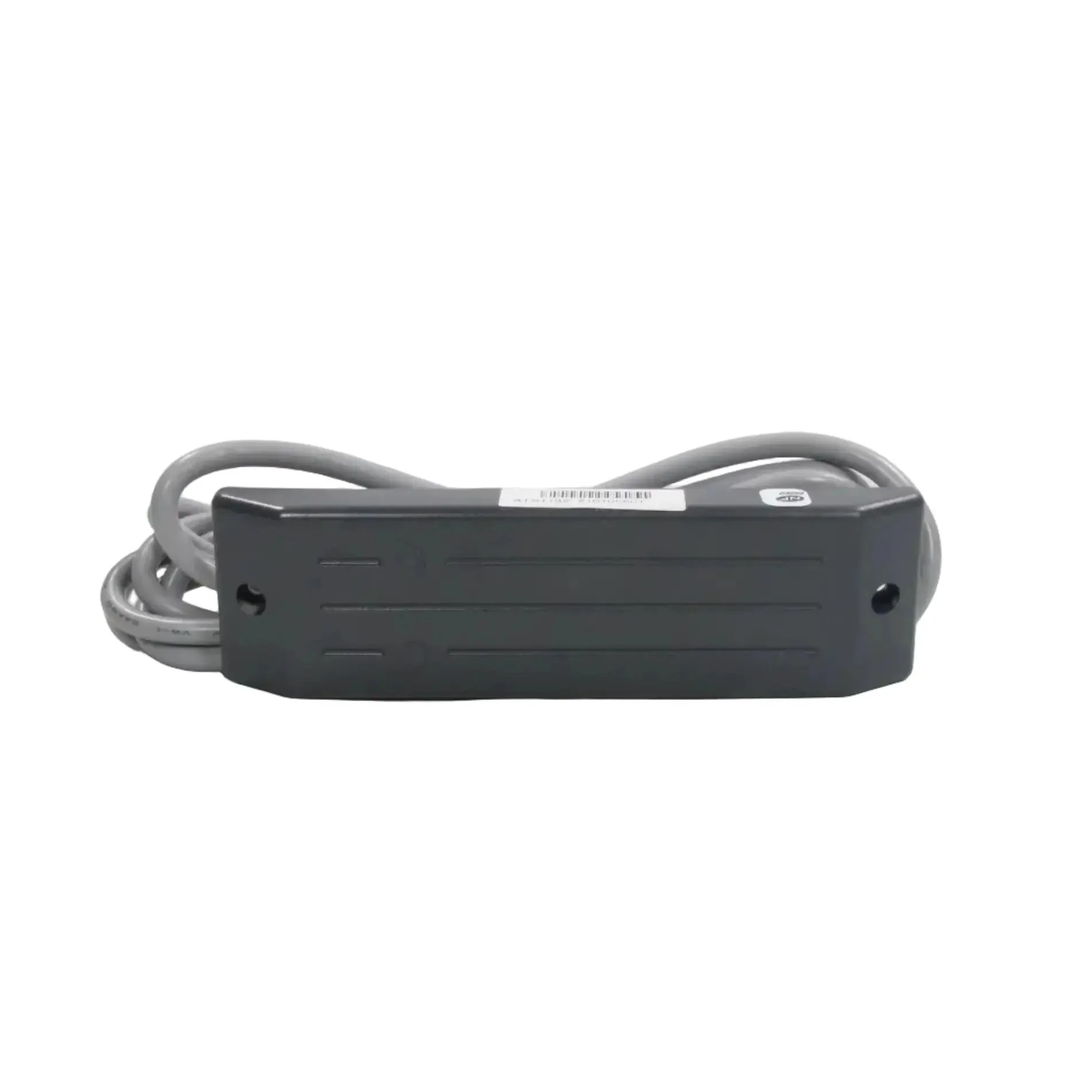

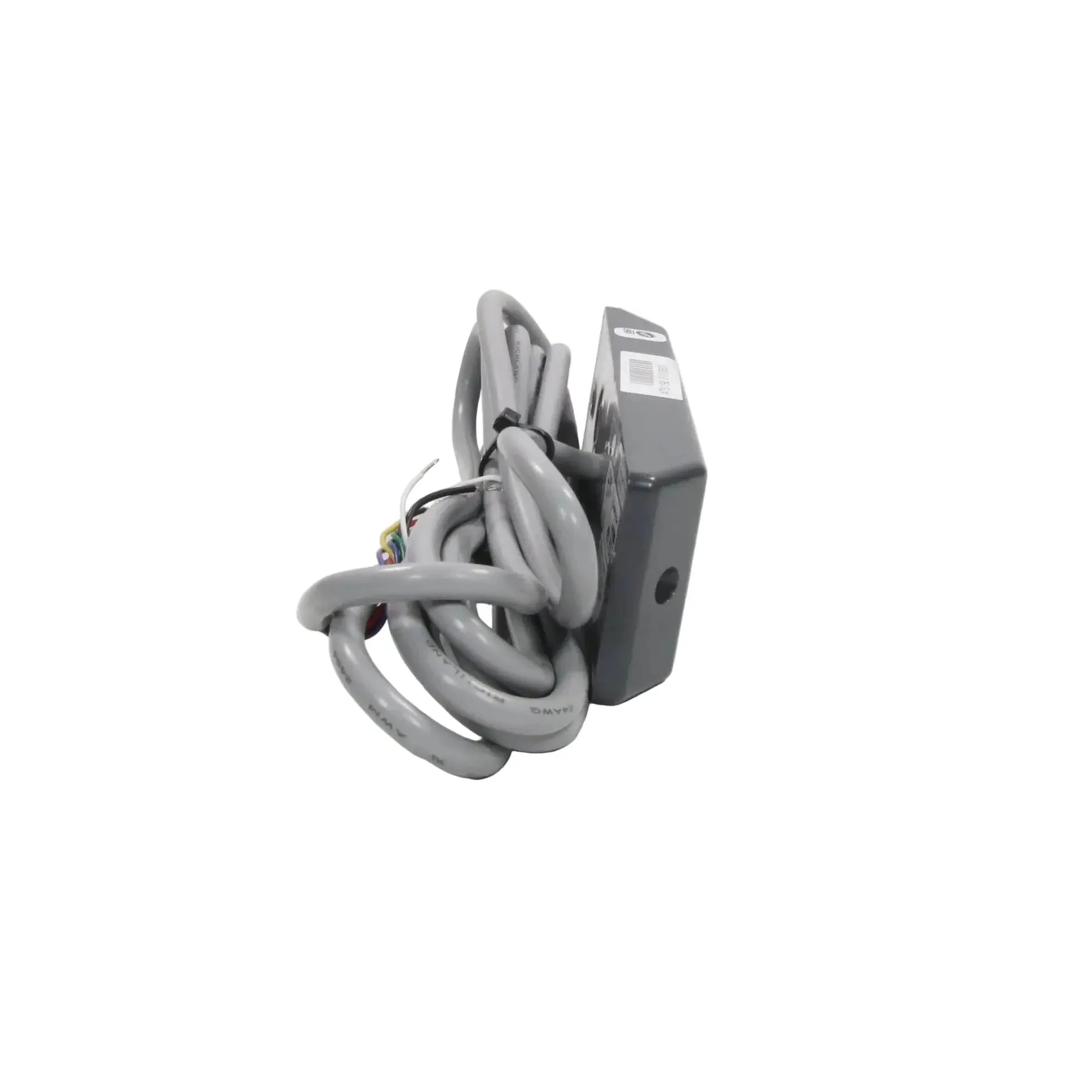

Aritech ATS 1192 Industrial Proximity Card Reader

- Brand: Aritech (Interlogix / Carrier)

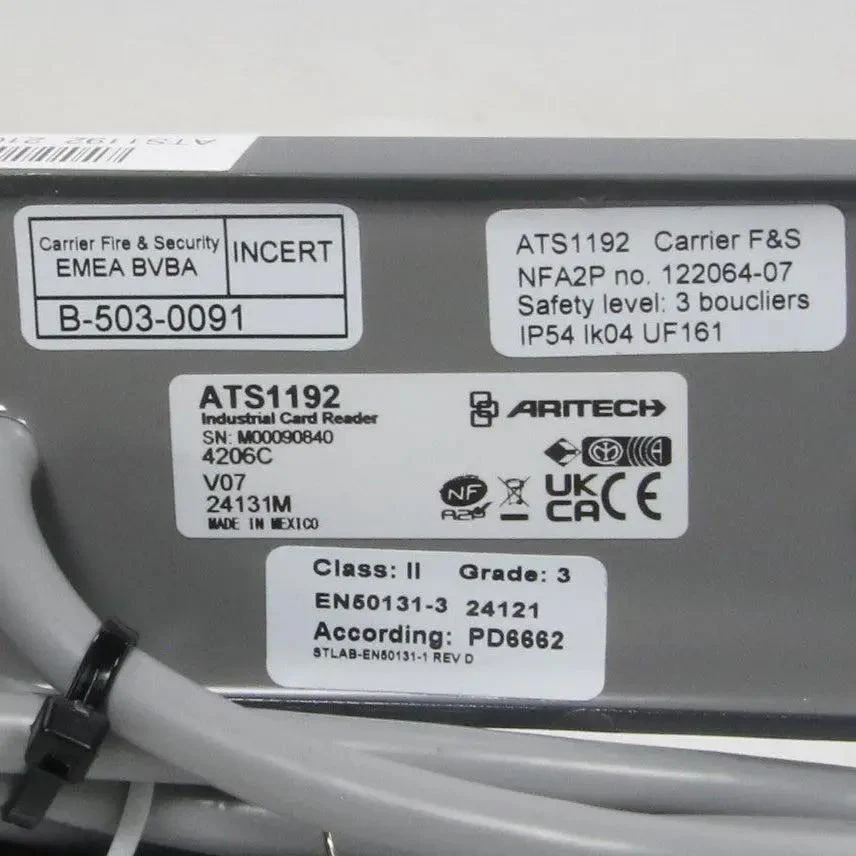

- Model: ATS1192  V07
- Type: Industrial Proximity Card Reader (Heavy Duty)
- Technical Specifications:
  - Reading Technology: 125 kHz proximity (HID, EM410x, Aritech ATS protocol)
  - Read Range: 50–80 mm with ISO cards
  - Output Formats: Wiegand 26-bit
  - Supply Voltage: 10.5 – 14 V DC
  - Current Consumption: 110 mA average / 150 mA peak
  - Tamper Protection: Optical tamper switch
  - LED: Tri-colour (red / green / amber) + acoustic beeper
  - Housing: Rugged ABS, dark grey
  - Protection Rating: IP54
  - Operating Temperature: –35 °C to +66 °C
  - Humidity: 0 – 95 % non-condensing

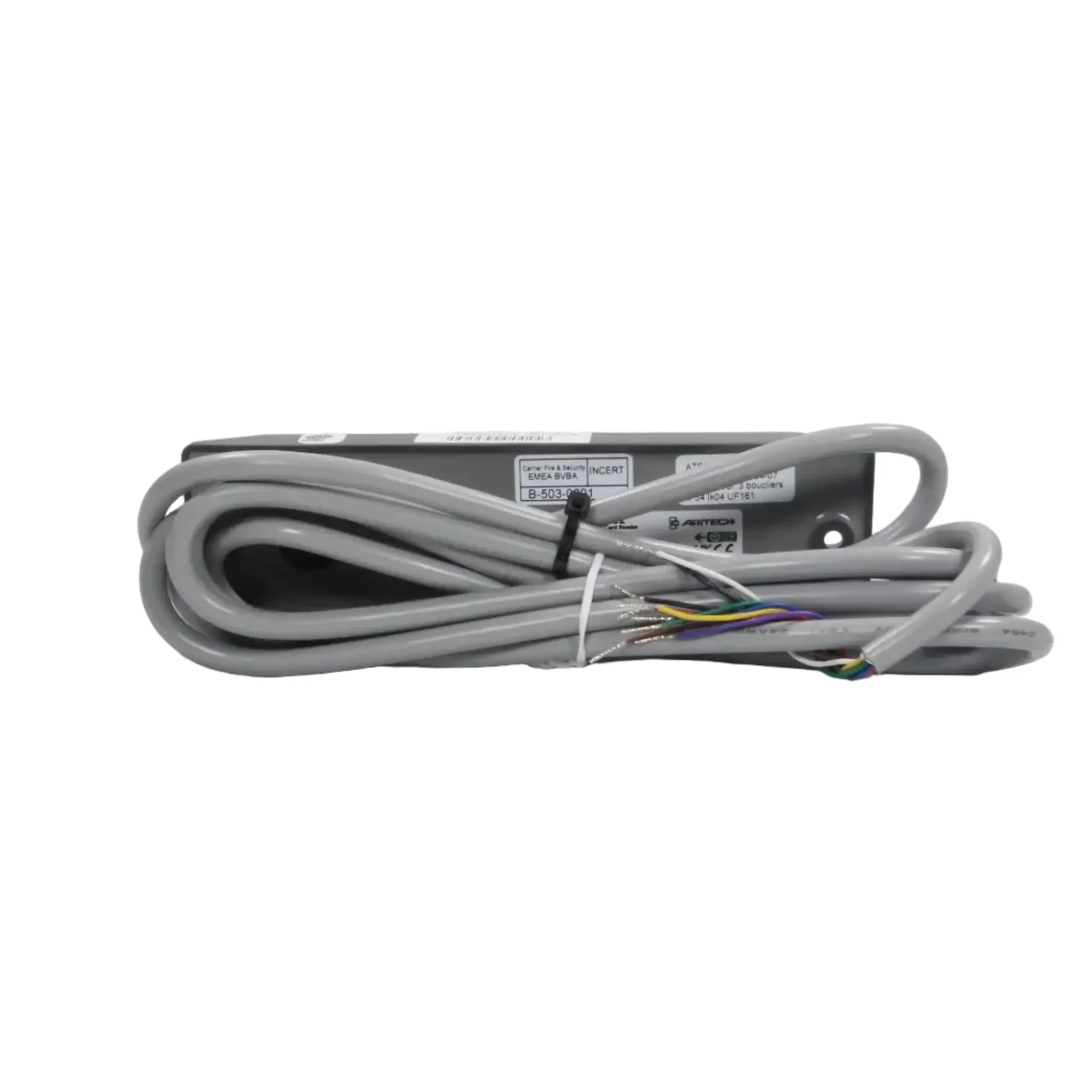

  - Cable: 5 m pre-wired
  - Mounting: Surface or flush
  - Dimensions: 150 x 40 x 15 mm
  - Weight: 270 g
  - Certifications: CE, UL 294, FCC
- Dimensions: 135 mm × 135 mm × 32 mm
- Weight: 480 g
- Country of Origin: Mexico
- HS Code: 847190
