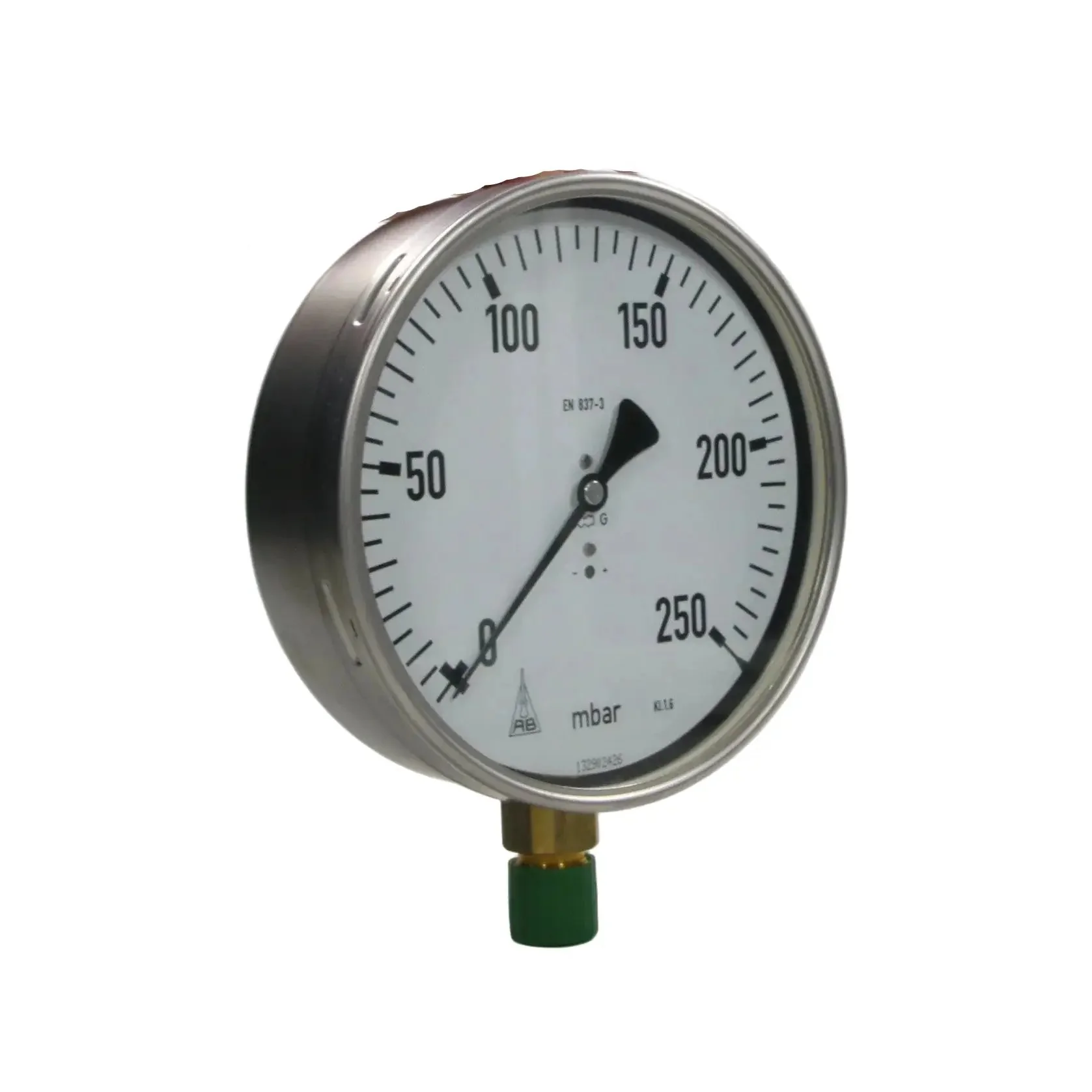

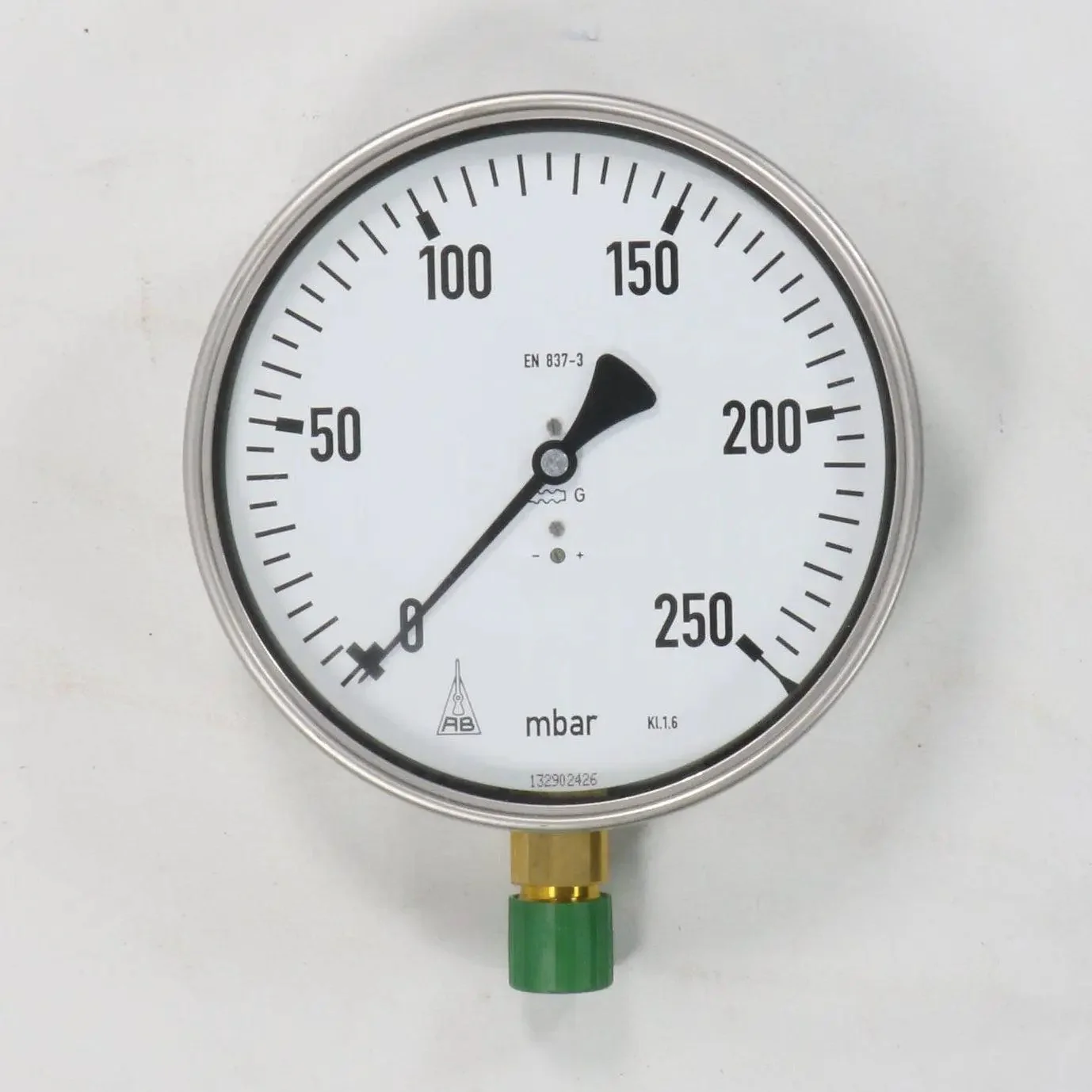

Armaturenbau KPCh 160-1 Capsule Spring Manometer - 0...250 bar

- Brand: Armaturenbau GmbH

- Model: KPCh 160-1

- Type: Capsule Spring Manometer

- Part number: 132902426

Technical specifications:
- Nominal size: 160 mm
- Measuring range: 0....250 bar
- Accuracy class: 1.6
- Capsule element: Bellows/capsule
- Case: Stainless steel 1.4301
- Window: Instrument glass
- Movement: Brass
- Process connection: G1/2" B
- Wetted parts: Copper alloy
- Overpressure safety: Up to 1.3x full scale
- Temperature range: Ambient -20°C to +60°C
- Protection class: IP44
- Additional features: Zero adjustment screw
- Standards: Compliant with EN 837-3; DIN 16005 (safety)

Weight: 1.1 kg

Dimensions: 160 x 200 x 50 mm

Country of origin: Germany

HS code: 9026.20
