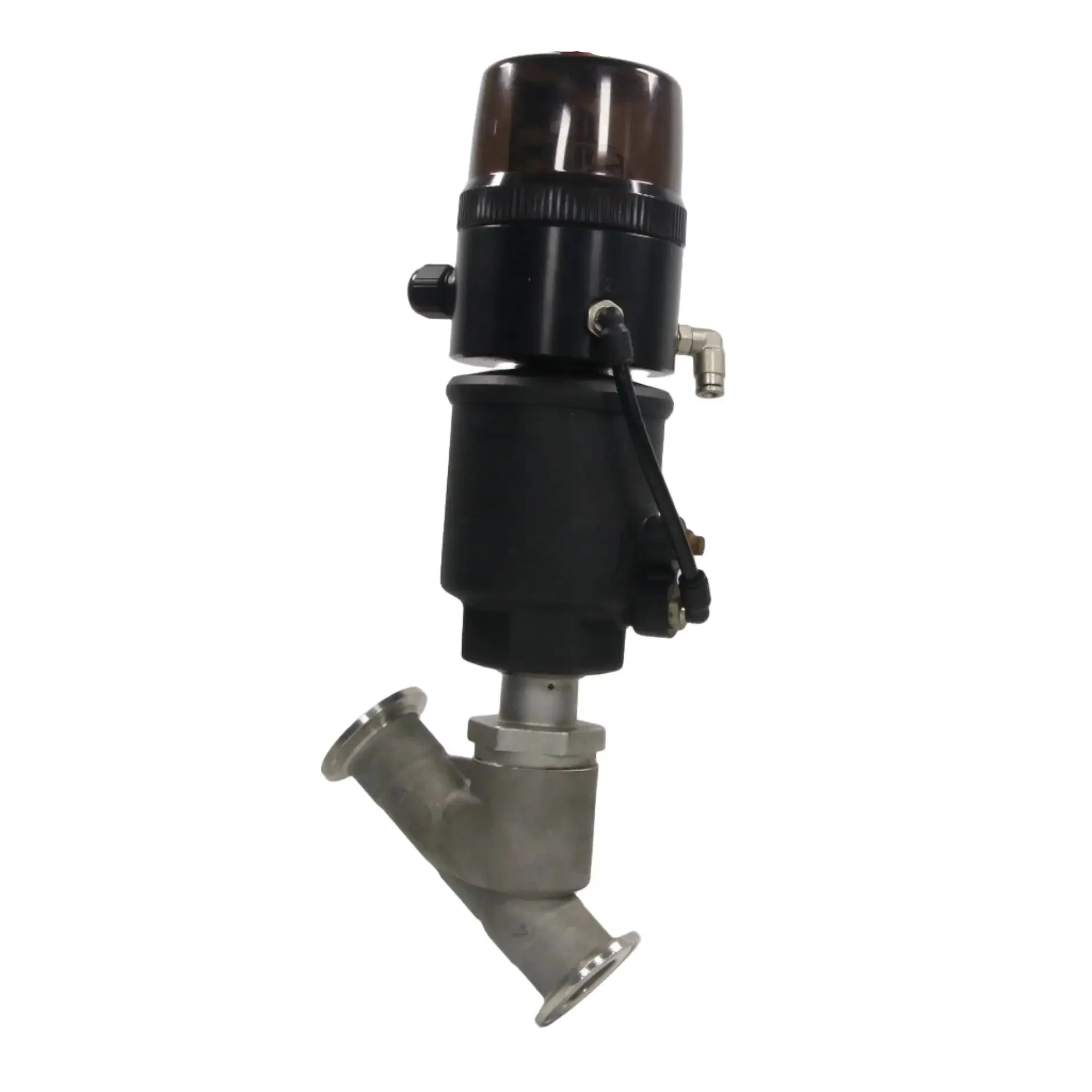

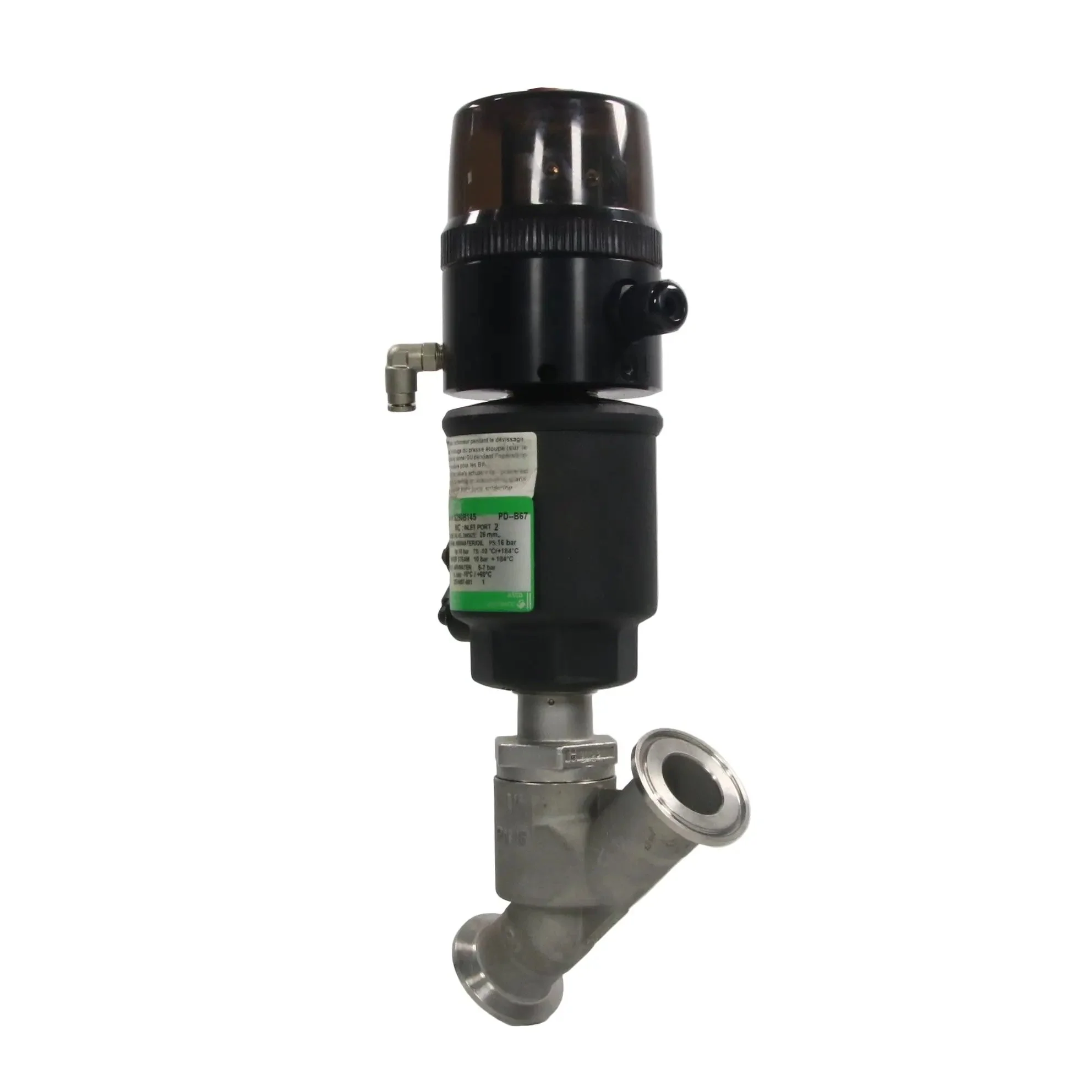

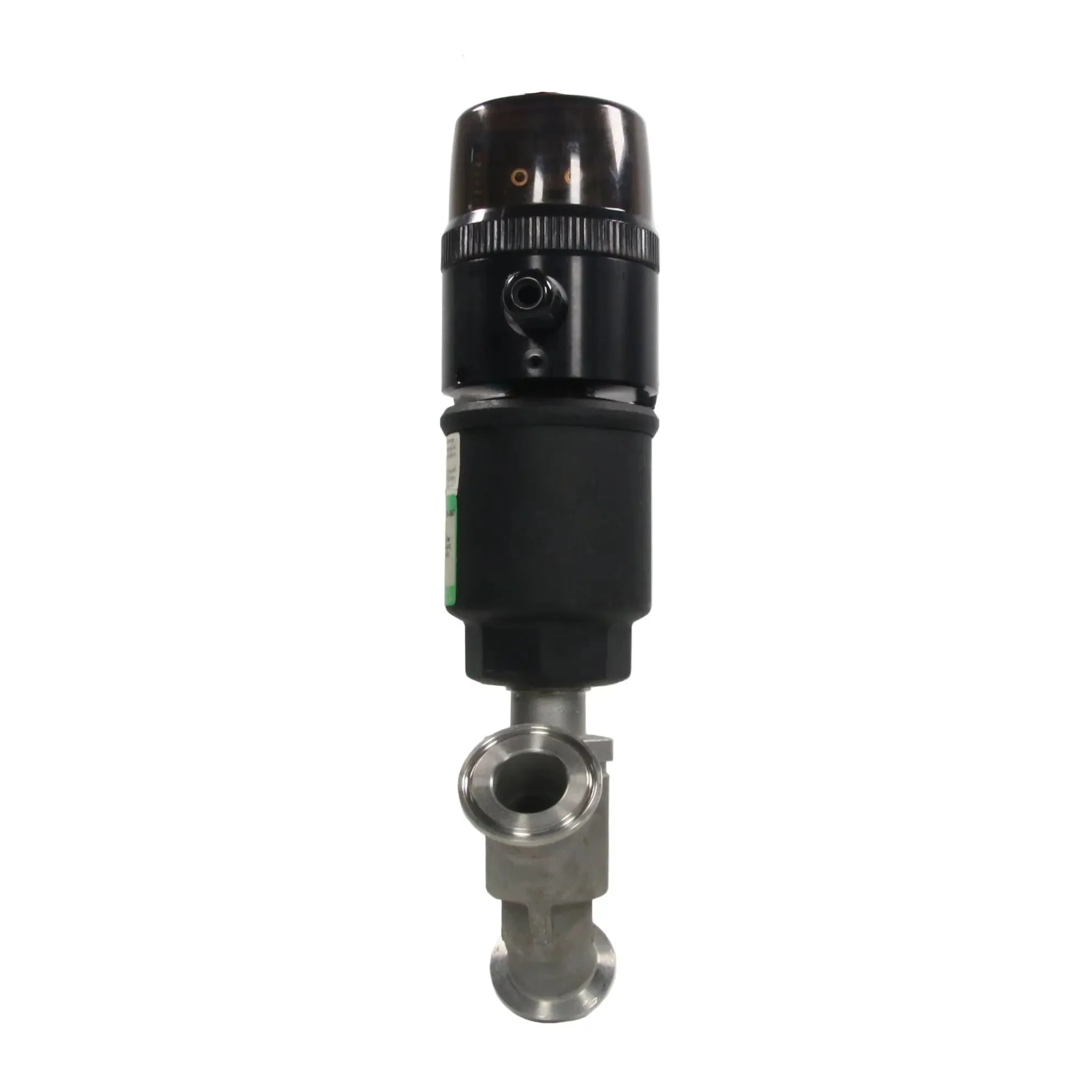

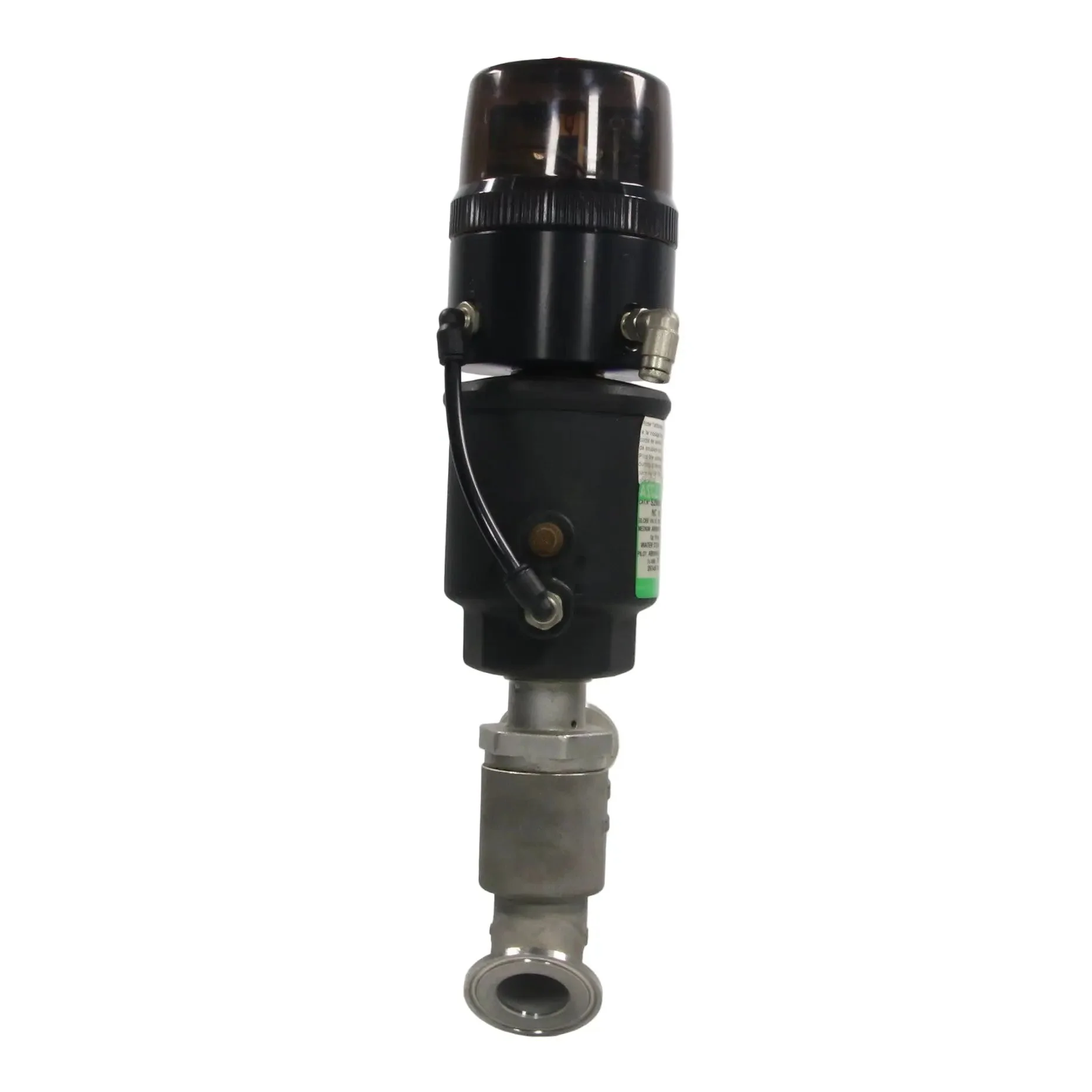

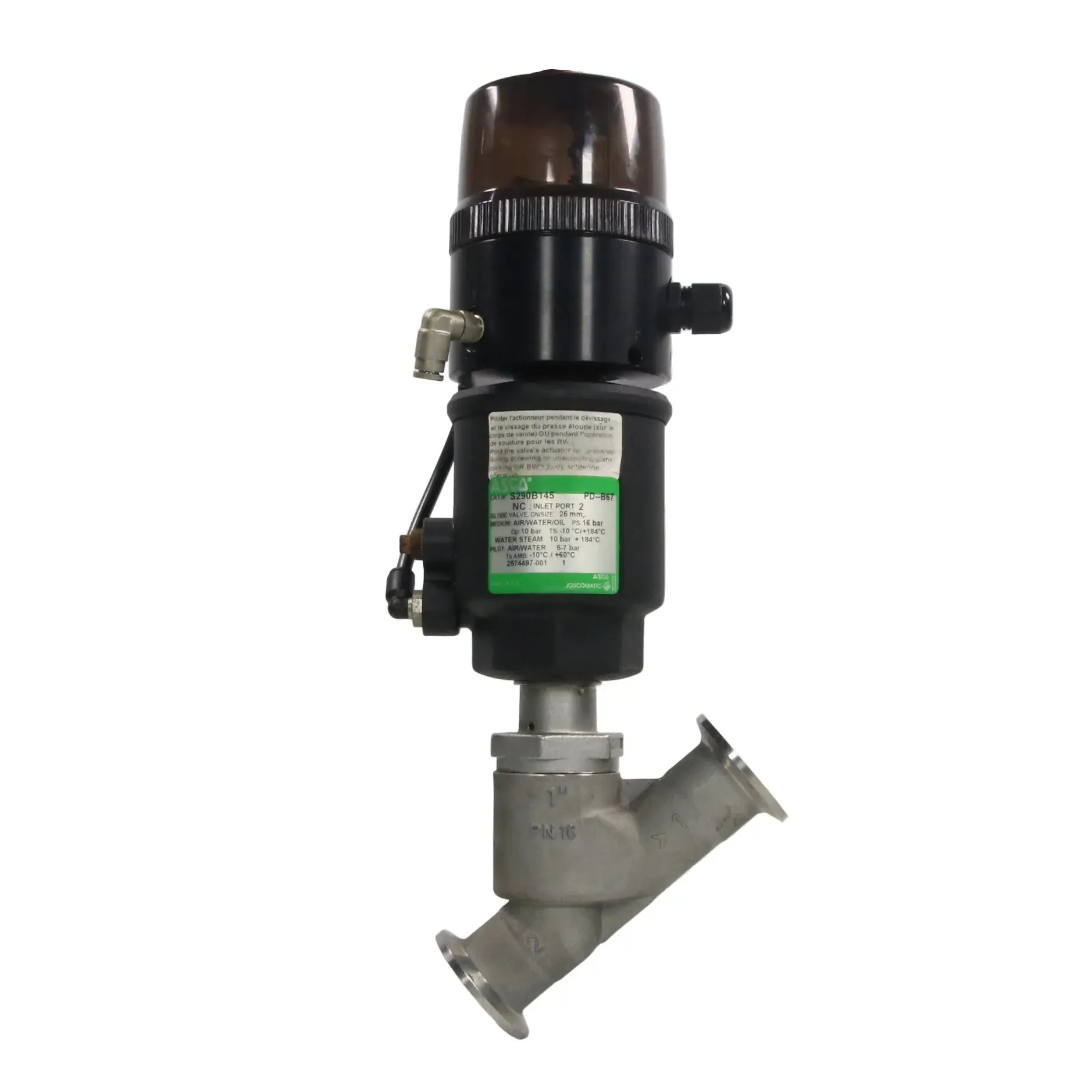

Asco S290B145 Solenoid Valve with Positioner D

- Brand: ASCO (Emerson)
- Model: S290B145
- Type: Angle Body Solenoid Valve with Positioner D
- Technical Specifications:
  - Series: 290 (8290)
  - Function: Pressure-operated, direct-acting angle-body piston solenoid valve with proportional positioner for variable flow control based on 4-20 mA
  - Body Material: Stainless steel
  - Pipe Size: 1"
  - Orifice Size: 25 mm
  - Cv Flow Factor: 19.08
  - Operating Pressure Differential: 0...10 bar - Air/Water/Light Oil/Steam
  - Max Fluid Temperature: 184°C
  - Positioner: Compact digital positioner for proportional control, manual override, 4-20      mA signals
  - Features: Normally closed, visual/electrical position indicator, stroke limiter optional, low power consumption, suitable for general service
- Dimensions: 360 x 180 x 120 mm
- Weight: 2.8 kg
- Country of Origin: France
- HS Code: 848180
