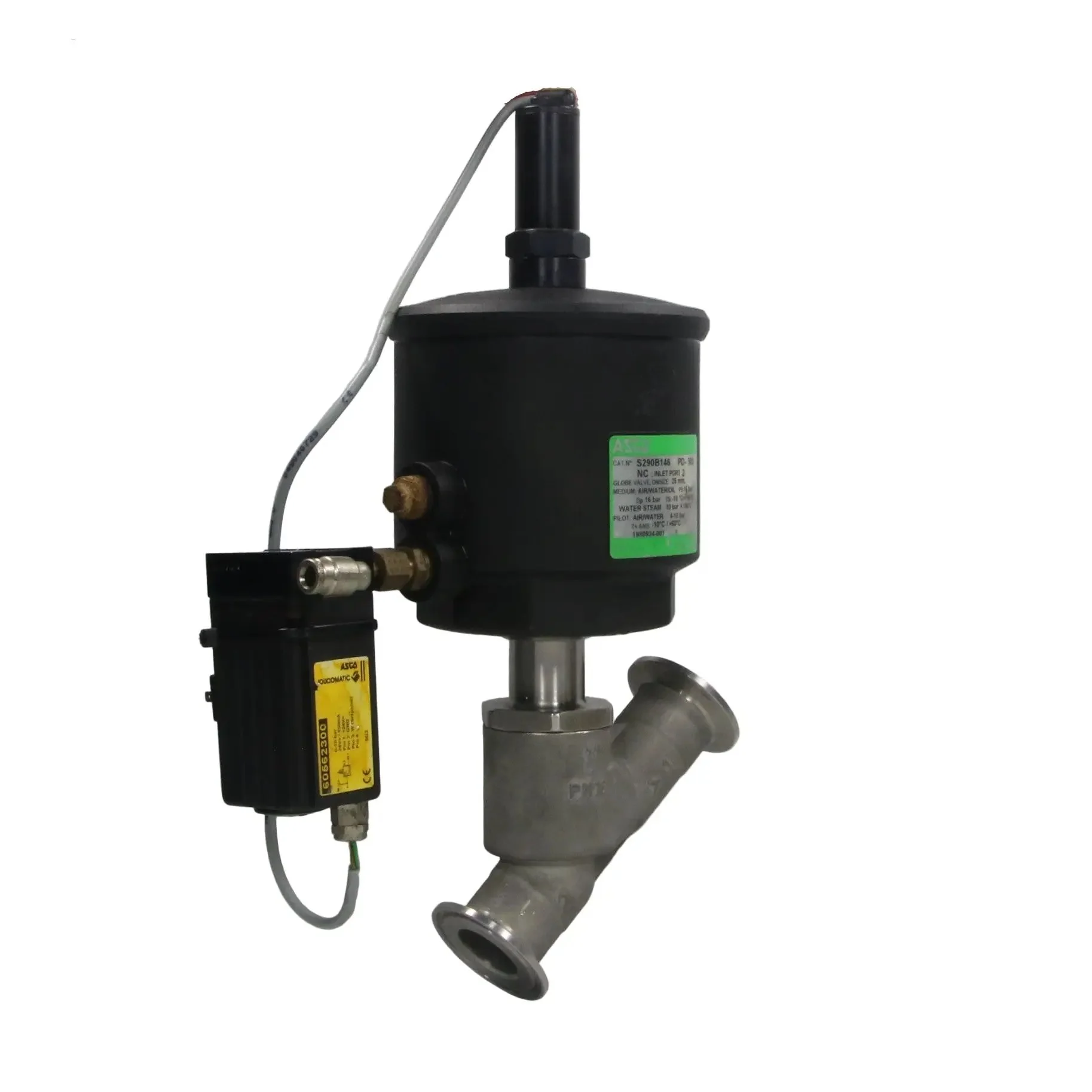

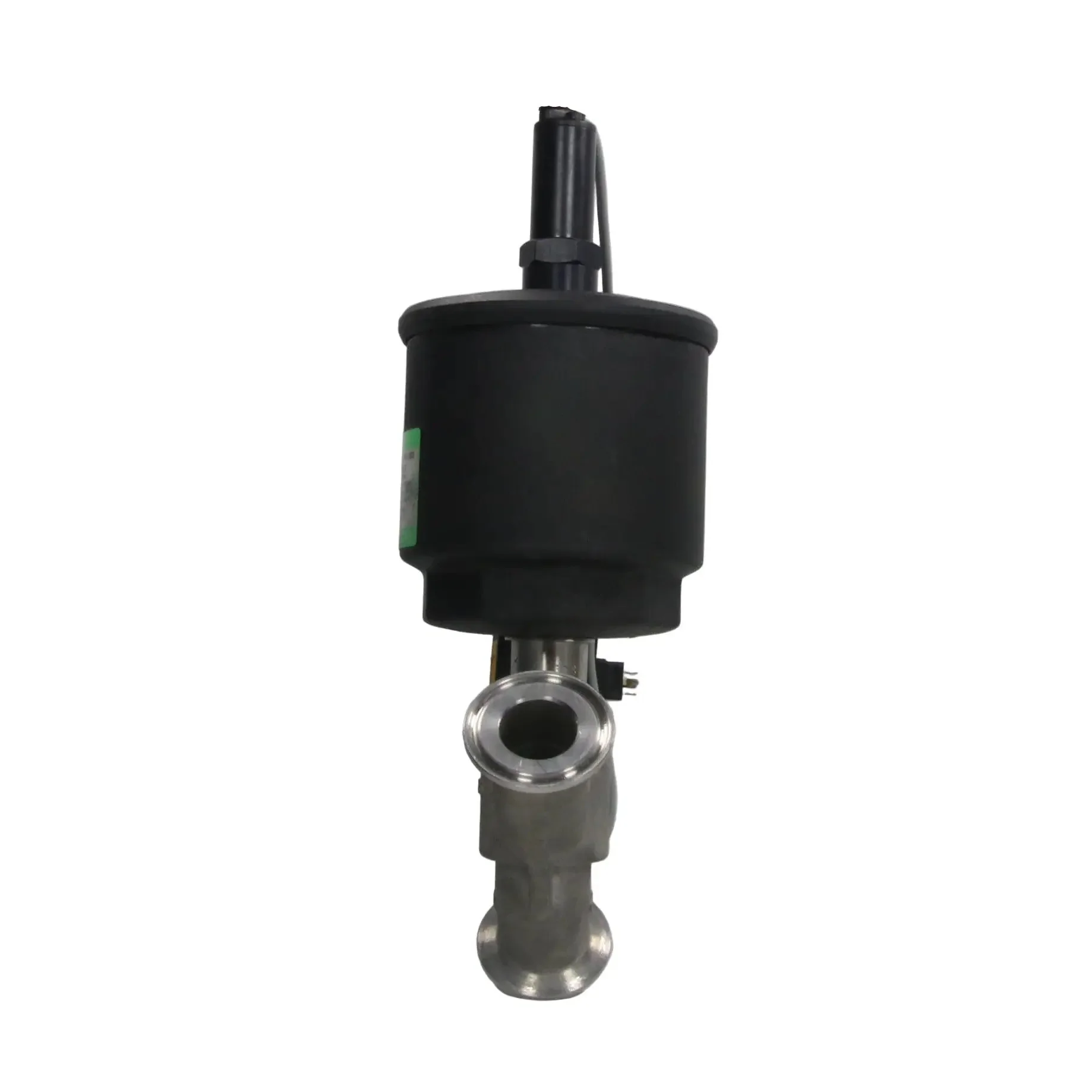

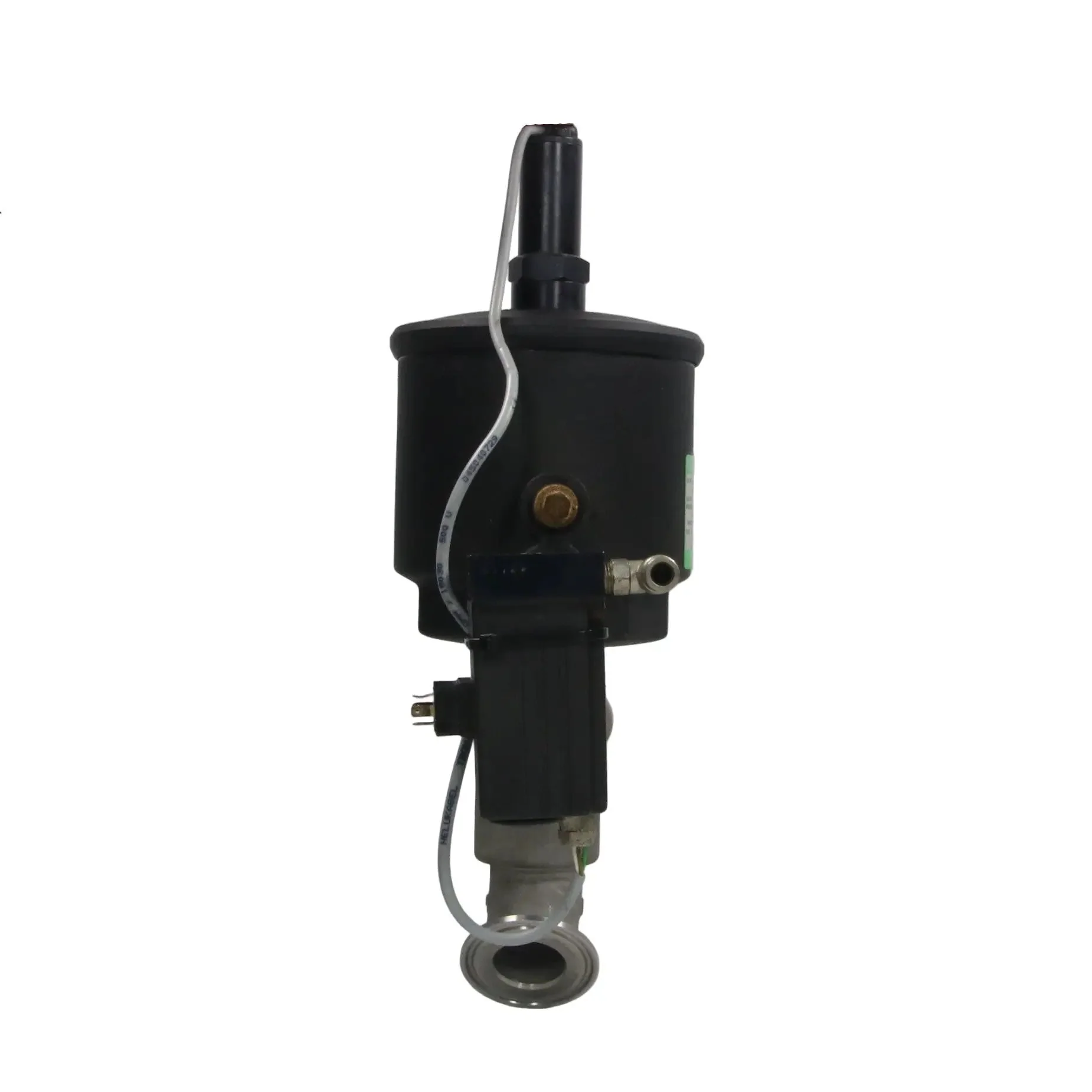

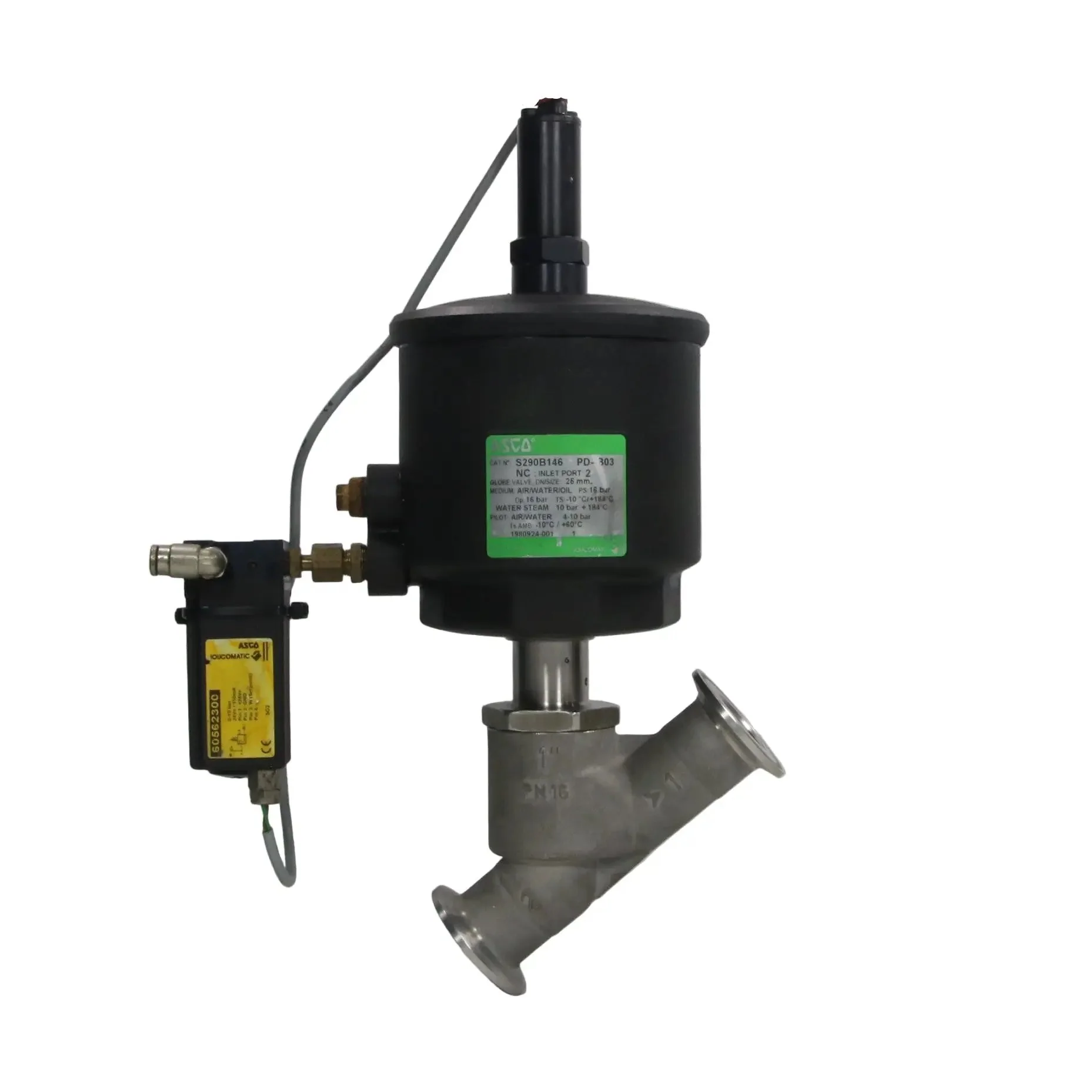

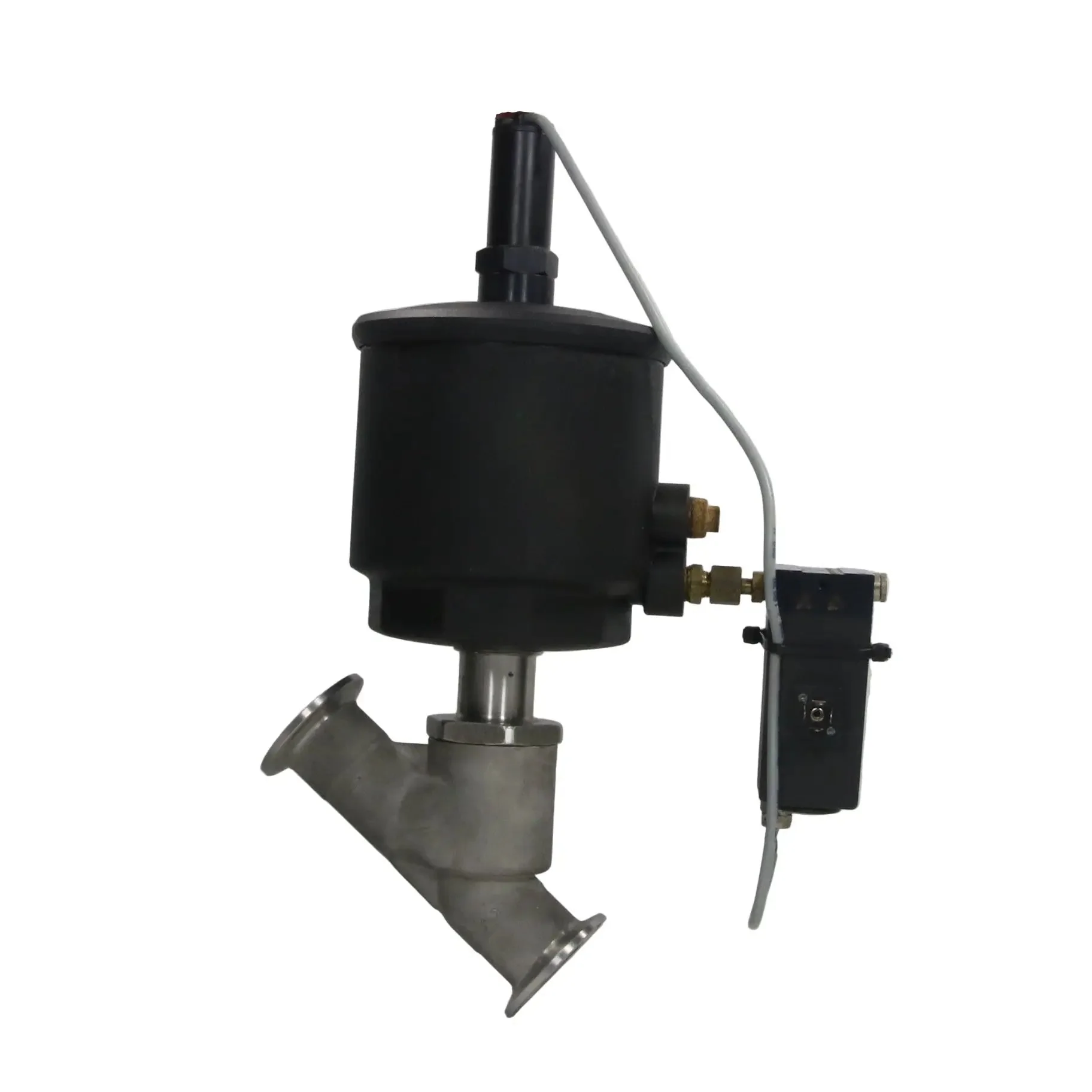

Asco S290B146 Valve with Joucomatic 60562300 Pilot Solenoid

Brand: ASCO (Emerson) + Joucomatic

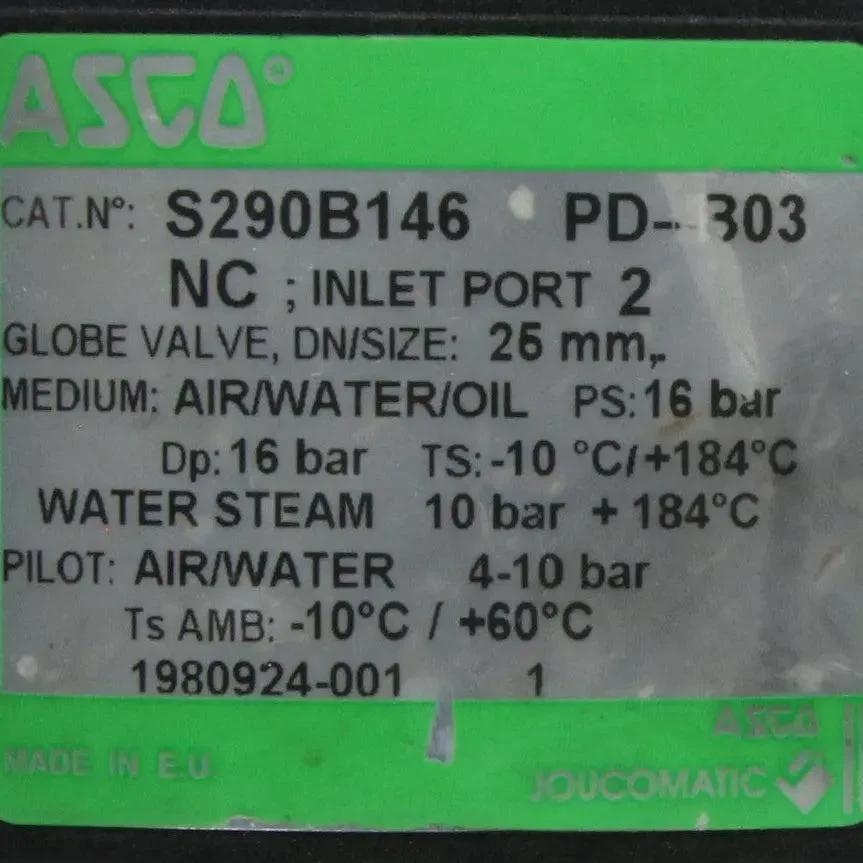

Model: S290B146 + 60562300
Type: Motorised Solenoid Valve
Function: 2/2 NC pressure-operated valve with external 24 V DC pilot solenoid
Body material: Stainless steel AISI 316L
Port size: G 1" (DN 25)
Orifice: 25 mm
Kv: 11.5 m³/h
Cv: 13.3
Operating pressure: 0 – 16 bar
Fluid temperature: –10 °C to +184 °C
Ambient temperature: –10 °C to +60 °C

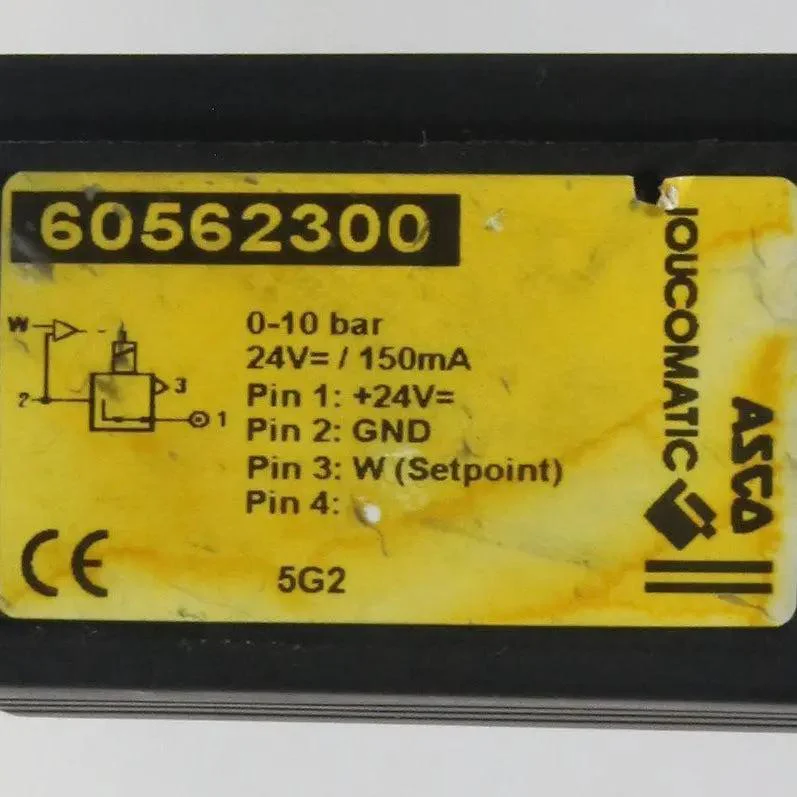

Pilot solenoid: Joucomatic 60562300 (ASCO SCG238A050)
Pilot voltage: 24 V DC
Seal material: PTFE
Actuator: Stainless steel piston
Dimensions: 320 x 220 x 120 mm
Weight: 2.8 kg
Country of origin: France
HS code: 848180
