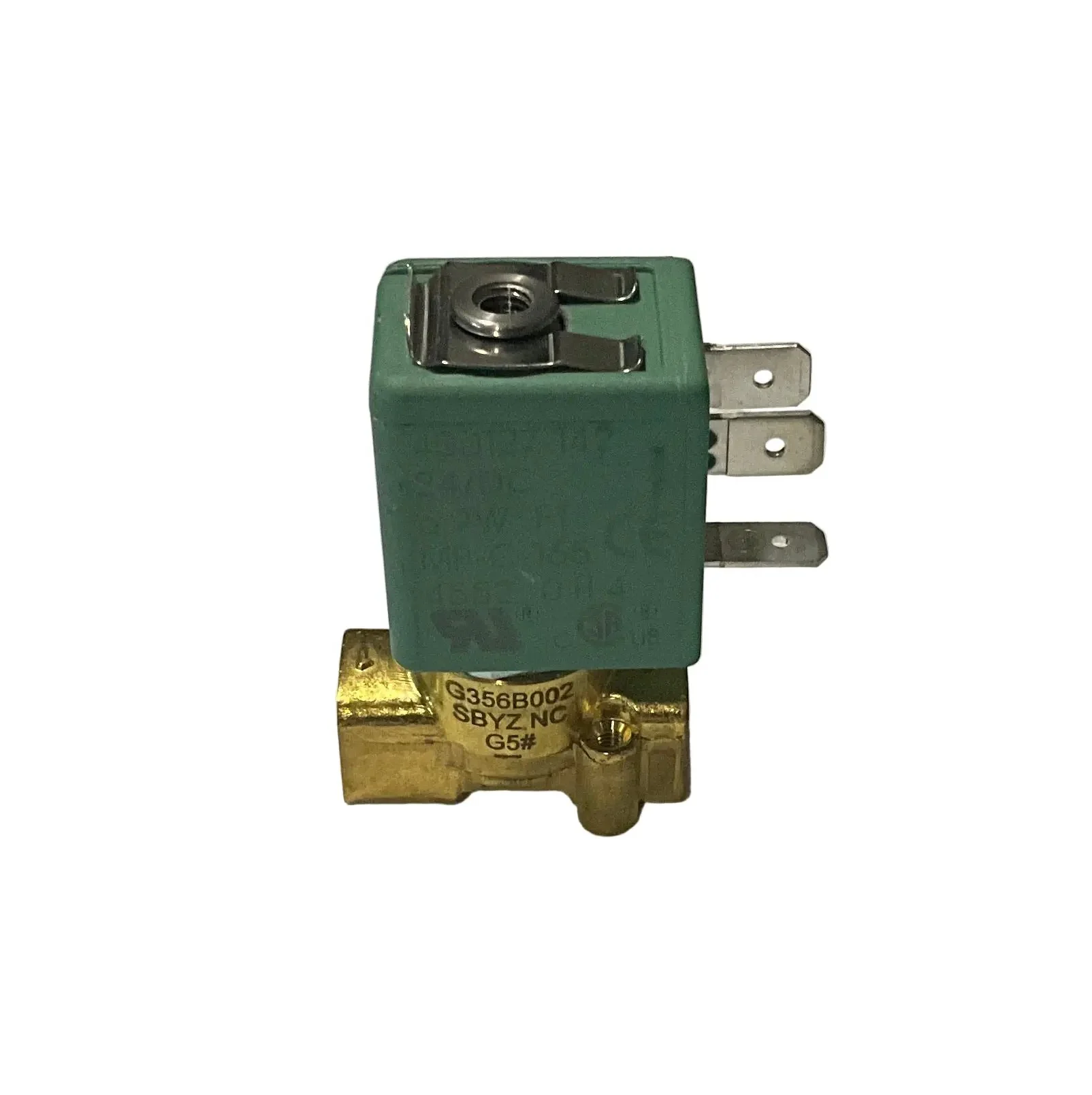

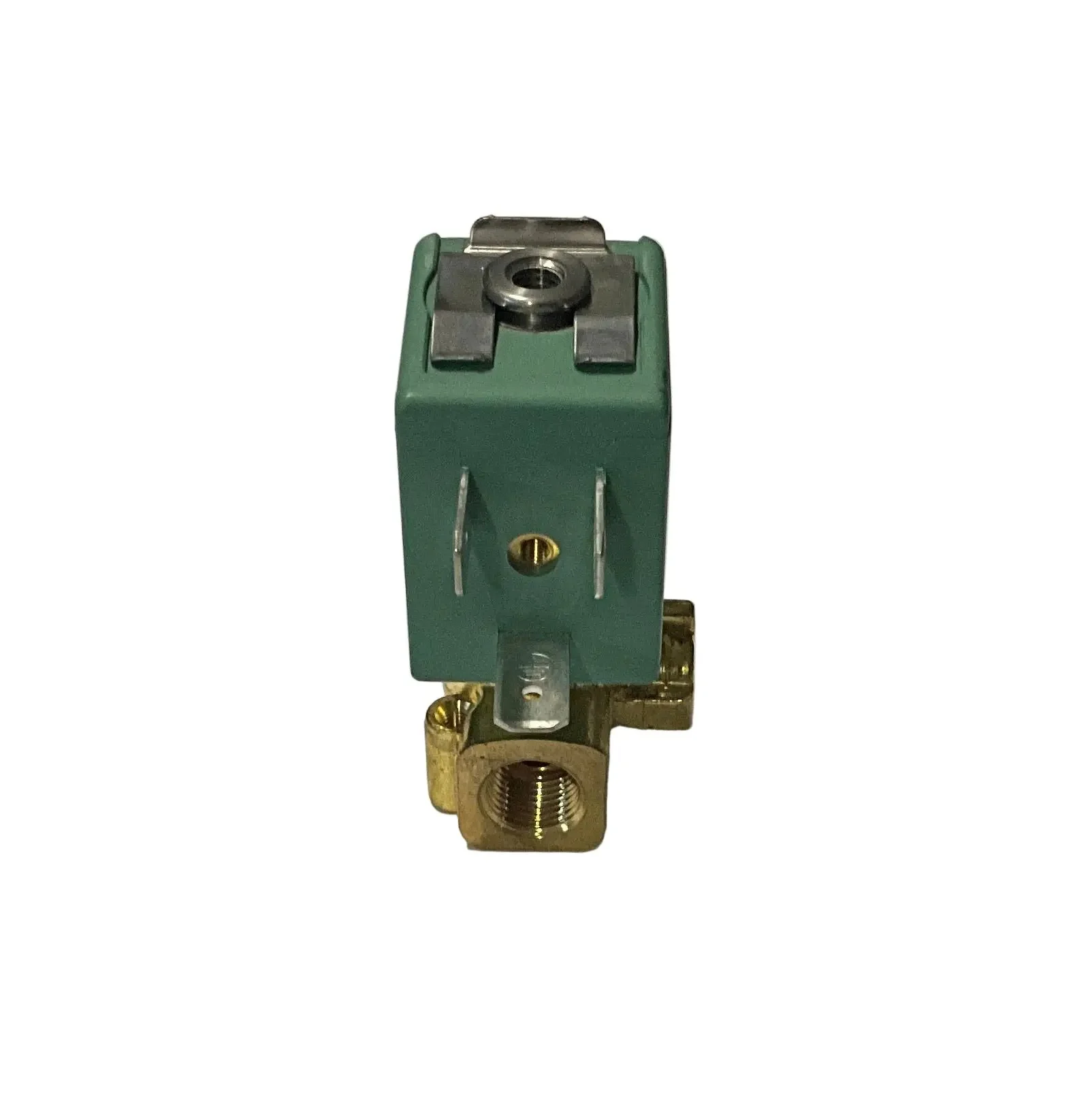

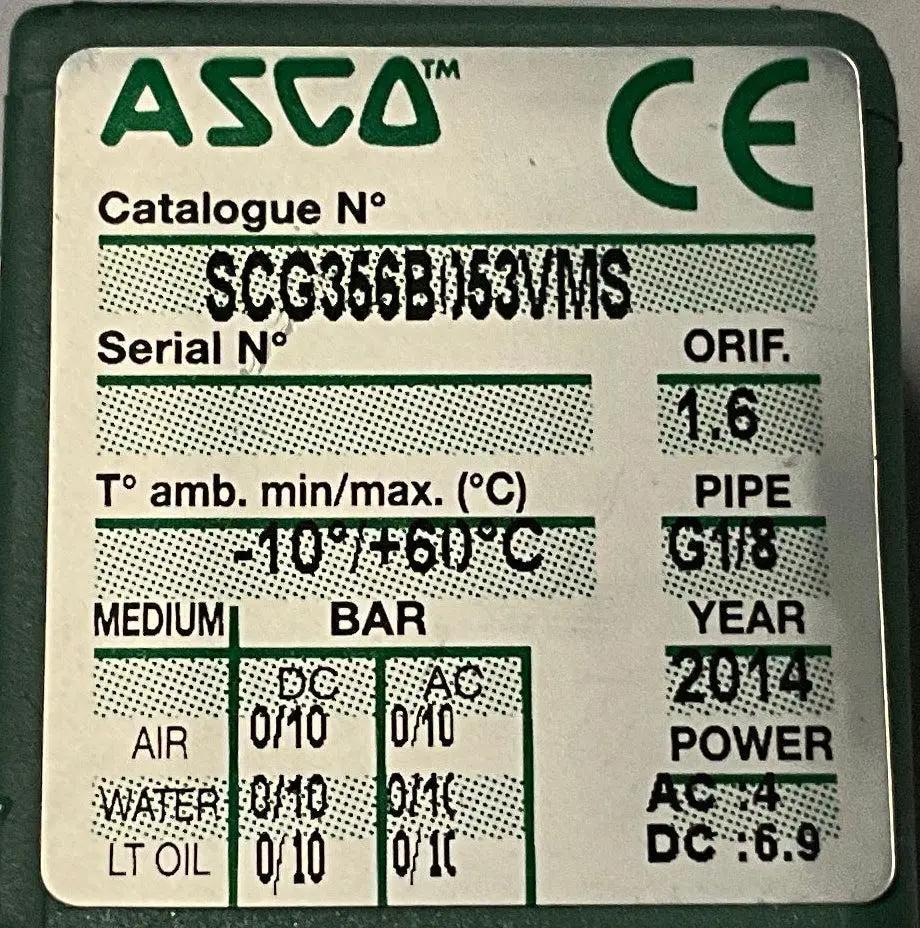

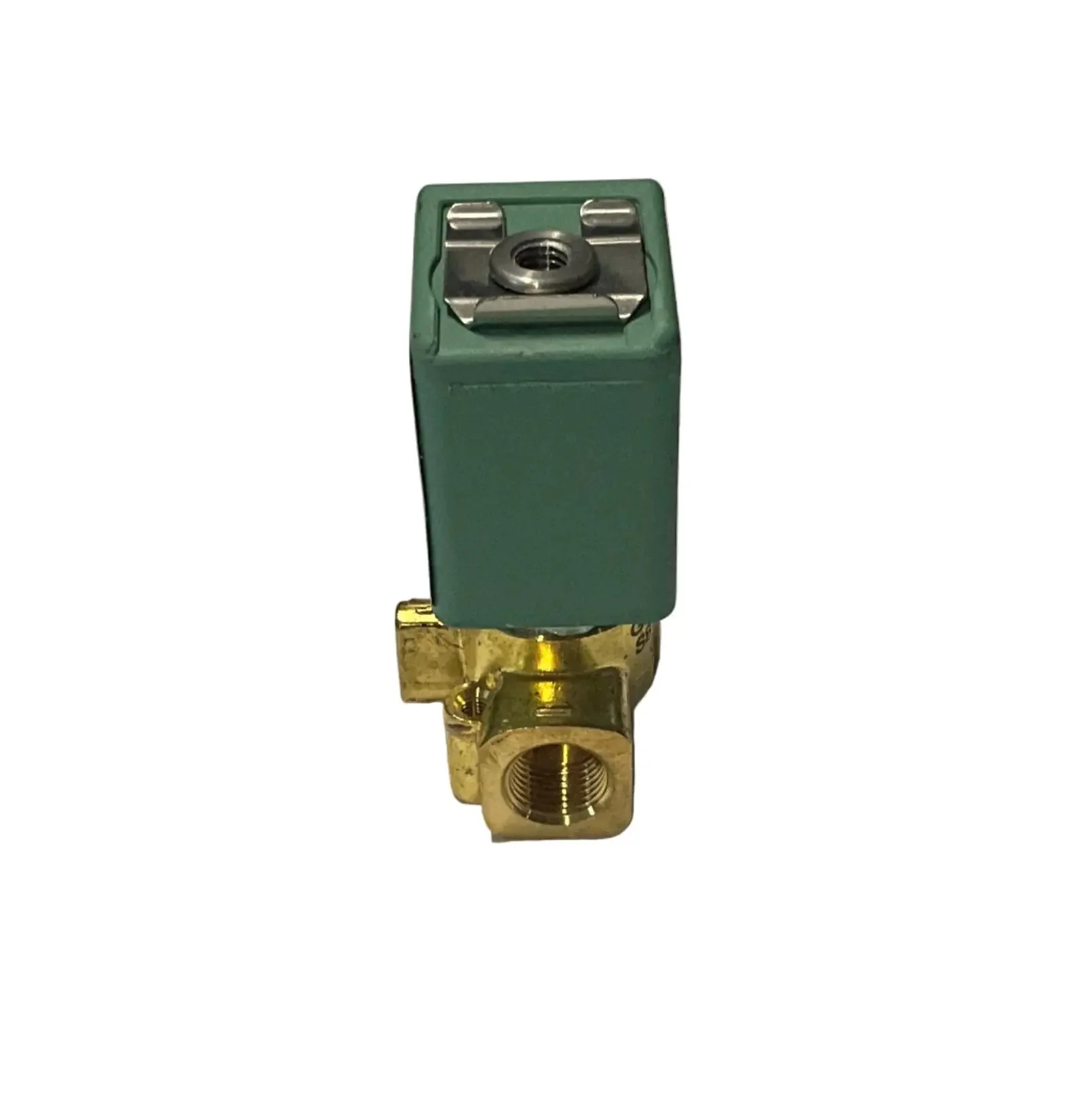

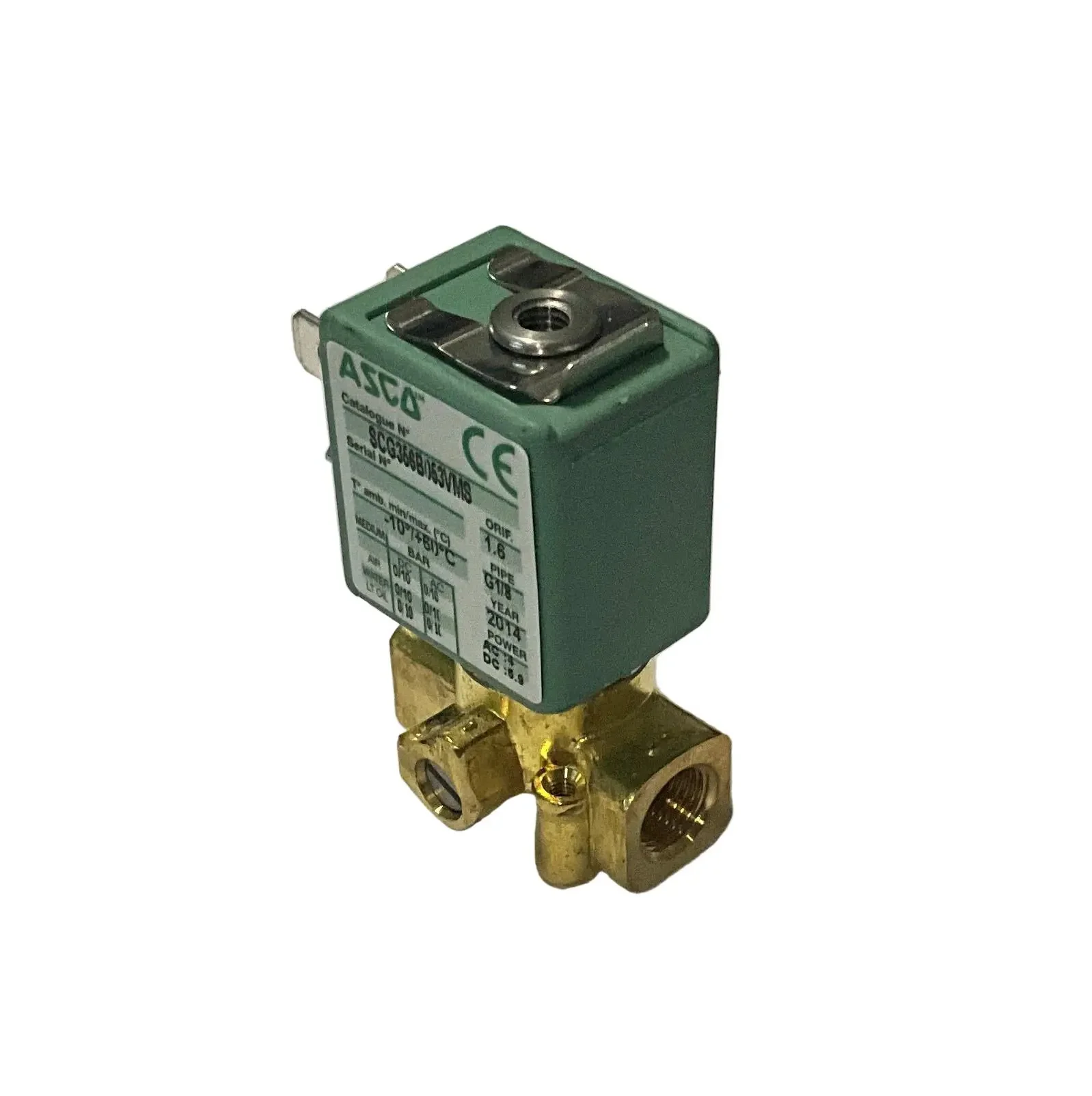

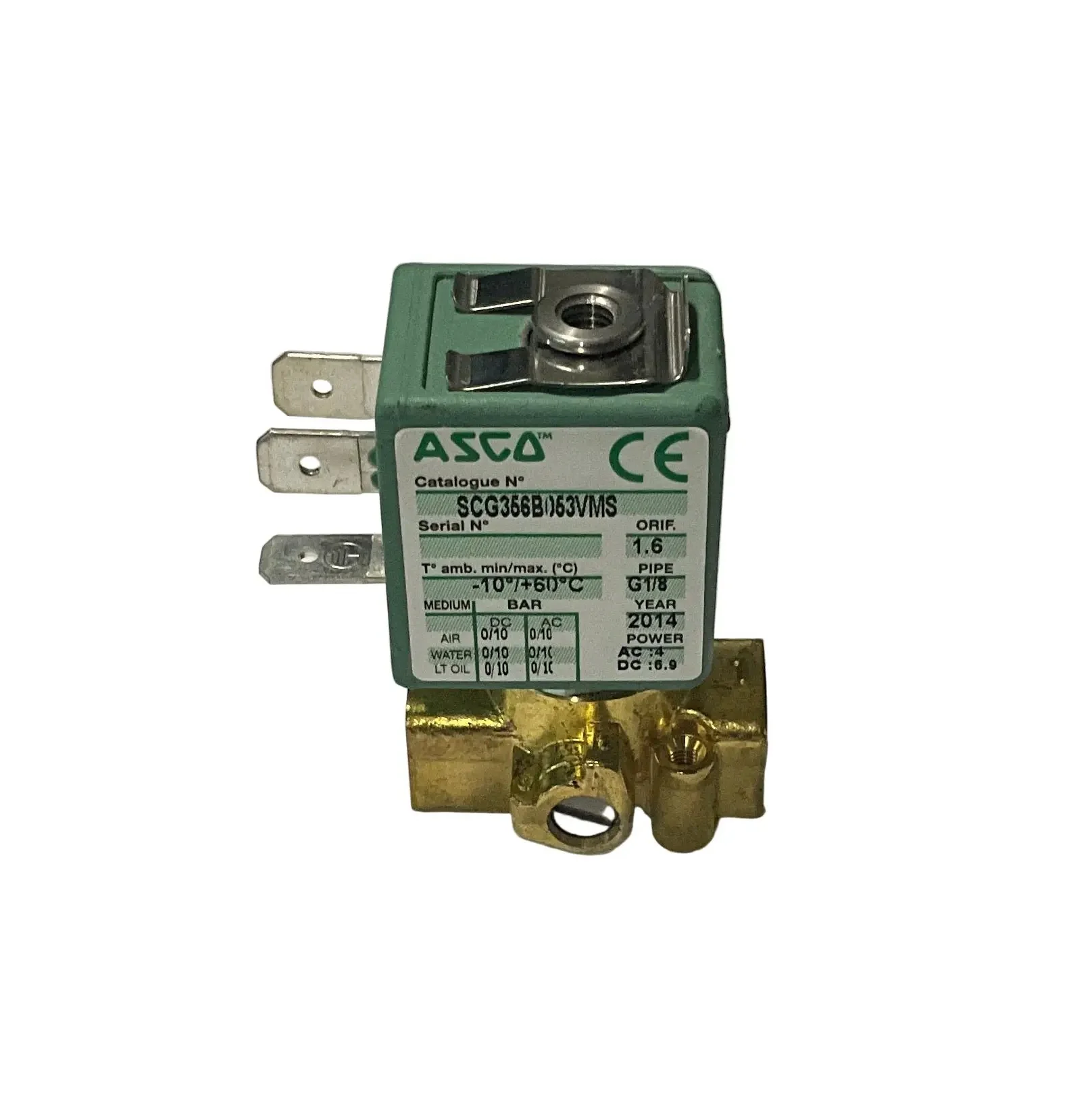

Asco SCG356B053VMS.24DC Solenoid Valve
Brand: ASCO (Emerson)
Model: SCG356B053VMS
Type: Solenoid Valve
Part Number: SCG356B053VMS.24DC
Technical Specs:
- Valve Function: 3/2 Normally Closed (NC)
- Actuation: Direct operated
- Port Connection: G 1/8 (ISO 228/1)
- Orifice Size: 2.4 mm (0.094 in)
- Flow Coefficient (Kv): 0.14 m³/h (0.12 Cv)
- Operating Pressure Differential: 0 to 10 bar
- Maximum Allowable Pressure: 15 bar
- Medium: Air, water, light oil
- Medium Temperature Range: -10°C to 60°C
- Ambient Temperature Range: -10°C to 60°C
- Body Material: Brass
- Seal Material: FPM (Fluoroelastomer)
- Voltage: 24 V DC
- Power Consumption: 4 W

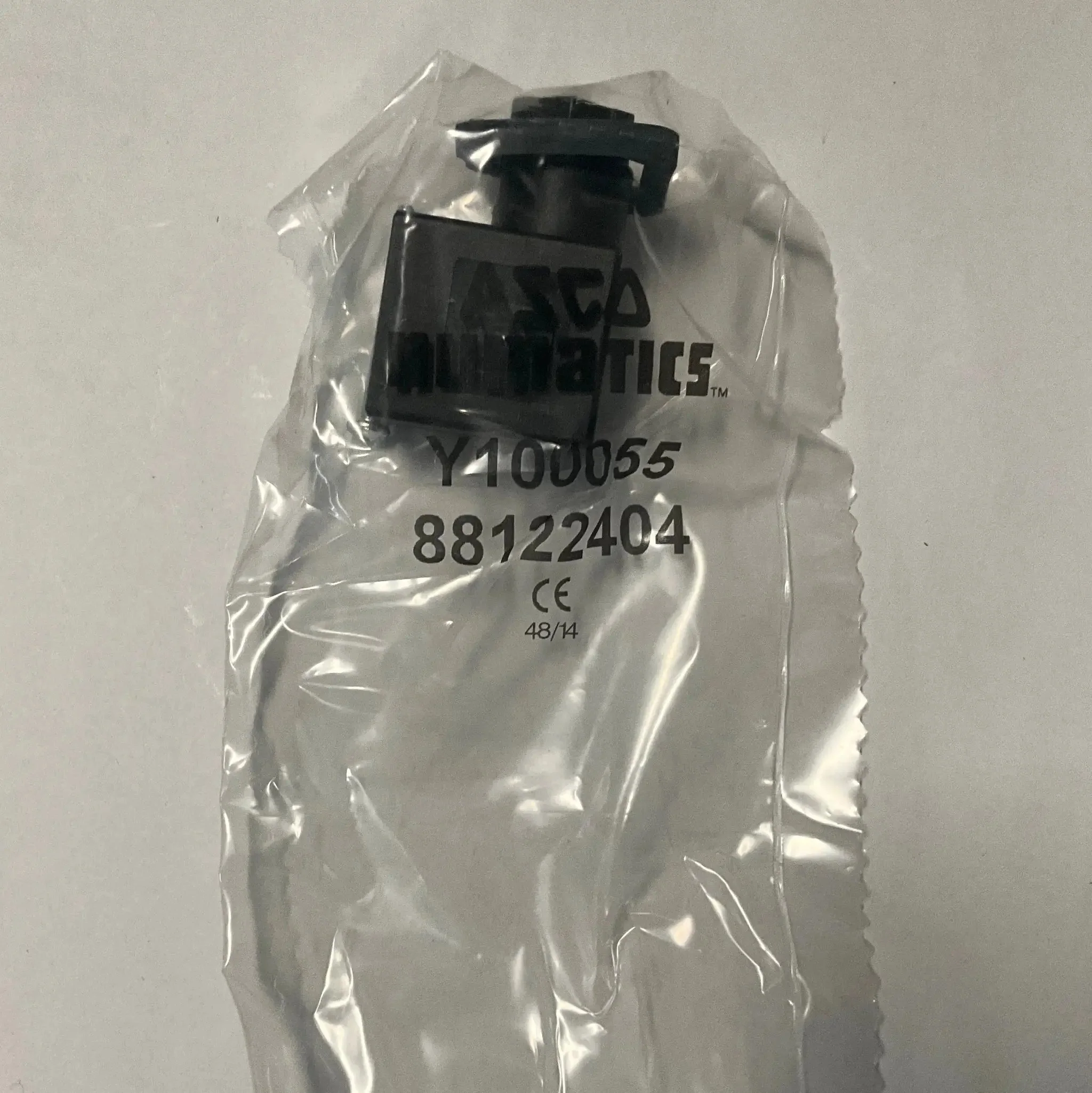

- Electrical Connection: Pluggable connector (per EN 175301-803)
- Enclosure Rating: IP65
- Manual Operator: Screw-type manual override (MS)
- Response Time: 10-20 ms
- Mounting: Via 2 tapped holes on lower section
- Certifications: CE, RoHS compliant
- Additional Features:
- Compact and lightweight design for single-acting actuators or filling/draining cycles - No minimum operating pressure required
- Wide range of flow and pressure ratings
- Quick disassembly of core tube for maintenance
Dimension: 50 x 30 x 70 mm
Weight: 190g
Country of Origin: Italy
HS Code: 8481.80
